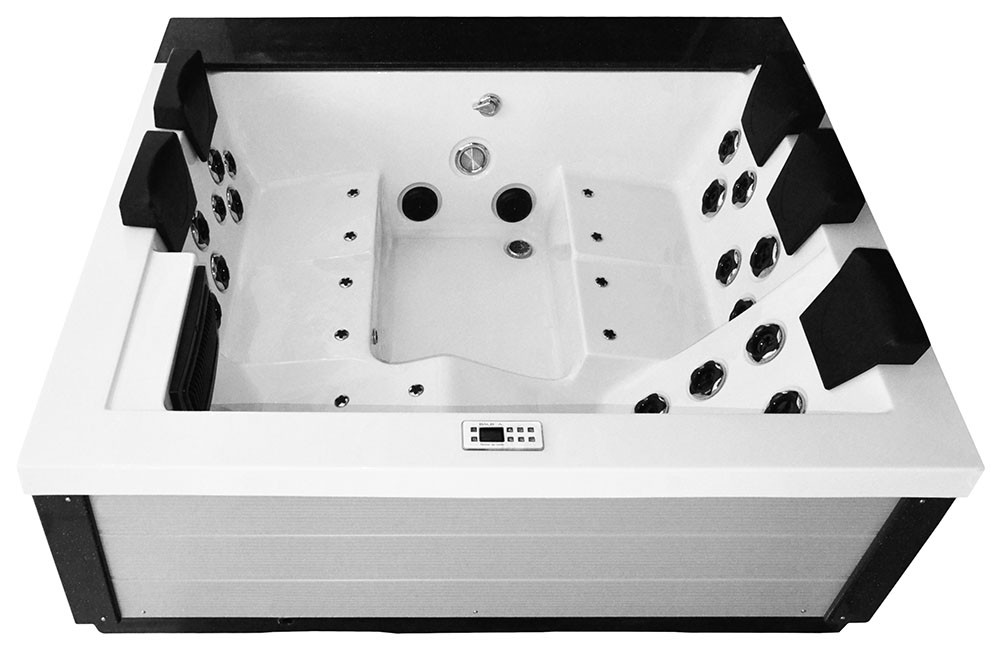

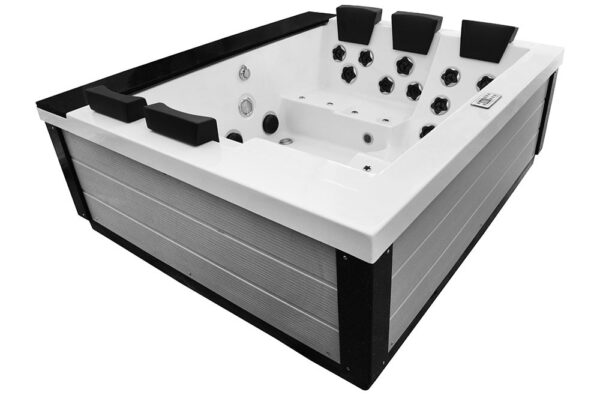

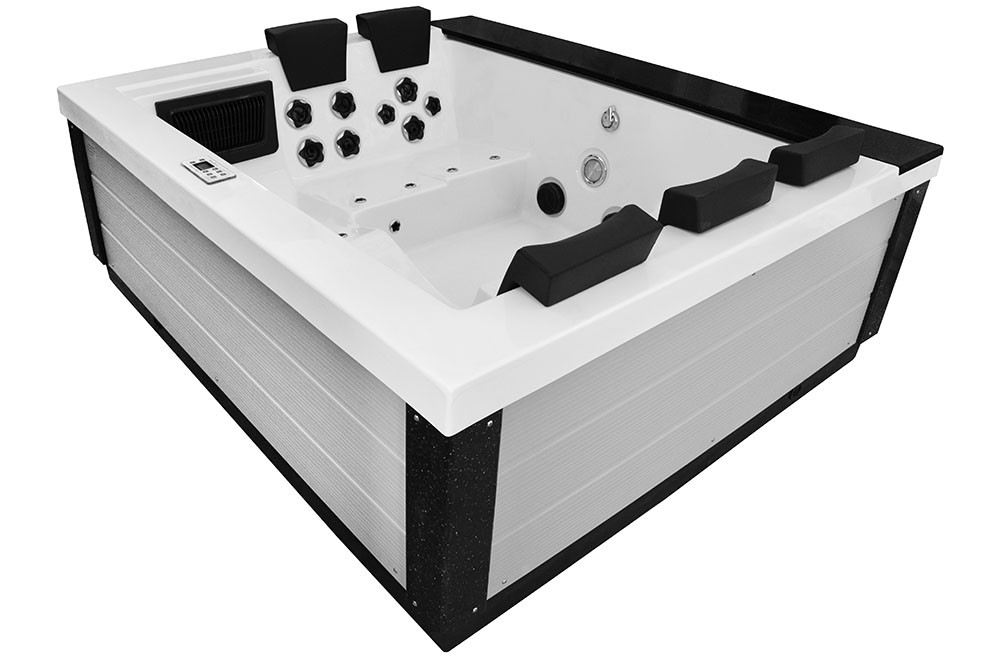

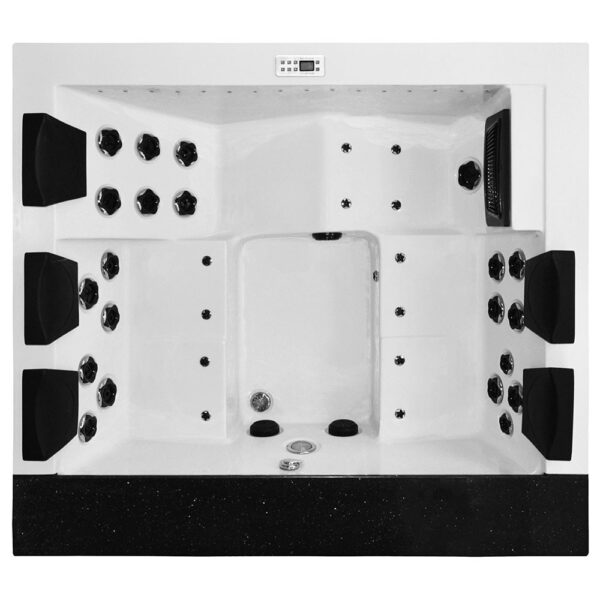

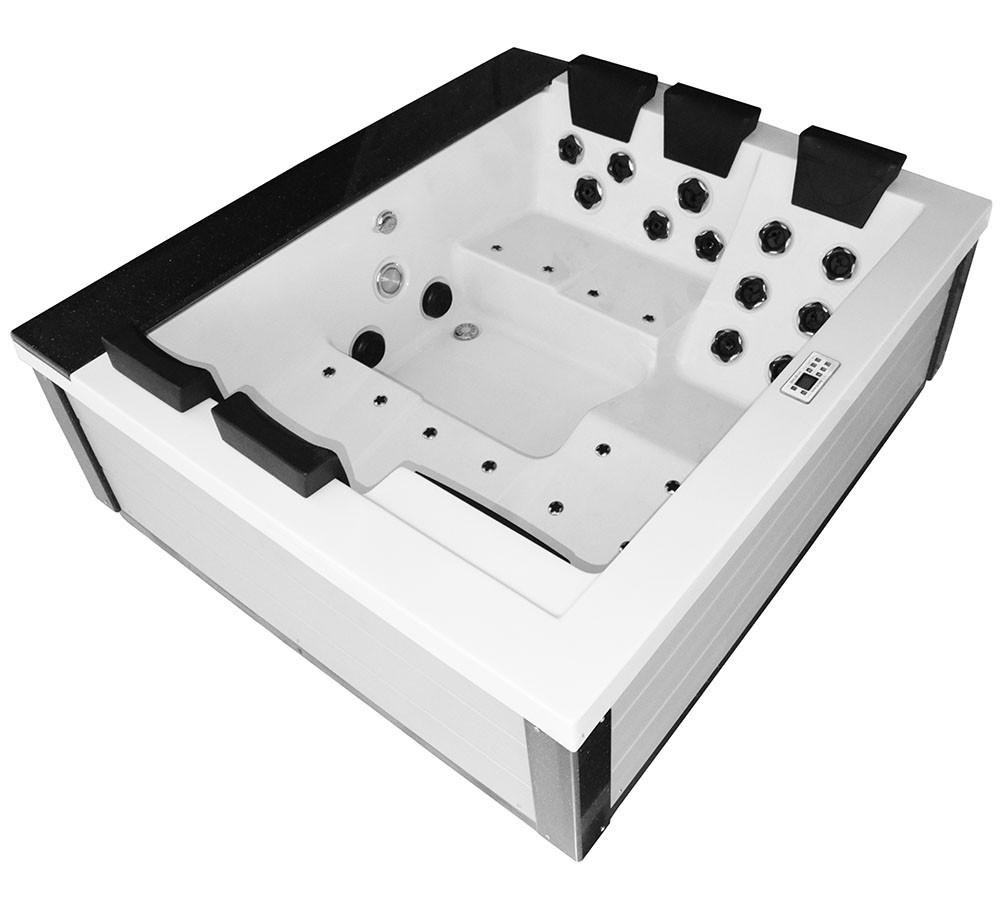

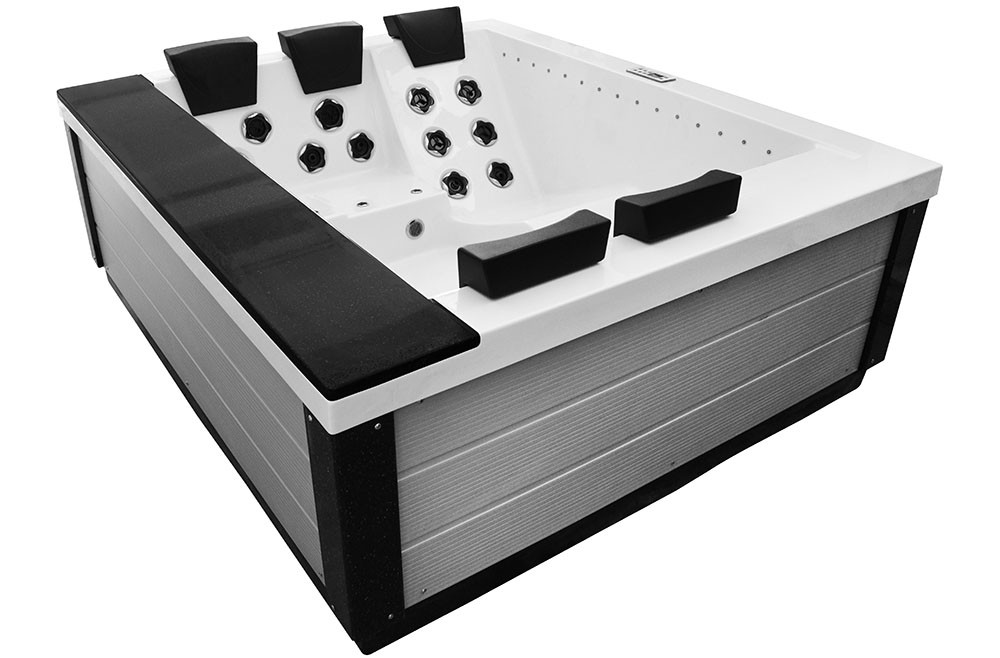

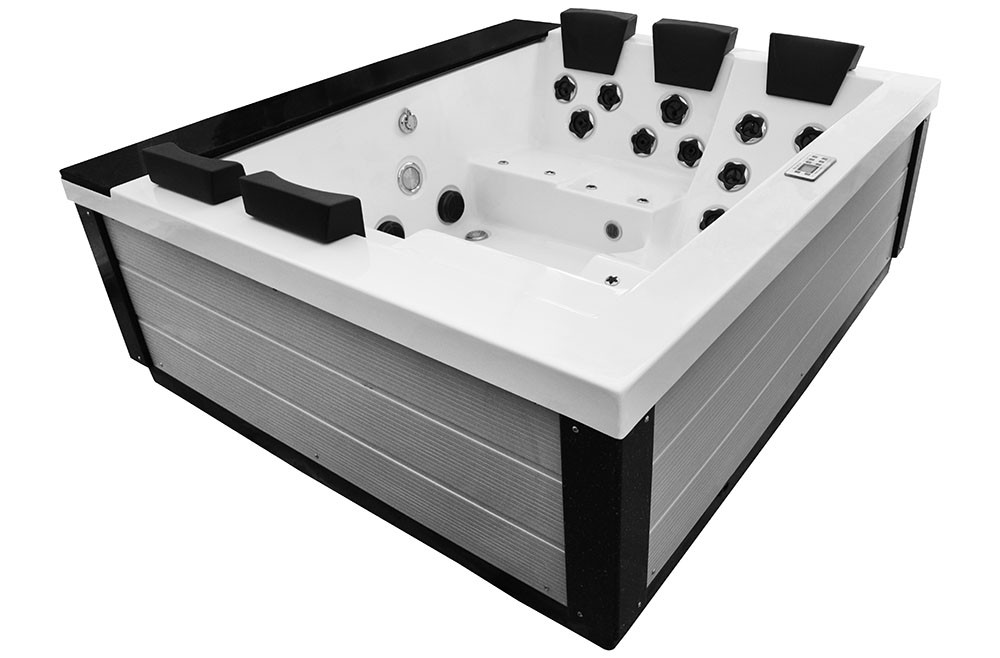

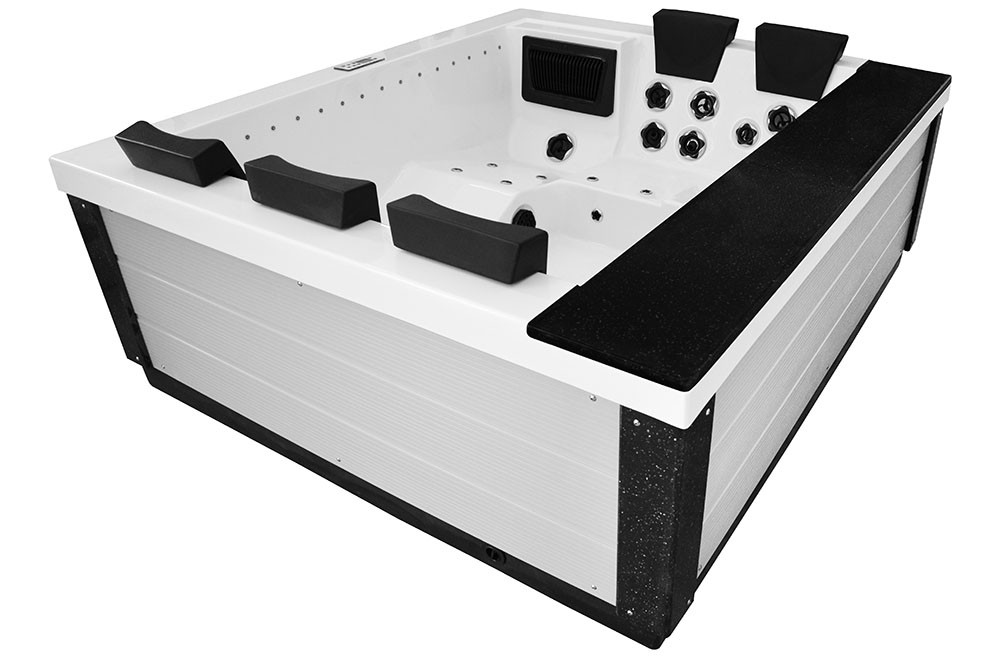

ACACIO 1545, 2200 x 1950 x 790mm

Description

PRODUCT SPECIFICATION:

Dimensions: 2200 x 1950 x 790mm
Number of seats: 5 people (1 berth)
Headrest: 5 pcs.
Power supply: 380 V three-phase power supply
Coating: USA acrylic
Stainless steel construction: yes
Jets flush with acrylic
The number of pumps: 4 pcs. In total
Total power: approx. 6.5 kW in total
Water jets: 21 pcs, including:
– Water jets (3.5 “): 2 pcs (including 2 rotating)
– Water jets (4.5 “): 16 pcs (including 9 rotating)
– Water jets (5 “): 3 pcs (including 2 rotating)
2HP / 1.5kW water pump: 1pc
1.5HP / 1.1kW water pump: 1pc
Circulation pump 0.35HP / 0.25kW: 1 pc.
Air jets: 12 pcs.
0.7kW air pump: 1 pc.
Marble Waterfall: 1 pc (seven kinds of color)
Fiber optic lights: 16 pcs (seven kinds of colors)
SPA light: 1 pc.
Waterfall valve: 1 pc.
Drain valve: 1 pc.
Inlet valve: 3 pcs.
3 KW heater: 1 pc.
Ozone Generator: Yes
BALBOA TP-600 control panel
Non-slip bottom: yes

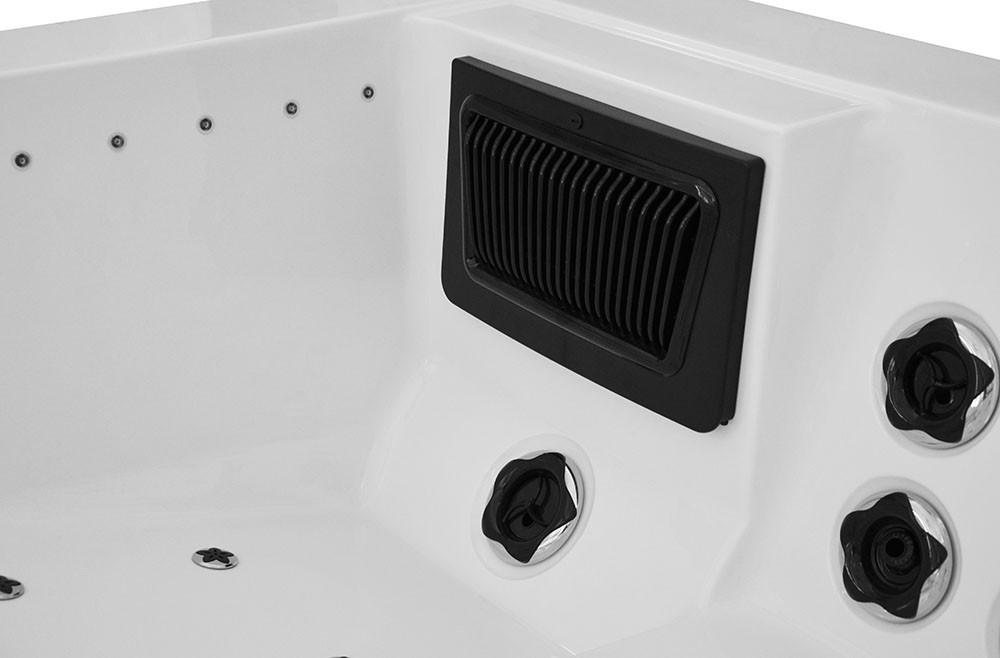

Filter element: 1 pc.

ADDITIONAL OPTIONS:

1. Color: €280, –

2. External housing: €450, –

3. Steps: €150, –

4. Thermal coverage: €300, –

5. Full insulation: €600, –

6. UV lamp: €250, –

7. Balboa SpaTouch touch panel: €400, –

8. Balboa wi-fi module: €450, –

9. Bluetooth Balboa + 2 speakers: 850, –

10. Microsilk function: 2200, –

USA acrylic

Each garden bathtub in our offer has a basin made of high-quality US acrylic. The coating of the bathtubs is 100% acrylic without any additives, which means that it will not tarnish even after 10 years and is very resistant to scratches. The acrylic thickness in our bathtubs is even several times greater than the coatings of other bathtubs on the market. The color of the acrylic, just like the housing, can be selected from the color chart.

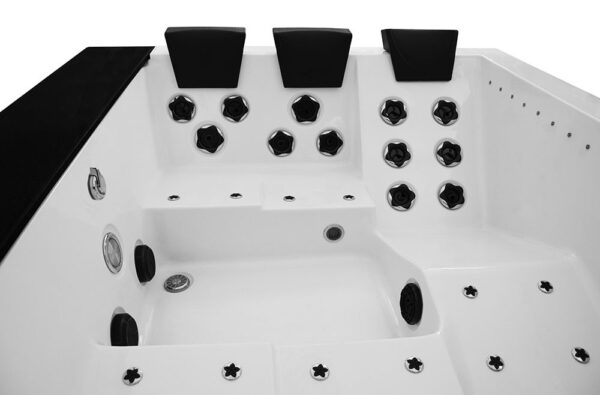

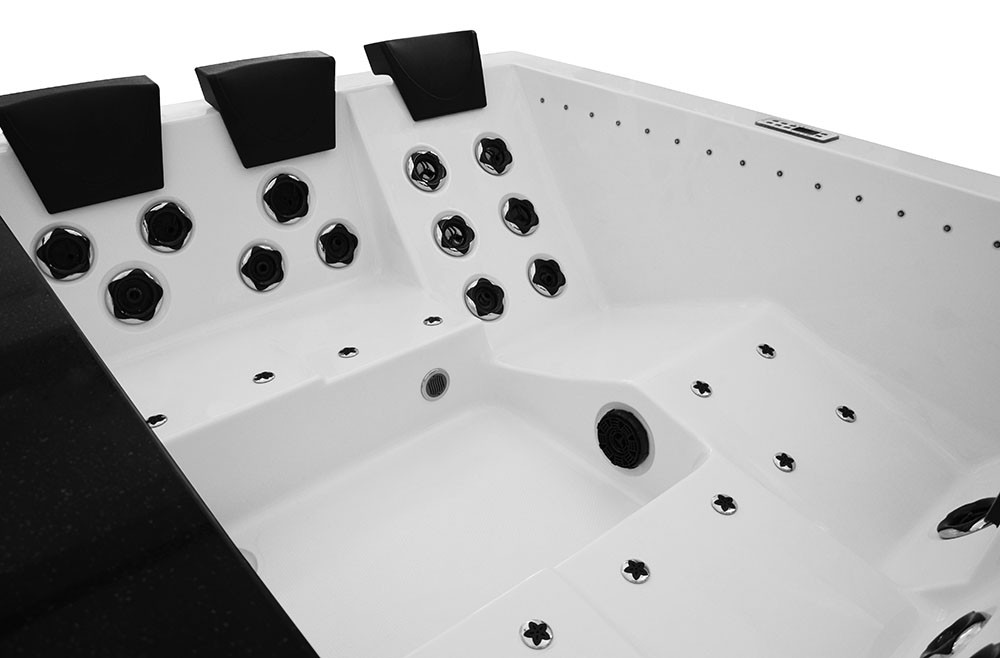

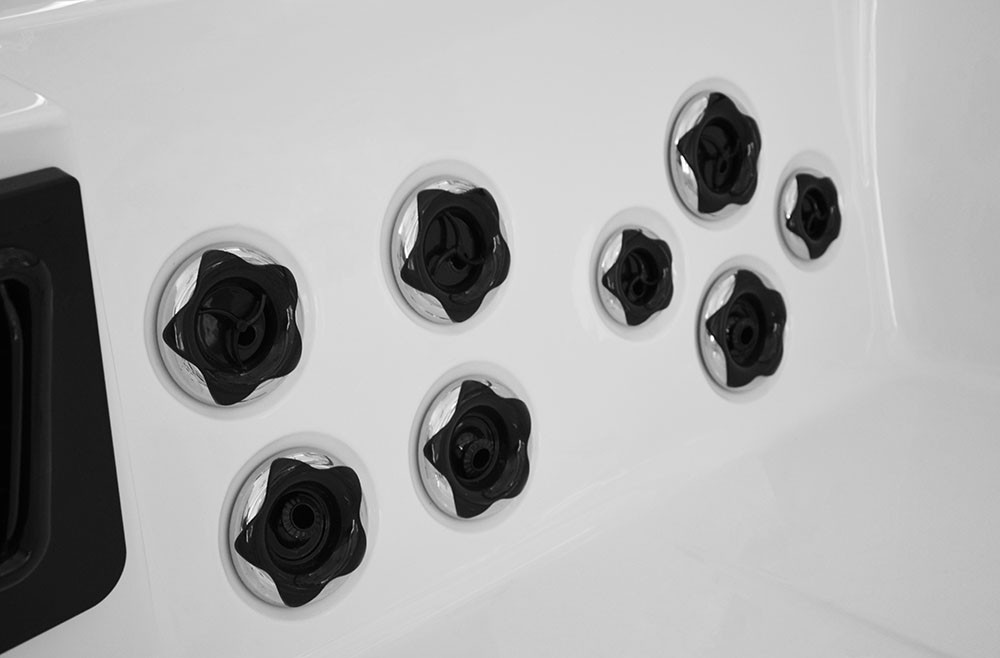

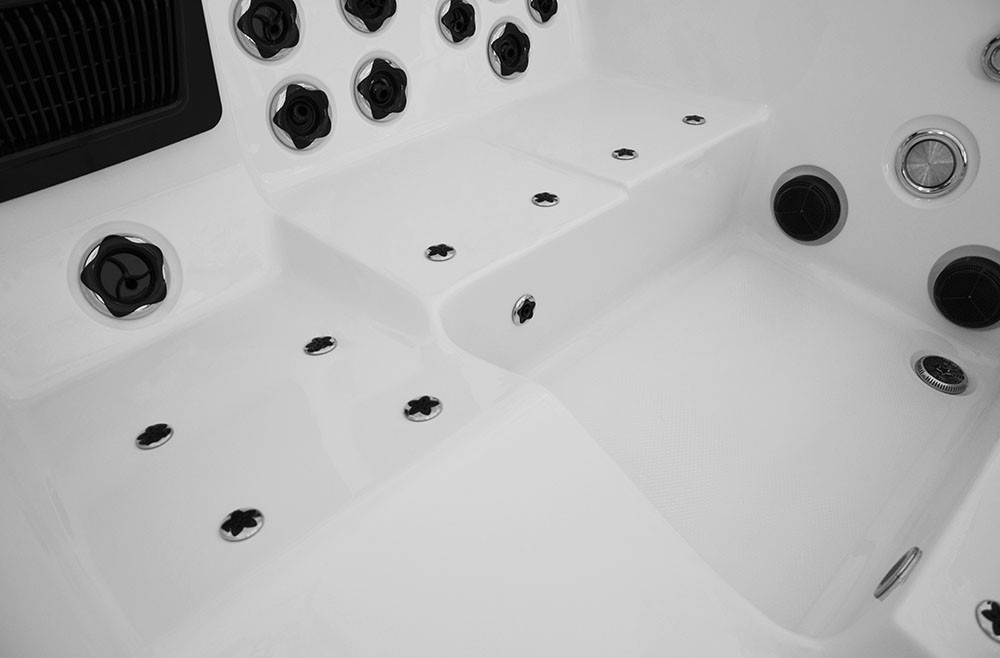

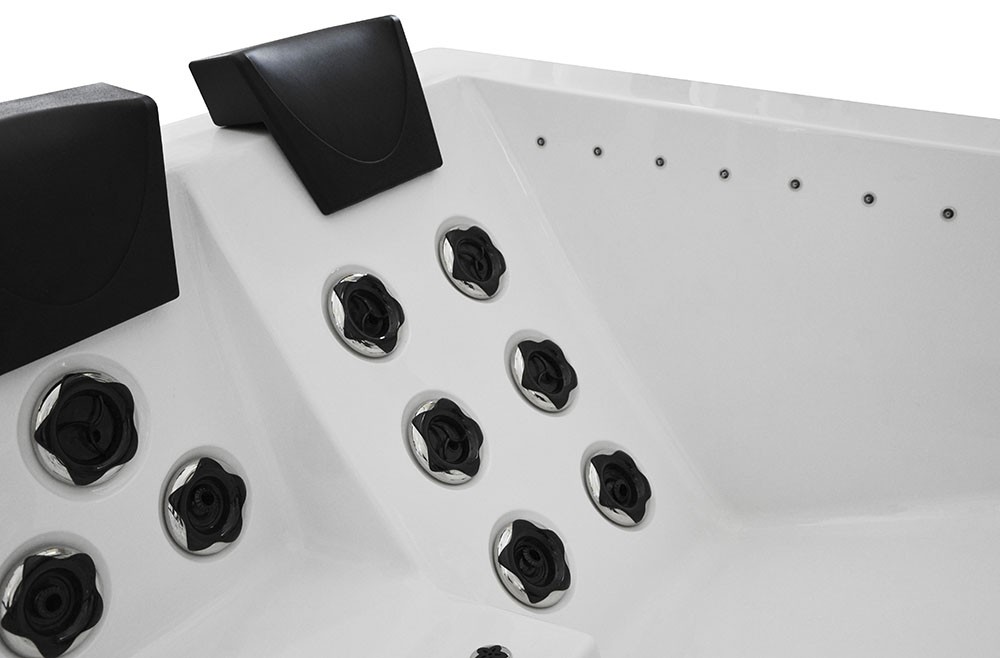

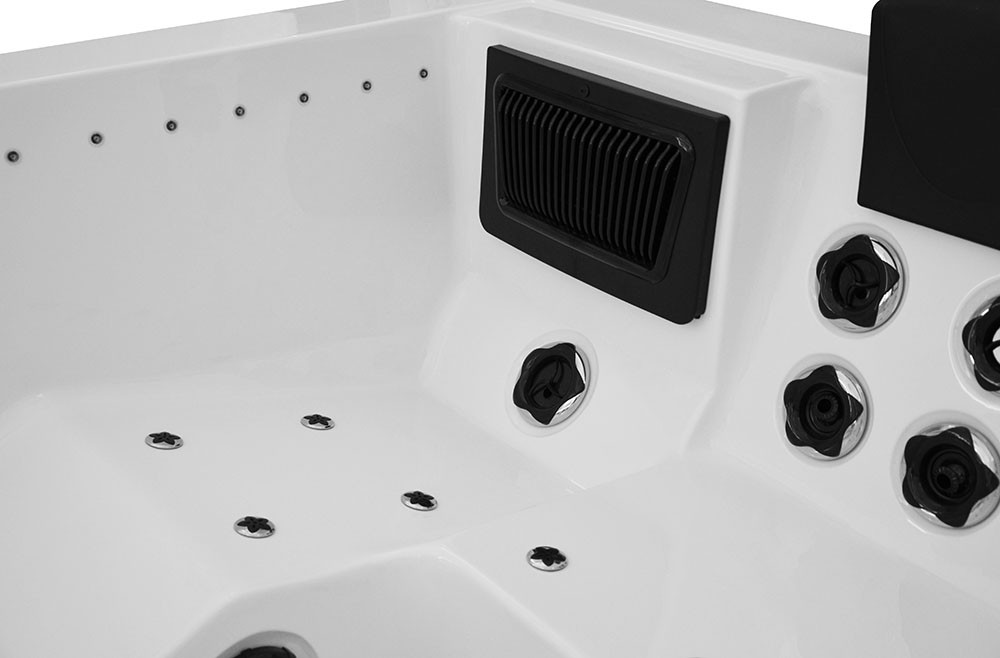

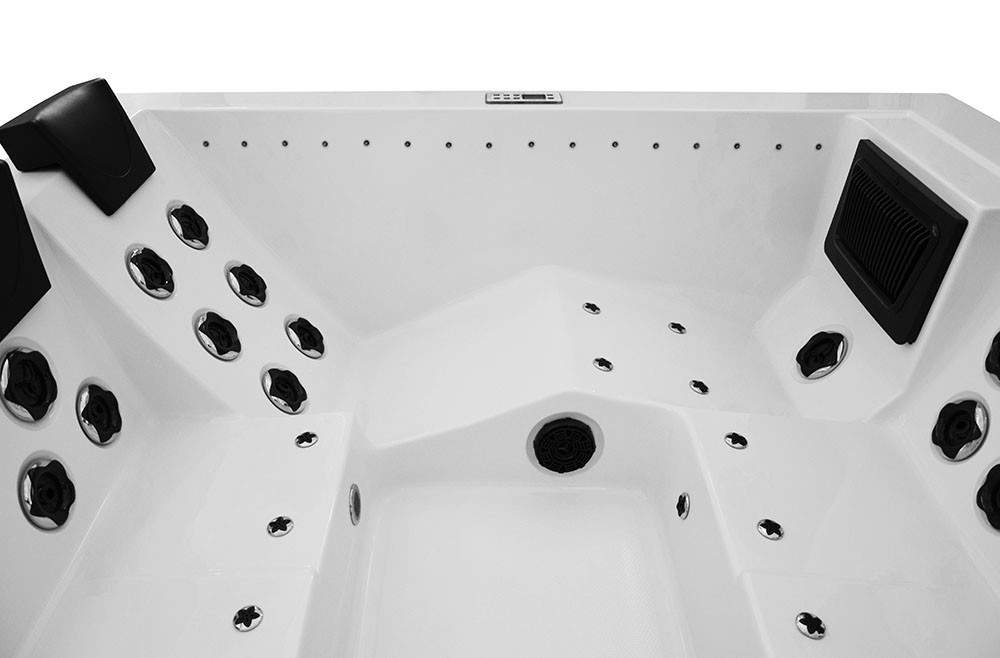

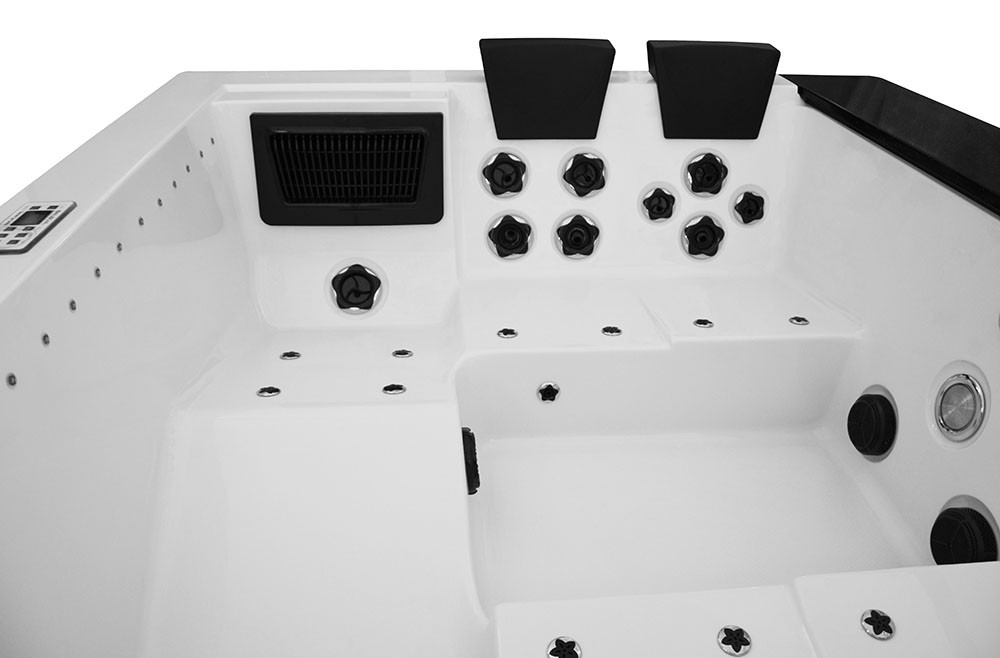

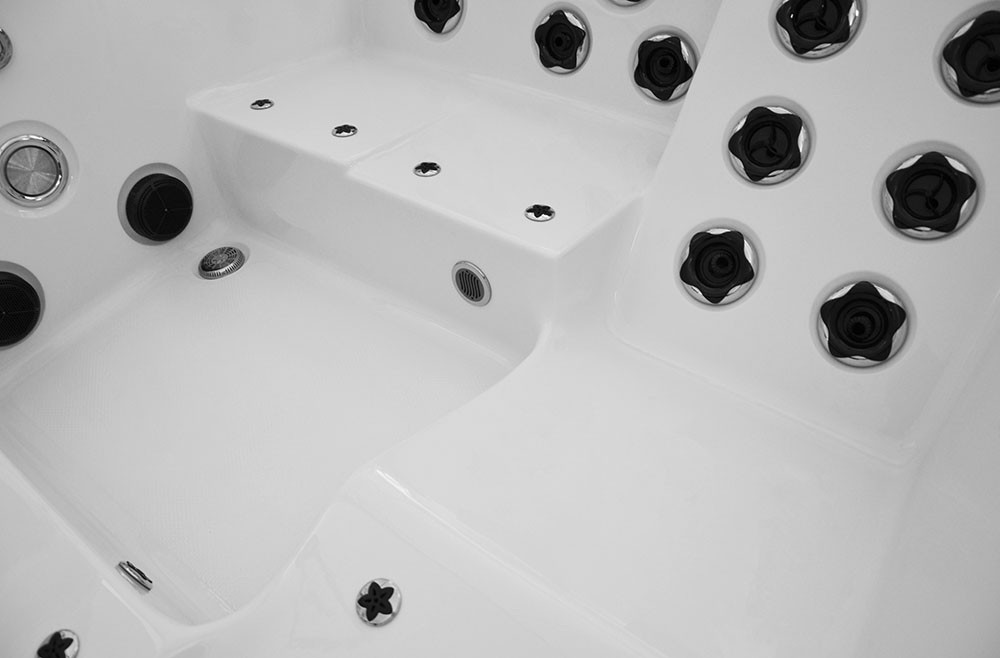

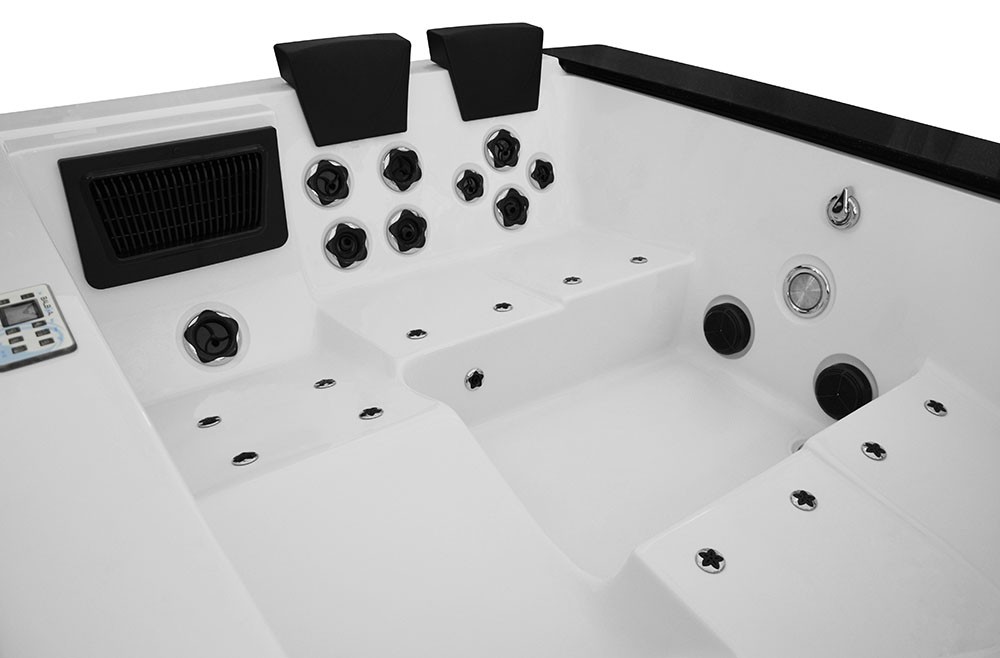

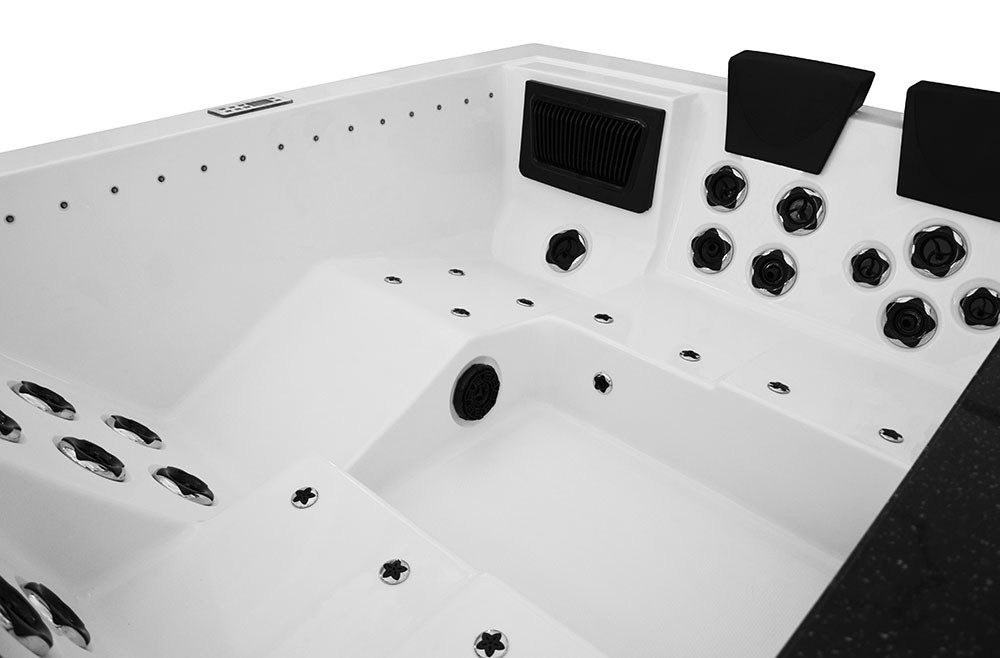

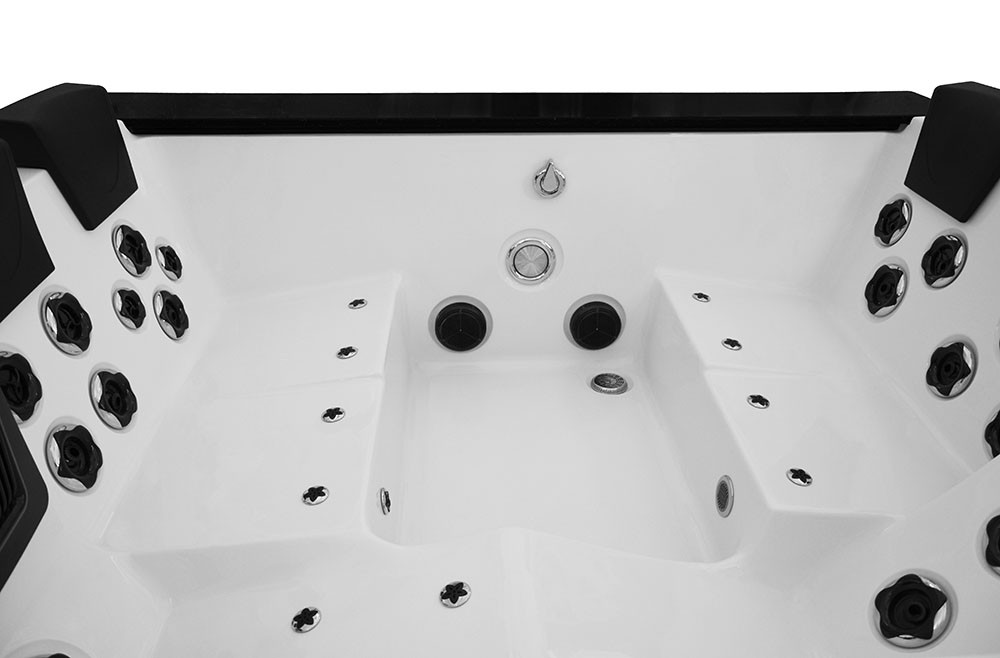

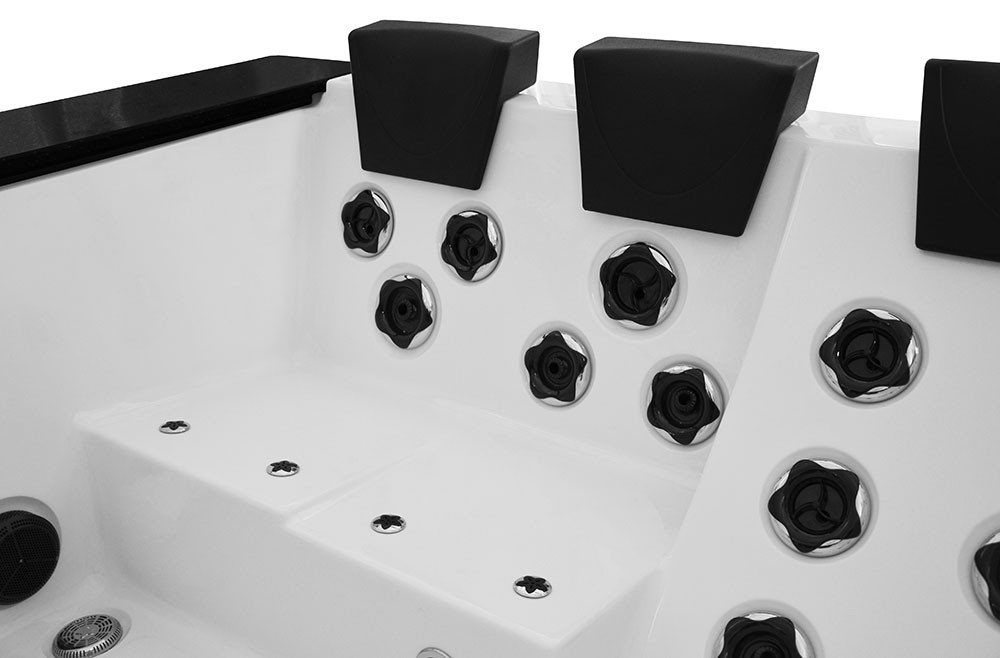

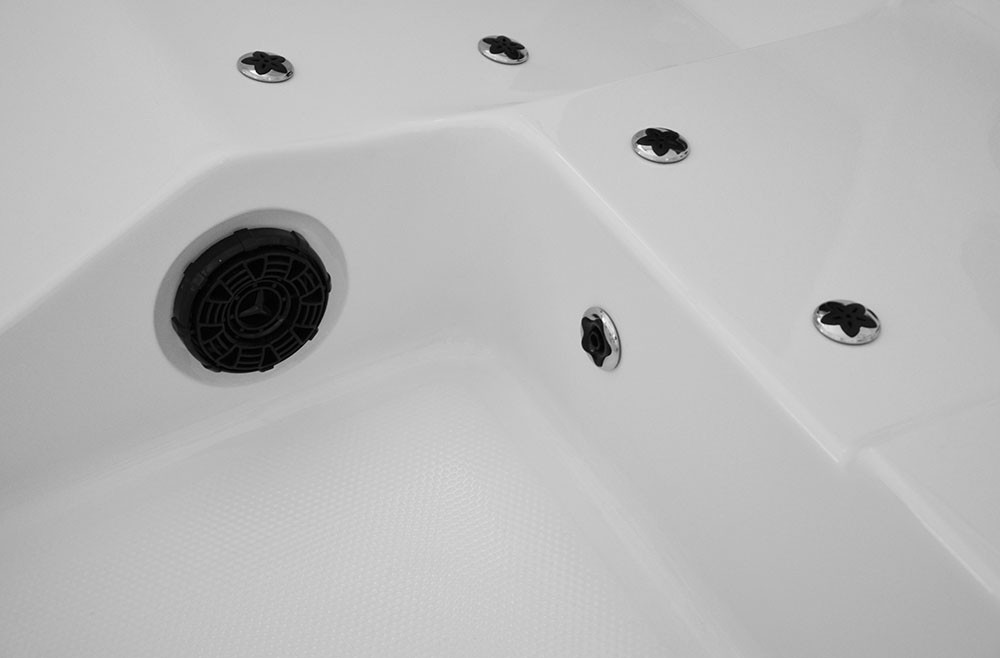

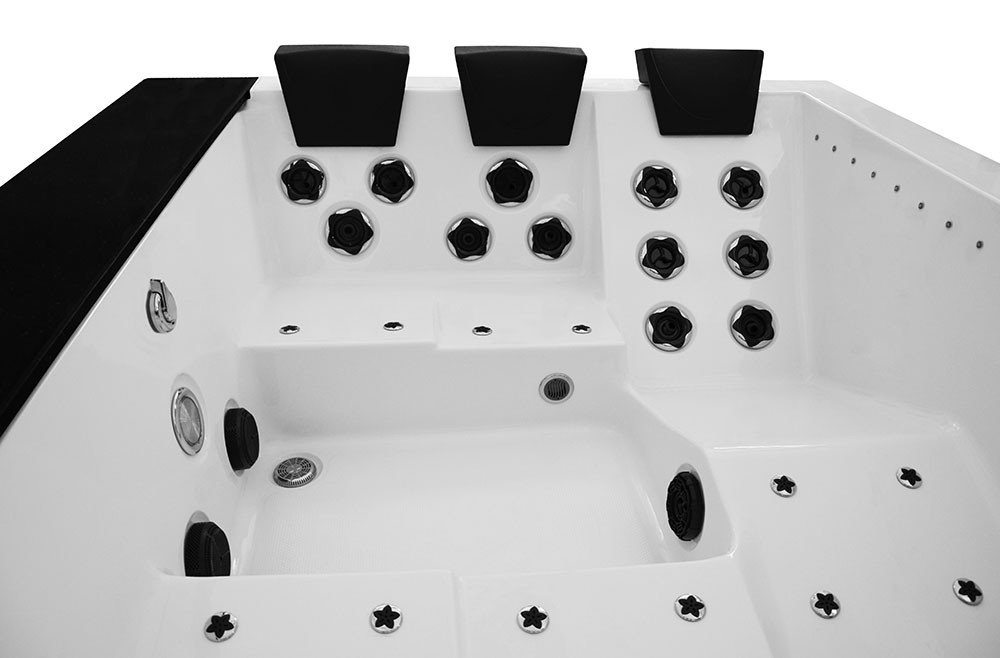

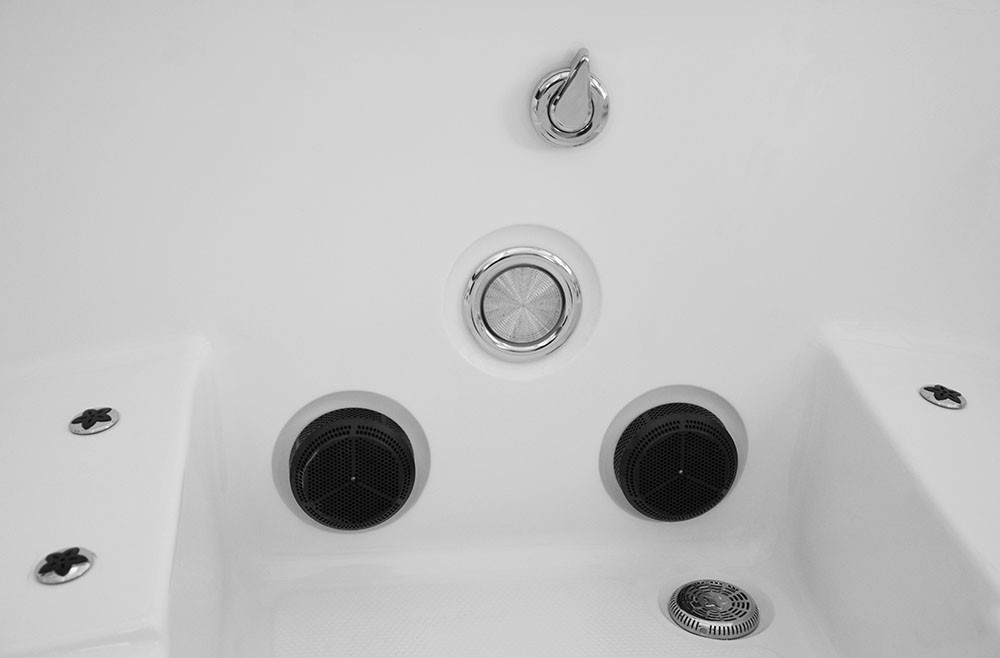

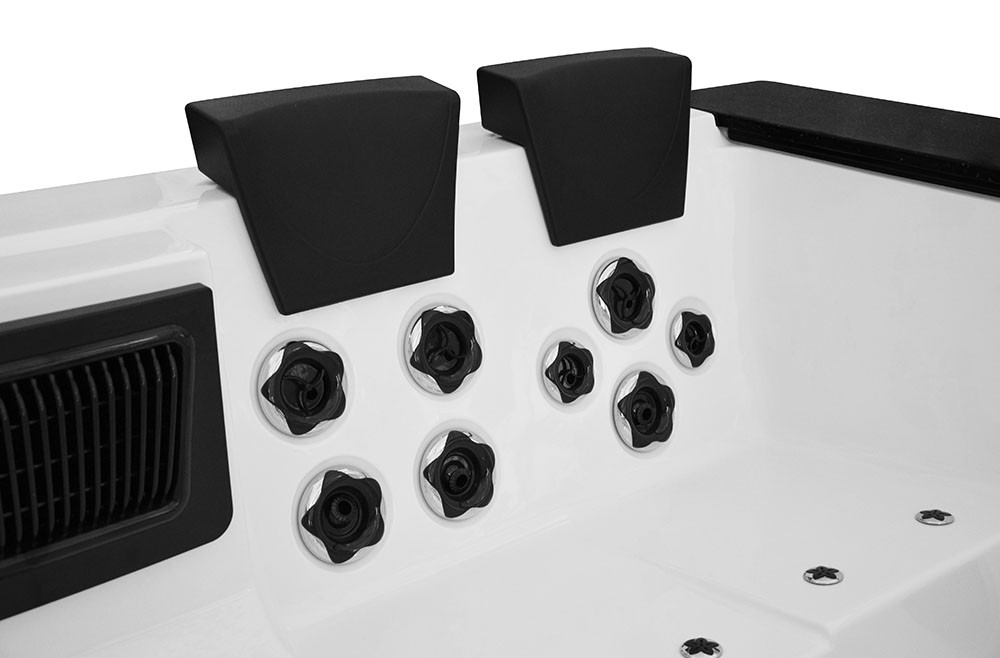

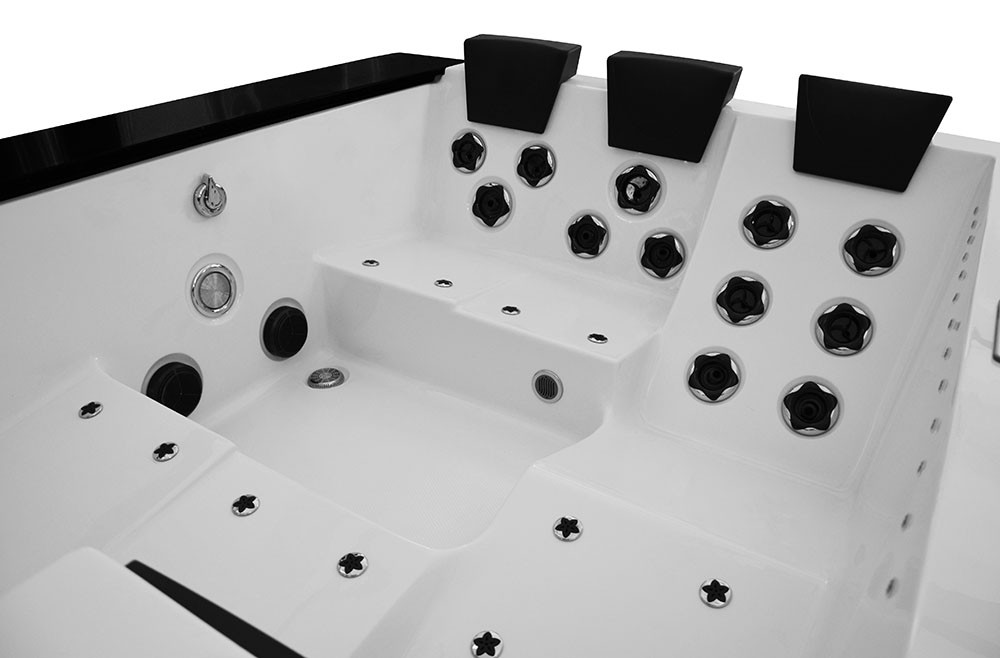

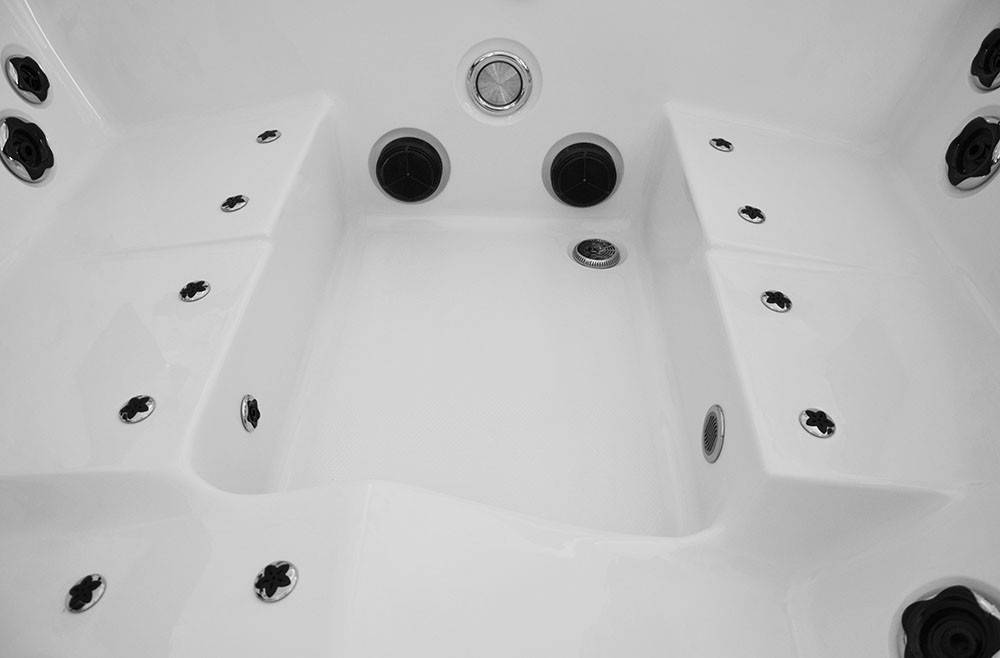

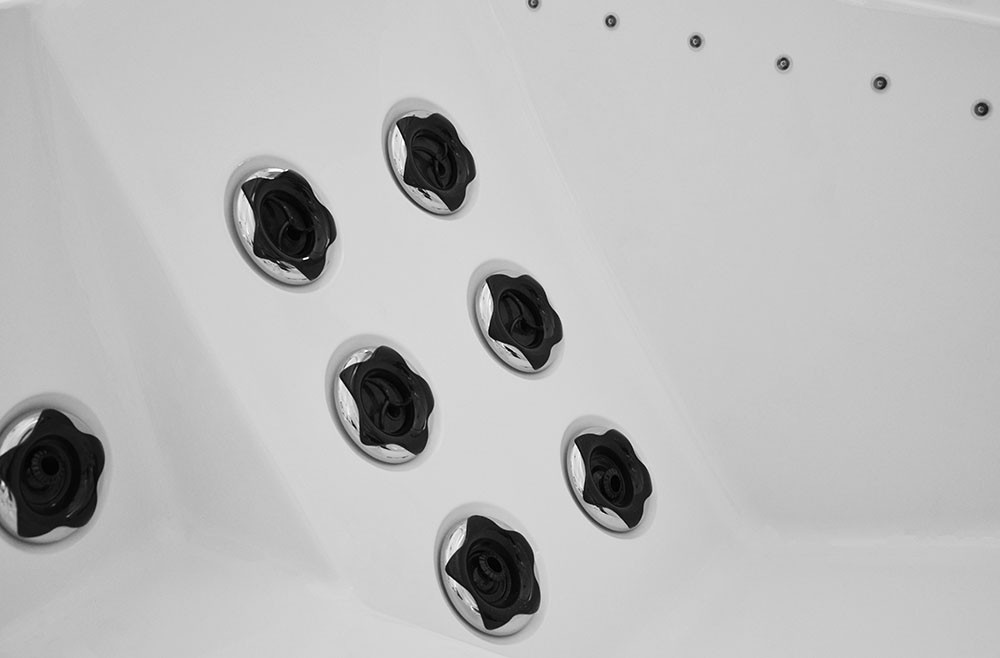

Jets

The jets are embedded in acrylic thanks to this application, when lying in the bathtub, you do not lie on the jets (as is the case with most of this type of bathtubs) but on the acrylic. They will not hurt the body during hydromassage, which results in 100% satisfaction with the bath.
The jets in the bathtub is covered with chrome. You do not have to worry that the jets will become covered with limescale. Each water jet has an aeration function, which consists in adding air to the water system, which increases the power of the water massage. The aeration can be smoothly adjusted with a knob.

Most water jets can be turned off, allowing you to freely manipulate which body parts to massage and with what force. The jets found in SPA tubs are rotating, directional, and point-like.

The BALBOA panel supports all bathtub functions, starting the pumps, ozonation, lighting, and ending with the heater. It is a company from the USA that produces the highest quality parts for SPA bathtubs, including a wholly failure-free and vandal-proof controller. The controller has two independent water heating modes, so you can easily manipulate the water temperature depending on your needs. After programming the appropriate filtration cycle, the circulation pump starts, which passes water through the filters and disinfects it.

The BALBOA controller can be expanded with a WiFi module, which will allow you to control the bath using an application on your phone.

Our bathtubs are equipped with a 3000W instantaneous water heater. Thanks to it, you can not only raise the temperature of the water but also keep it at a constant high level. The heater is an indispensable device when using the SPA.
The structure is made of stainless steel. The entire bathtub is based on a stable stainless steel frame, thanks to which the bathtub has a strong and durable support base, which is very important for larger bathtubs. The weight of such SPAs is from 250 kg to even 1500 kg in swimming pools. Additionally, including the weight of water and people, a relatively large weight is obtained, which requires solid support, which is why a good bathtub design is crucial.
Two ball valves are installed next to the circulating pump and the heater, which in case of failure, a given part can be turned off and replaced without the need to drain the water from the bathtub.

Manifolds and pumps have additional pipes that are connected to the drain. When draining the water from the bathtub, the water comes down from all lines by gravity and pumps without having to blow out and disassemble the pumps.

The ozone generator is a program that sterilizes the water so that the bathtub and the water will be clean. The water does not need to be changed even up to 6 months. It is a new and fast way to remove bacteria, algae, etc.

UV lamp

It is possible to install a UV lamp for water treatment in SPA bathtubs. Sterilizers remove harmful substances from the liquid and eliminate viruses and bacteria. Thanks to their use, you can get pristine water. The properties of UV lamps for water make them applicable wherever it is necessary to use a clean liquid. The combination of a lamp with an ozone generator results in a system that does not require the use of chemicals to maintain clean water in the SPA.

The bottom is made of polymer and has been completely cast. On the other hand, the board is designed to provide insulation from the ground, moisture and weather conditions. The bottom, casing and full insulation create something like a thermos flask, heat dissipation takes a very long time, which results in low electricity consumption.

Steps

For bathtubs that have not been placed in a recess, it is possible to purchase steps in the housing colour. They are made of the same material as the housing.

Thermal cover

We have a thermal cover made of high-quality materials for each SPA bathtub. The cover complements the bathtub, which closes it and does not cause heat loss to the atmosphere.
The complete insulation of SPA bathtubs is made of polyurethane foam. The entire basin of the bathtub is covered with a thickness of about 15mm to 30mm, and the casing and the bottom are about 10mm to 15mm. This prevents heat loss, thanks to which the power consumption of the heater is limited.

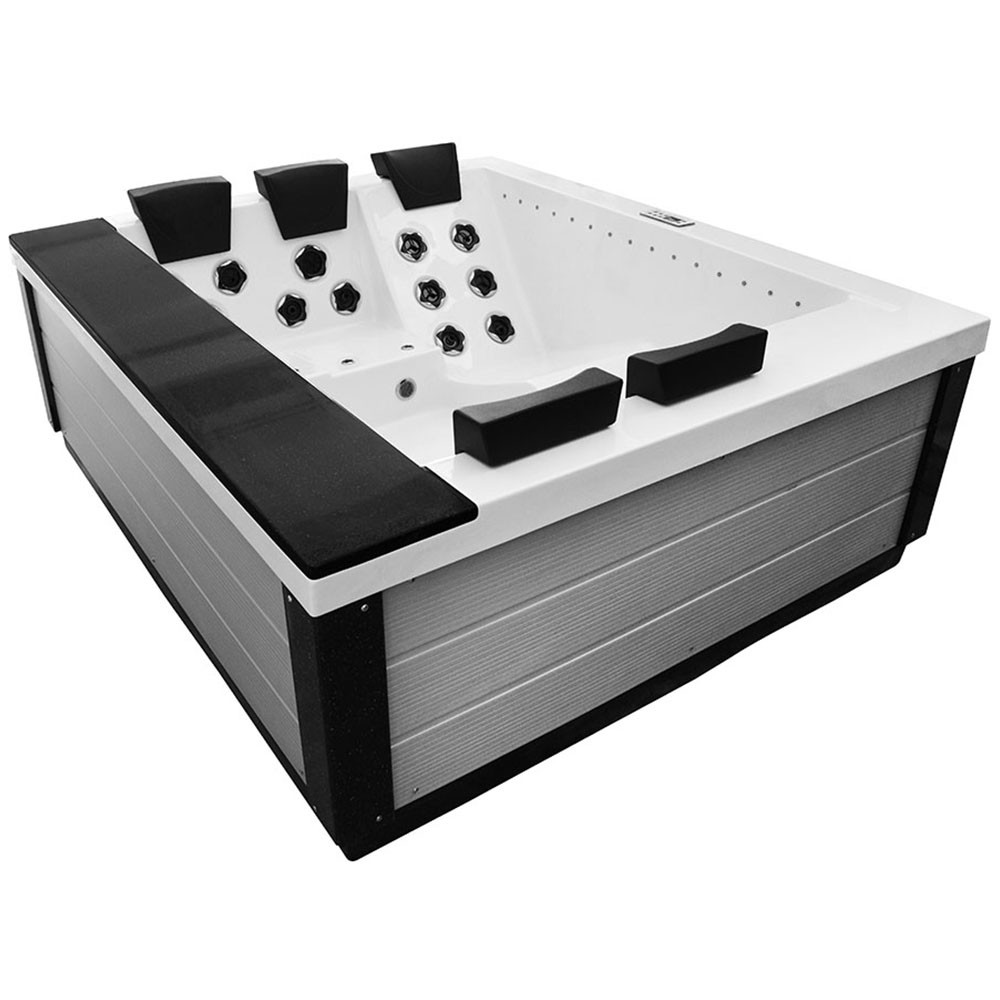

Housing

The housing is made of high-quality, weather-resistant plastic. Sunlight does not discolor the color of the housing. We have different colors that can be selected from the available template.

• The polyurethane foam basin insulation has a thickness of about 15 to 30 mm.
• The housing frame is made of wood, and the object itself thigh made of high-quality plastic (30mm insulation thickness on the housing elements)
• The entire housing with the bottom is insulated with polyurethane foam with a thickness of about 10-15 mm.

Thermal image taken in winter at about -6 ° C. Bathtub flooded with water, ready for use, the external temperature of the casing and cover around 0 ° C. It proves low heat loss.

Pumps and heaters give heat to the bathtub and reduce the amount of heat the basin gives, reducing electricity consumption.

Insulating the bottom of the bathtub with polyurethane foam is more efficient and gives less heat to the atmosphere than foam with a thermal insulation foil available from competitors. Foam with a thermal insulation foil will not fill all the gaps, as in the case of polyurethane foam, which will tightly fill every free space, so that the heat of the water does not escape from the basin.

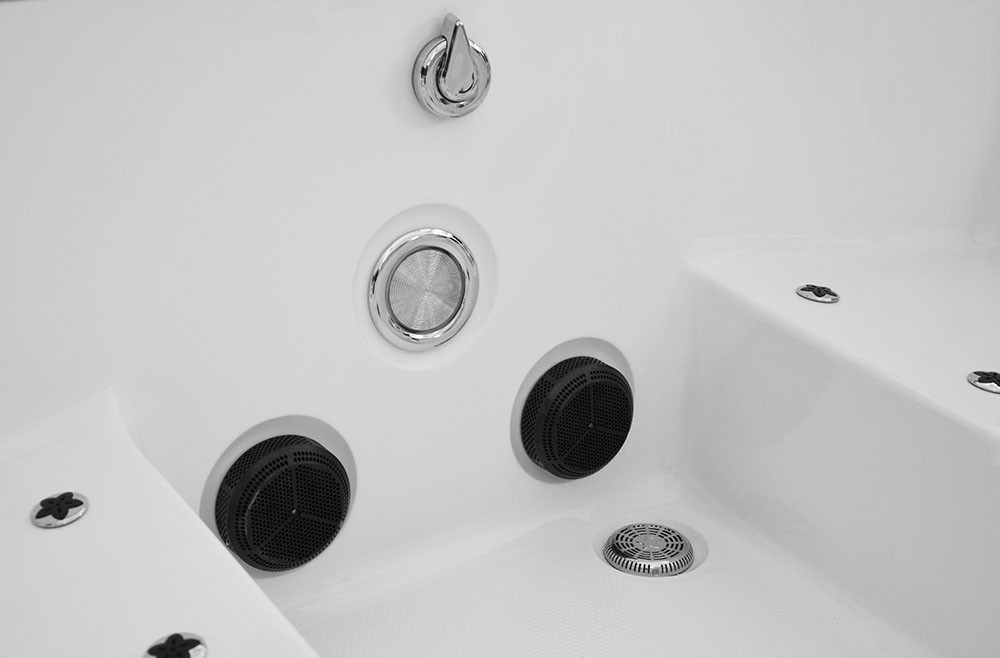

SPA light

As the only company on the market, we offer fiber optic bundles and underwater lighting in 7 different colors in our bathtubs. In terms of quality, optical fibers are better than LED light. They are entirely failure-free and shine with brighter light. These lights are the perfect solution for a fantastic experience and create the right atmosphere while bathing. Our lighting changes colors smoothly, or it is possible to retain any color, giving even more pleasure from hydro massage. Color types: red, blue, yellow, green, orange, purple, and white.
Color therapy is an unconventional treatment method that exposes a person’s sense of sight to appropriate colors that soothe, relax or stimulate. When different colors surround you, you can have more energy and optimism.

MicroSilk additional option
MicroSilk® is a device that saturates the water with microbubbles. The system works as follows: a circulation pump sucks in water and mixes it with air, then breaks down the oxygen molecules into micro-bubbles that penetrate deep into the skin and remove dead epidermis. When MicroSilk® is turned on, the water turns white, like “milk”. The rejuvenating skin function is ensured by micro-bubbles which, thanks to their properties, leave the skin smooth as silk. You cannot turn on the water or air massage when the pearl bath is active. A separate button controls the MicroSilk® pump. This function can be adapted to any SPA bathtub. The price includes the device mentioned above and installation.
