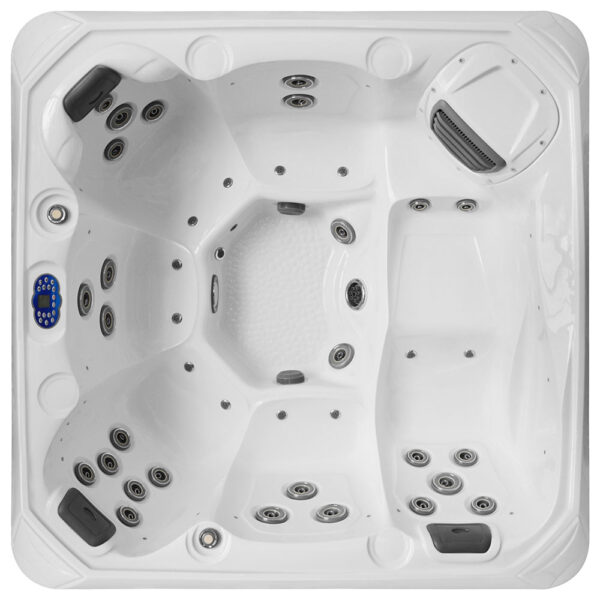

CISTO 1638 Standard, 2350x2350x980mm

Description

Available color versions:

!!! Ask us about available color options!

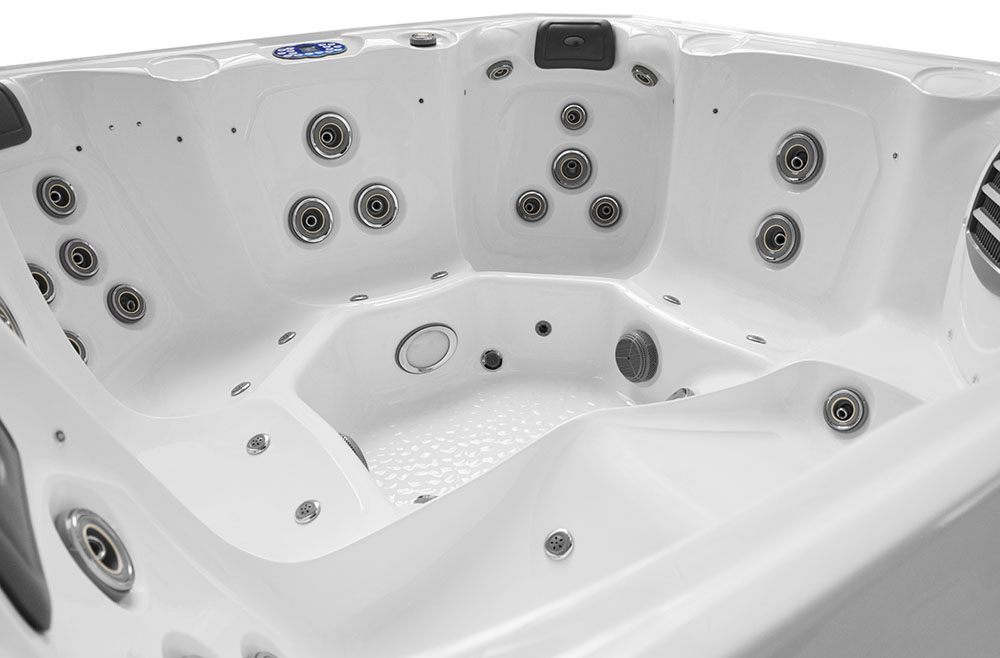

Hot Tub CISTO 1638 standard–

The Hot Tub CISTO 1638 standard is the epitome of comfort and advanced technology, designed for the most demanding users. With a spacious design that accommodates up to 6 people, it’s the perfect choice for both home gardens and wellness areas. An advanced hydromassage system with multiple jets, integrated LED lighting, ergonomic headrests, and an intuitive control panel provides an unforgettable relaxation experience. The elegant acrylic finish enhances the aesthetic of any outdoor space. Thanks to high-quality materials and an ozone disinfection system, it ensures safe use all year round.

Product specification

External dimensions: 2350 x 2350 x 980 mm
Number of seats: 6 (5 seated, 1 lounger)
Shell: Aristech USA acrylic
Power supply: 380 ~ 400 V/50 Hz
Number of pumps: 3 pcs. total
Total power: approx. 6.5 kW
Water pump 3HP/2.25kW: 1 pc.
Circulation water pump 0.35HP/0.25kW: 1 pc.
Jets total: 42 pcs., including:
- Water jets (3″): 2 pcs. (directional – shoulder massage)
- Water jets (3″): 3 pcs. (rotating)
- Water jets (4″): 12 pcs. (including 6 rotating)
- Water jets (5″): 12 pcs. (including 4 rotating)
- Water jets (7″): 1 pc. (directional)
- Air jets (1.5″): 12 pcs.
Air pump 0.9HP/0.7kW: 1 pc.
Water heater 3kW: 1 pc. (Balboa)
SPA light: 1 pc. (seven color options)
Illuminated corners: yes (seven color options)
Ozone generator: yes
Air control valves: 2 pcs. (Easy-Flow Air Venturi)
Suction valves: yes
Inlet valves: yes
Jets flush with acrylic: yes
Stainless steel jets: yes
Stainless steel frame: yes
Full insulation of the tub and housing: yes
Cartridge filter: 1 pc.
Headrests: 3 pcs. (clip-on, illuminated, seven color options)
Control panel: Balboa TP-600 or VL-801D

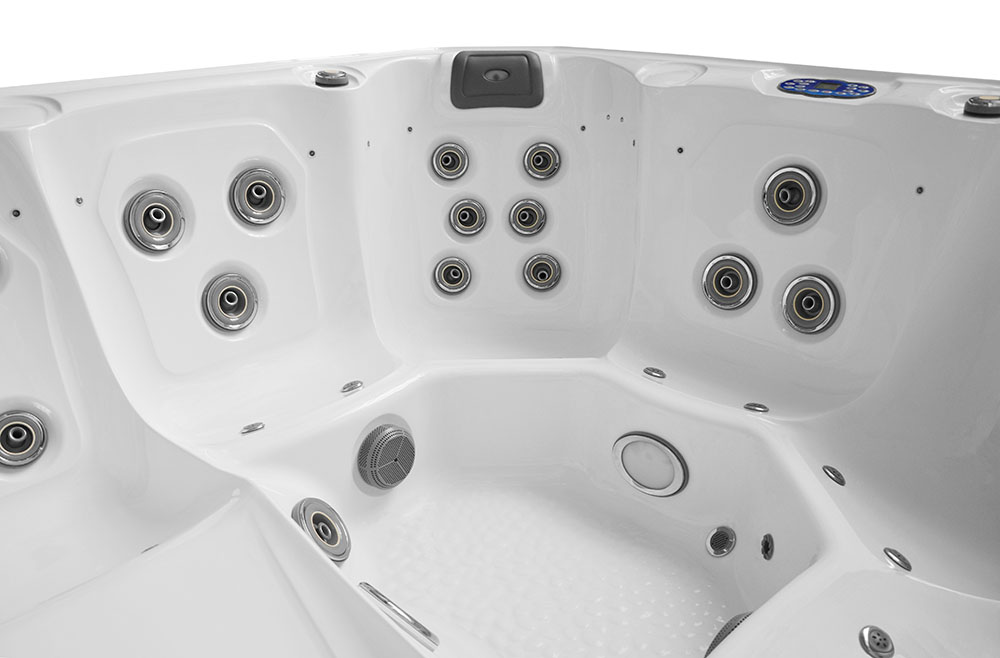

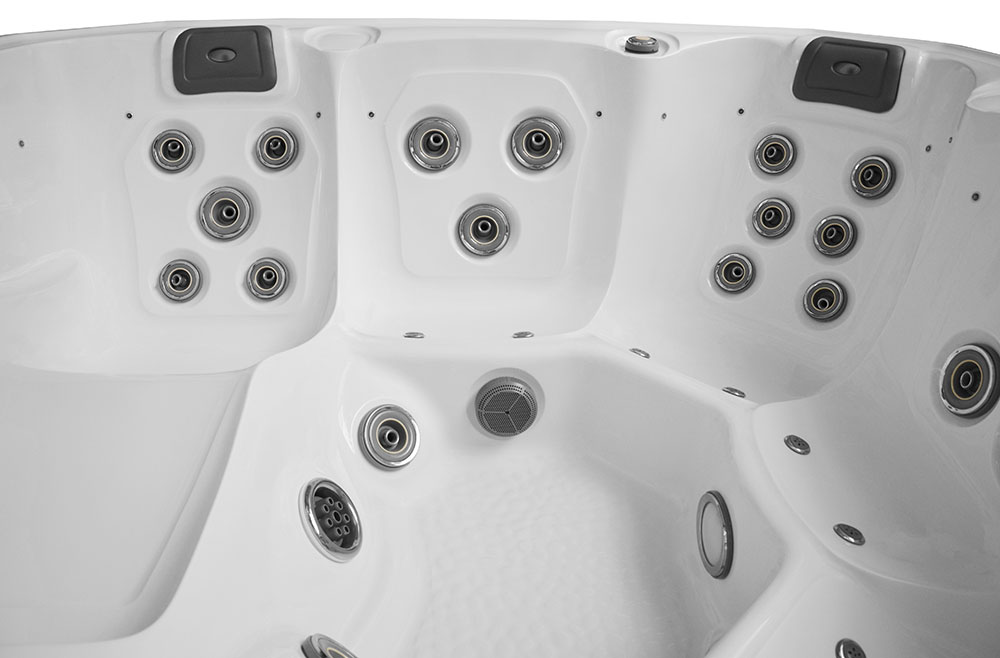

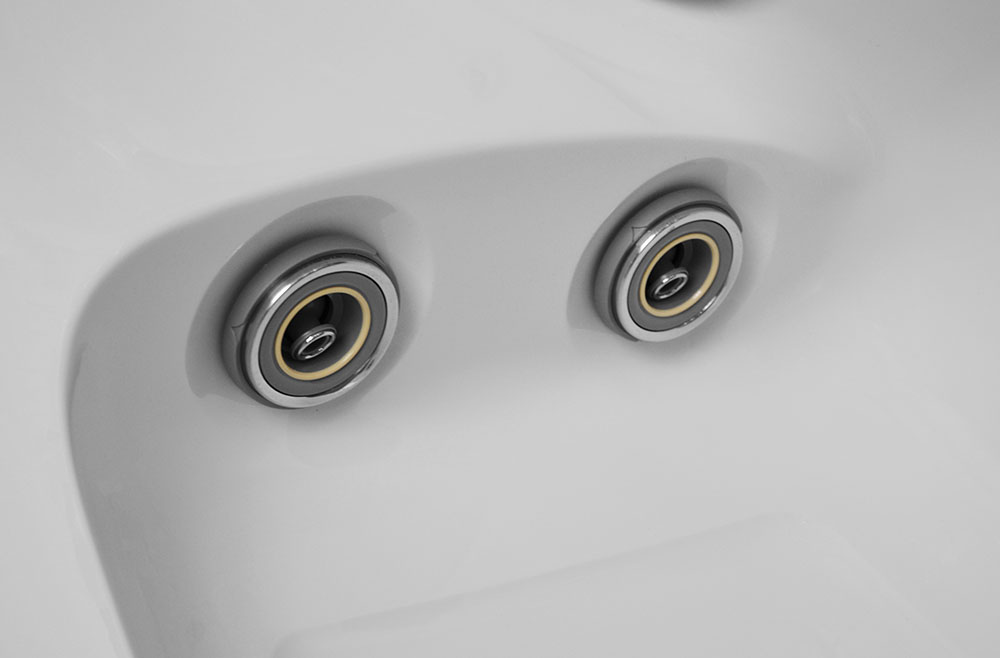

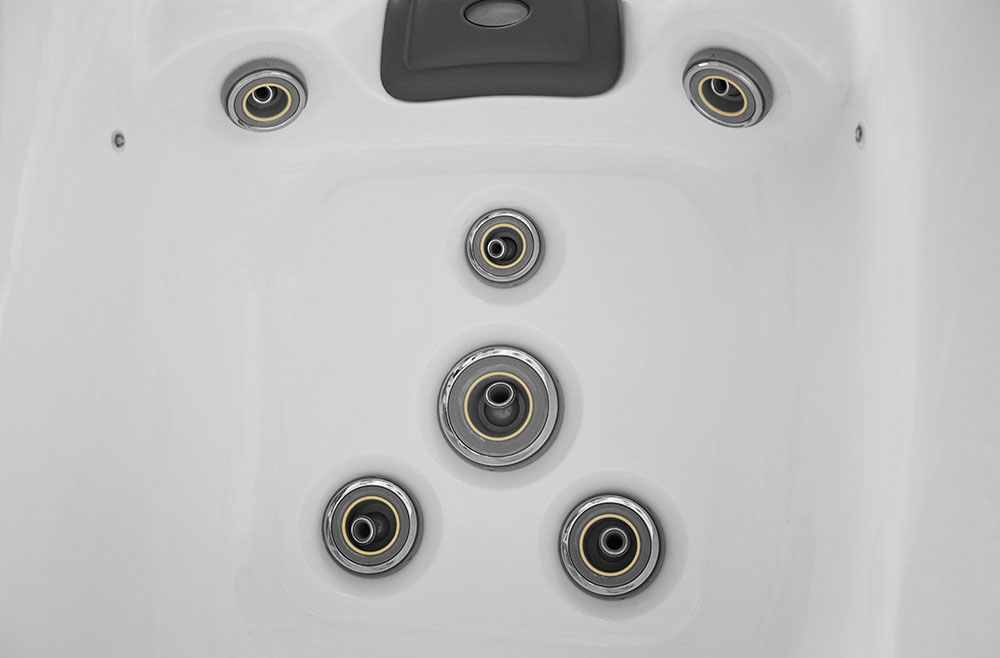

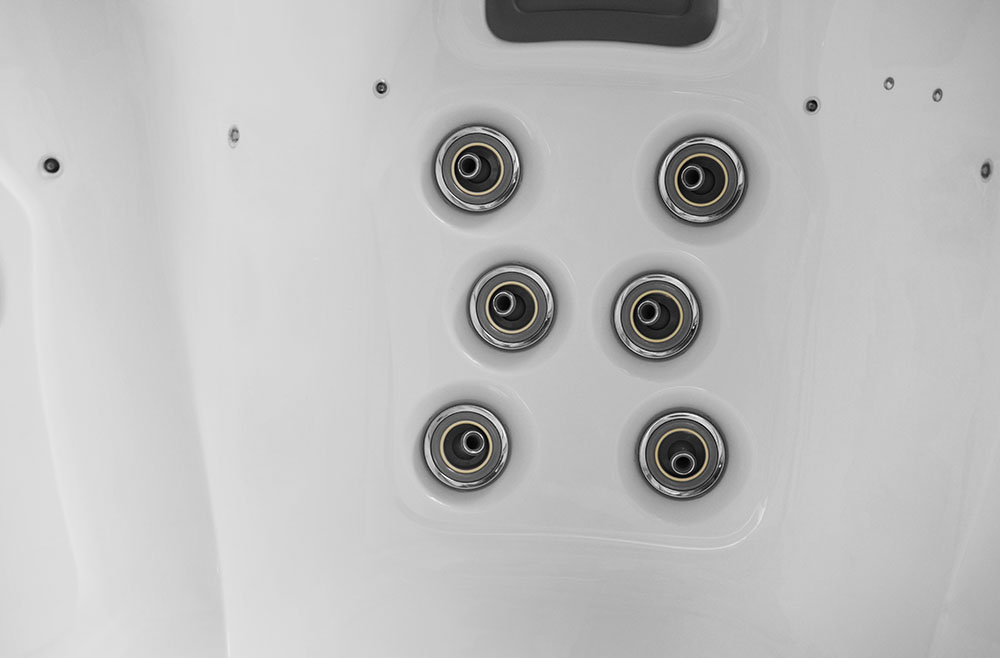

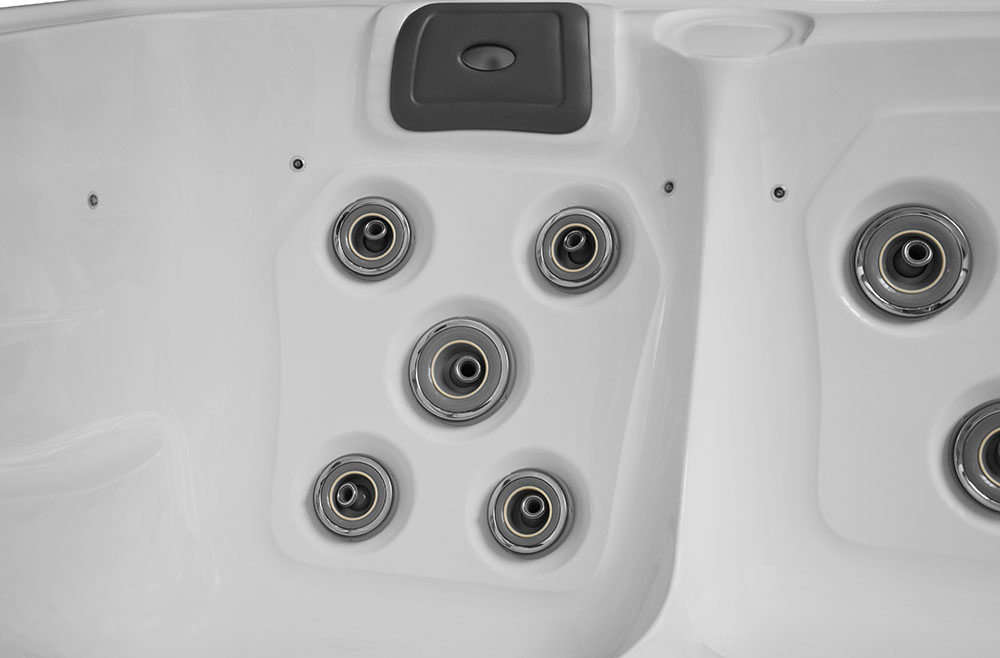

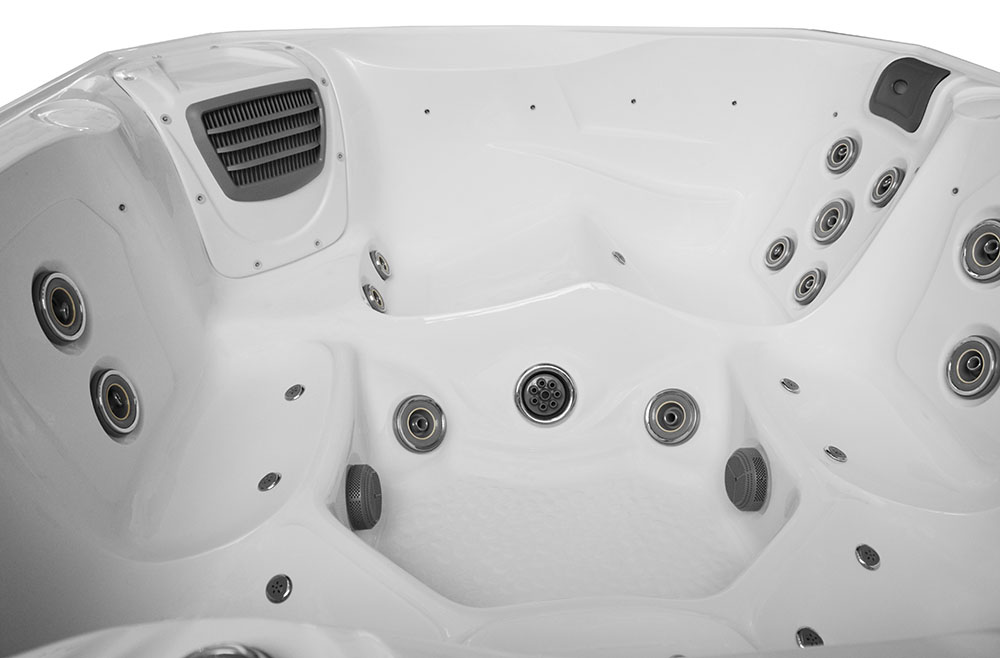

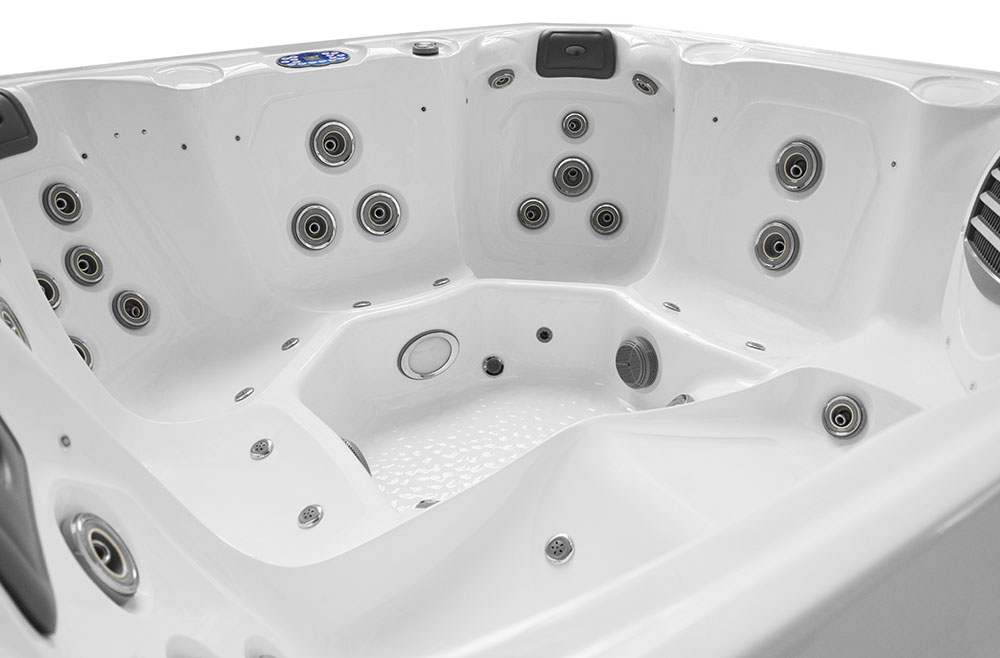

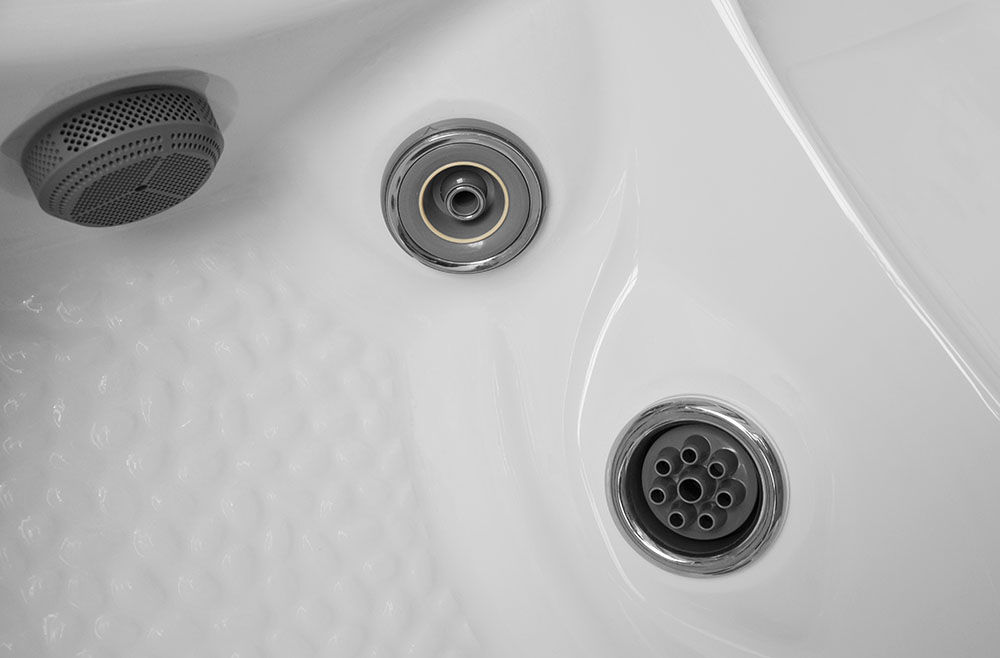

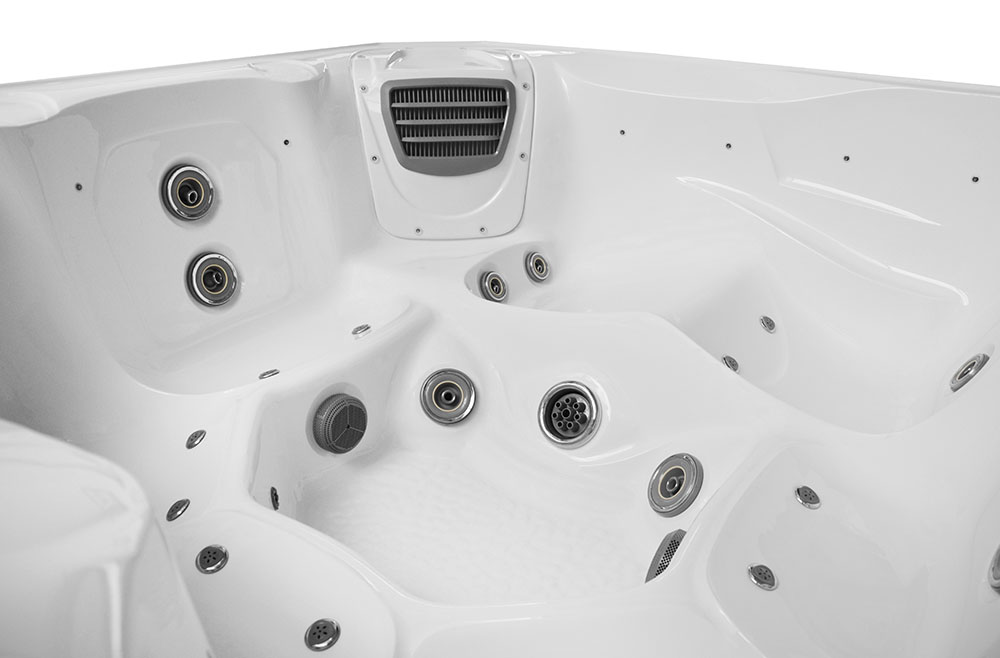

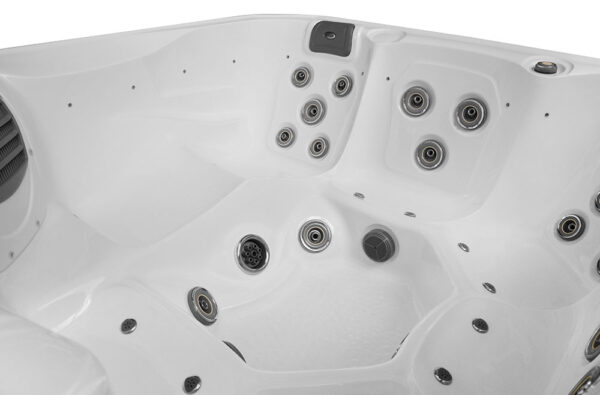

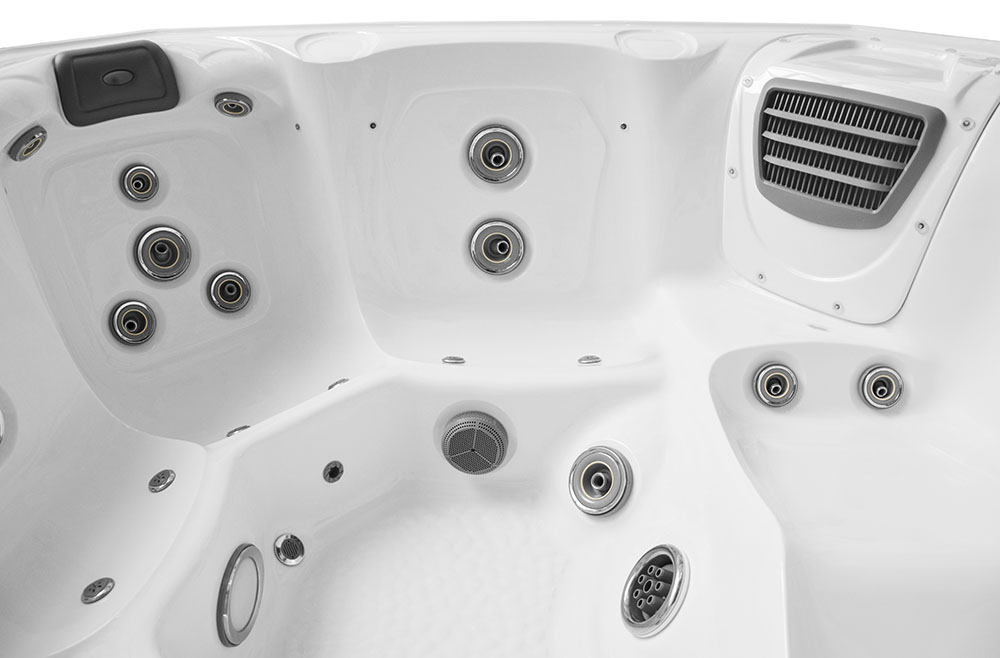

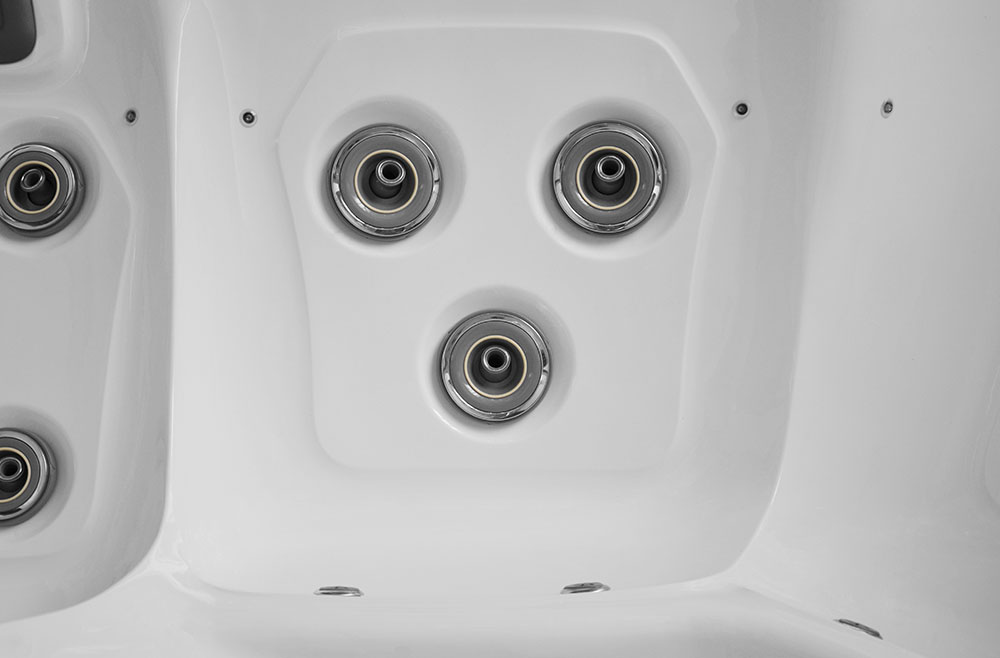

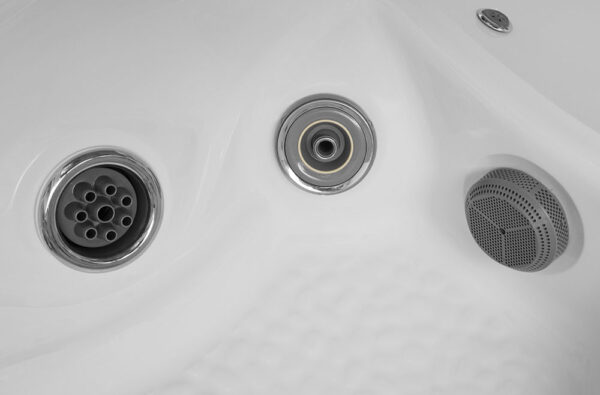

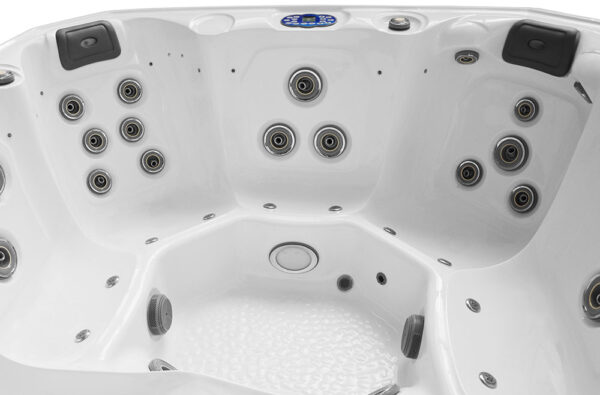

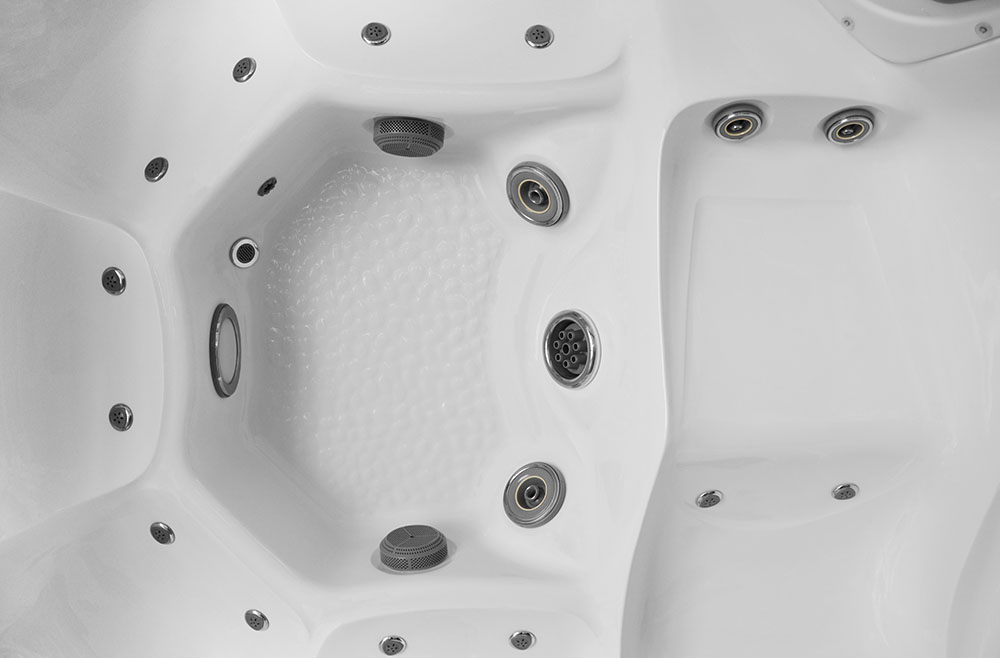

- Jets

The jets are embedded in acrylic, lying in the bathtub, and do not lie on the jets (as is the case with most of this type of bathtub) but on the acrylic. They will not hurt the body during the hydro massage, which results in 100% satisfaction with the bath.

The jets in the bathtub are covered with chrome. You do not have to worry that the jets will become covered with limescale. Each water jet has an aeration function, which consists of adding air to the water system, increasing the power of the water massage. The aeration can be smoothly adjusted with a knob.

Most of the water jets can be turned off, which allows you to freely manipulate which parts of the body to massage and with what force. The jets found in SPA tubs are rotating, directional, and pointed.

- BALBOA control

The BALBOA panel supports all the functions in the bathtub, from starting the pumps, ozone function, lighting, and ending with the heater. A company from the USA produces the highest quality parts for SPA bathtubs, including a completely failure-free and vandal-proof controller. The controller has two independent water heating modes, i.e., so you can easily manipulate the water temperature depending on your needs. After programming the appropriate filtration cycle, the circulation pump starts, which passes water through the filters and disinfects it.

The BALBOA controller can be expanded with a WiFi module, which will allow you to control the bathtub using an application on your phone.

Our bathtubs are equipped with a 3000W instantaneous water heater. You can raise the temperature of the water and keep it at a constant high level. The heater is an indispensable device when using the SPA.
The structure is made of stainless steel. The entire bathtub is based on a stable stainless steel frame; the bathtub has a strong and durable support base, which is very important for larger bathtubs. The weight of such SPAs, from 250 kg to even 1500 kg, in swimming pools, including the weight of water and people, is a relatively large weight, which requires solid support, which is why a good bathtub design is so crucial.

Two ball valves are installed next to the circulating pump and the heater, so that in case of failure of a given part, it can be turned off and replaced without the need to drain the water from the bathtub.

Manifolds and pumps have additional hoses connected to the drain. When draining the water from the bathtub, the water leaves all pipes by gravity and the pumps without blowing out and disassembling the pumps.
The ozone generator is a special program that sterilizes the water to clean both the bathtub and the water. It is a new and fast way to remove bacteria, algae, etc. The water does not need to be changed even up to 6 months.

- UV lamp

It is possible to install a UV lamp for water treatment in SPA bathtubs. As sterilizers, they remove harmful substances from the liquid and eliminate viruses and bacteria. The properties of UV lamps for water make them applicable wherever necessary to use a clean liquid. Combining a lamp with an ozone generator gives a system that does not require chemicals to maintain clean water in the SPA.
The bottom is made of polymer and has been completely cast. On the other hand, the board is designed to provide insulation from the ground, moisture, and weather conditions. The bottom, casing, and full insulation create something like a thermos; heat transfer lasts a very long time, which results in low electricity consumption.

- Steps

For bathtubs that are not placed in a recess, it is possible to purchase steps in the housing color. They are made of the same material as the housing.

- Thermal coverage

Each SPA bathtub comes with a thermal cover made of high-quality materials. The cover complements the bathtub, which closes it and does not cause heat loss to the atmosphere.

The complete insulation of SPA bathtubs is made of polyurethane foam; the entire basin of the bathtub is covered with a thickness of about 15mm to 30mm, the casing and the bottom are about 10mm to 15mm. This prevents heat loss, thanks to which the power consumption of the heater is limited.

- Housing

The housing is made of high-quality, weather-resistant plastic. Sunlight does not discolor the color of the housing. We have a different range of colors that can be selected from the available templates.

- Insulation standards for external bathtubs:
  The polyurethane foam insulation is approximately 15 to 30 mm thick.

- The casing frame is made of wood, and the casing itself is made of high-quality plastic (30mm insulation thickness on the casing elements)

- The entire housing with the bottom is insulated with polyurethane foam thickness of about 10-15 mm.

- The thermal image was taken in winter at a temperature of about -6oC. The bathtub is flooded with water, ready to use; the external temperature of the casing and coverage is around 0 °C. This proves low heat loss.

- Pumps and heaters give heat to the bathtub and reduce the amount of heat given off by the basin, which reduces electricity consumption.

Insulating the bottom of the bathtub with polyurethane foam is more efficient and gives less heat to the atmosphere than foam with a thermal insulation foil available from competitors. Foam with a thermal insulation foil will not fill all the gaps, as in polyurethane foam, which will tightly fill every free space. The heat of the water does not escape from the basin.

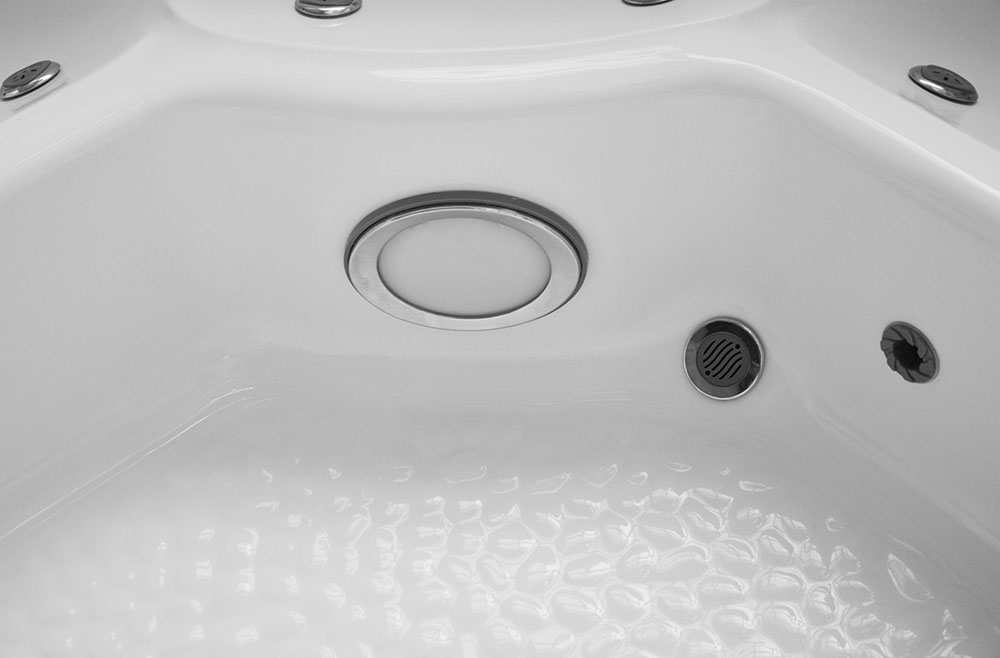

- SPA light

As the only company on the market, we offer fiber optic bundles and underwater lighting in 7 different colors in our bathtubs. Optical fibers are definitely better than LED light; they are completely failure-free and shine with brighter light. These lights are the perfect solution for an amazing experience and create the right atmosphere while bathing. Our lighting changes colors smoothly, or it can retain any color, giving even more pleasure from hydro-massage—color types: red, blue, yellow, green, orange, purple, and white.

Color therapy is an unconventional treatment method that exposes the sense of sight of a given person to appropriate colors that soothe, relax or stimulate. When different colors surround you, you can have more energy and optimism.

- MicroSilk additional option

MicroSilk® is a device that saturates the water with microbubbles. The system works as follows: a circulation pump sucks in water and is mixed with air, then the oxygen molecules are broken down into micro-bubbles that penetrate deep into the skin and remove dead skin. When MicroSilk® is turned on, the water turns white, like “milk.” The skin rejuvenating function is ensured by micro-bubbles which, leave the skin smooth as silk. A separate button controls the MicroSilk® pump. This function can be adapted to any SPA bathtub. When the pearl bath is active, you cannot turn on the water or air massage.

Optional Accessories:

• External casing: €500 – NOW €0
• Steps for the tub: €150 – NOW €0
• Handle to facilitate entry into the Hot Tub: €340 – NOW €190
• Lift/Stand for the thermal cover: €450 – NOW €350
• UV lamp: €450 – NOW €400
• Automatic chemical dosing station (Ph/Chlor/Redox): €3200 – NOW €2490
• Pool chemical starter kit: €100 – NOW €60
