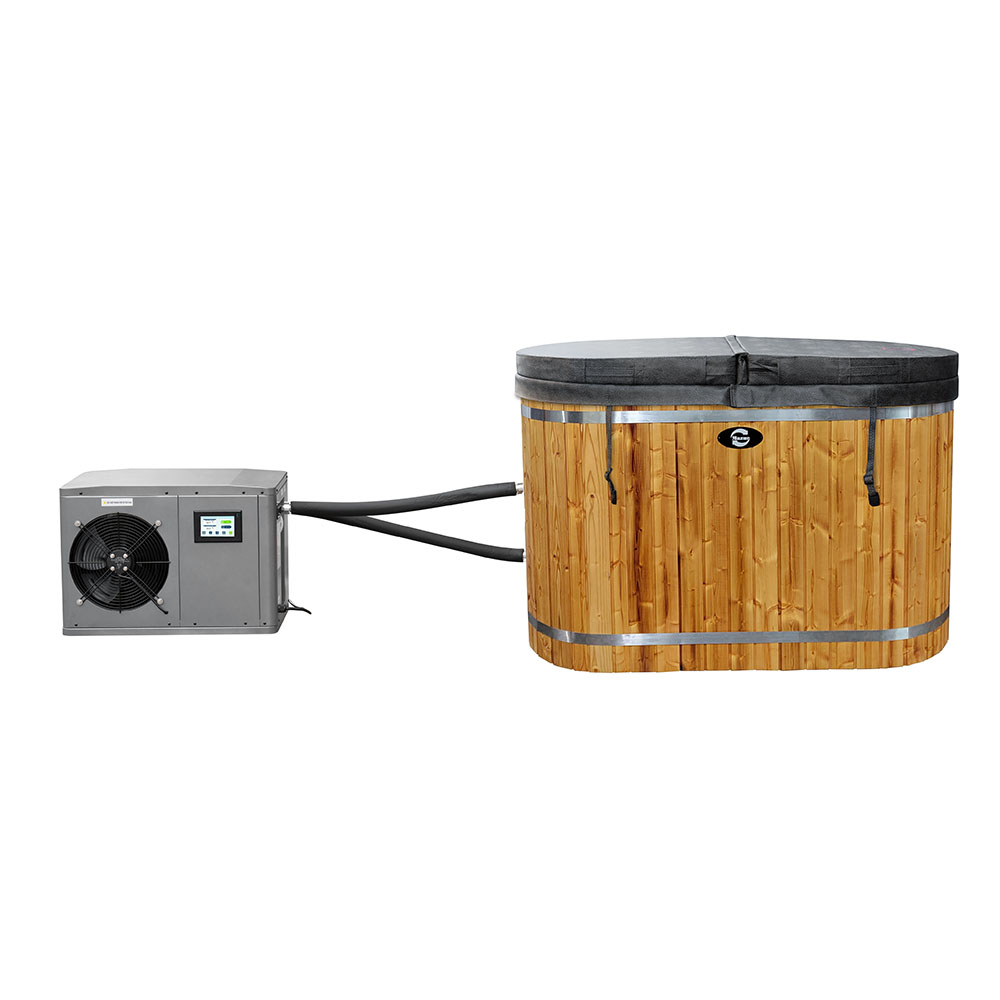

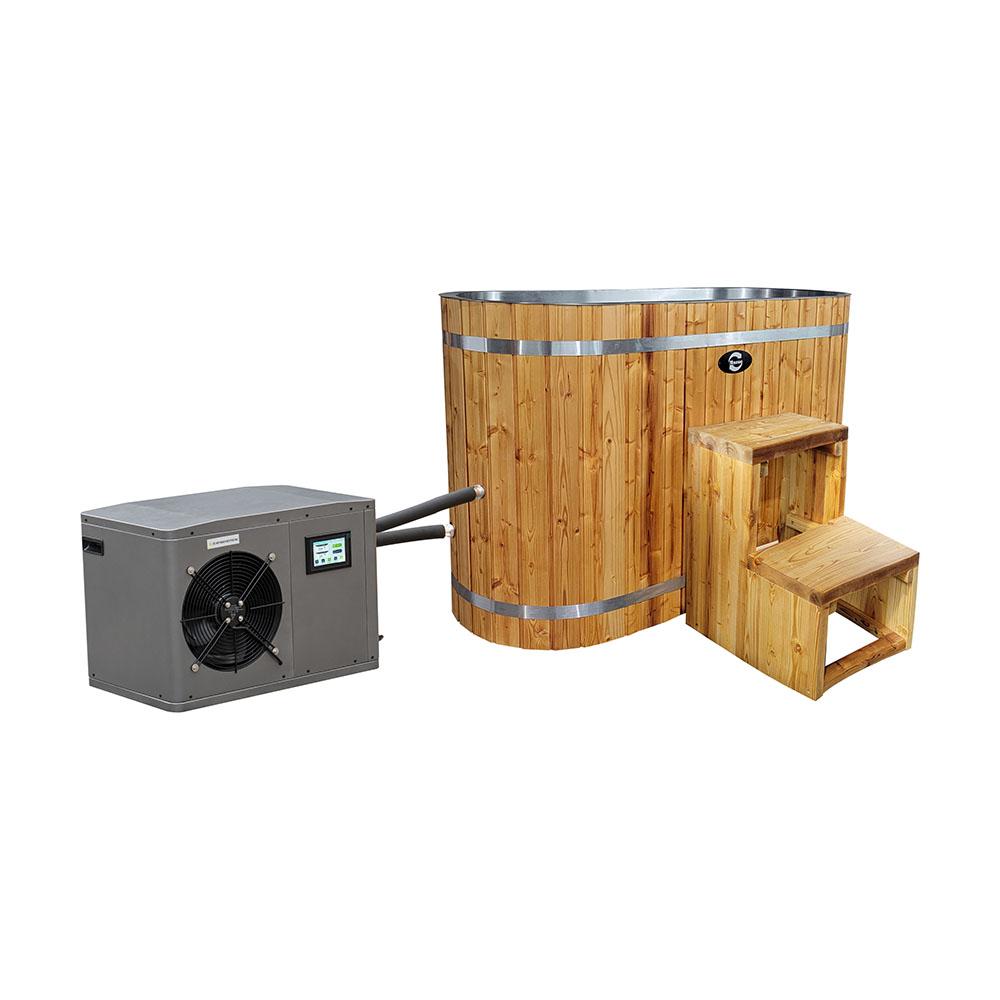

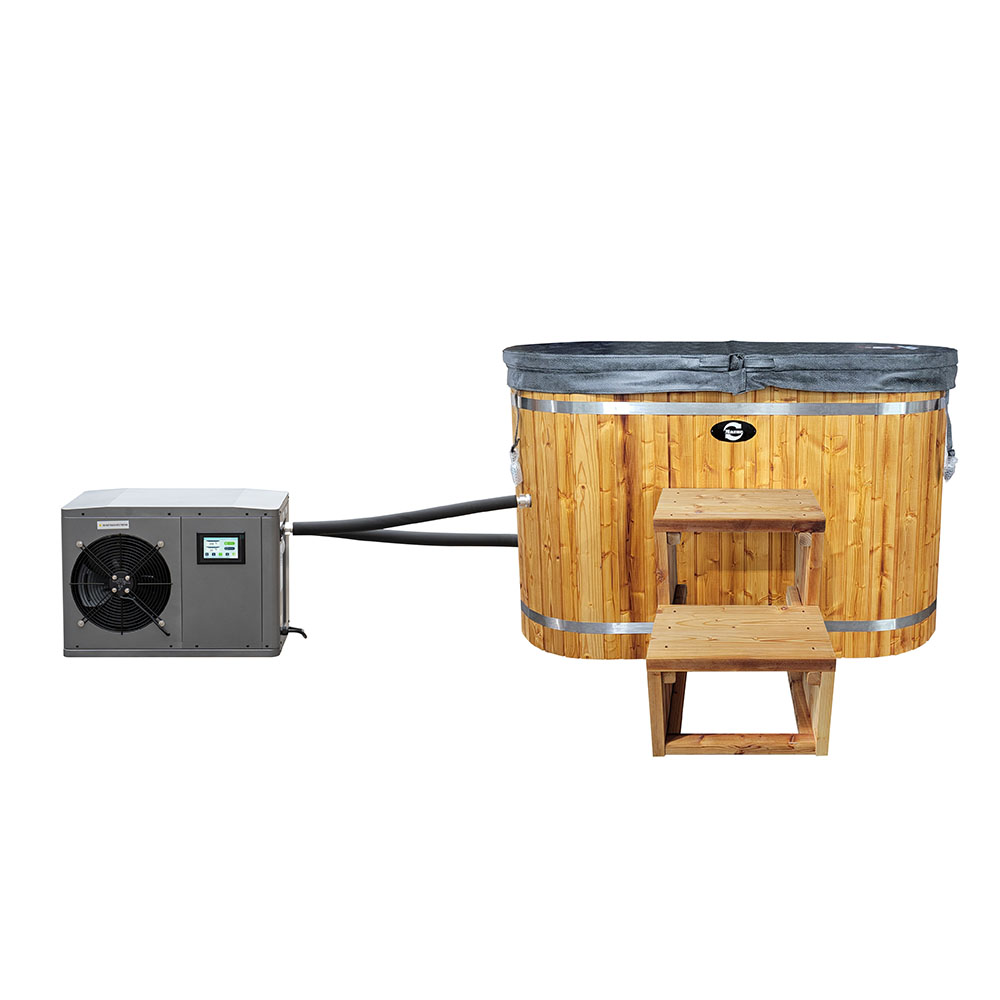

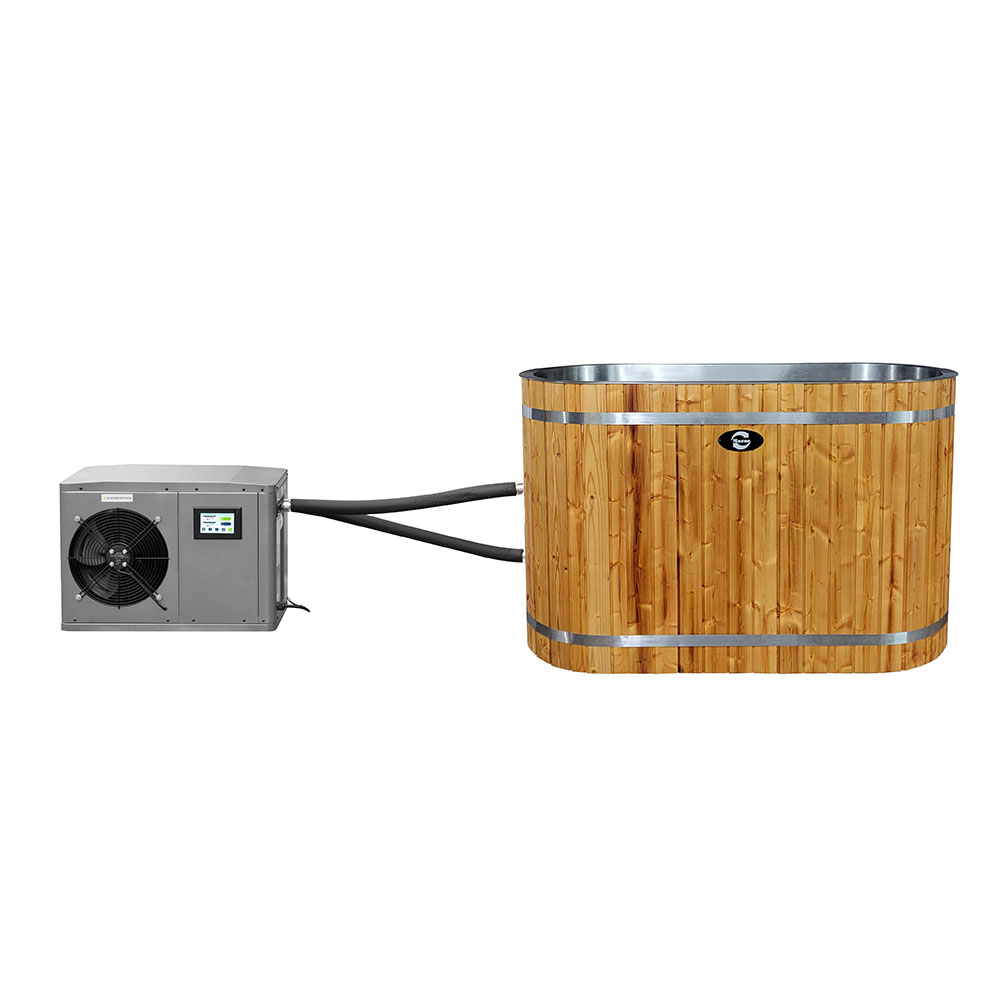

Cold Plunge Ice-bath Northwood 1600CS

Description

PRODUCT SPECIFICATION

Cold Plunge Tub:

• External dimensions: 160 × 68 × 100 cm

• Water capacity: 600–900 L

• Number of users: 1 person

• Inner tub material: Stainless steel

• Cladding: Thermowood pine (Pinia pine), protected with wax oil for wood

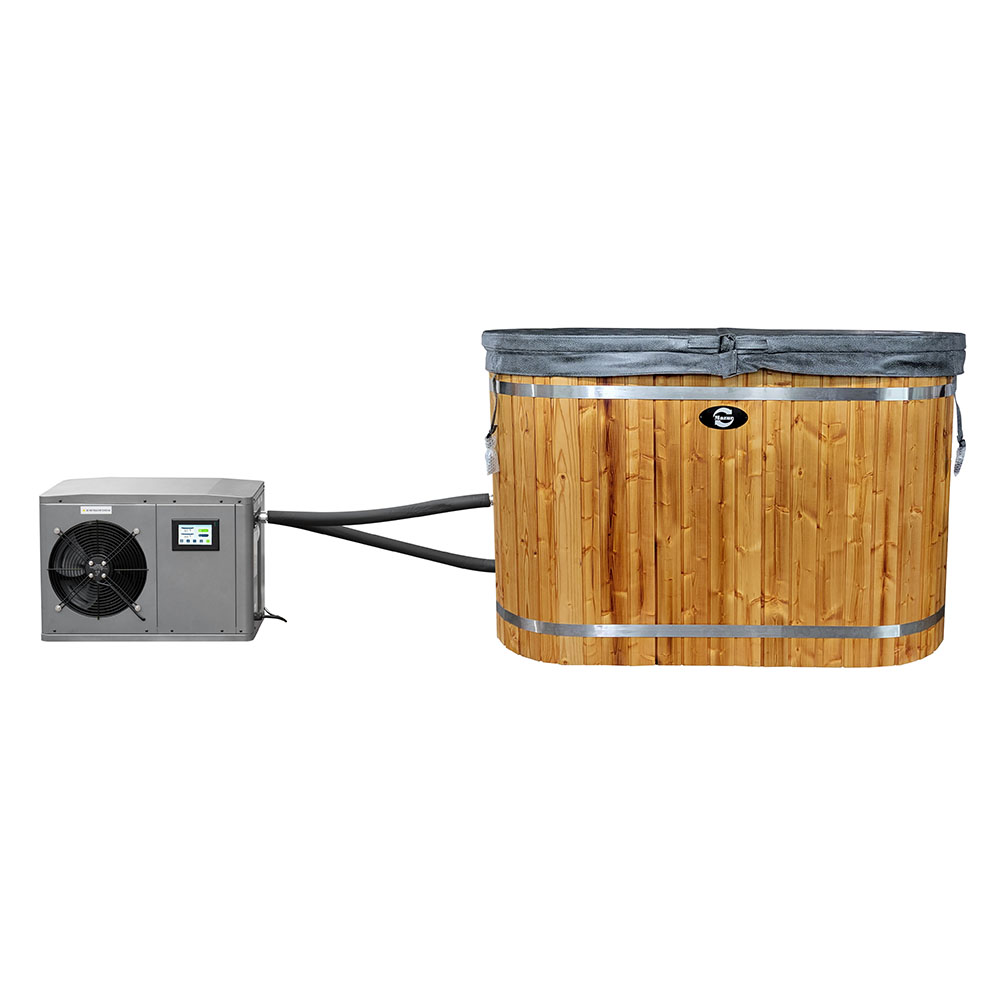

• Thermal insulated cover: Yes (foldable)

• Structural reinforcement: Steel band around the tub

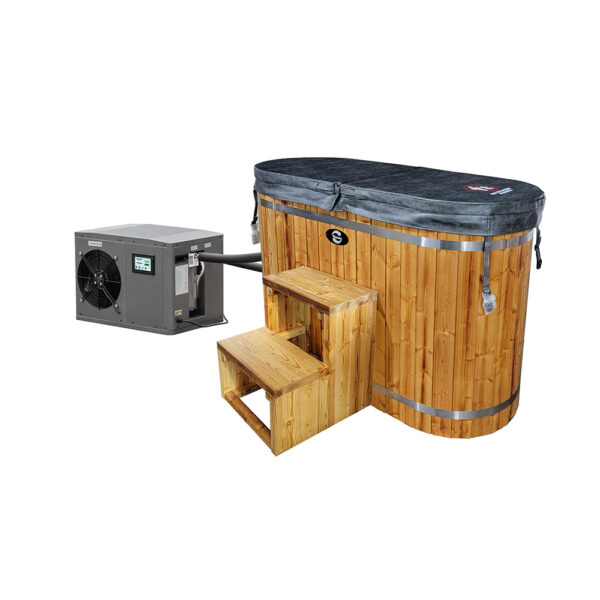

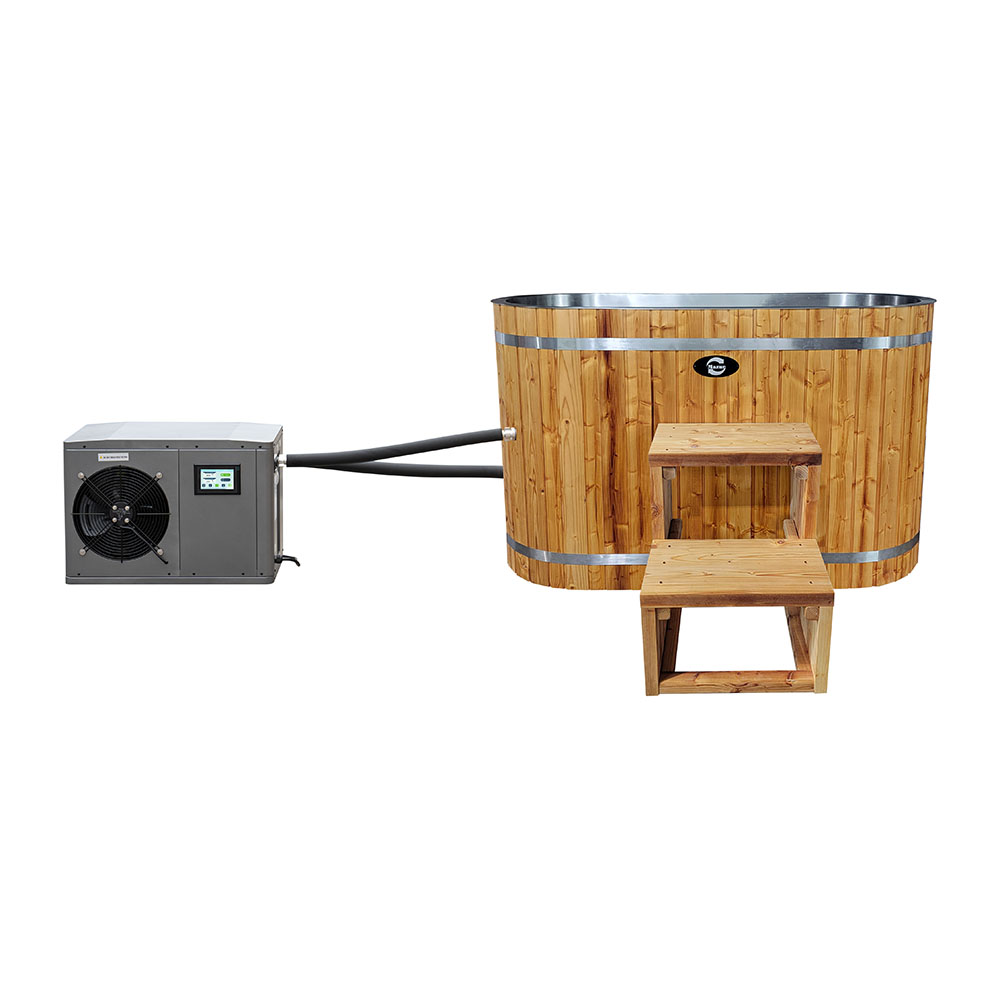

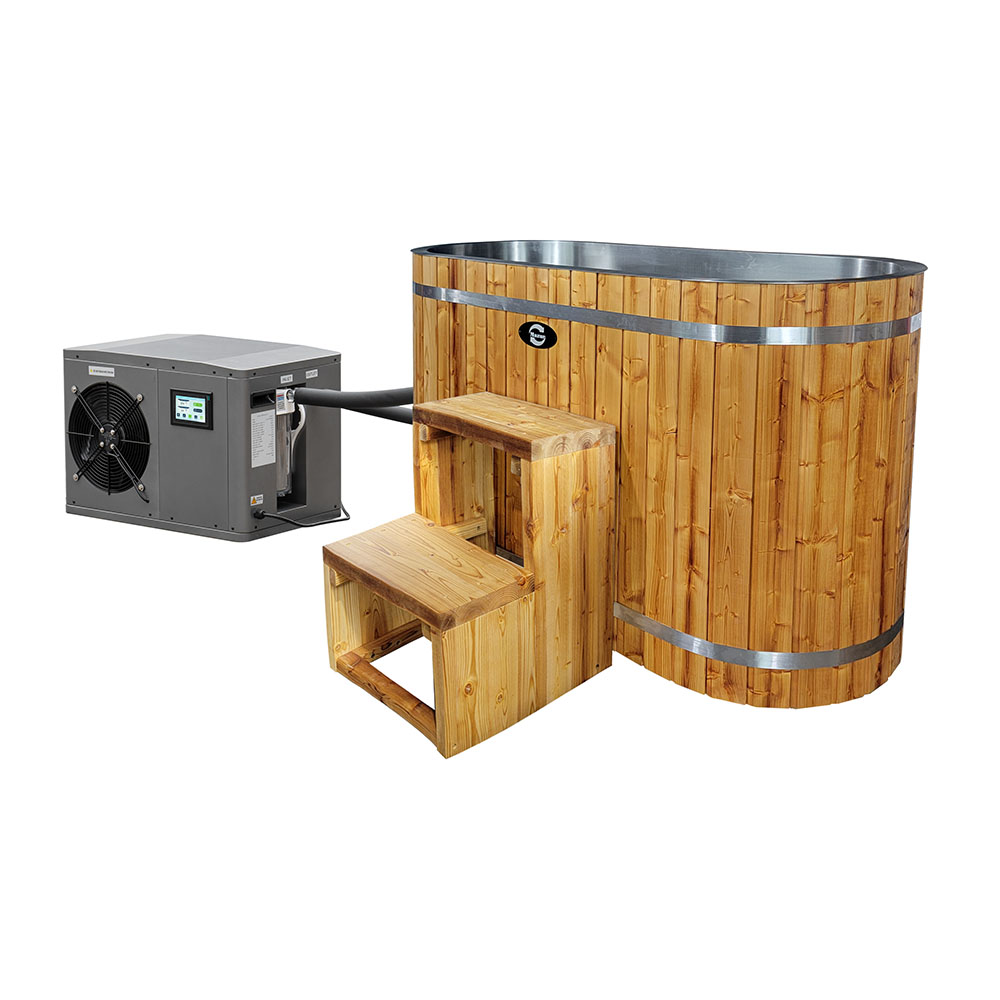

• Entry steps: Yes (two-step stairs)

• Water treatment system: Filtration + ozonation

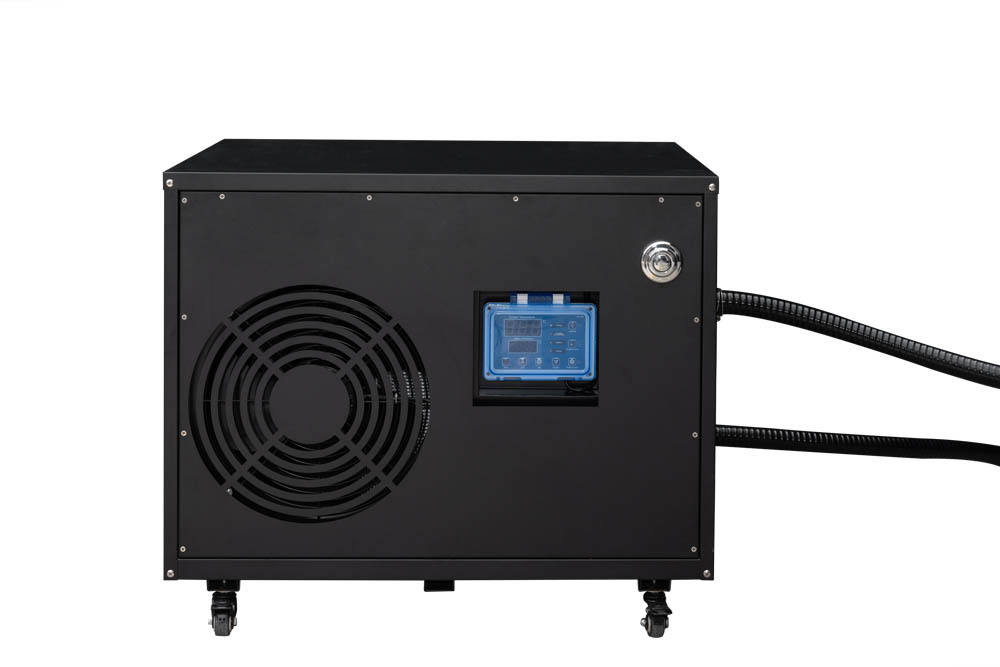

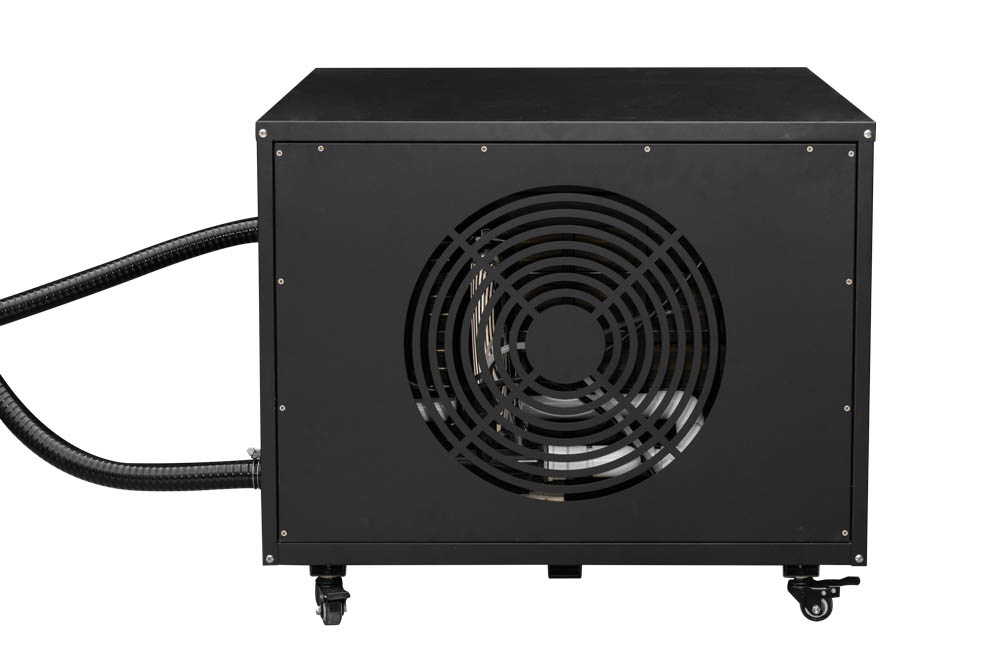

Chiller Unit (Cooling & Heating System):

• External dimensions (with housing): 76 × 66 × 65 cm

• External dimensions (without housing): 70 × 45 × 49.5 cm

• Power supply: 220–240 V / 50 Hz

• Pump power: 1 HP (0.75 kW)

• Water volume capacity: 300–700 L

• Cooling capacity: 2600 W

• Heating capacity: 3000 W

• Nominal cooling power: 1050 W

• Nominal heating power: 1150 W

• Cooling current: 4.8 A

• Heating current: 5.8 A

• Operating pressure (S.S./D.S.): ≤0.8 / 2.5 MPa

• Cooling range: 3–40°C

• Default temperature: 25°C

• Ambient operating temperature: –7°C to 42°C

• Cooling power: 0.75 kW
  (temperature reduction approx. 4–5°C per hour per 1 litre of water)

• Temperature setting range: 3–40°C

• Refrigerant: R290 / 550 g

• Water filter: Built-in

• Cooling & heating functions: Yes (dual mode)

• Noise level: <52 dB

• Net weight: 49 kg

• Mobility: 4 transport wheels

• Control system: Digital control panel + mobile app (Wi-Fi)

• Cooling system: Integrated unit with louvered ventilation

• Ventilation: External louvers supporting heat dissipation

• System protection: Design prevents chiller overheating
