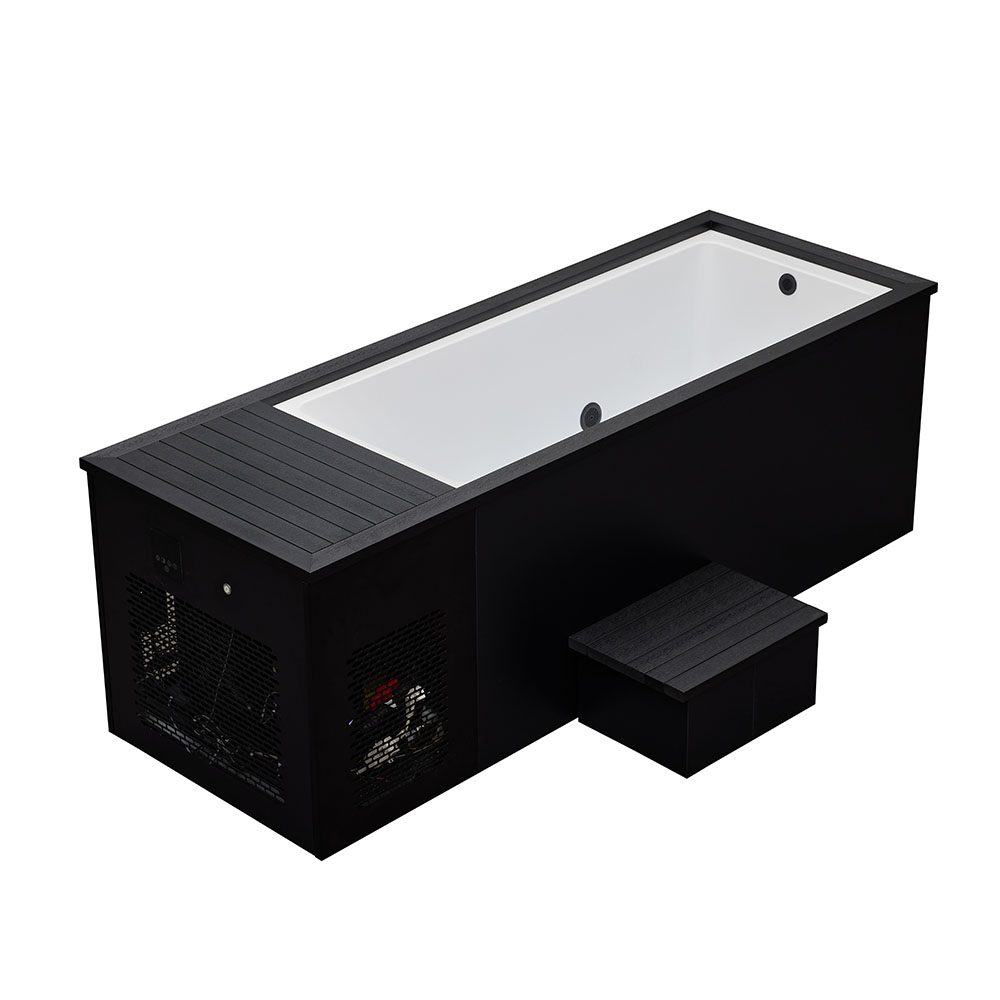

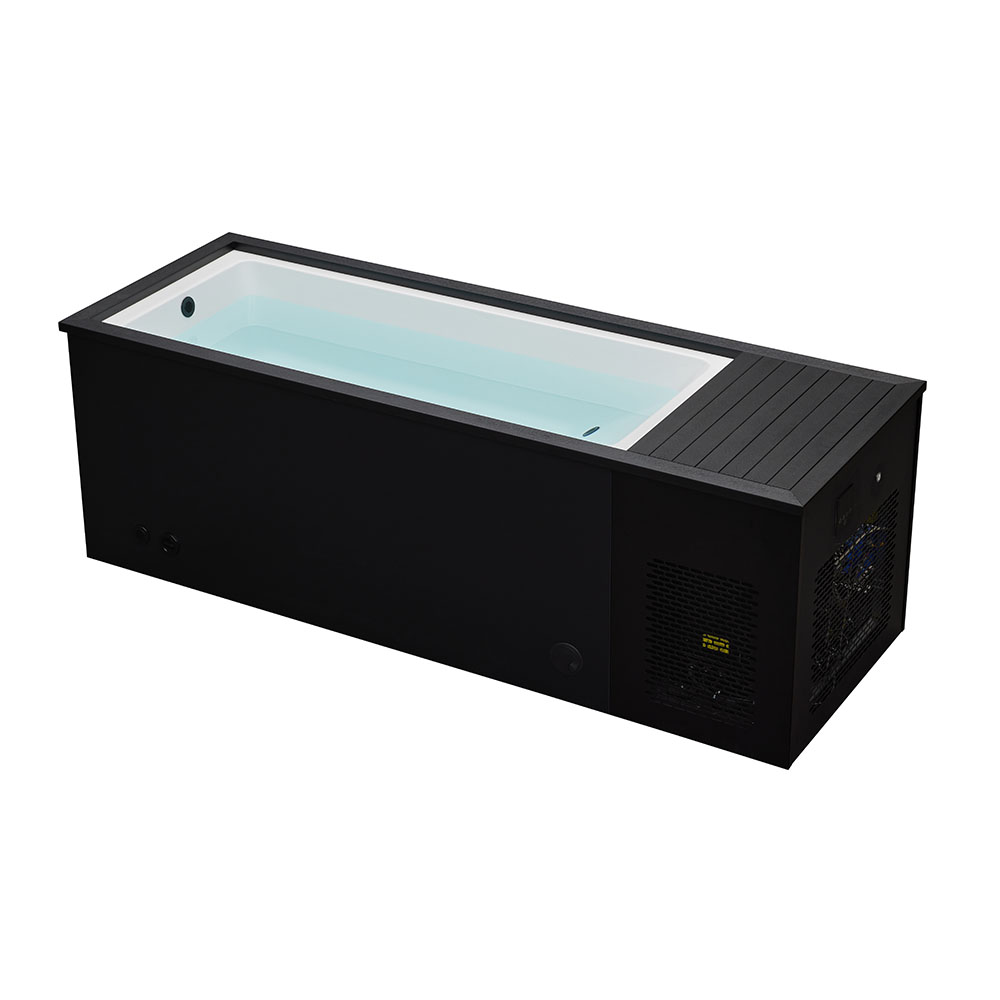

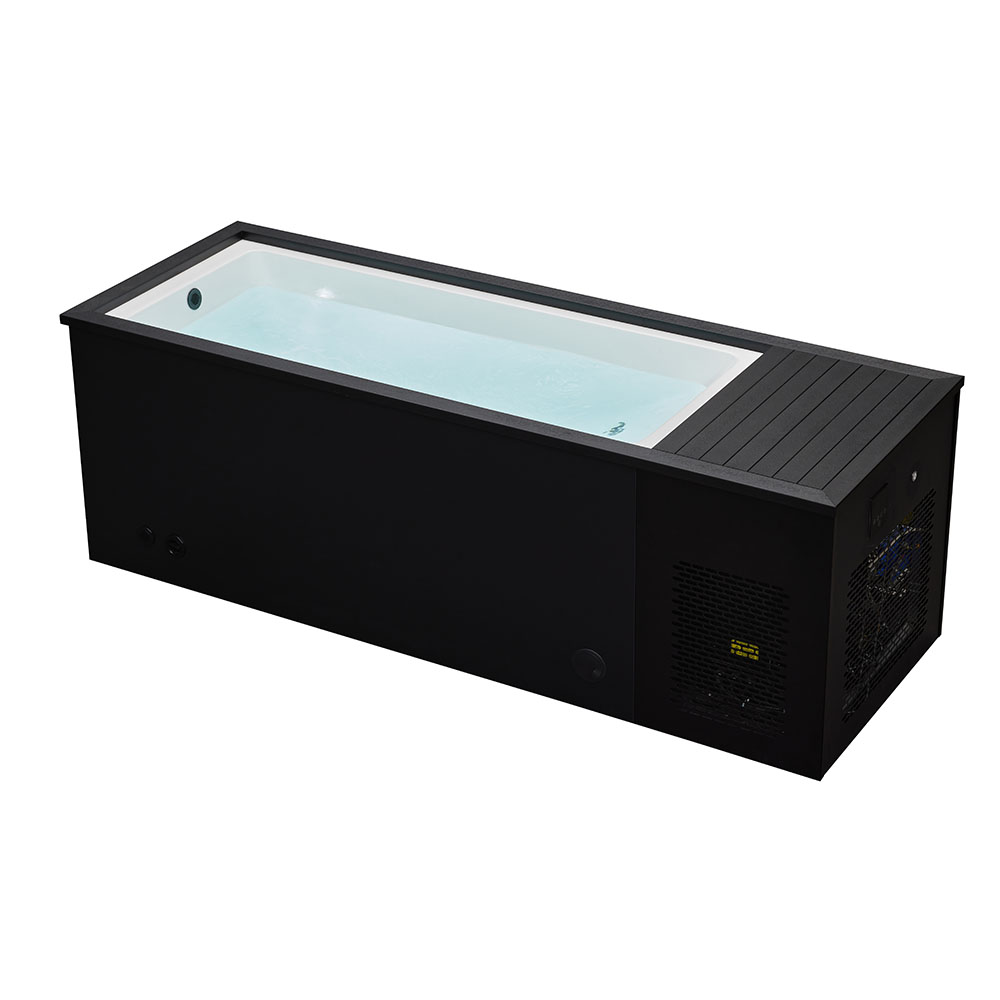

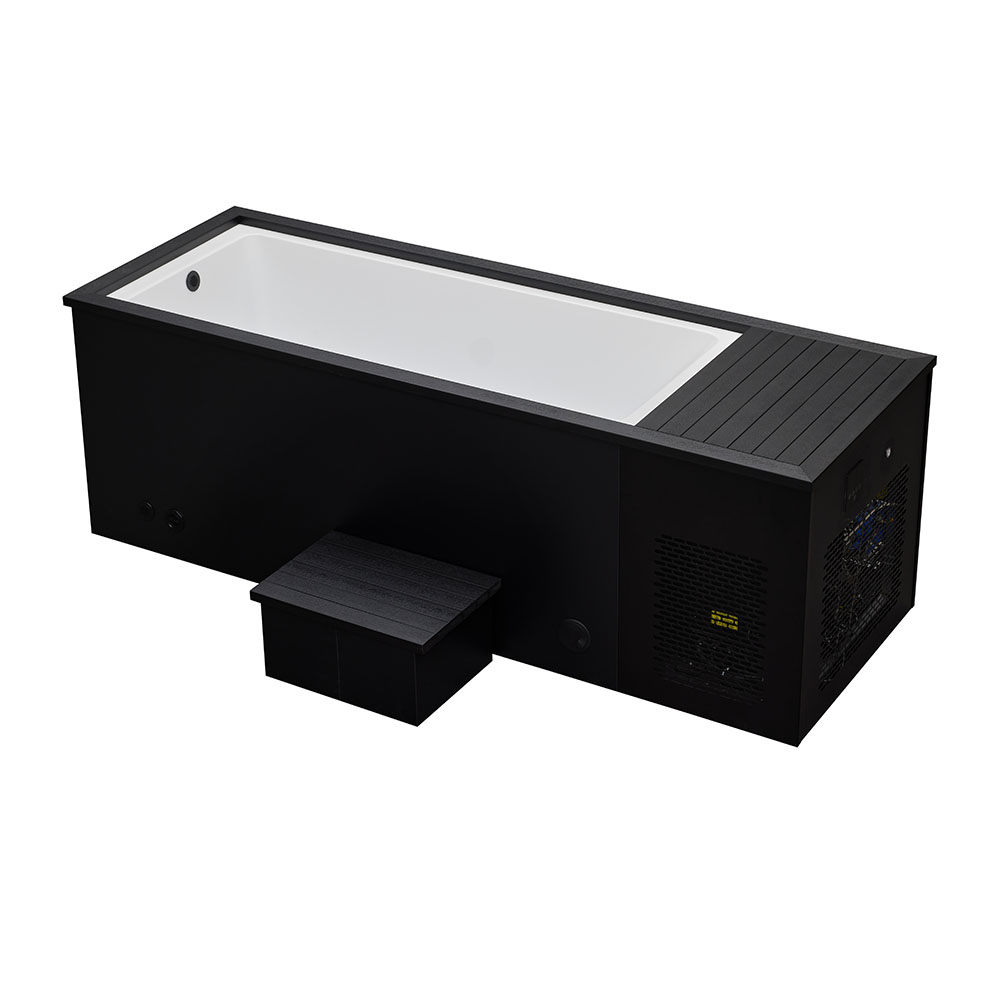

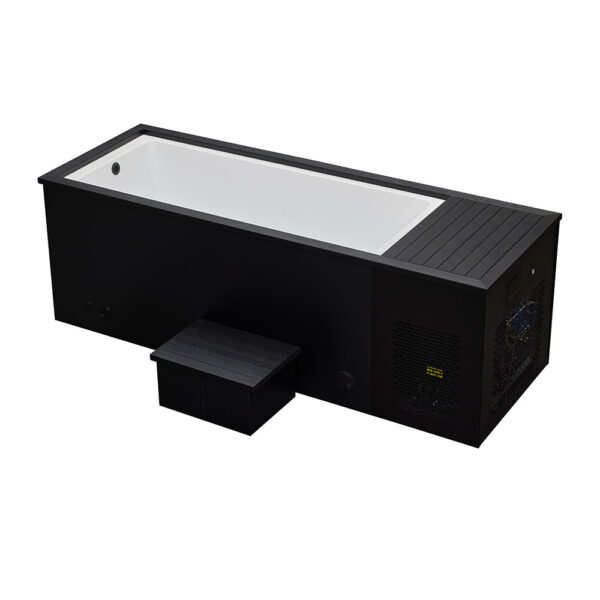

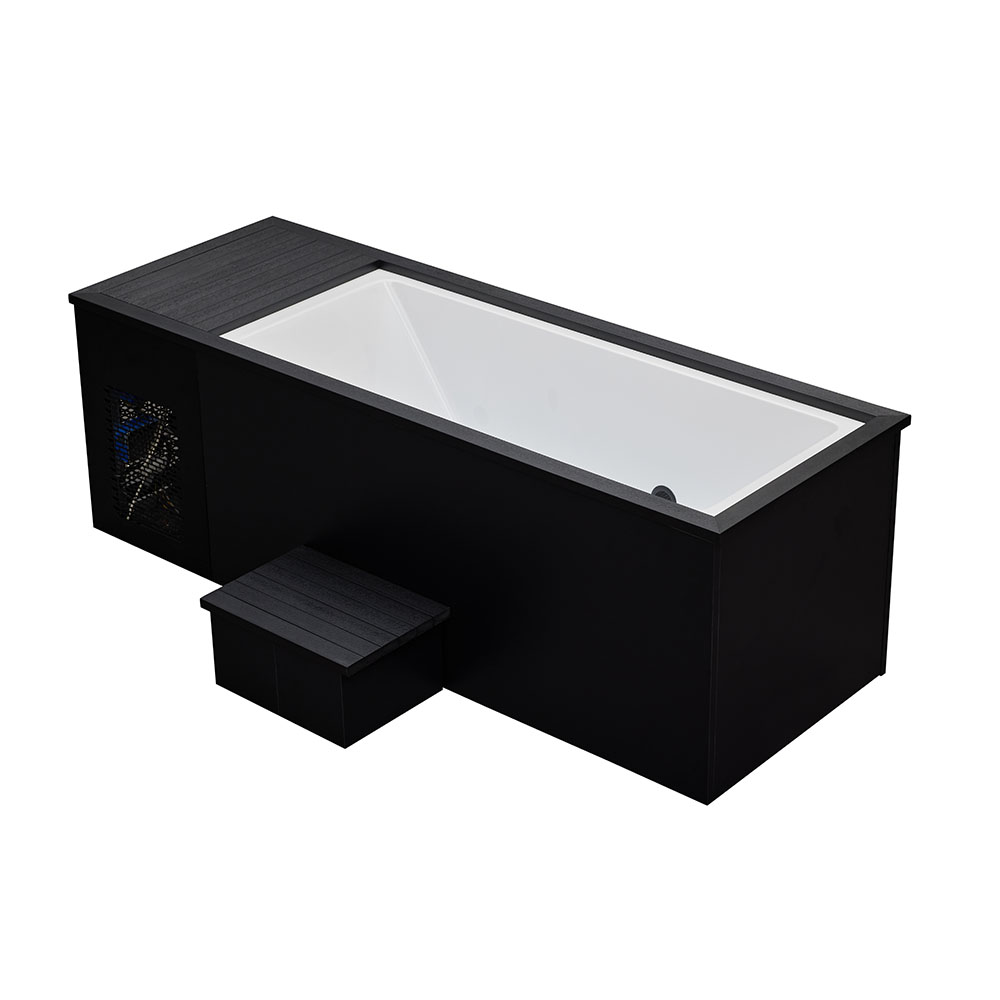

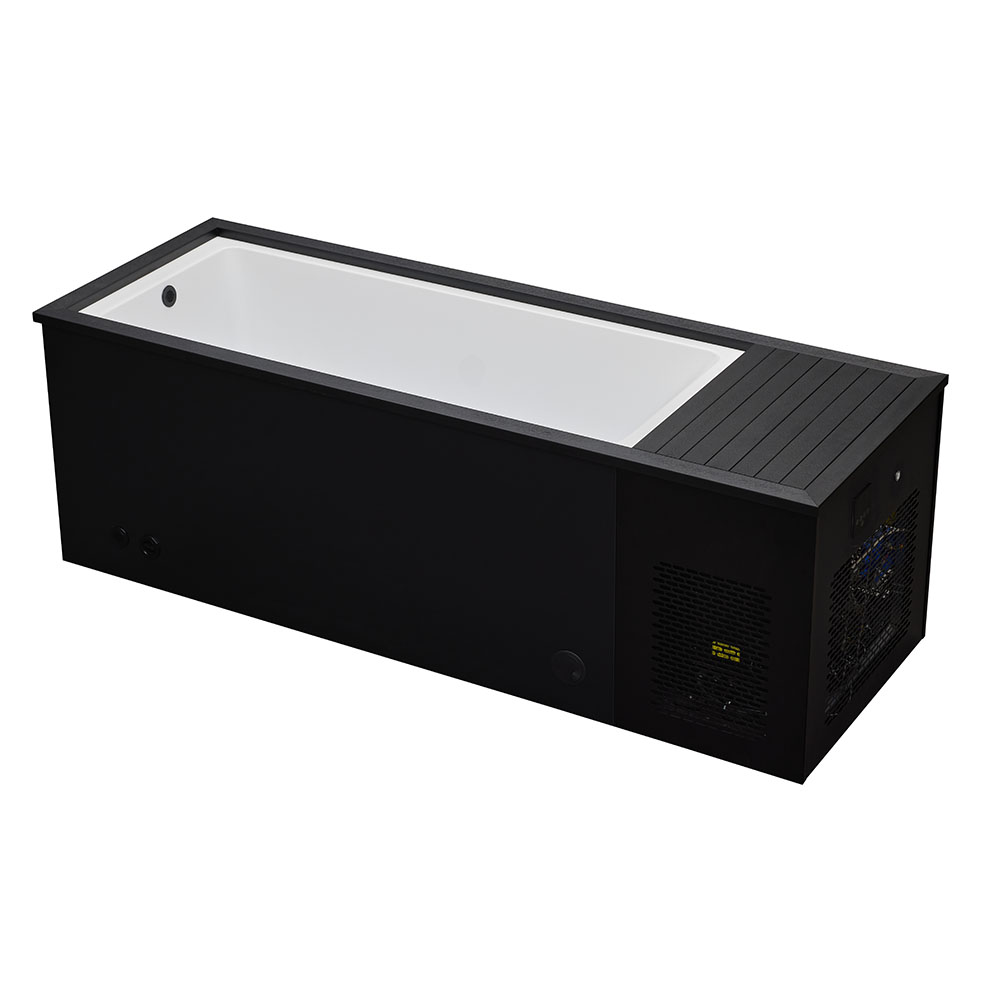

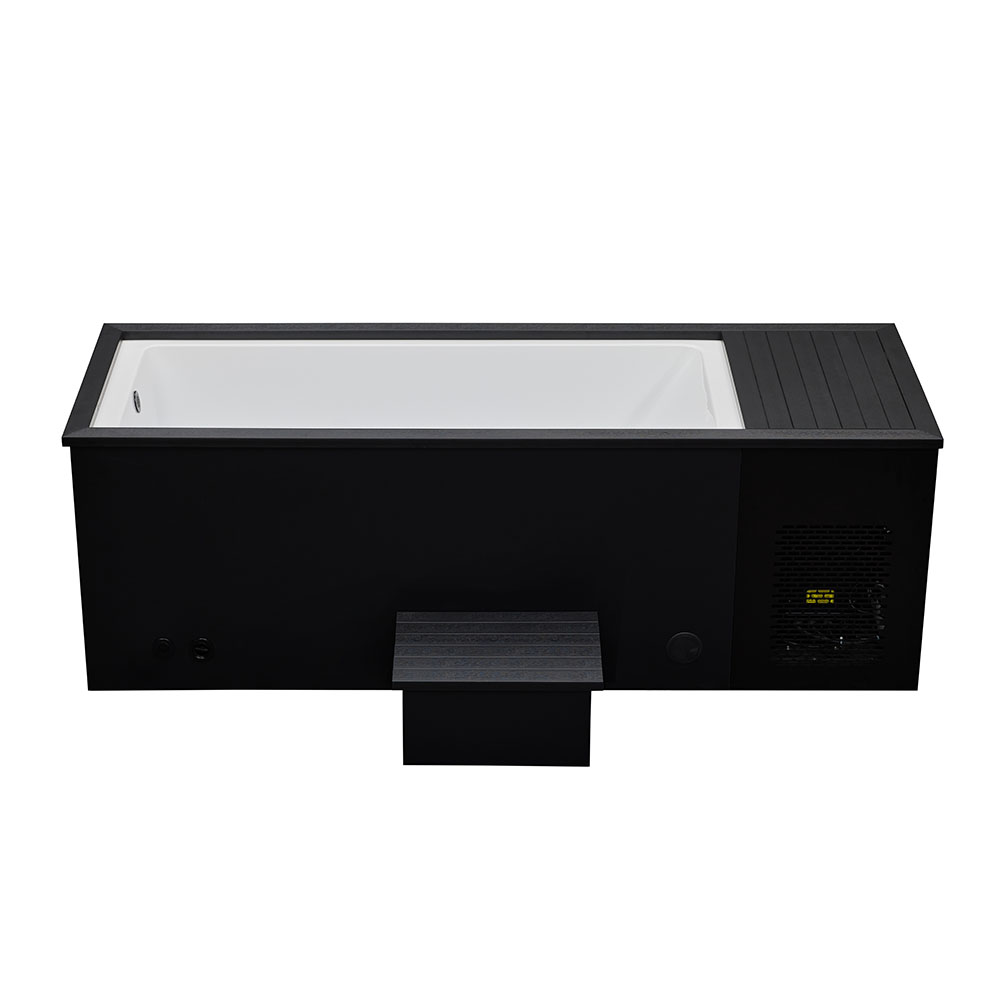

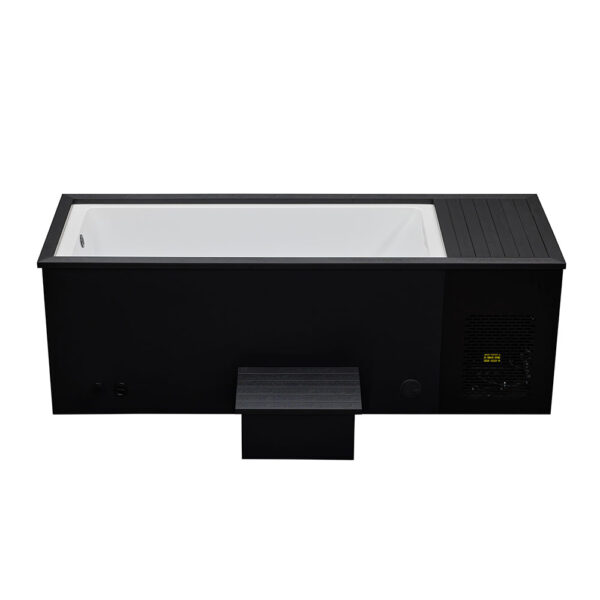

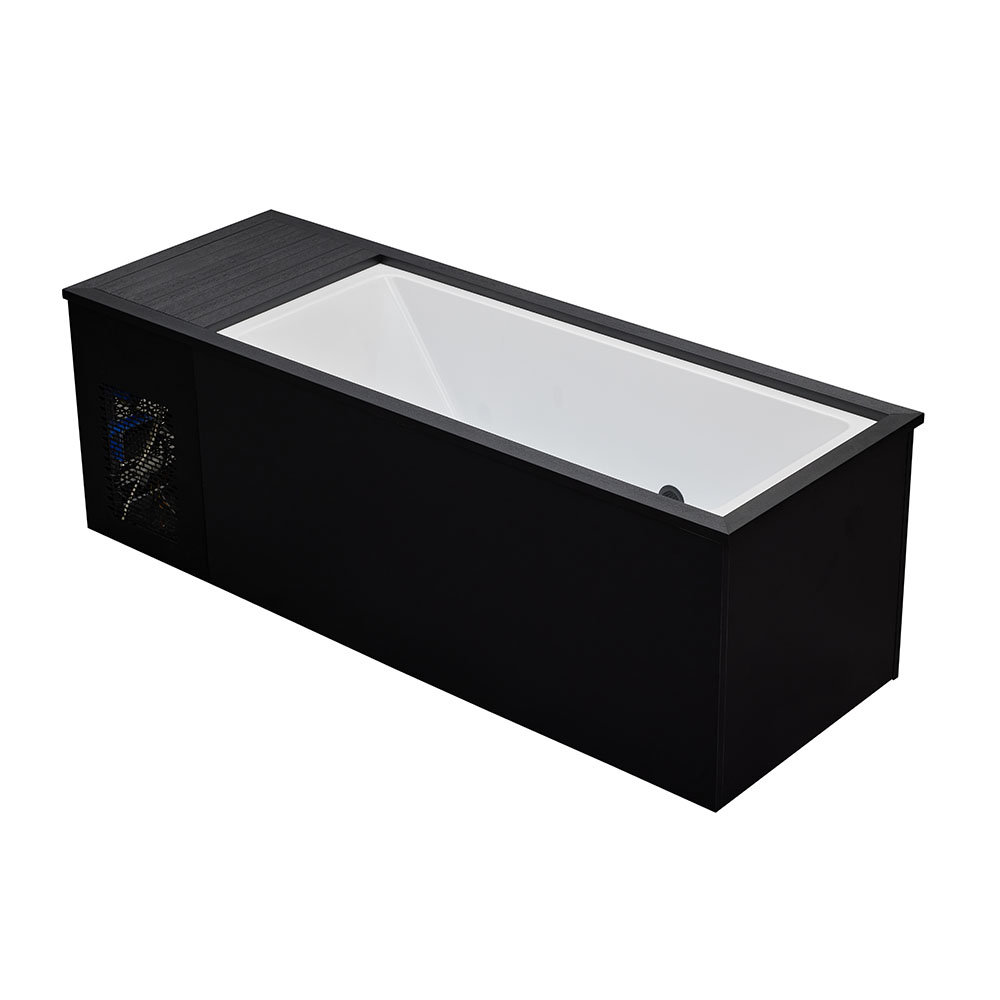

Cold Plunge Ice-bath Cryon WM1001 with chiller

Description

PRODUCT SPECIFICATION

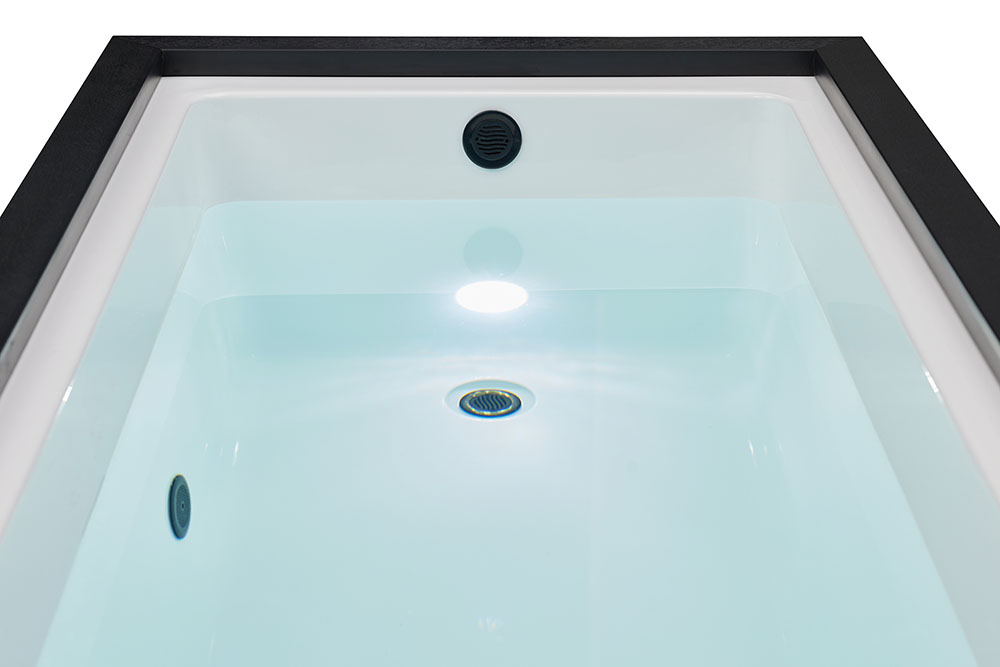

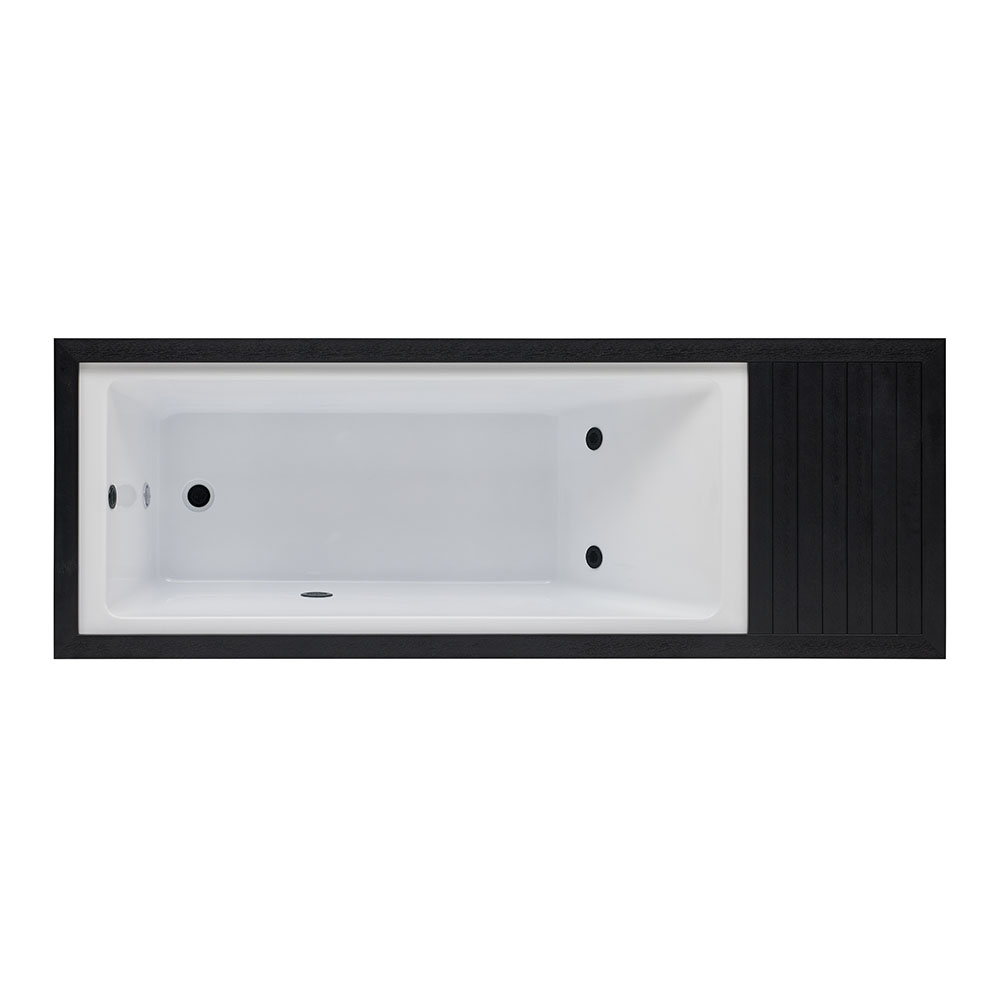

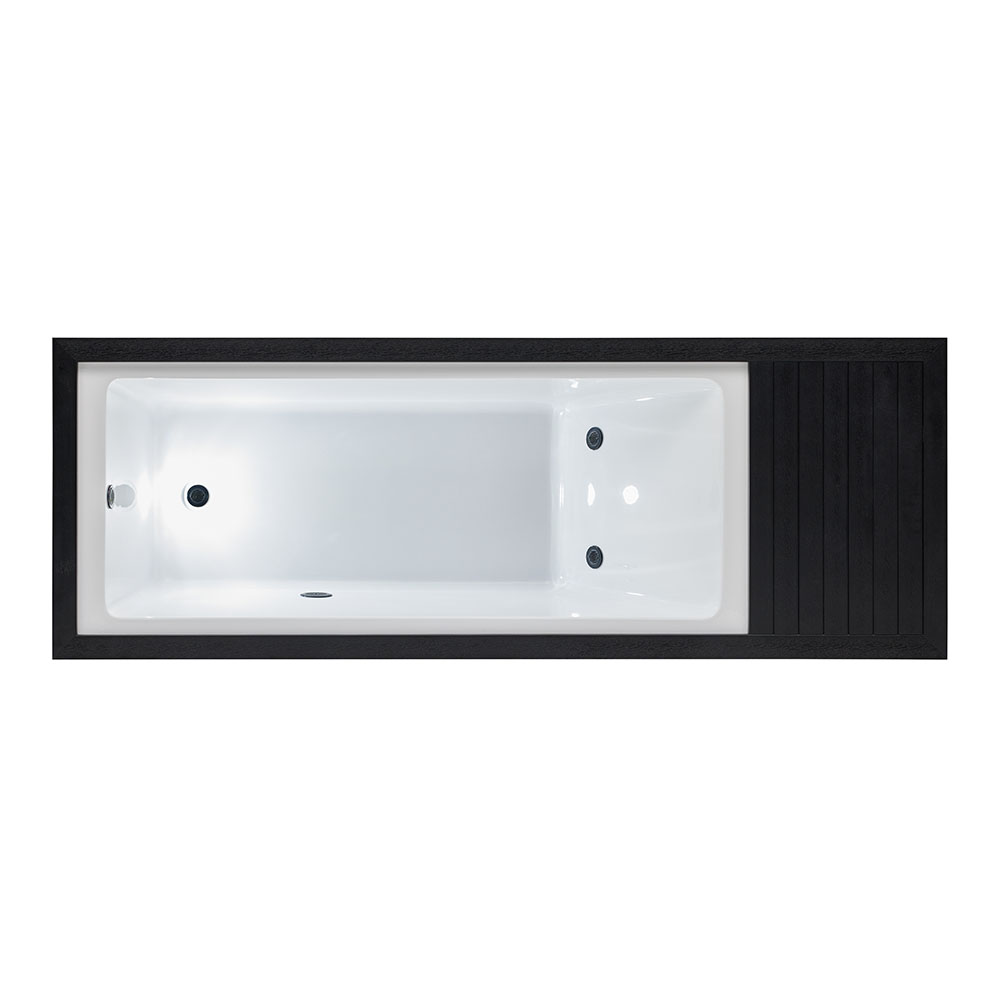

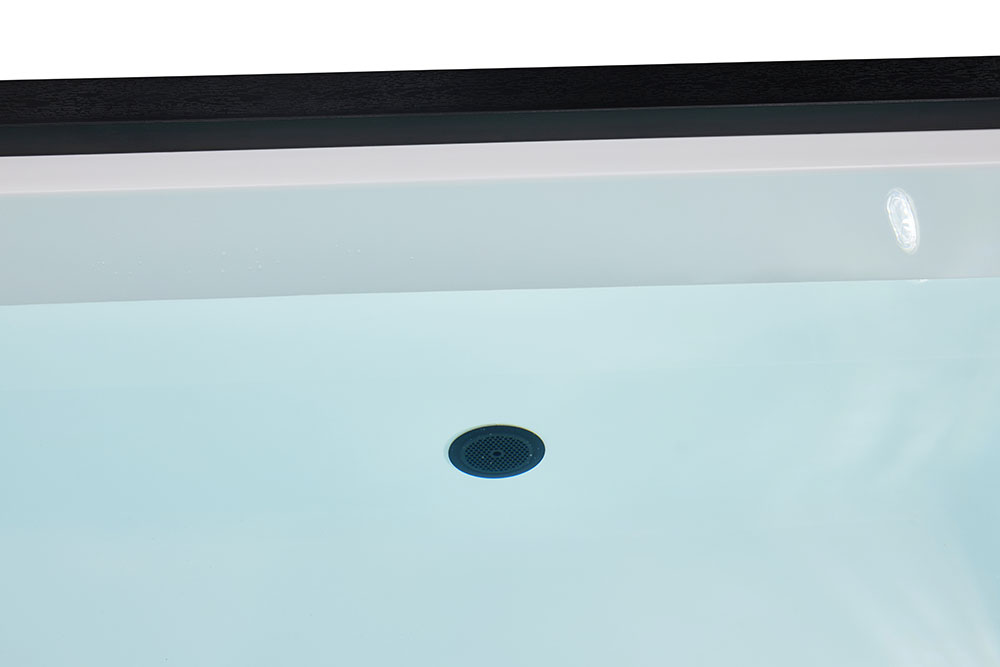

Bathtub:

• External bathtub dimensions: 2160 × 770 × 730 mm

• Capacity: 250 litres

• Number of seats: 1

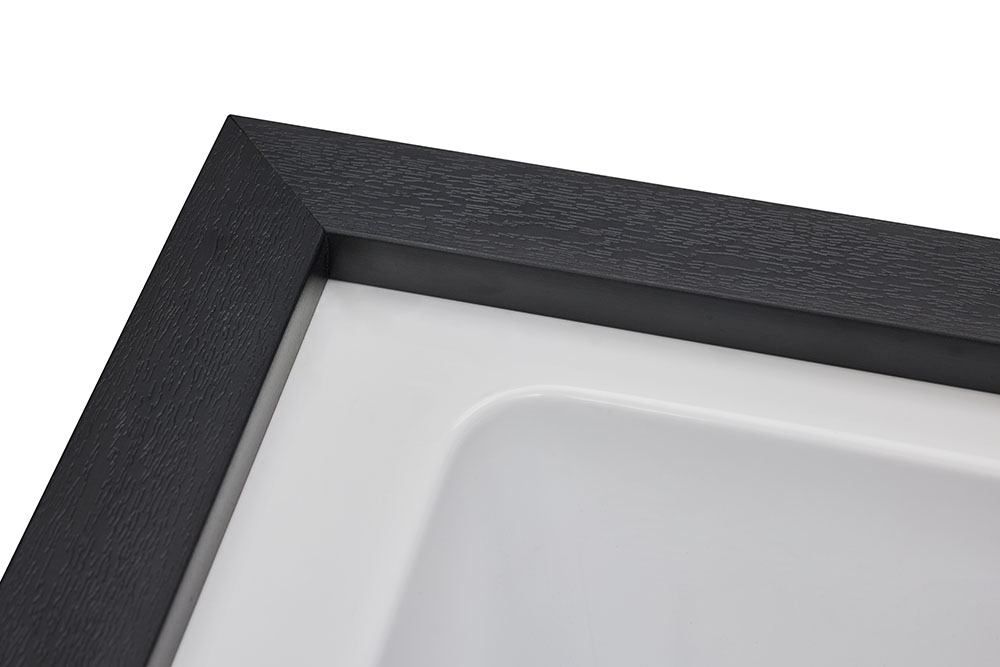

• Inner material: stainless steel

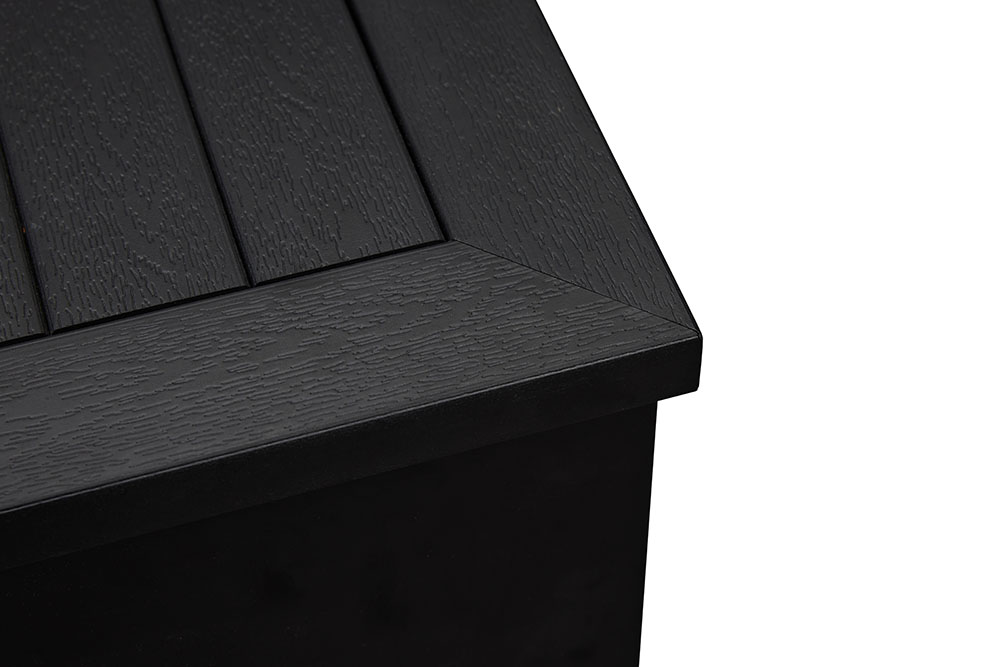

• Cladding: stainless steel, wood

• Cladding colour: matte black

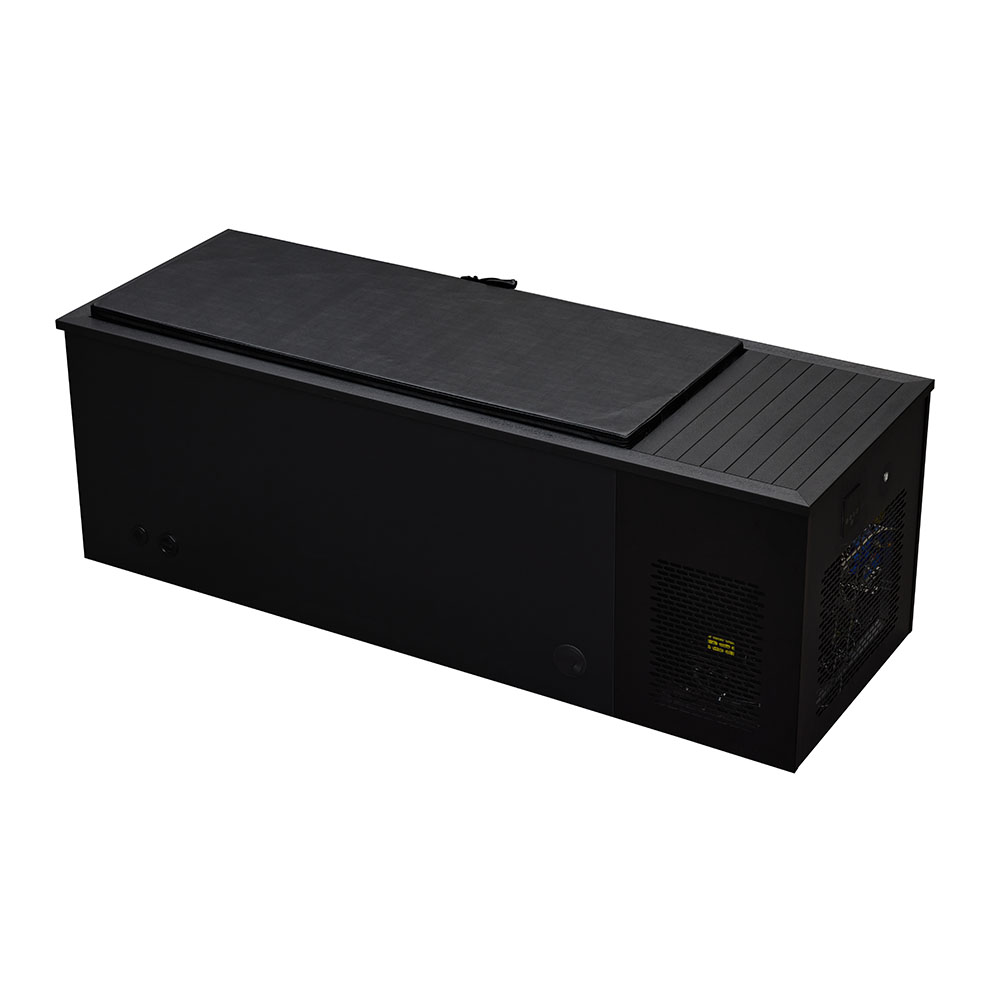

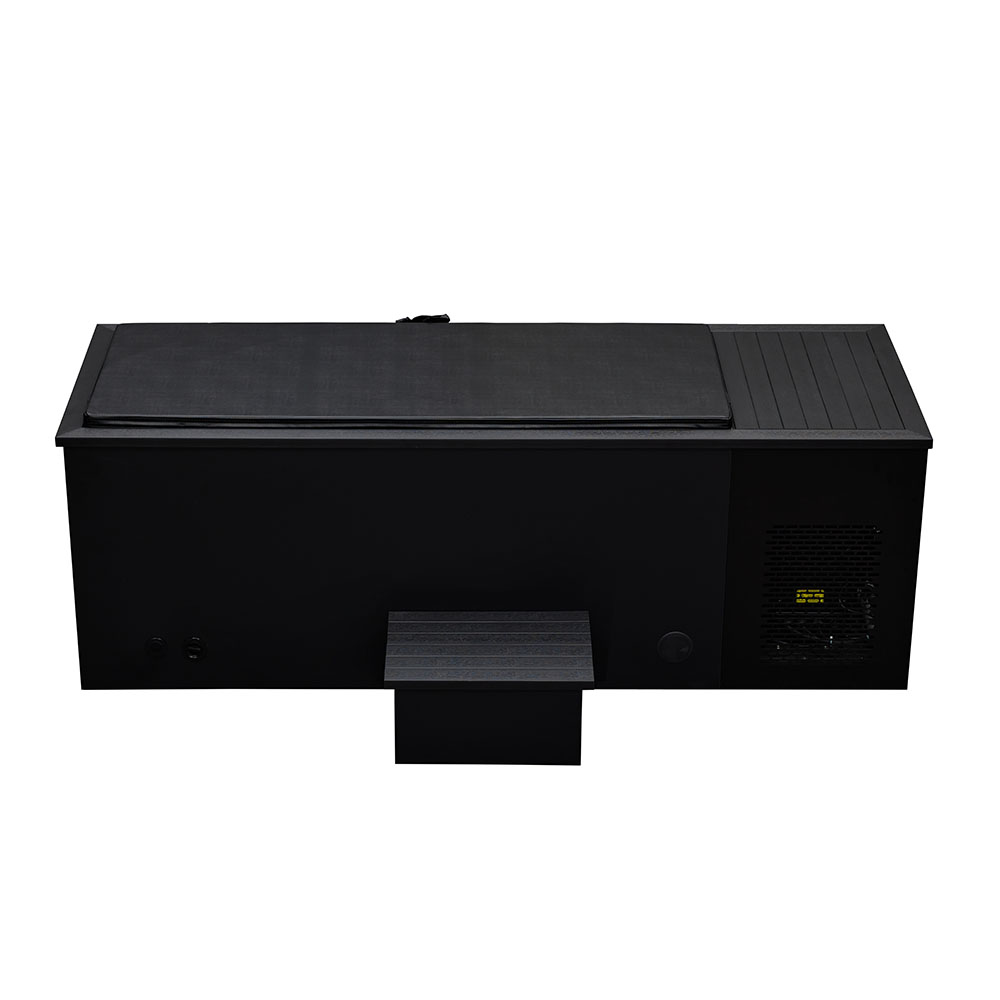

• Thermal insulation cover: yes (foldable)

• Structural reinforcement: galvanised steel sheet

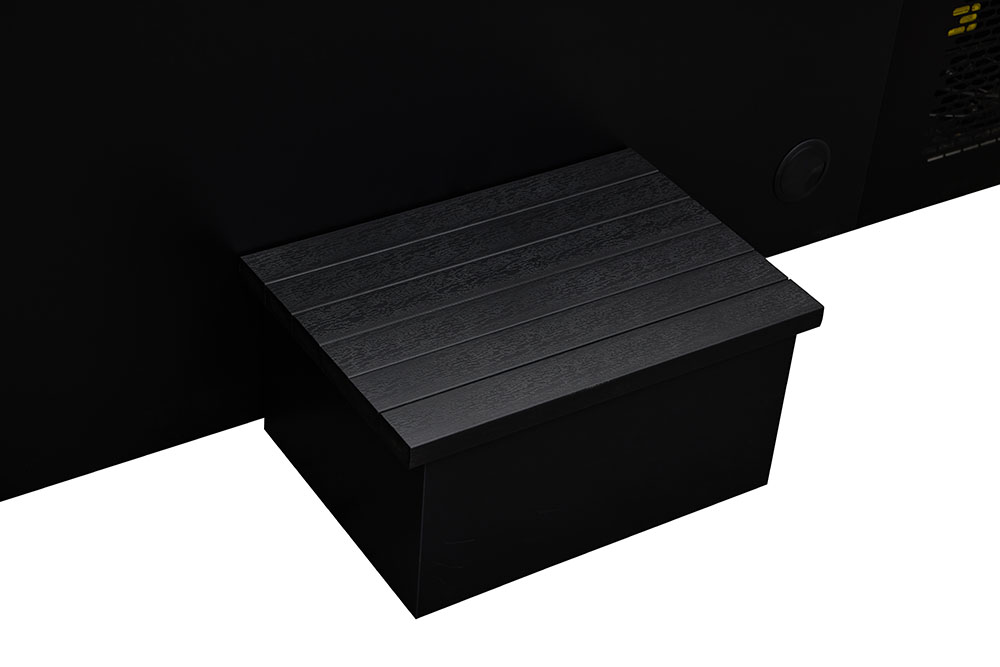

• Entry steps: yes

• Water treatment system: filtration + ozonation

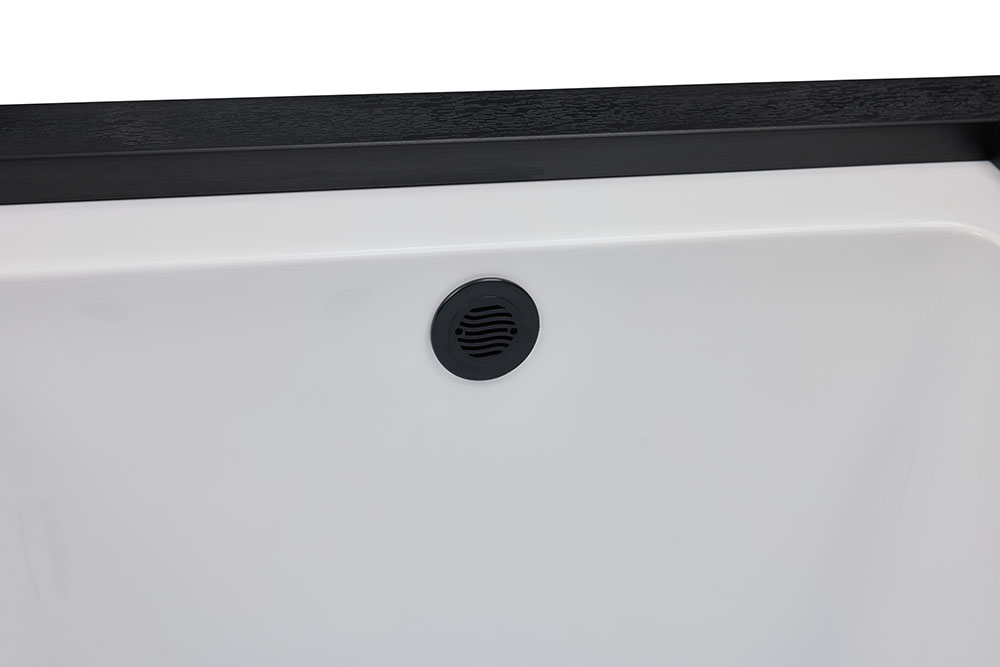

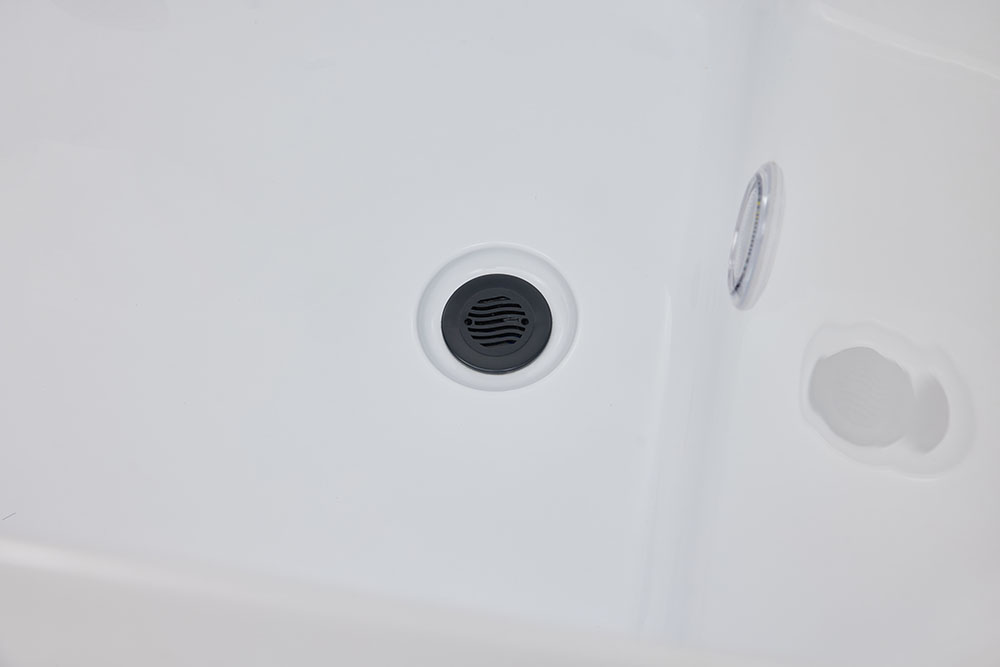

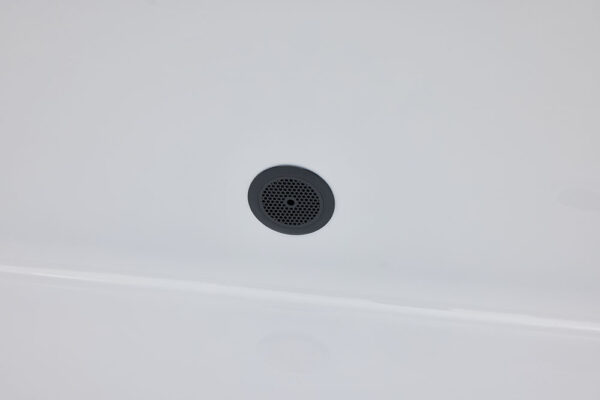

• Drain plug: silicone / stainless steel

Chiller (Cooling Unit):

• External dimensions: 485 × 330 × 435 mm

• Power supply: 220–240 V / 50 Hz

• Maximum power consumption: 0.85 kW

• Maximum current: 3.70 A

• Water flow rate: 1.30 m³/h

• Water connection: DN40

• Cooling temperature range: 2–35°C

• Heating temperature range: 15–40°C

• Ambient temperature range (cooling mode): 10°C to 43°C

• Ambient temperature range (heating mode): –5°C to 43°C

• Temperature setting range: 0–40°C

• Refrigerant: R290 / 550 g

• Water filter: built-in

• Heating and cooling functions: yes (both modes)

• Noise level: <48 dB

• Net weight: 25 kg

• Heat exchanger: titanium

• Airflow direction: horizontal

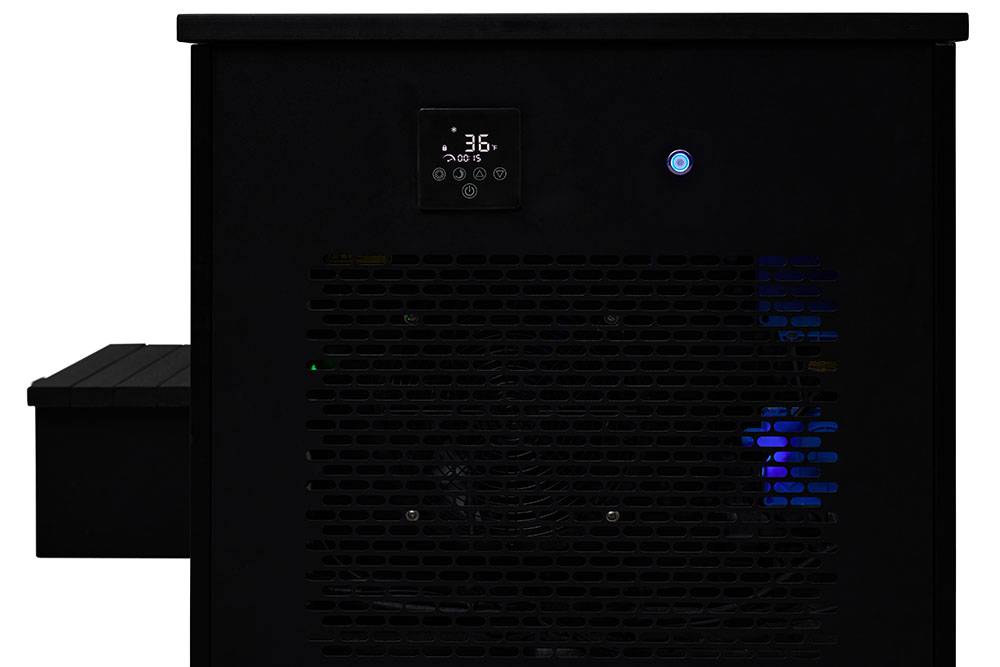

• Control: digital control panel + mobile app (Wi-Fi)

• Cooling system: integrated unit with louvre ventilation

• Ventilation: external louvres supporting heat dissipation

• System protection: design preventing chiller overheating
