Description

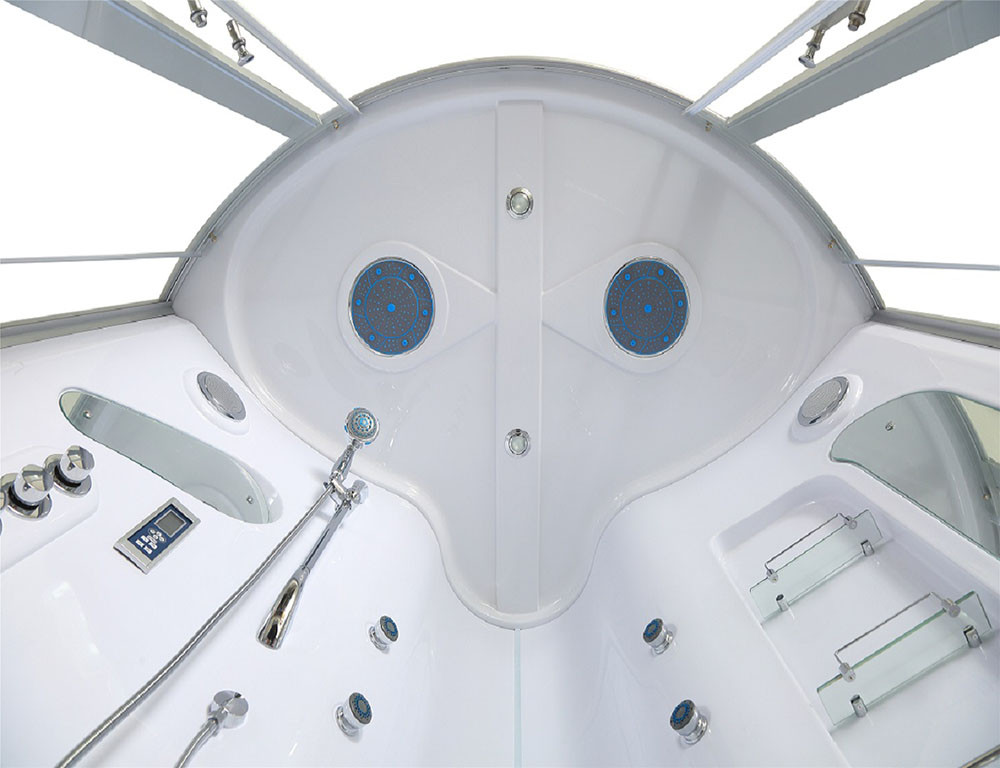

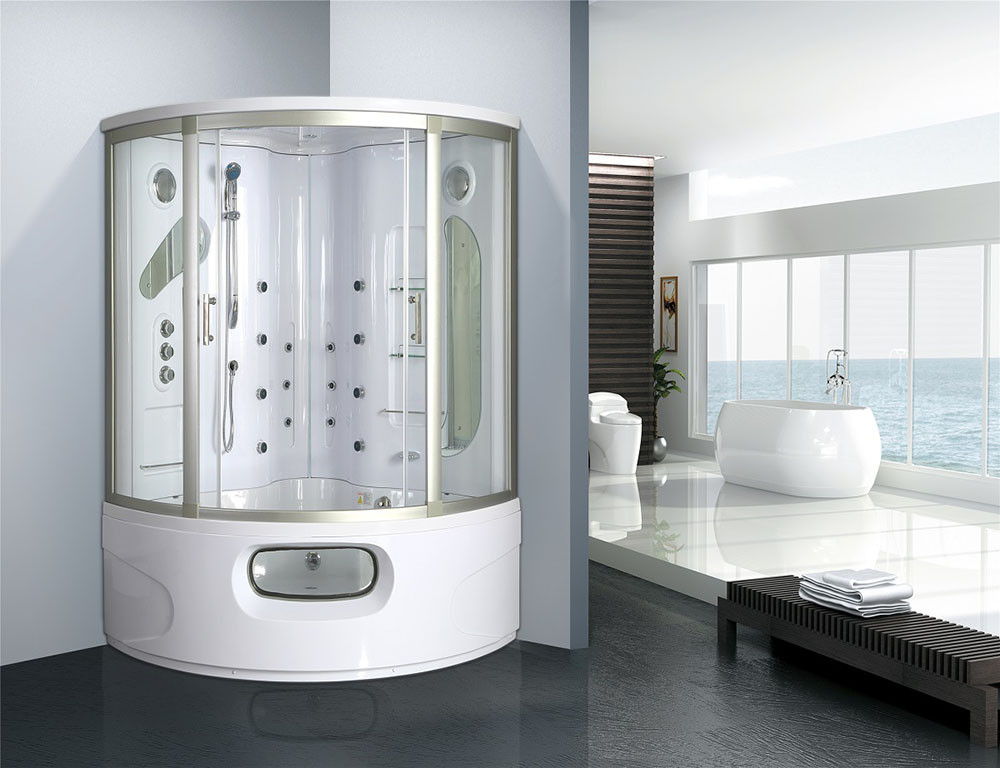

Shower- bath combines the functions of a shower cabin and a bathtub with hydromassage. The bathtub has a water pump and an air pump as well as underwater lighting. The cabin includes all the functions of a shower cabin, a rain shower head, shower head, shelves for cosmetics, and a back massage nozzle.
PRODUCT SPECIFICATION:
FUNCTIONS:
1. Shower cabin
2. Steam sauna
3. Bath tub

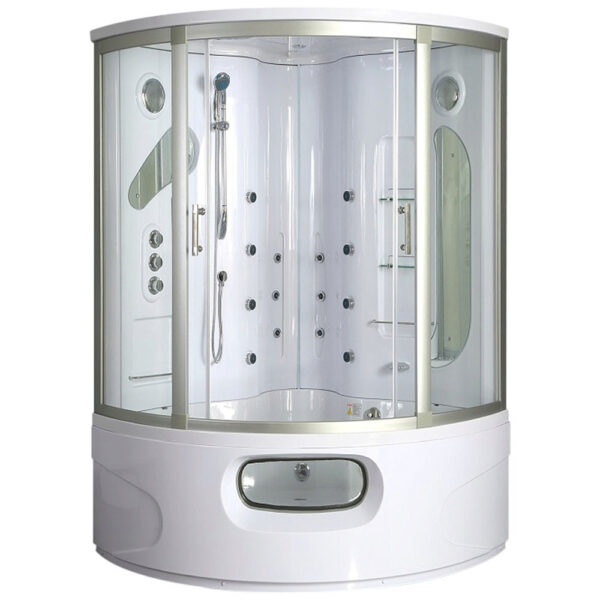

SHOWER CABIN WITH STEAM SAUNA FUNCTION:
External dimensions: 1550 x 1550 x 2200 mm (height measured with the bathtub)
Tempered glass thickness: 5 mm
Material:

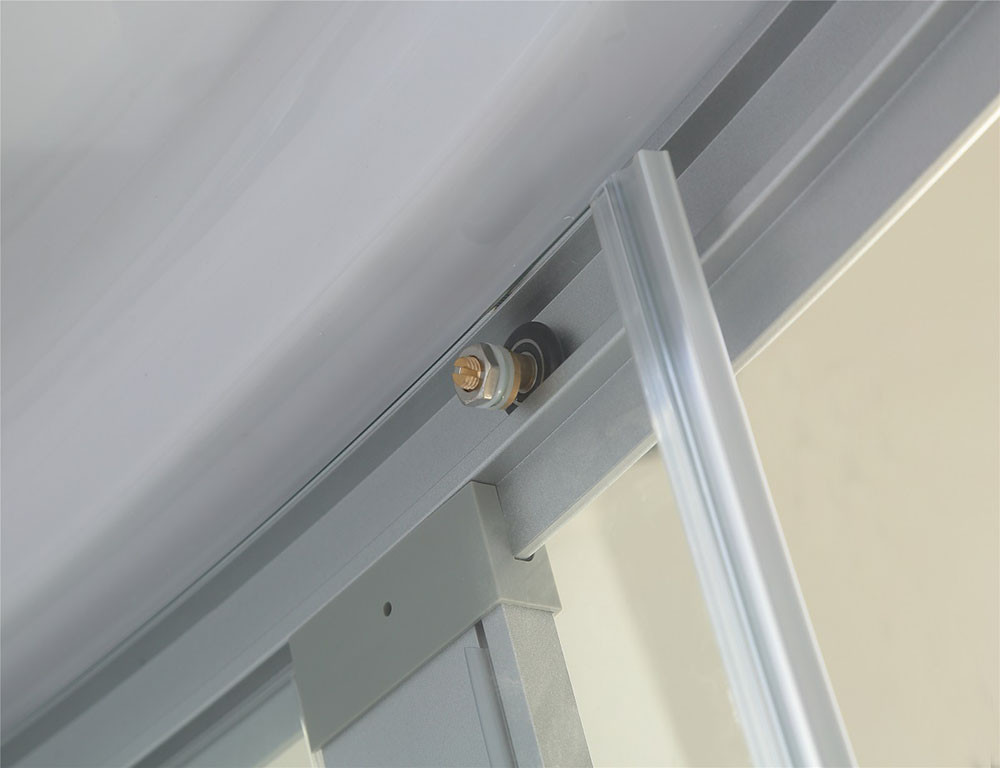

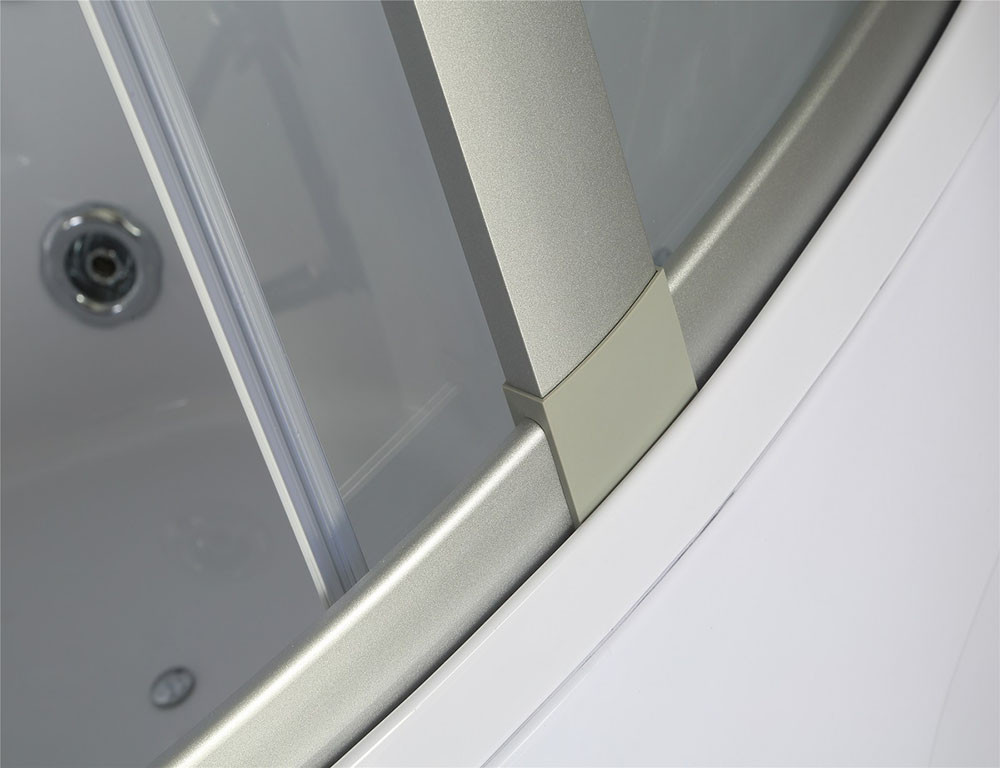

– Frames: aluminum (silver)
– Back wall: Acrylic (ABS)

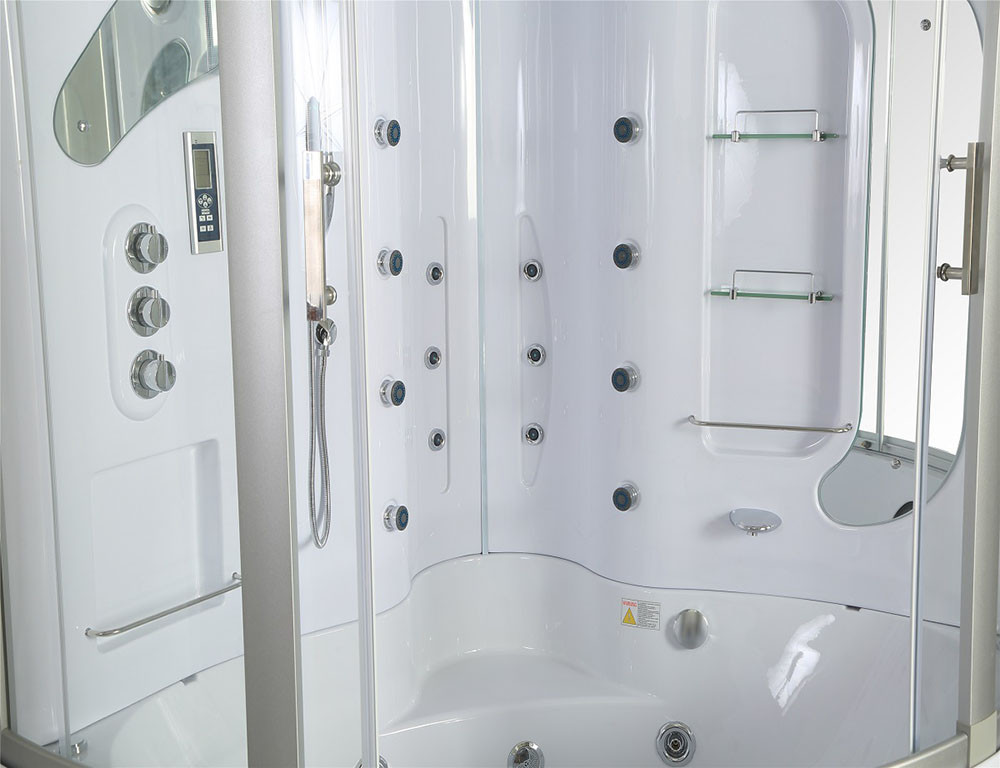

Equipment:
– Hydromassage jets (1.5″): 8 pcs.
– Acupuncture nozzles (1.5″): 6 pcs.
– Shower faucet (thermostatic): yes (mixing valve, manifold, water stream regulator)

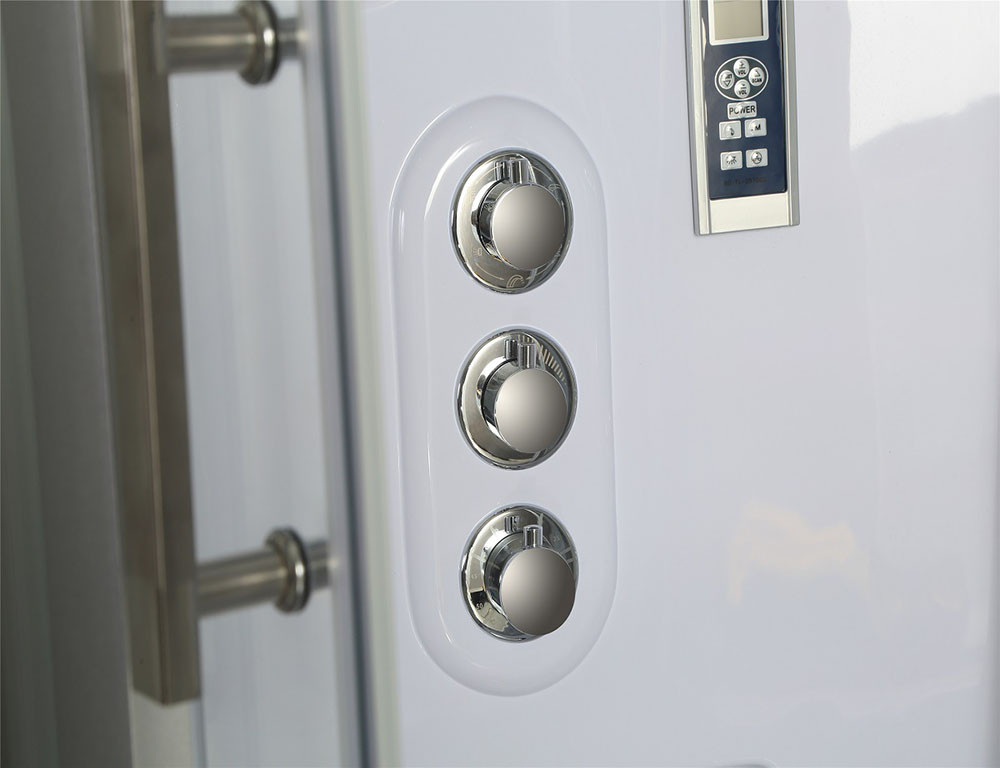

– Chrome-plated knobs: yes

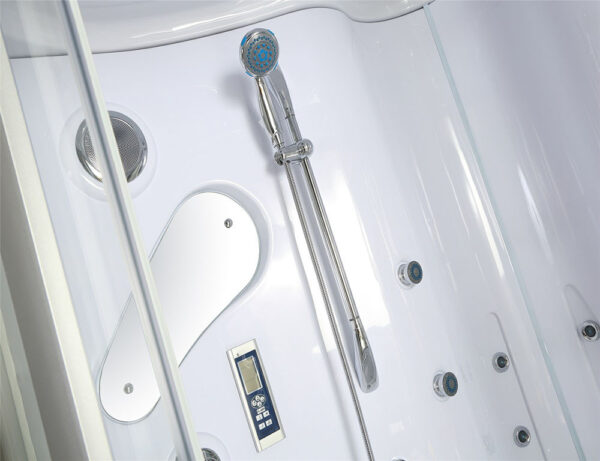

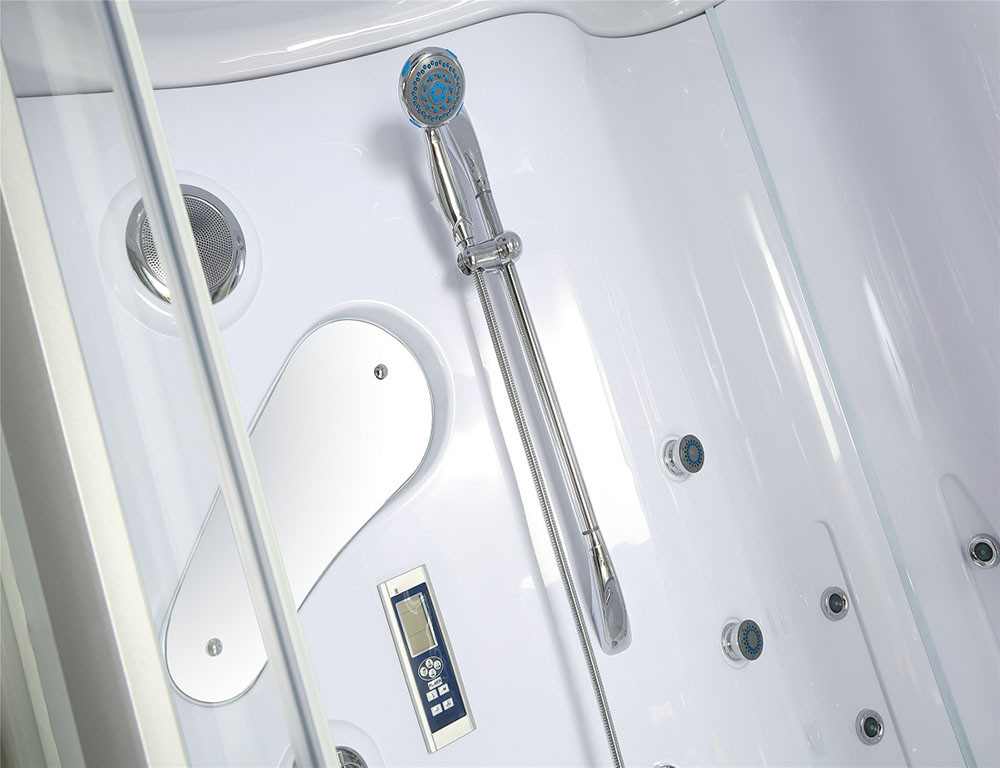

– Multifunctional hand shower: 1 pc. (adjustable: up/down)
– Rain shower: 2 pcs.
– Exhaust fan: 1 pc.

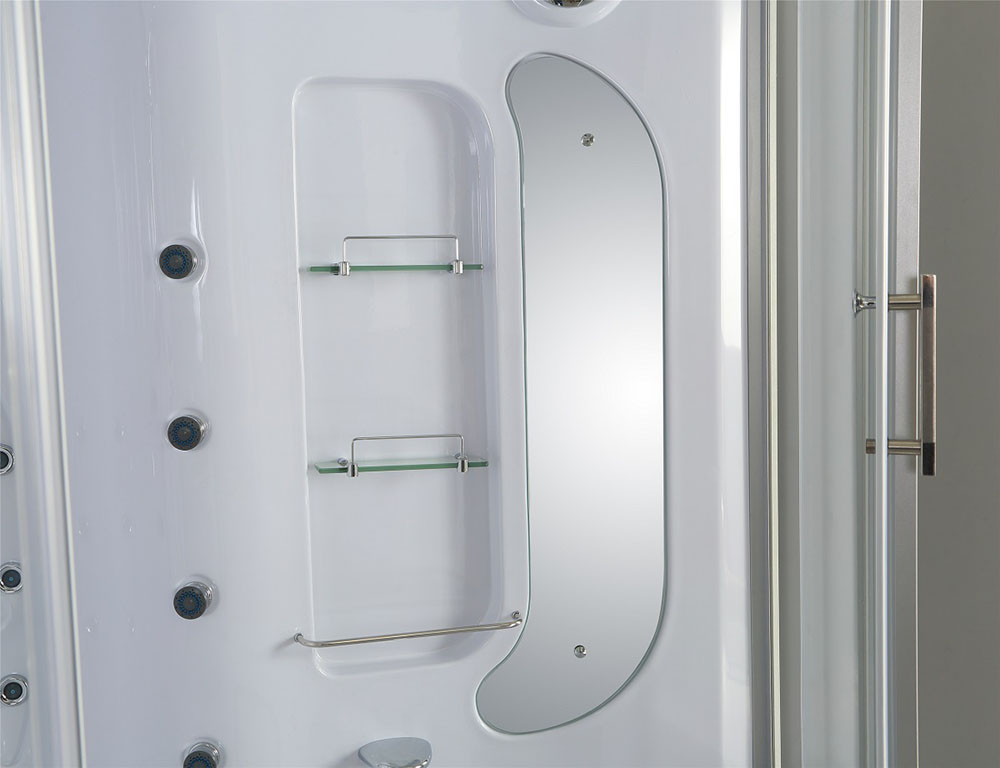

– Shelf for cosmetics: 4 pcs. (including 2 glasses)
– Mirror: 2 pcs.

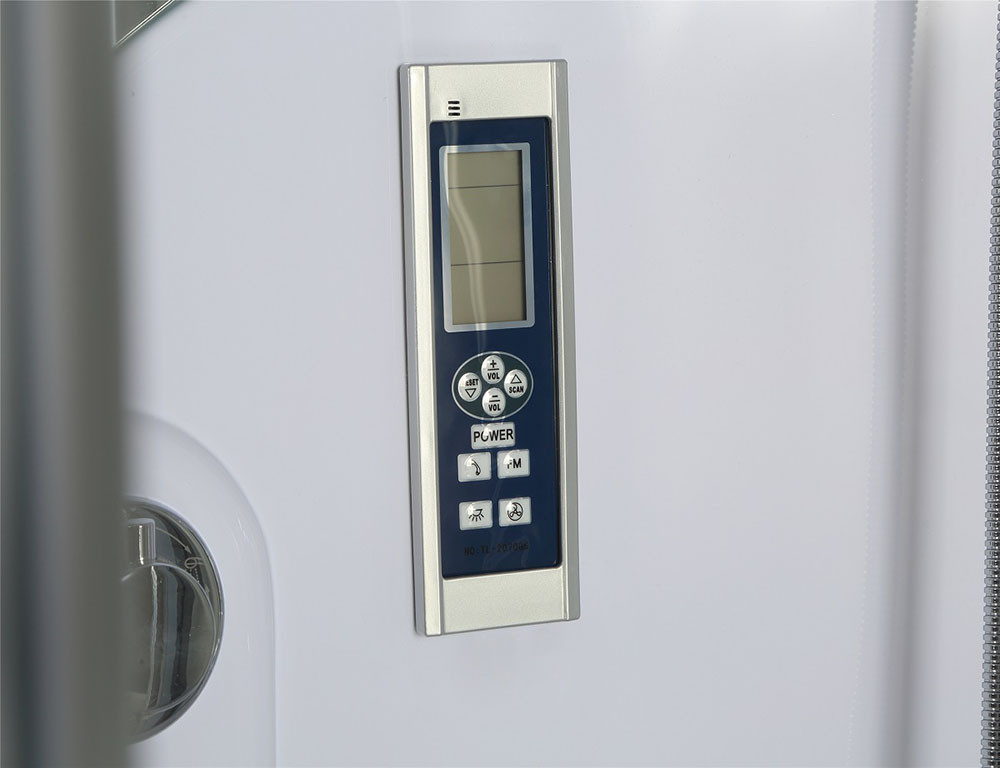

– Control panel: yes
– Radio: 1 pc.

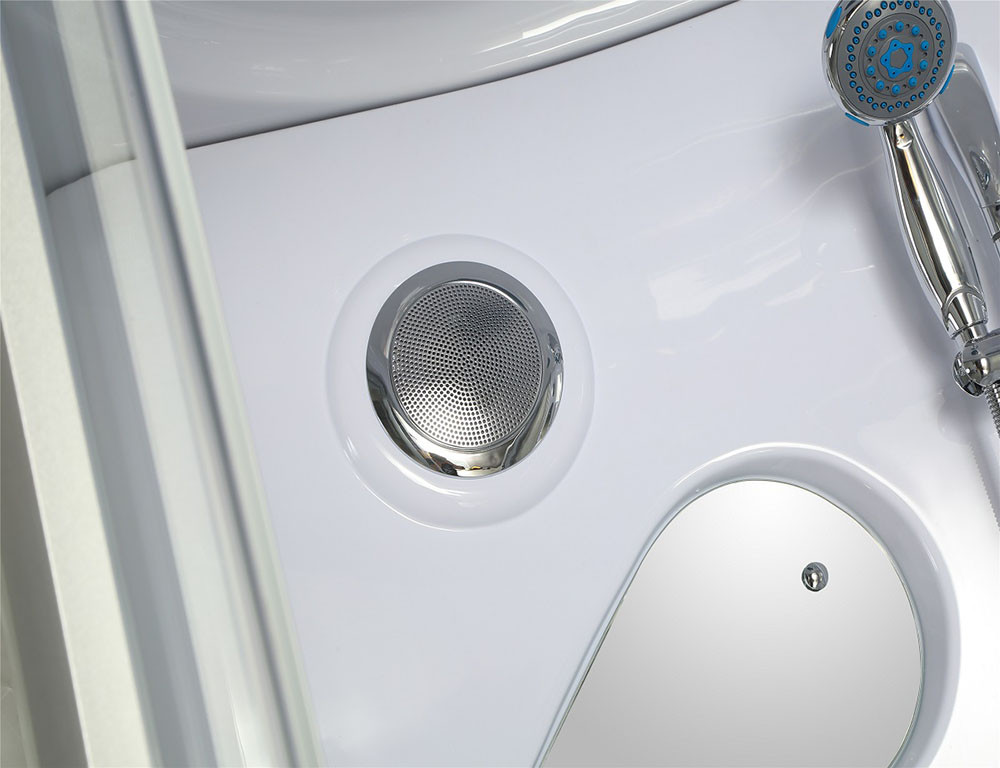

– Speaker: 1 pc.
– Ionizer: 1 pc.
– Steam generator 2.8kW: 1 pc.
– Steam outlet: 1 pc.

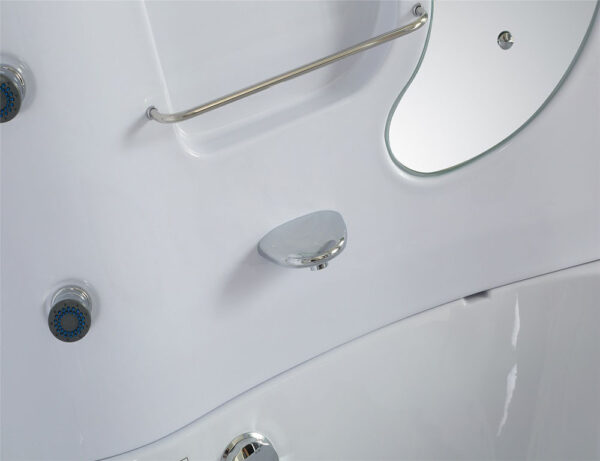

– spout: 1 pc. (to fill the bathtub)
– Temperature sensor: 1 pc.

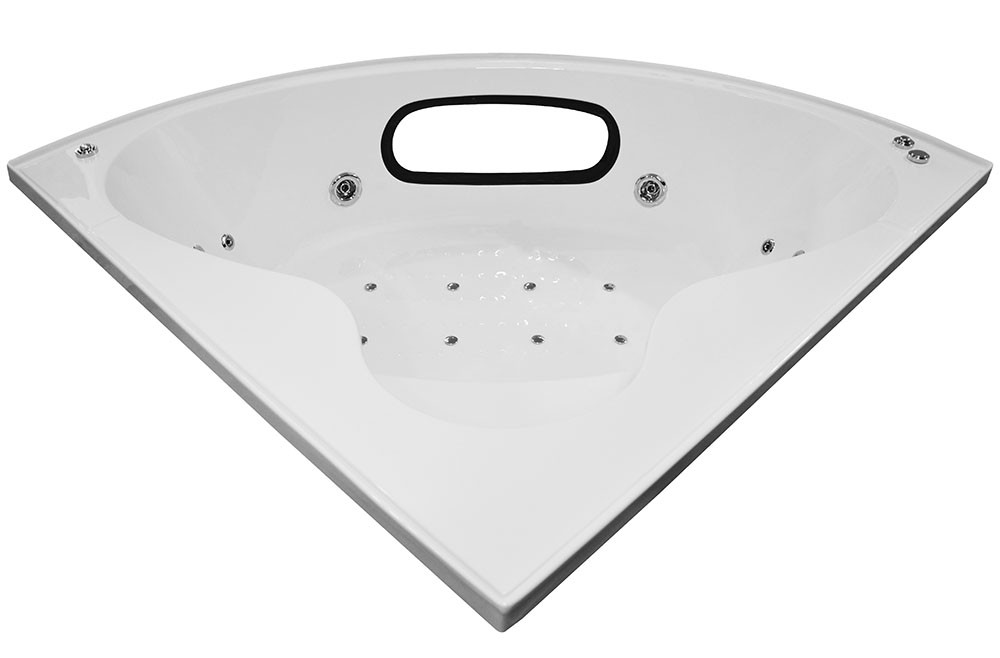

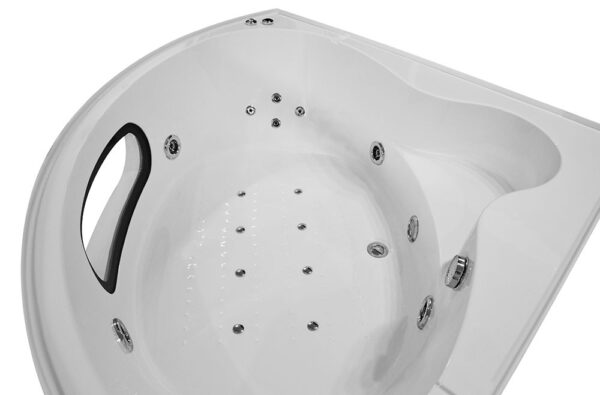

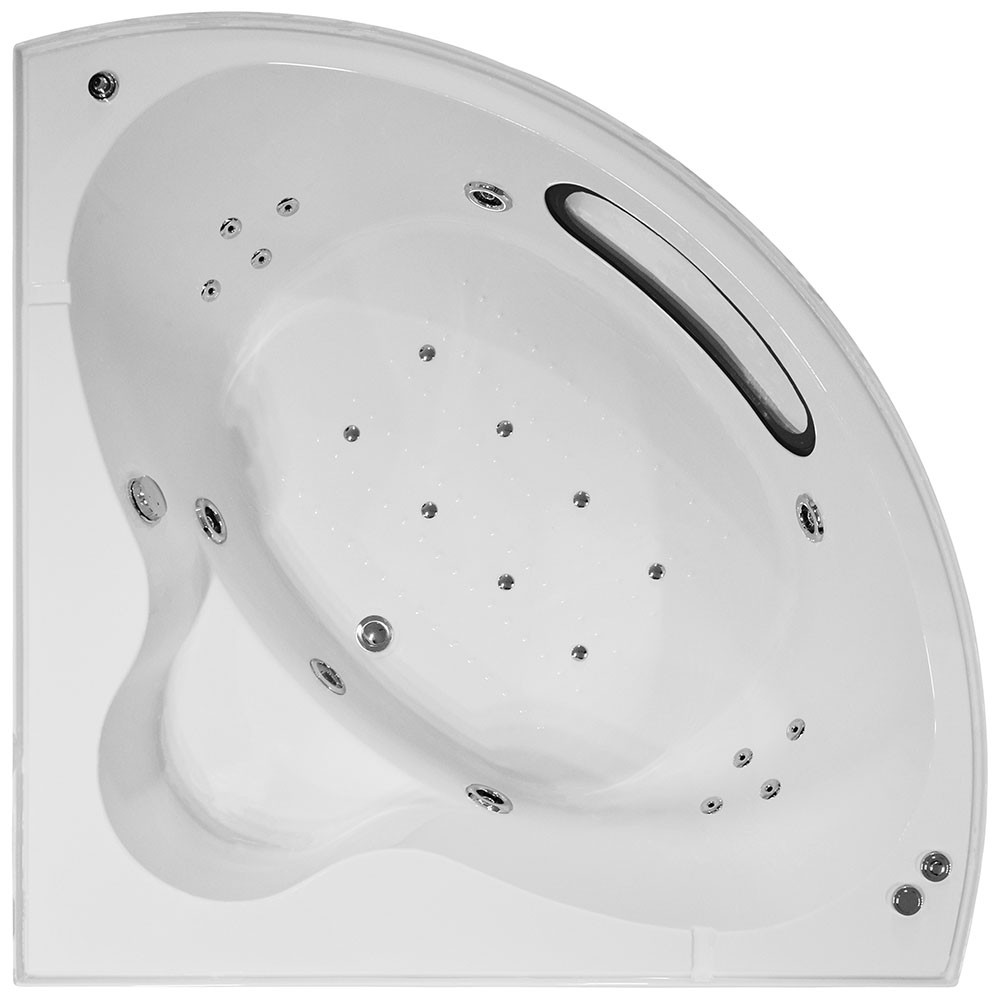

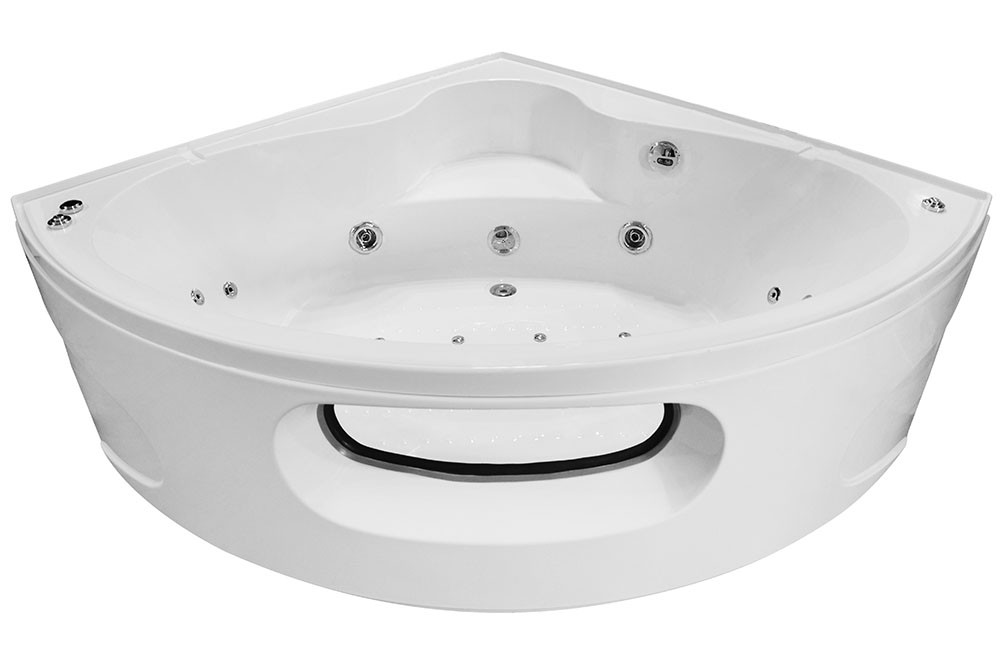

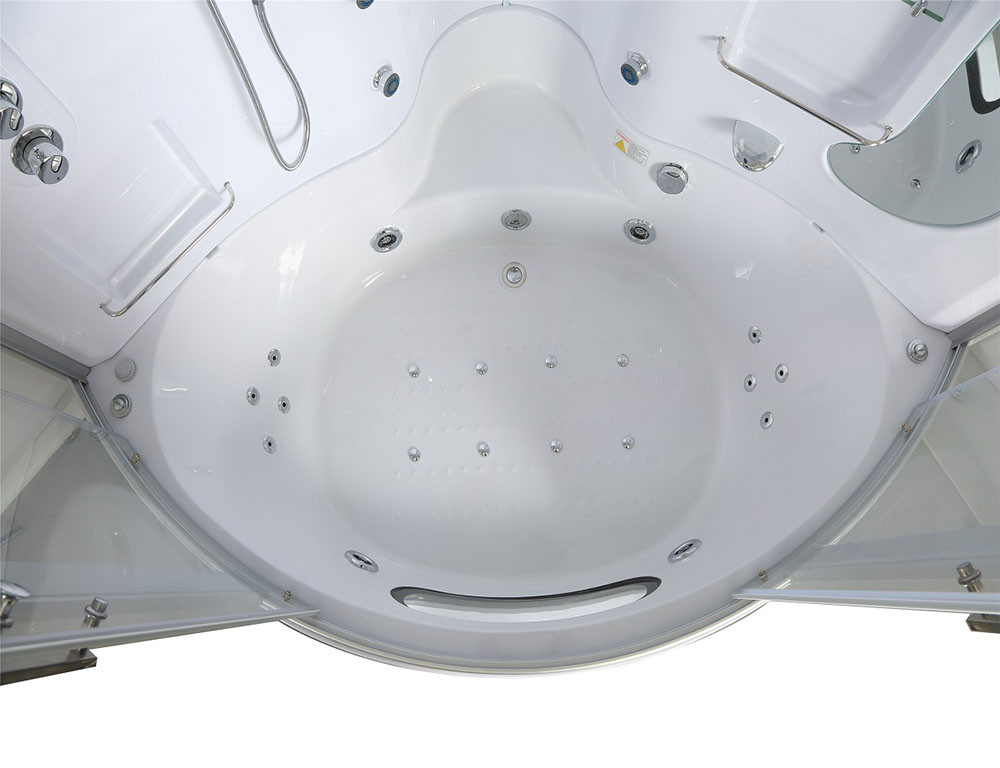

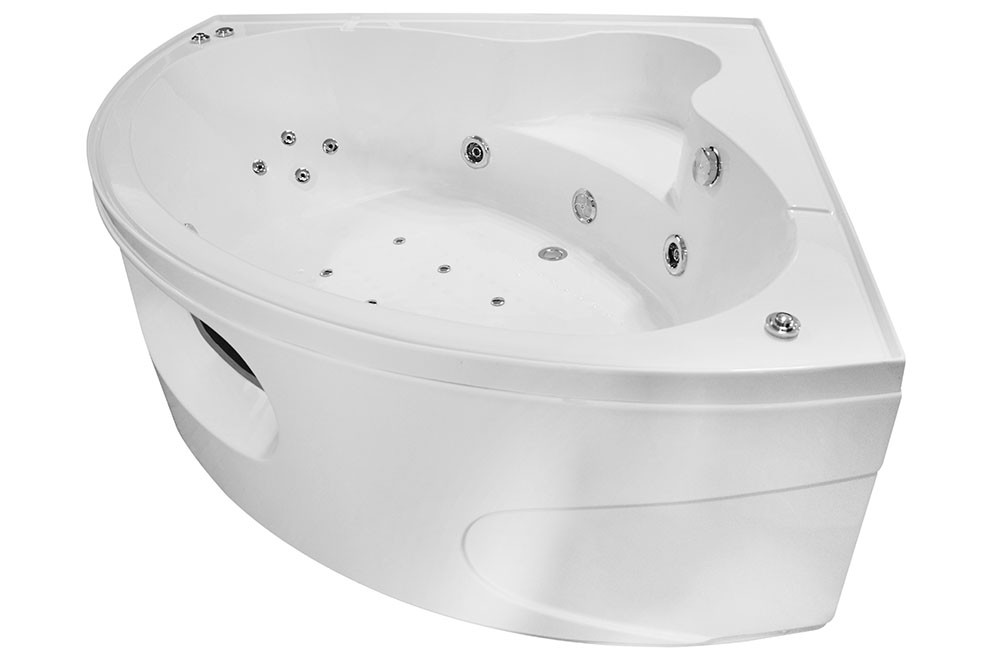

BATH:
External dimensions: 155 x 155 x 61 cm (height measured at the highest point of the acrylic)
White color
Coating: Acrylic (ABS)
Number of seats: 2 people
Power Supply: 220~240V/50

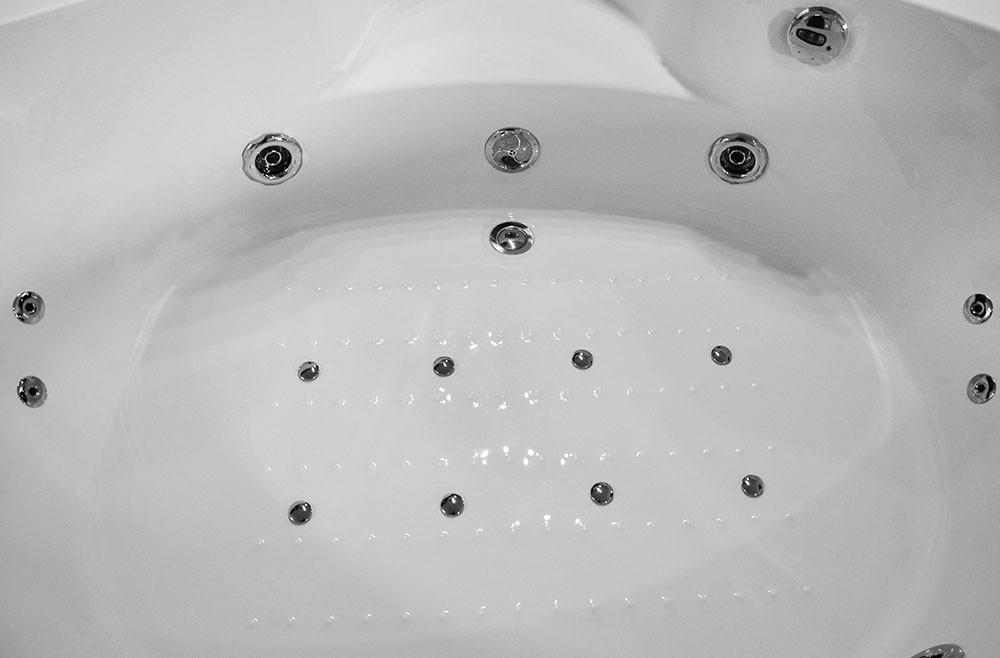

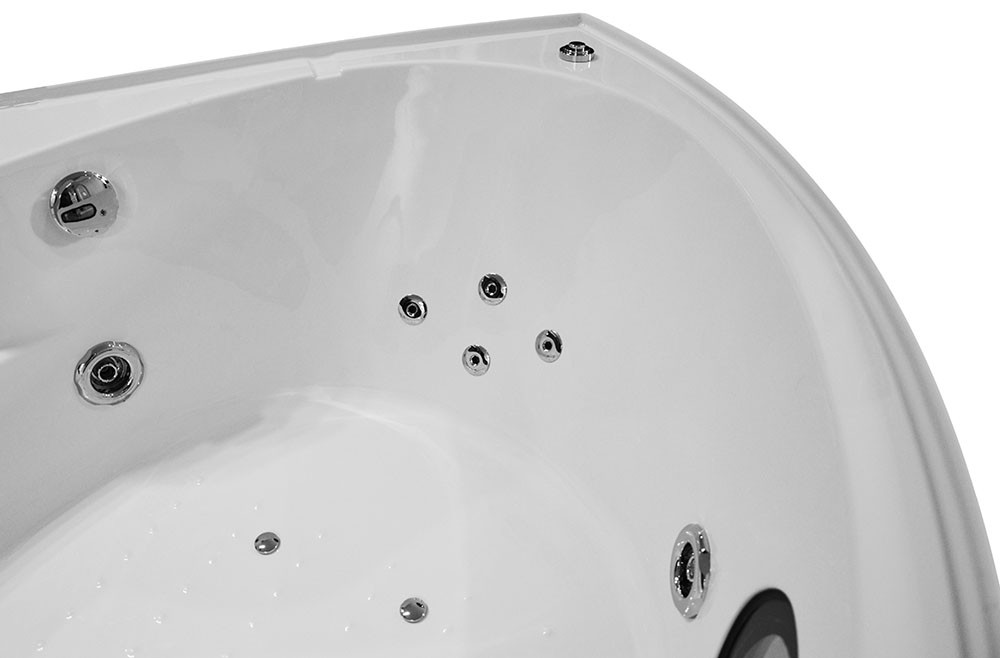

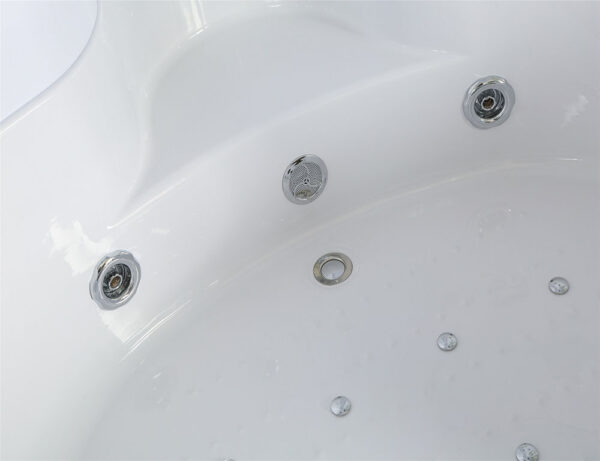

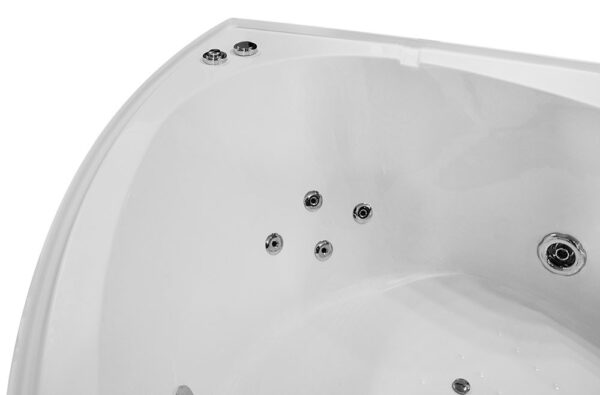

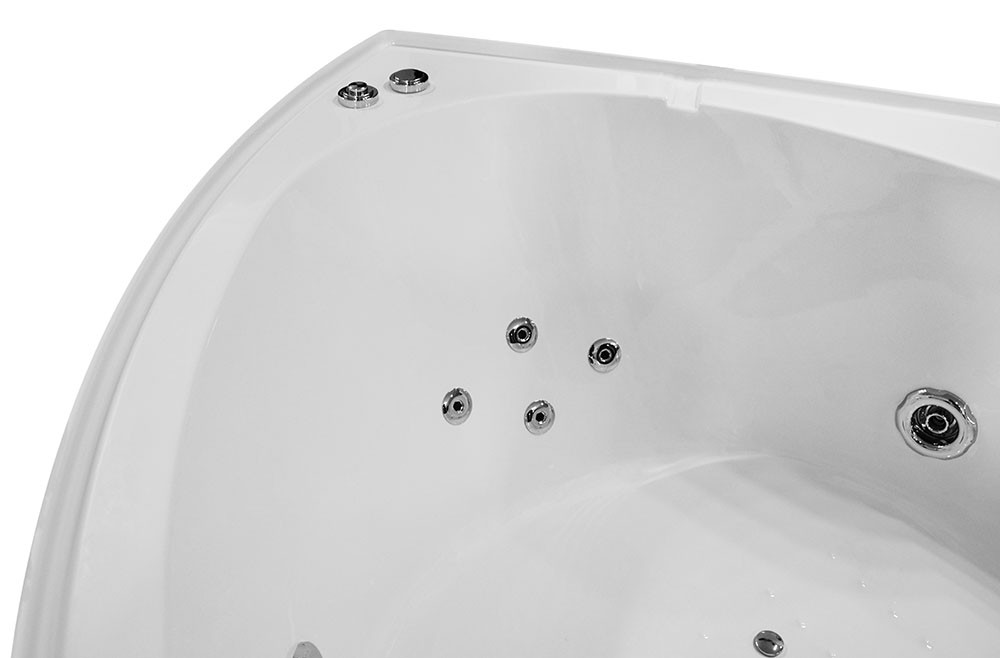

Water jets 12 pcs including:
– Water jets (3.5″): 4 pcs.
– Water jets (2″): 8 pcs.
Water pump 0.9 kW: 1 pc.
Air jets (1″): 8 pcs.
Air pump 0.2 kW: 1 pc.
Ozone generator: 1 pc.
SPA Underwater Light: 1pc (seven kinds of colors)
Headrest: 2 pcs. (for suction cups)

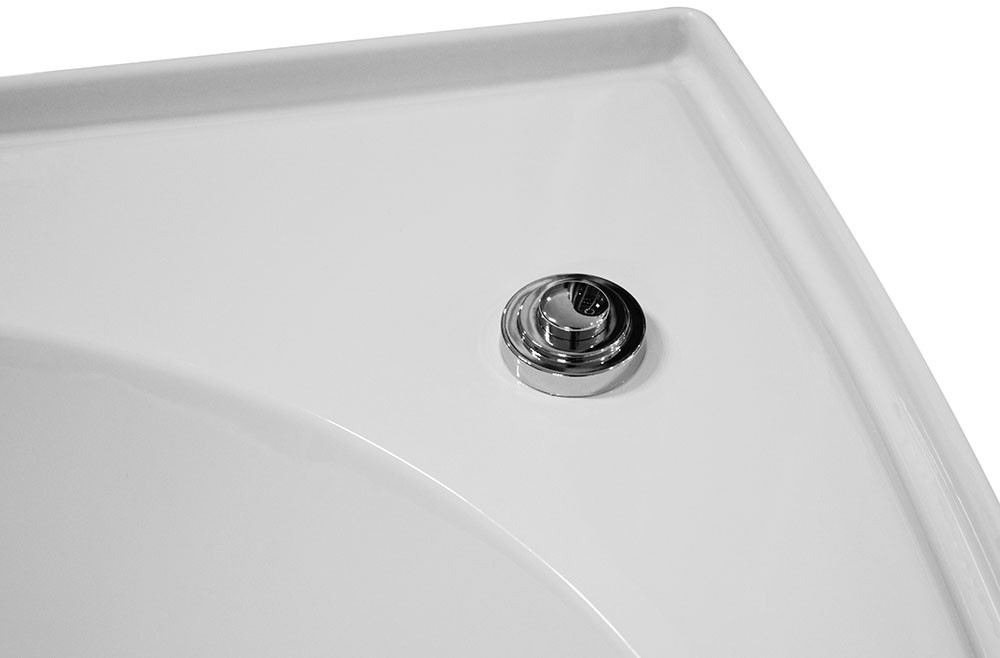

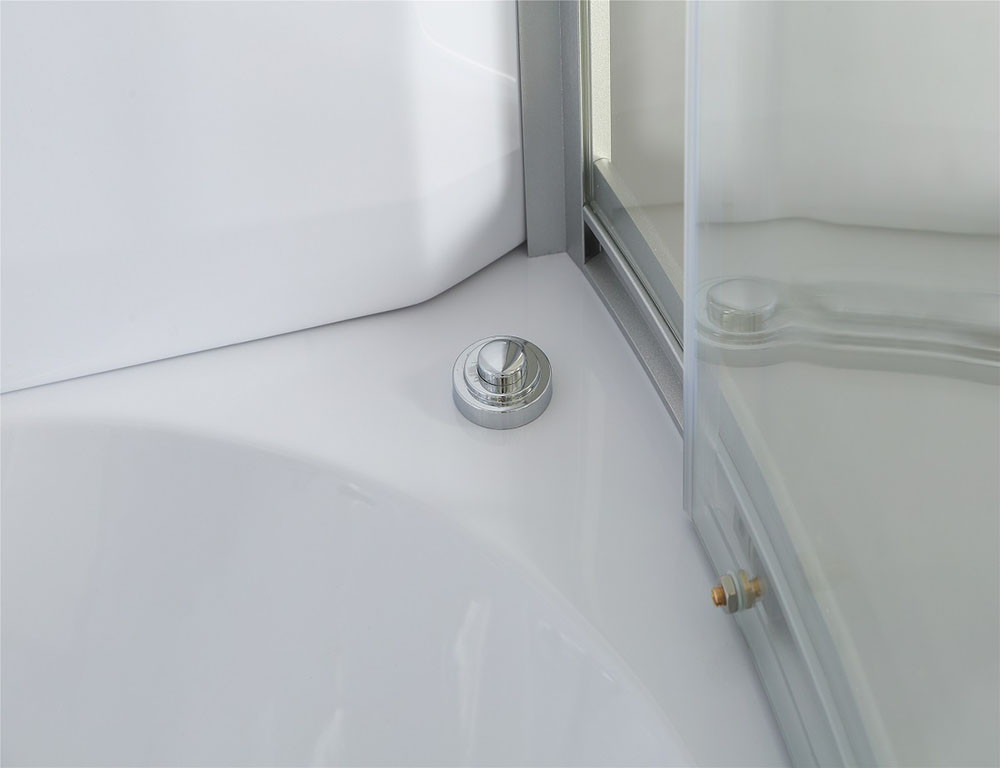

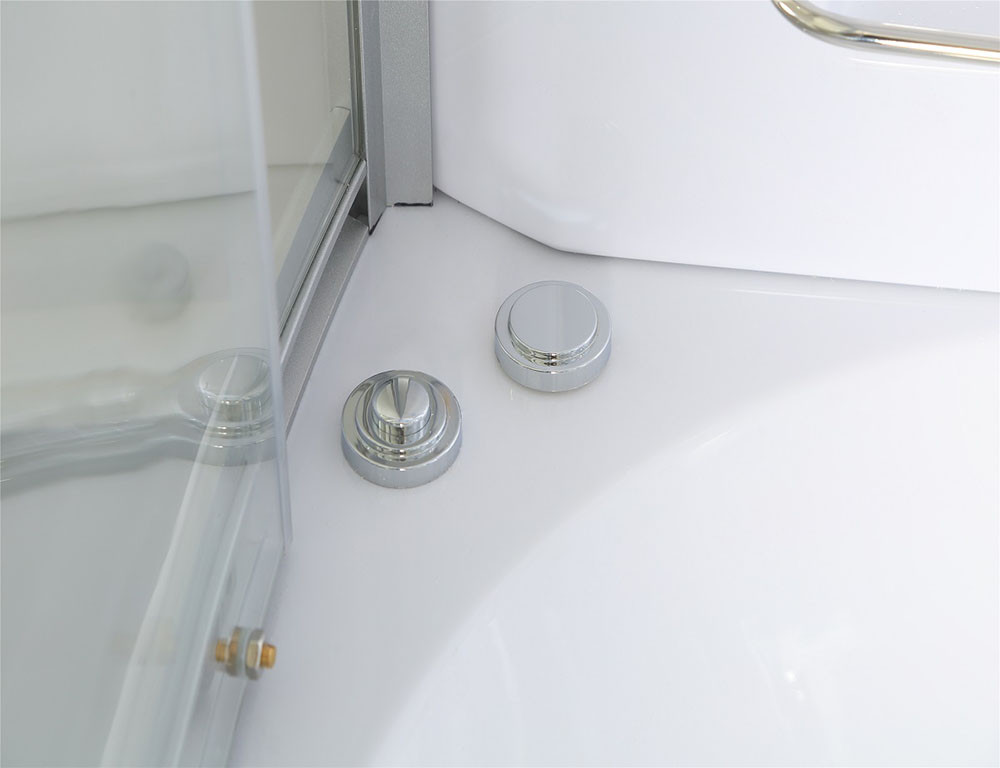

Pneumatic buttons for switching on the pumps: 2 pcs.
Glass front: yes
ADDITIONAL INFORMATION:
Total power: approx. 3.9 kW in total
Shower-bath type: corner
Shower-bath built on 2 sides (2 sides unbuilt)
Non-slip bathtub bottom

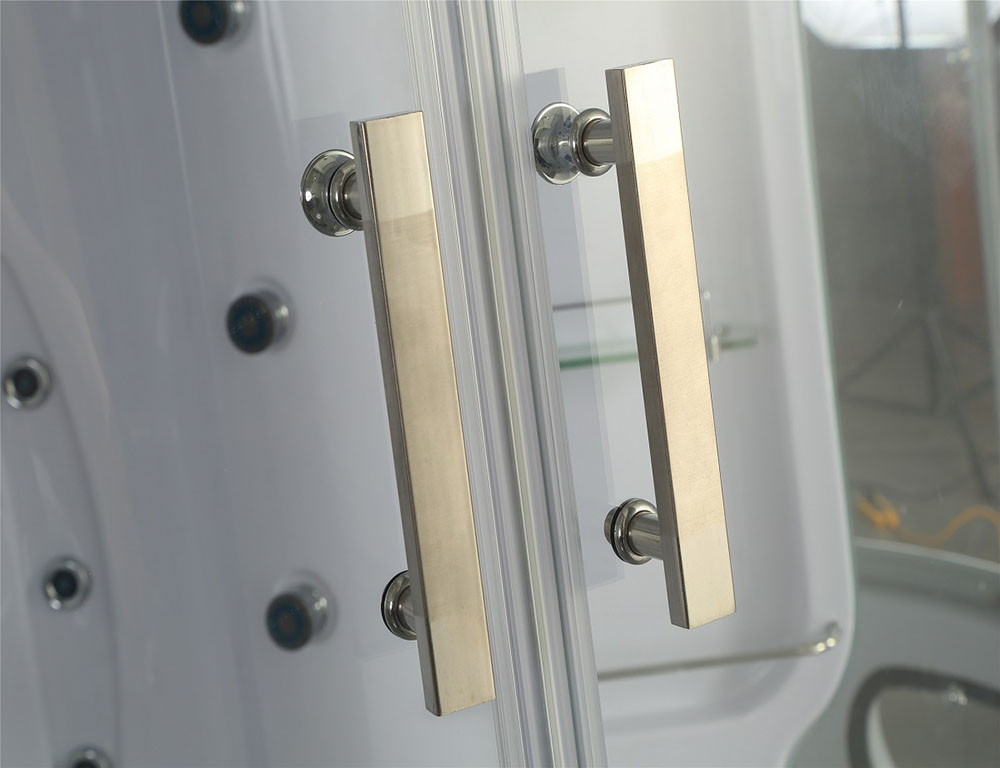

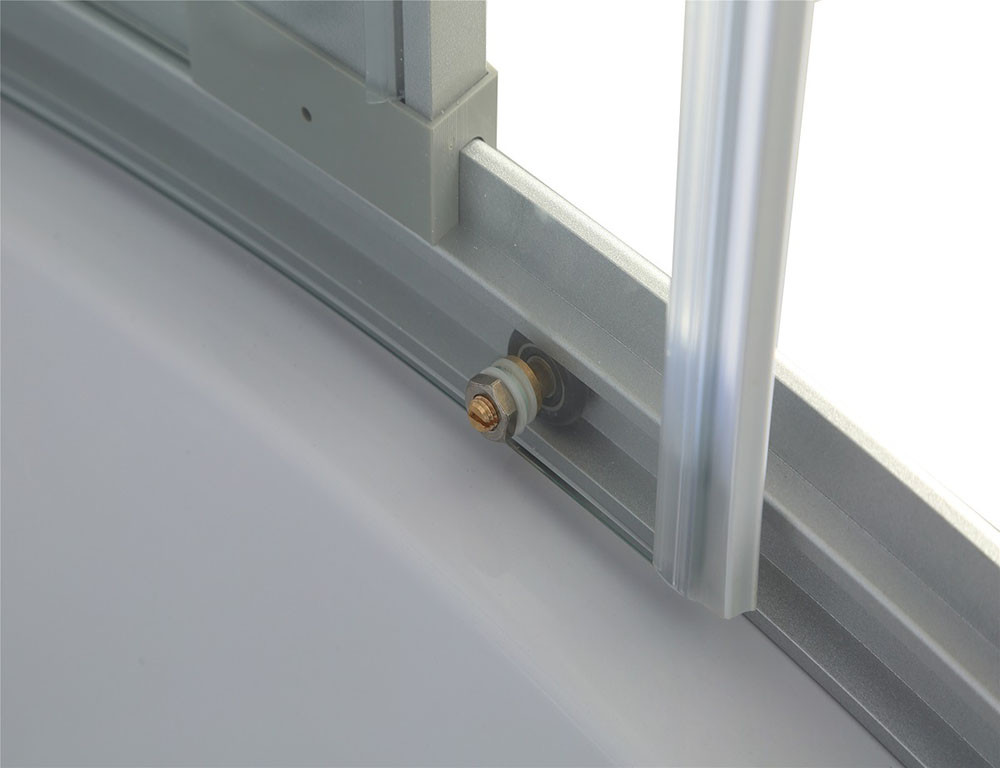

Door type: double sliding
Water connection hoses: yes (1/2 “)
Mounting elements: yes
The cabin and bathtub have a separate power supply
The bathtub has a regulator for the aeration of water jets
The water pump and air pump can run in parallel
