FFES CM01 Mini Sauna Controller (for heating devices up to 9 kW)

Description

TECHNICAL SPECIFICATION

Model: FFES CM01 Mini Sauna Controller (for heating devices up to 9 kW)
Description: The smallest sauna controller in the FFES lineup, suitable for dry saunas with heaters up to 9 kW.

Controllers from the CMXX series (from CM00 to CM44) allow you to choose the perfect setup depending on your sauna type and equipment. Additional options, such as in-sauna music or remote control via the FFES Sauna mobile app, are also available.
The basic version offers all essential functions for adjusting sauna conditions to your needs.

MAIN FEATURES

• Control of sauna lighting

• Control of ventilation

• Control of the aroma dispenser

• Remote sauna activation via signal from an external device

Each basic controller can be extended with additional options.
Final price = base version + selected optional features.

SOFTWARE

• Simple and intuitive operation through a clear menu

• Available interface languages: Polish, English, German, Lithuanian, Slovak

SET INCLUDES

• Power module

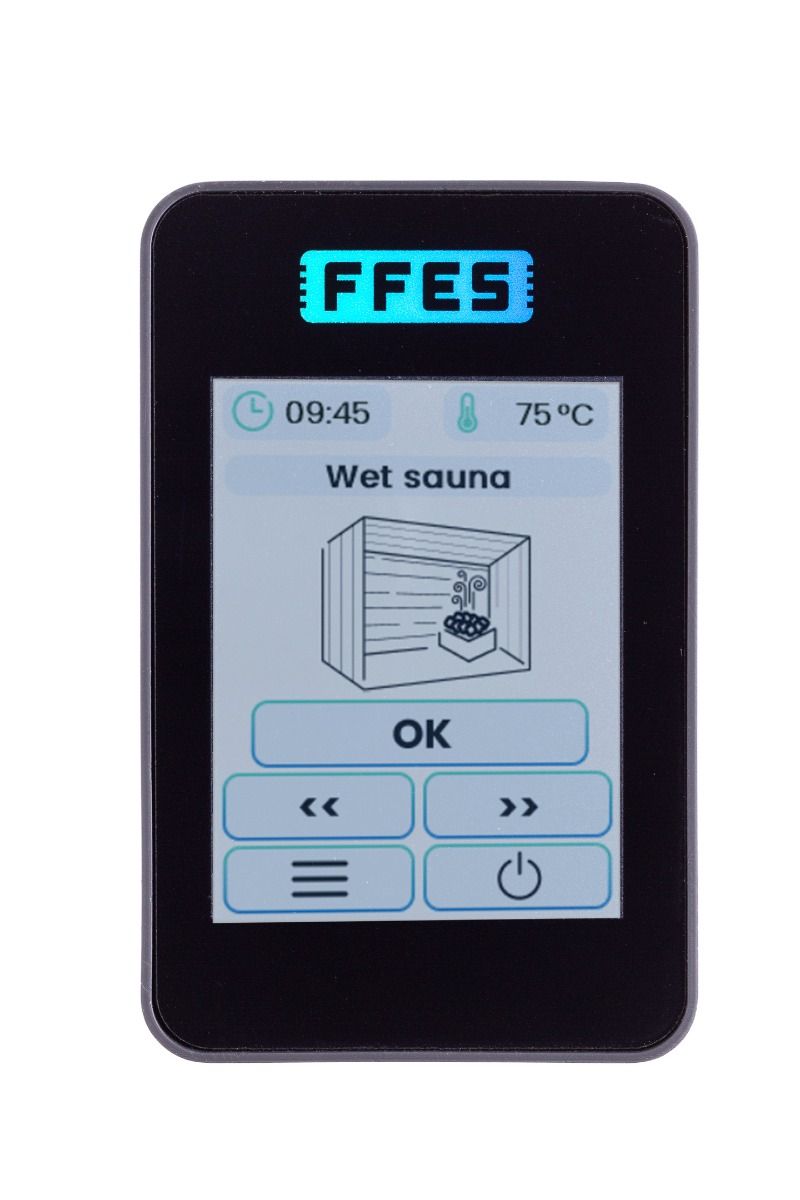

• Control panel with a small touch color display

  • Material: display protected with touch film

  • Housing: high-quality polymer

• Temperature sensor in a wooden enclosure

• User manual

• Wiring: cables connecting the panel and temperature sensor to the module (2 × 5 m)

TECHNICAL PARAMETERS

Power supply:

• 3N~ 400V/50Hz or 1N~ 230V/50Hz

Power consumption (module + panel + sensor): 5W

Maximum peripheral load: 3 × 100W

Operating temperature (module & panel): 0–60°C

Temperature control range:

• Steam room: 20–50°C

• Infrared: 30–60°C

• Heater: 30–110°C

• Heater + steamer: 30–65°C

Working time range: 1 minute – 20 hours

Temperature measurement: 0–127°C

Thermal protection:

• Heater: +125°C

• IR / Steam / Wet: +80°C

• Thermal fuse: +140°C

Hysteresis: 1–6°C

DIMENSIONS

Main Module:

• 9 kW / 15 kW: 248 × 198 × 116 mm

• 22 kW / 30 kW: 348 × 228 × 166 mm
  Protection rating: IP65

Control Panel:

• 93 × 57 × 15 mm

• Protection rating: IP65

Temperature / Humidity Sensor:

• 60 × 40 × 25 mm

AUDIO & CONNECTIVITY

Audio: Class D 2 × 10W RMS 8Ω amplifier, Bluetooth 3.0
Wi-Fi: Supported protocols — 802.11 b/g/n, 2.4 GHz frequency
