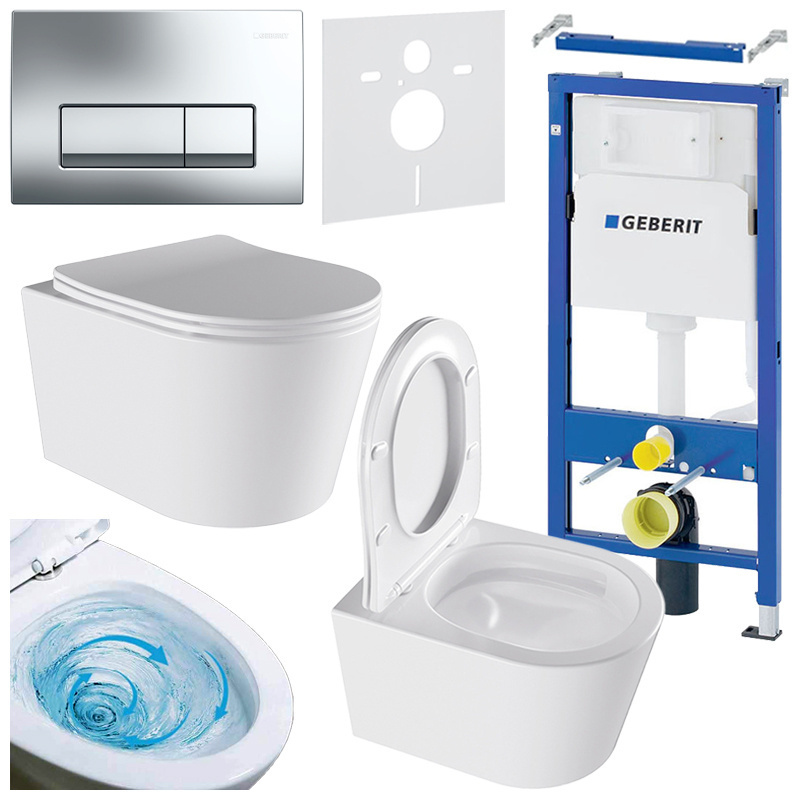

CONCEALED WC SET LUMEN 03TR WHITE TOILET BOWL + FRAME GB + CHROME FLUSH PLATE GD50

Description

CONCEALED WC SET LUMEN 03TR WHITE TOILET BOWL + FRAME GB + CHROME FLUSH PLATE GD50

The concealed WC frame combined with the wall-hung toilet and the flush plate in chrome is the perfect solution for those seeking an elegant and functional bathroom system.
This set features a modern design that perfectly matches minimalist interiors while ensuring maximum space-saving.

The concealed frame allows installation elements to be hidden inside the wall, giving the bathroom a more spacious and aesthetic appearance.
The toilet, made from high-quality sanitary ceramic, guarantees not only an elegant look but also easy cleaning and hygiene, making it an excellent choice for modern bathrooms.

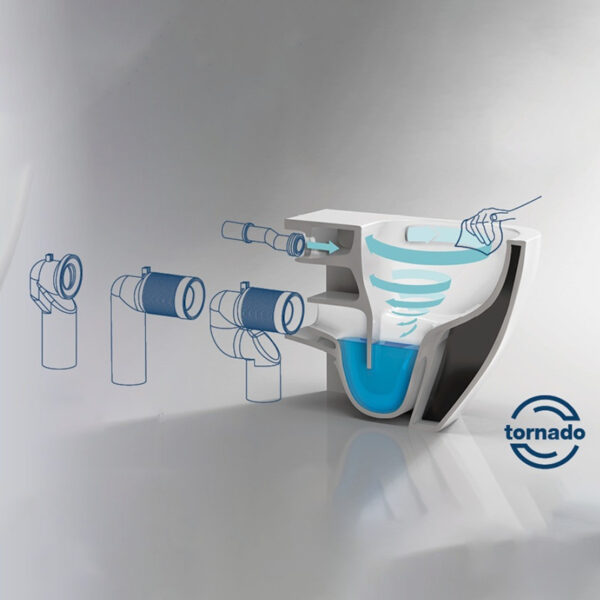

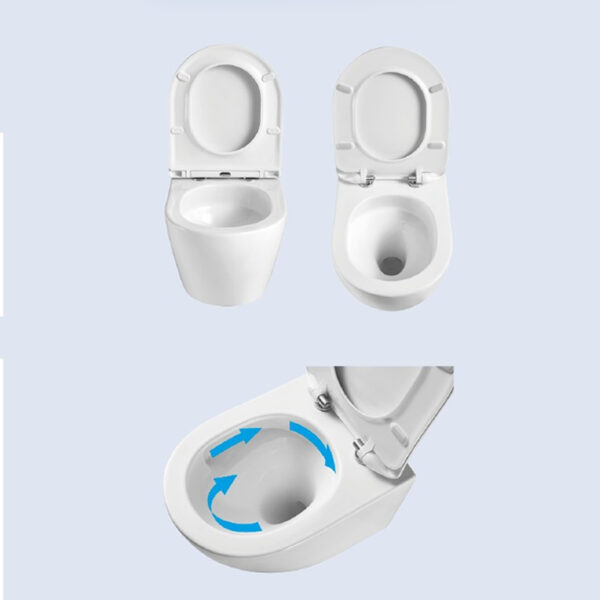

An additional advantage of this model is the Tornado flushing system, which provides powerful and even cleaning of the toilet bowl. Thanks to this innovative technology, water circulates under high pressure in a spiral motion, ensuring thorough rinsing of the entire surface while minimising the risk of dirt and bacteria build-up. The Tornado system operates quietly and efficiently, increasing user comfort and helping to maintain cleanliness for longer.

The flush plate in chrome adds a subtle yet stylish accent that blends perfectly with the set. Equipped with a dual-flush system, it allows economical water use, making it an eco-friendly choice.
The entire set is designed with user comfort and quick, hassle-free installation in mind, making it a reliable and long-lasting solution for any bathroom.

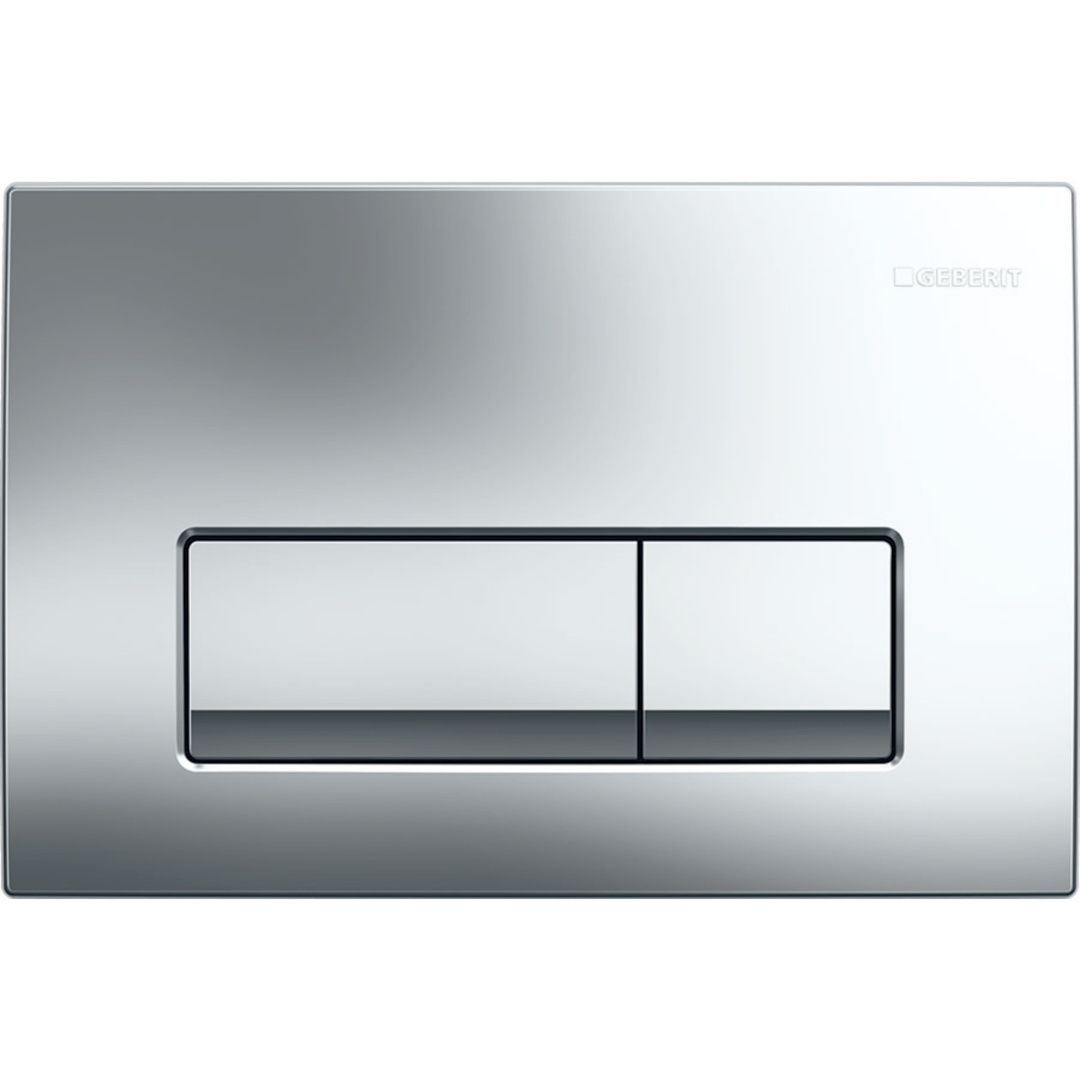

TECHNICAL DATA – FLUSH PLATE

• Brand: Geberit

• Series: Delta 50

• Colour: Chrome

• Material: Polymer

• Max. actuation force: 20 N

• Operation: Front

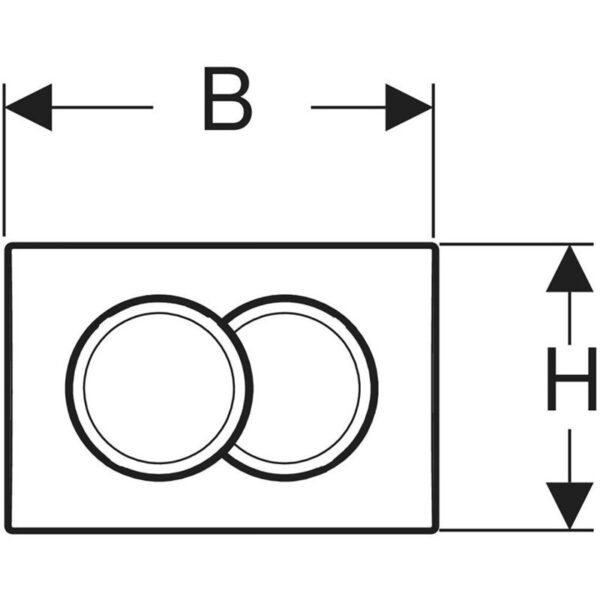

• Width (B): 246 mm

• Height (H): 164 mm

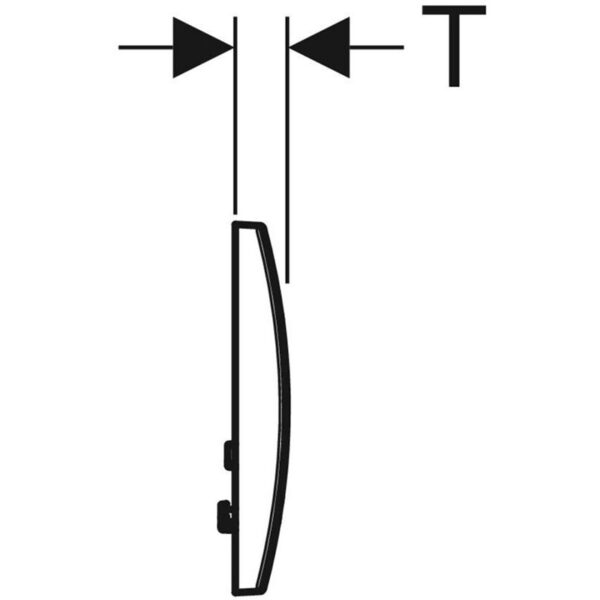

• Depth (T): 23 mm

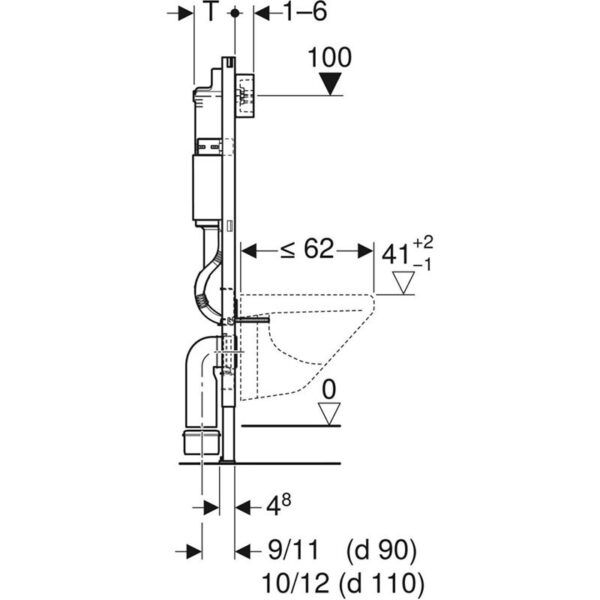

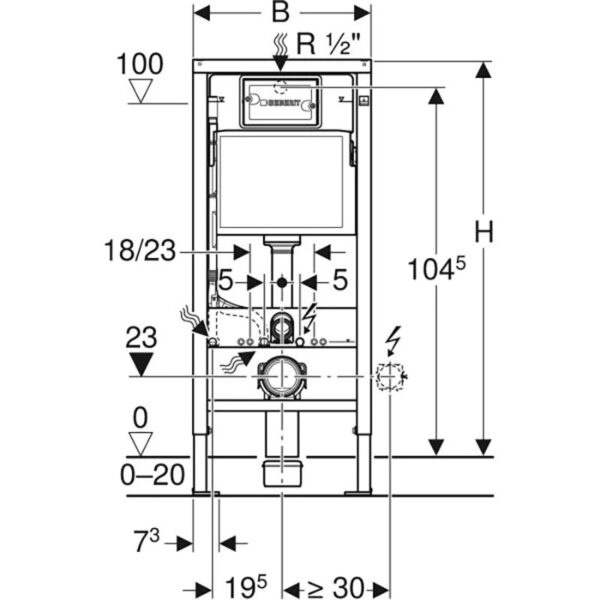

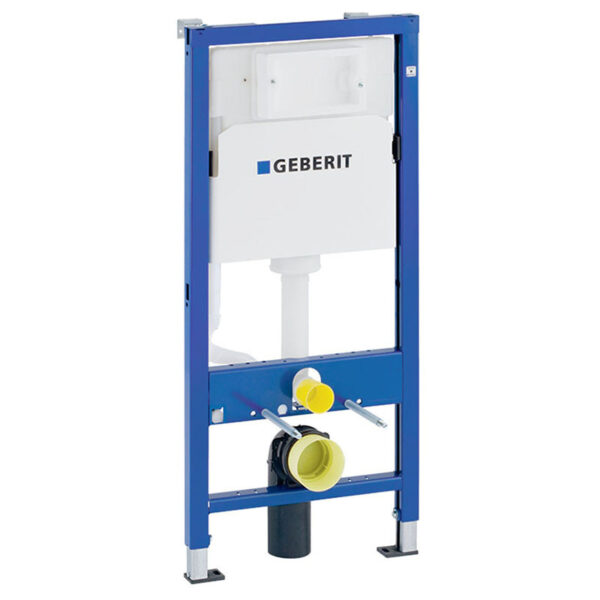

TECHNICAL DATA – FRAME

The concealed frame is a durable and easy-to-install structure, perfect for partition walls. Thanks to its self-supporting frame with anti-corrosion powder-coated finish, the frame is extremely robust and provides stability under all installation conditions.
The cistern features moisture protection and a dual-flush system, saving water, while the adjustable feet facilitate installation even on uneven surfaces.

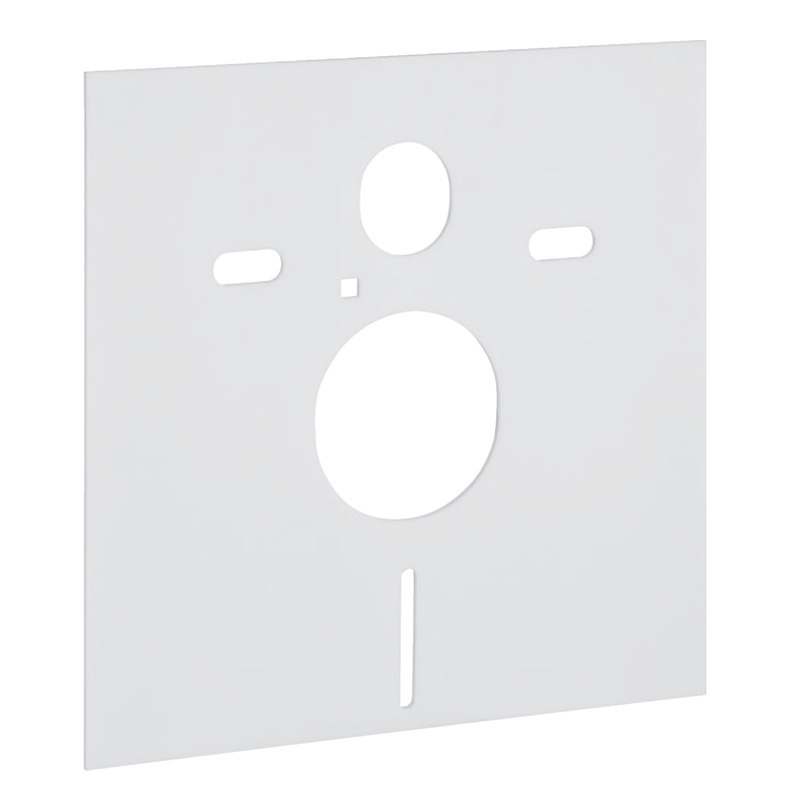

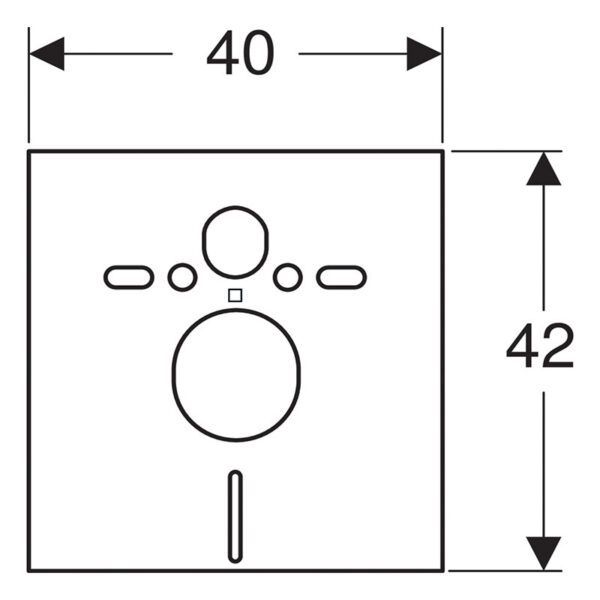

Another advantage of the set is the included sound insulation mat, which effectively dampens noise during flushing and toilet use. Thanks to its innovative design, the mat prevents vibrations from transferring to adjacent rooms, increasing comfort, especially in apartments where bathrooms are located near bedrooms or living rooms.

• Brand: Geberit

• Frame width: 500 mm

• Frame height: 1120 mm

• Max. water temperature: 25 °C

• Factory settings for flush volume: 6 / 3 l

• Adjustment range for large flush volume: 4 / 4.5 / 6 / 7.5 l

• Adjustment range for small flush volume: 2–4 l

• Design flow rate: 0.12 l/s

• Minimum flow pressure: 50 kPa

• Height adjustable: Yes

• Sound insulation mat included: Yes

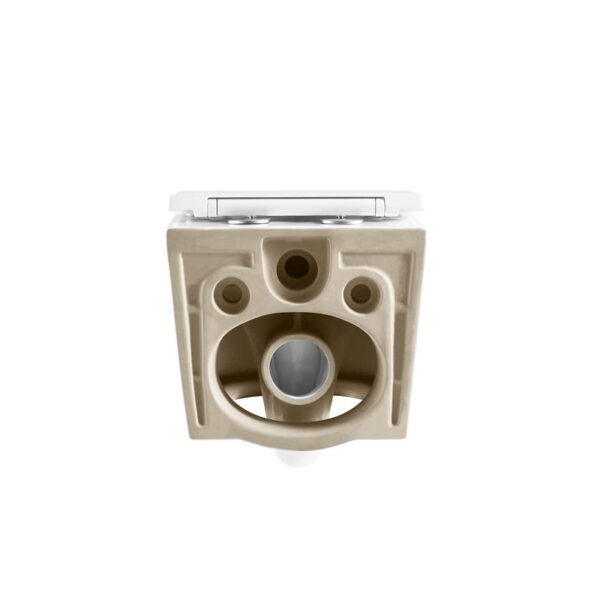

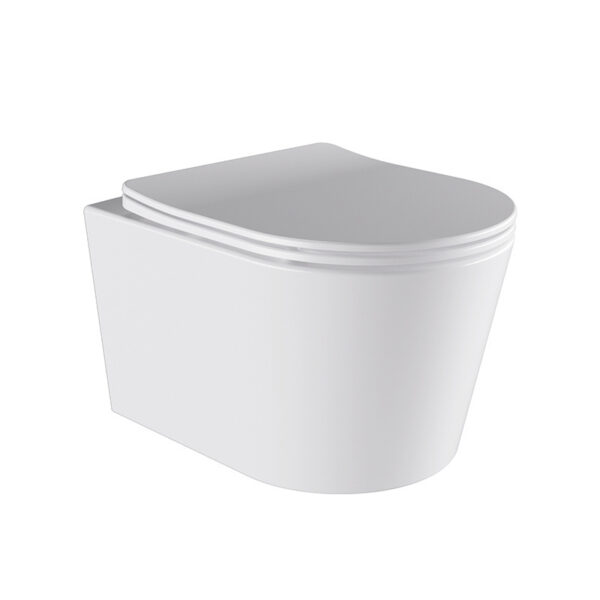

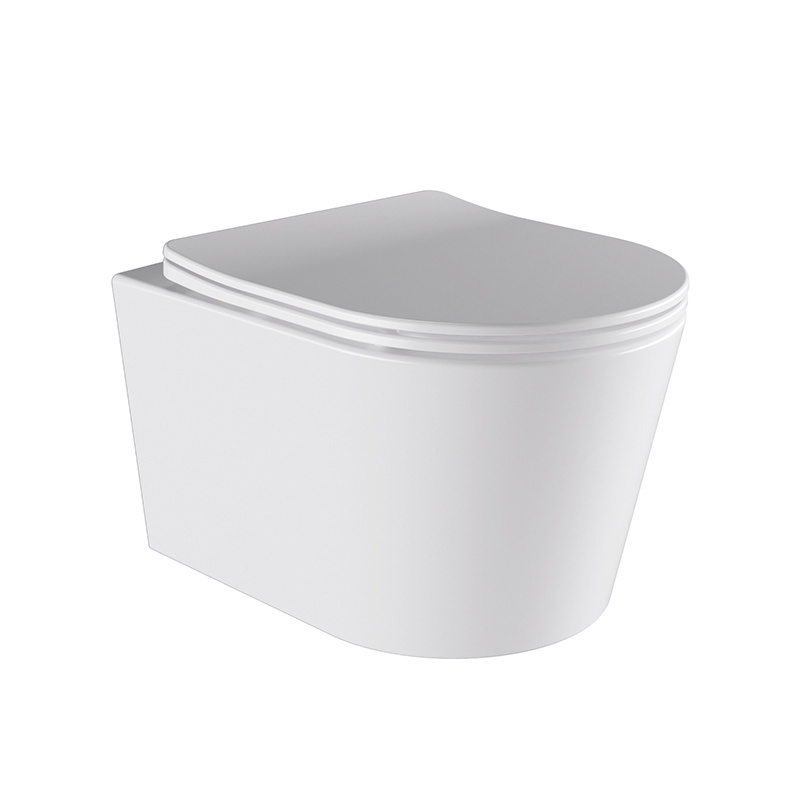

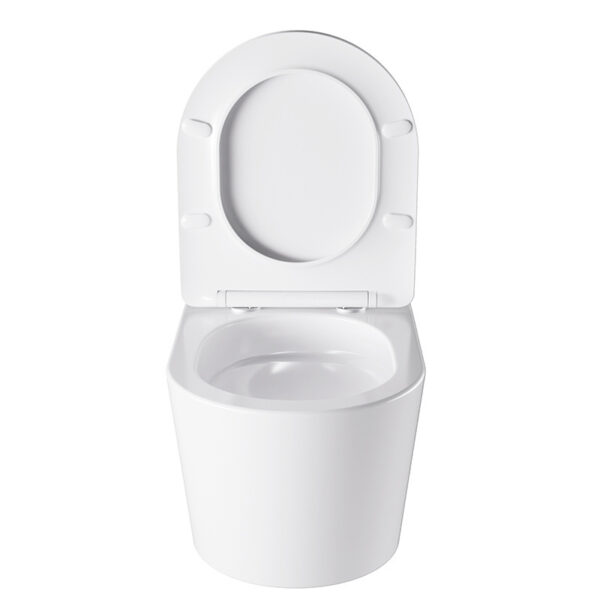

TECHNICAL DATA – BOWL

• Size: 490 × 360 × 360 mm

• Installation: Wall-hung

• Flushing system: Tornado (rimless)

• Material: Sanitary ceramic

• Bowl colour: White

• Seat material: Duroplast UF

• Seat type: Soft-close

• Seat colour: White

• Slim version: Yes

• Easy release: Yes

ADVANTAGES OF THE SET

• Comprehensiveness: Contains all necessary components for installing a wall-hung toilet.

• Quality: Products from the renowned Geberit brand, known for high-quality workmanship, durability, and reliability.

• Aesthetics: Modern design and elegant finishes make the set a perfect fit for any bathroom, giving it a stylish and contemporary look.

• Functionality: Tornado technology in the WC bowl ensures easy cleaning and hygiene by eliminating hard-to-reach areas. The soft-close seat increases comfort by eliminating noise and risk of damage.

• Economy: Dual-flush system allows water savings by choosing the flush volume. Adjustable flush volumes in the frame provide additional water efficiency.

• Durability: The Geberit Duofix frame features a solid construction that ensures stability and durability of the entire installation. Additionally, the quiet operation of the cistern enhances user comfort.

• Easy installation: Designed for quick and straightforward installation.

• Acoustic comfort: The sound insulation mat effectively dampens flushing noise, ensuring quiet and discreet operation.

Note: Actual dimensions may differ from those stated in the offer. Tolerance may be +/- 5%.
