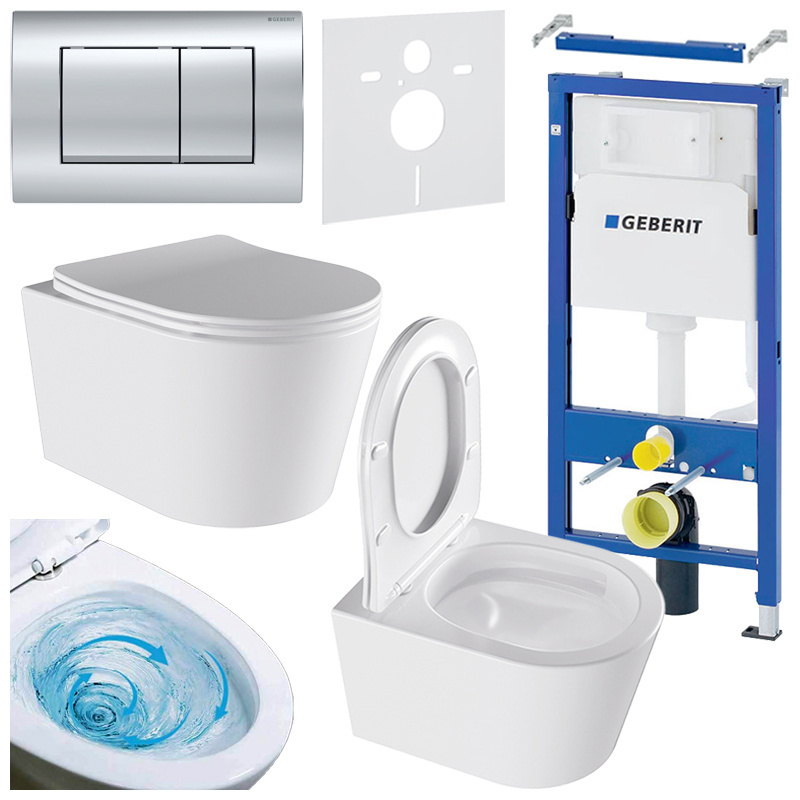

CONCEALED WC SET LUMEN 03TR WHITE TOILET BOWL + FRAME GB + CHROME FLUSH PLATE GD30

Description

CONCEALED WC SET LUMEN 03TR WHITE TOILET BOWL + FRAME GB + CHROME FLUSH PLATE GD30

The GD concealed WC frame combined with the wall-hung toilet and the flush button is the perfect solution for those seeking an elegant and functional system for their bathroom.
This system features a modern design that fits seamlessly into minimalist interiors while maximising space efficiency.

The concealed frame allows you to hide installation elements inside the wall, giving your bathroom a more spacious and tidy appearance.
The toilet, made of high-quality sanitary ceramic, ensures an elegant look as well as easy cleaning and hygiene, making it an excellent choice for modern interiors.

An additional advantage of this model is the Tornado flushing system, which provides powerful and even cleaning of the toilet bowl. Thanks to this innovative technology, water circulates under high pressure in a spiral motion, ensuring thorough rinsing of the entire bowl surface while minimising the risk of dirt and bacteria build-up. The Tornado system operates quietly and efficiently, increasing user comfort and helping to maintain cleanliness for longer.

The GD flush button in chrome adds a subtle accent that blends perfectly with the entire set. Equipped with a dual-flush system, it allows for economical water use, making it an environmentally friendly choice.
The entire set has been designed for user comfort as well as quick and hassle-free installation, making it a reliable and long-lasting solution for any bathroom.

FLUSH BUTTON SPECIFICATIONS

• Brand: Geberit

• Series: Delta 30

• Colour: Chrome

• Material: Polymer

• Max. pressing force: 20 N

• Operation: Front

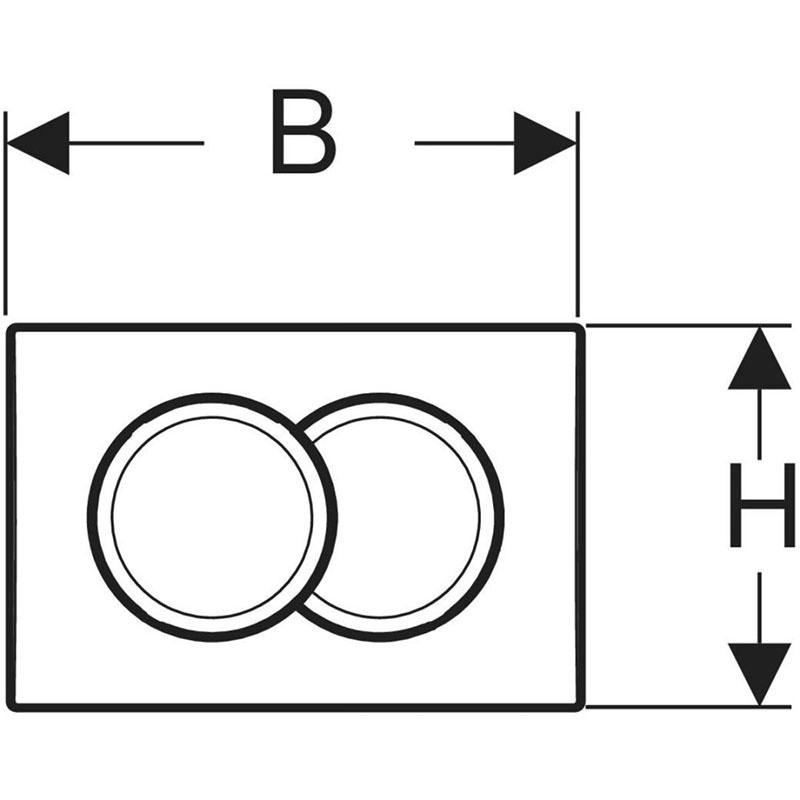

• Width (B): 246 mm

• Height (H): 164 mm

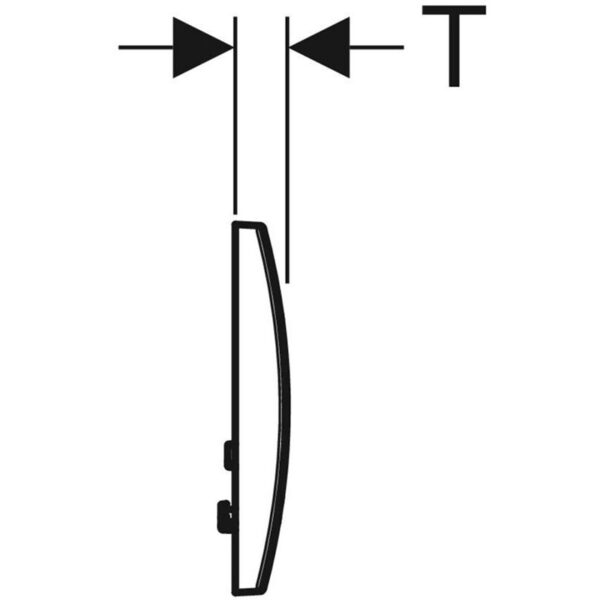

• Depth (T): 23 mm

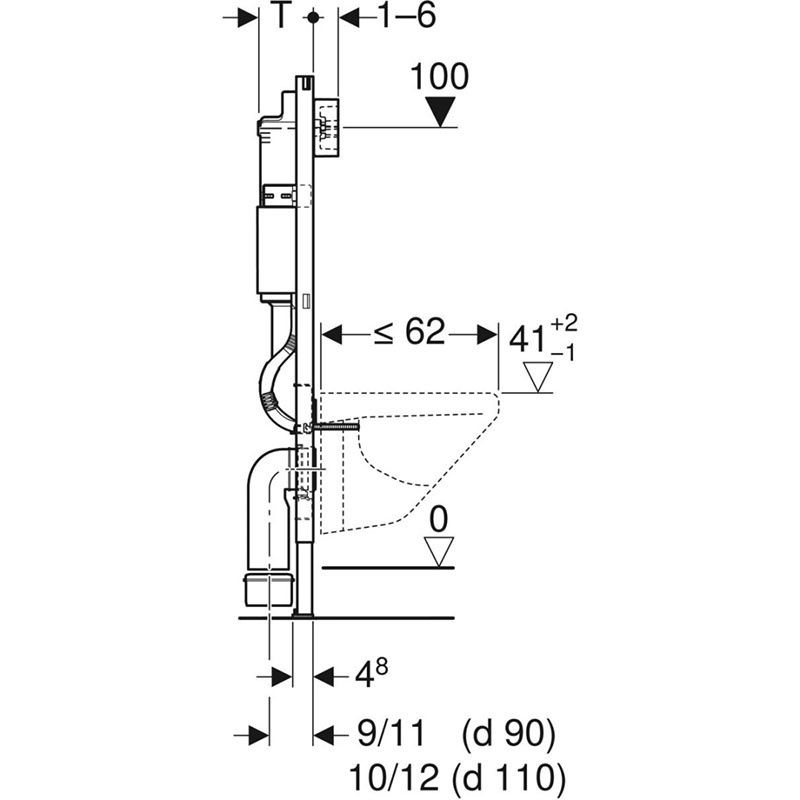

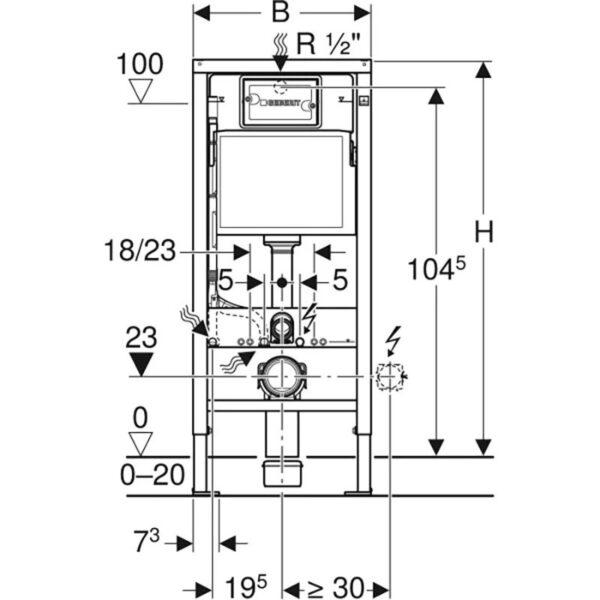

FRAME SPECIFICATIONS

• Brand: Geberit

• Frame width: 500 mm

• Frame height: 1120 mm

• Max. water temperature: 25 °C

• Factory flush settings: 6 / 3 l

• Adjustable full flush volume: 4 / 4.5 / 6 / 7.5 l

• Adjustable half flush volume: 2–4 l

• Design flow rate: 0.12 l/s

• Minimum flow pressure: 50 kPa

• Adjustable height: Yes

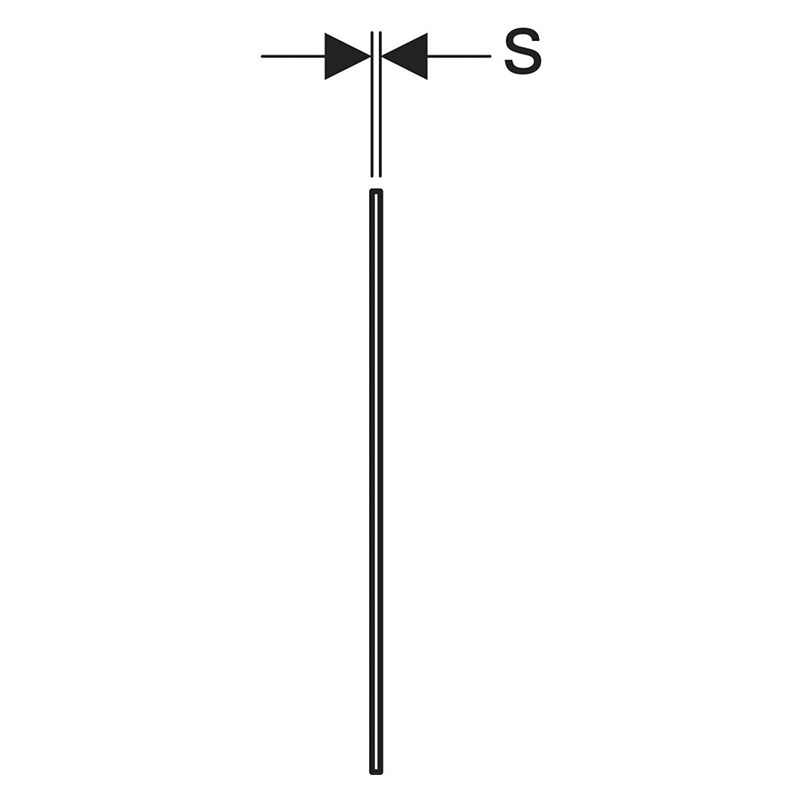

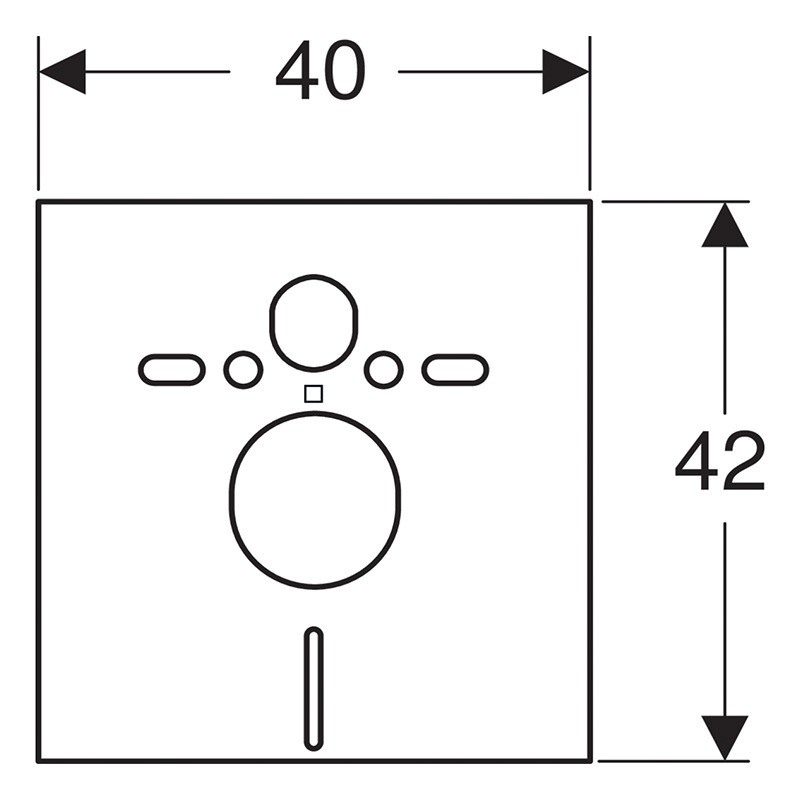

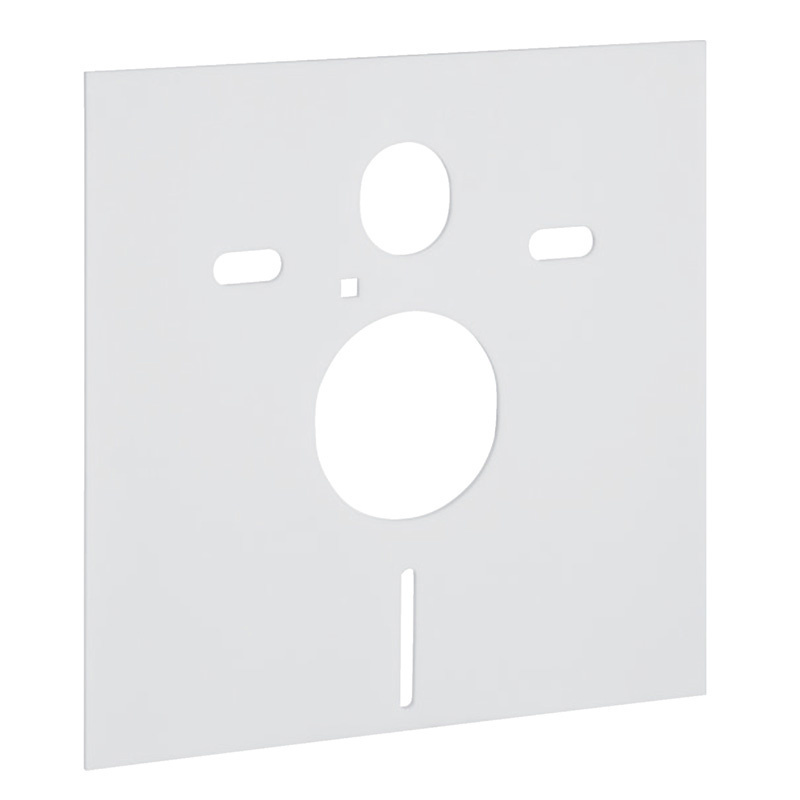

• Sound insulation mat included: Yes

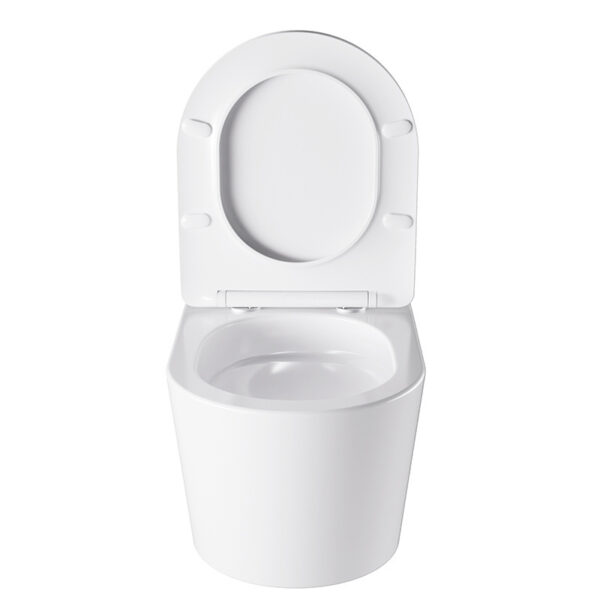

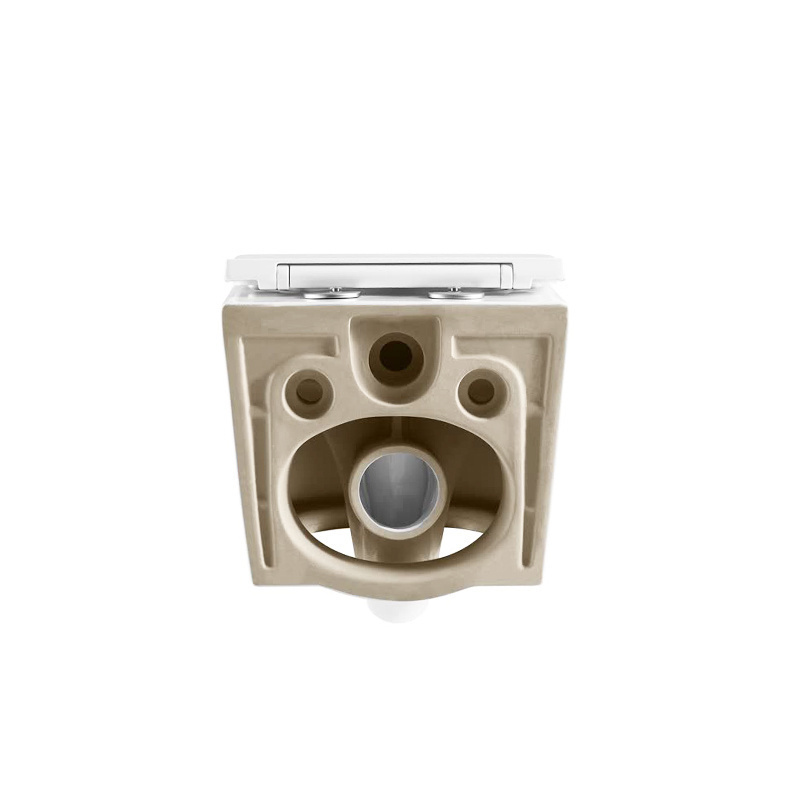

TOILET BOWL SPECIFICATIONS

• Dimensions: 490×360×360 mm

• Installation: Wall-hung

• Flushing system: Tornado (rimless)

• Toilet material: Sanitary ceramic

• Toilet colour: White

• Seat material: Duroplast UF

• Seat type: Soft-close

• Seat colour: White

• Slim version: Yes

• Quick-release: Yes

MAIN ADVANTAGES OF THE SET

• Complete solution: Includes all essential components for installing a wall-hung toilet.

• Quality: Products from the renowned brand Geberit — known for top quality, durability, and reliability.

• Aesthetics: Modern design and elegant finishes that will perfectly match any bathroom interior.

• Functionality: Tornado technology ensures easy cleaning and hygiene by eliminating hard-to-reach areas.

• Economy: Dual flush button helps save water; adjustable flush settings in the frame allow further water savings.

• Durability: The Geberit Duofix frame ensures stable and long-lasting installation.

• Easy installation: Designed for quick and effortless mounting.

• Acoustic comfort: The sound insulation mat effectively reduces noise during flushing and toilet use.

Note: Actual dimensions may differ from those stated in the offer. A tolerance of +/- 5% may apply.
