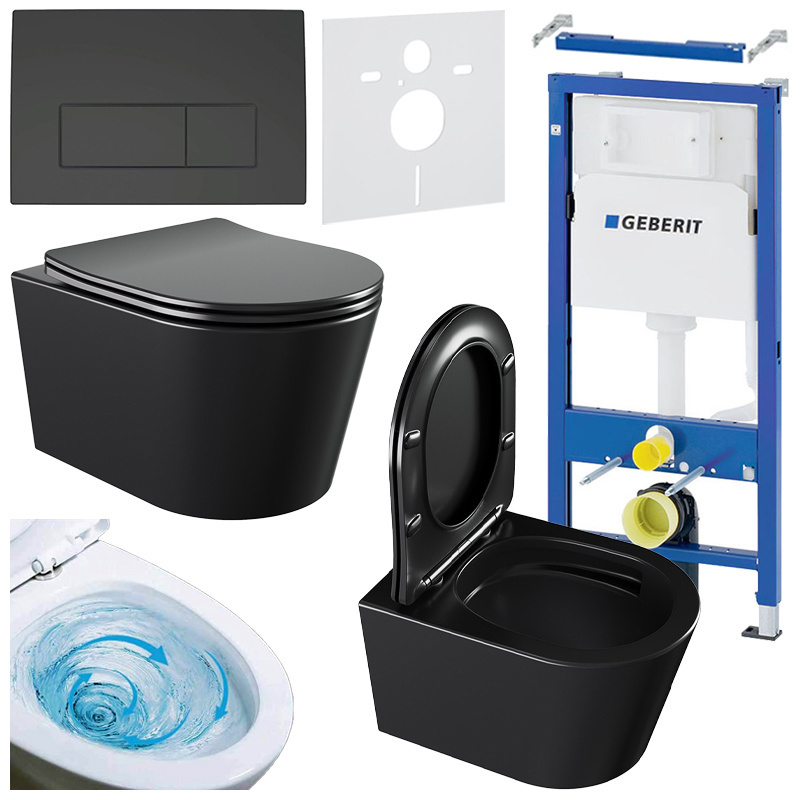

CONCEALED WC SET LUMEN 03TR BLACK MATT TOILET BOWL + FRAME GB + BLACK MATT FLUSH PLATE 50GD

Description

CONCEALED WC SET LUMEN 03TR BLACK MATT TOILET BOWL + FRAME GB + BLACK MATT FLUSH PLATE 50GD

The concealed WC set Lumen is the perfect solution for those seeking an elegant and functional bathroom system. This set features a modern design that fits seamlessly into minimalist interiors while ensuring maximum space efficiency. The concealed frame allows installation elements to be hidden within the wall, giving the bathroom a more spacious and stylish look. The Lumen toilet bowl, made of high-quality sanitary ceramic, guarantees not only elegance but also ease of cleaning and hygiene, making it an excellent choice for contemporary bathrooms.

An additional advantage of this model is the Tornado flushing system, which ensures effective and even cleaning of the toilet bowl interior. With this innovative technology, water circulates at high pressure in a spiral motion, thoroughly rinsing the entire surface while minimizing the risk of dirt and bacteria accumulation. The Tornado system works quietly and efficiently, enhancing user comfort and helping maintain cleanliness for longer.

The GD 50 flush plate in black matt is a subtle accent that perfectly complements the entire set. Equipped with a dual flush system, it allows efficient water-saving, making it an environmentally friendly choice. The complete set is designed with user comfort, quick installation, and long-lasting reliability in mind.

Technical data – Flush plate

• Brand: GEBERIT

• Series: Delta 50

• Color: Black matt

• Material: Polymer

• Max. actuation force (N): 20 N

• Actuation: From the front

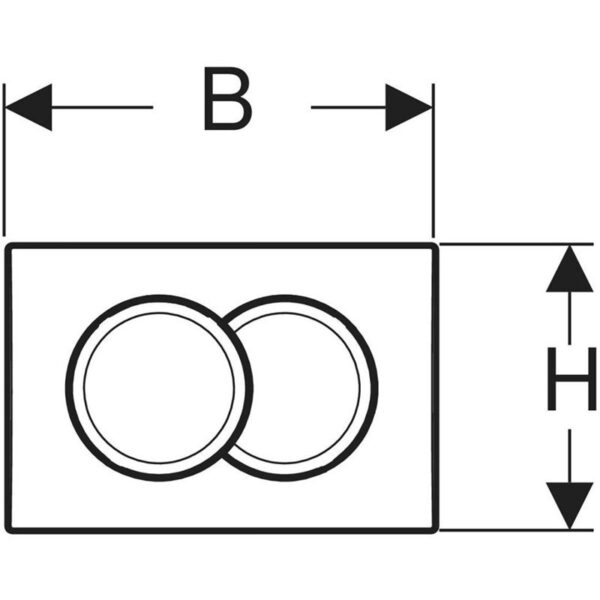

• Width (B): 246 mm

• Length (H): 164 mm

• Height (T): 23 mm

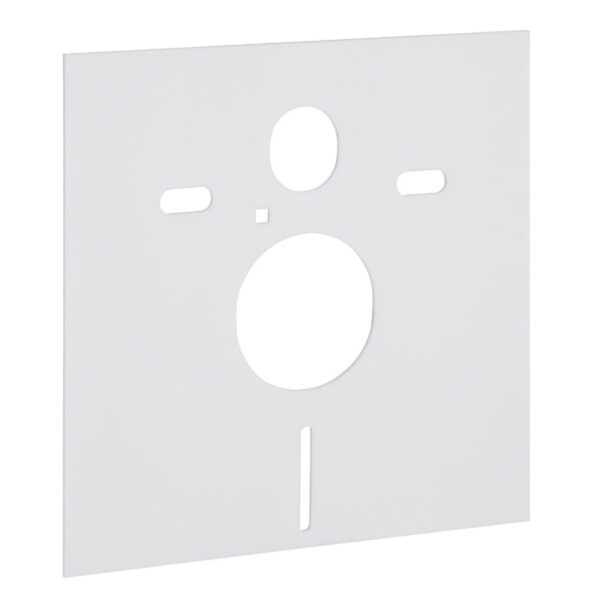

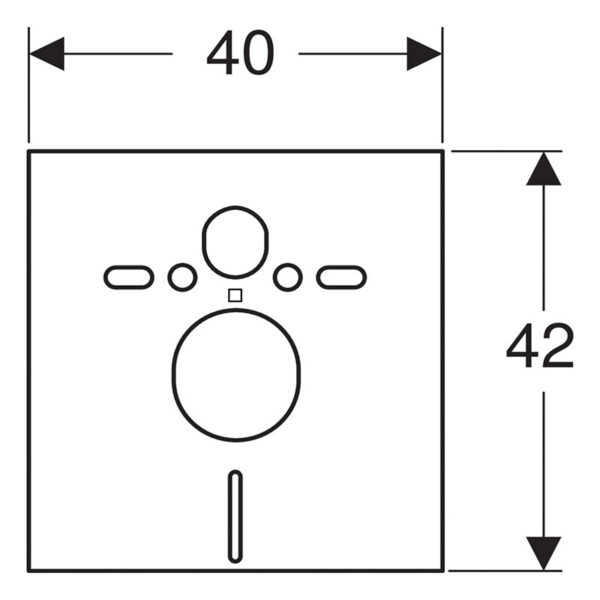

The Geberit Duofix concealed frame is a durable and easy-to-install structure, perfect for partition walls. With its self-supporting frame featuring an anti-corrosion powder-coated finish, it ensures long-term durability and stability under all installation conditions. The cistern with moisture protection and a dual flush system helps save water, while adjustable feet make installation possible even on uneven floors. An additional advantage is the included soundproofing mat, which effectively dampens flushing noise and prevents vibrations from spreading to adjacent rooms—an important feature in apartments where bathrooms are located near bedrooms or living areas.

Technical data – Frame

• Brand: GEBERIT

• Frame width: 500 mm

• Frame height: 1120 mm

• Max. water temperature: 25 °C

• Factory flush settings: 6 / 3 l

• Adjustment range for full flush: 4 / 4.5 / 6 / 7.5 l

• Adjustment range for half flush: 2–4 l

• Calculated flow rate: 0.12 l/s

• Minimum flow pressure: 50 kPa

• Adjustable height: yes

• Soundproofing mat included: yes

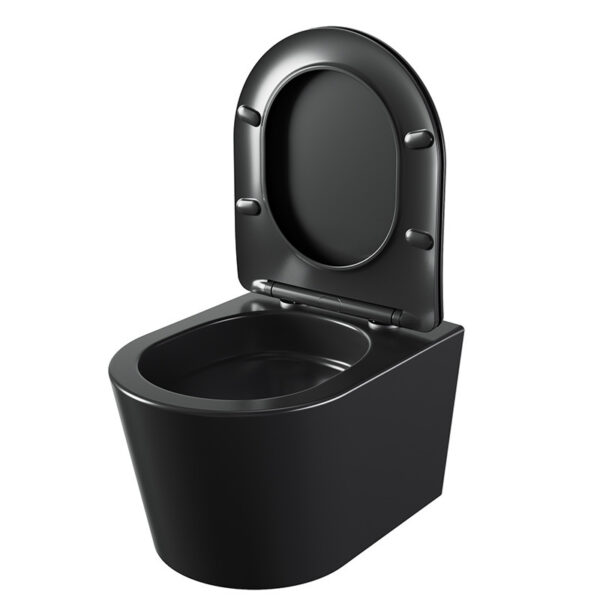

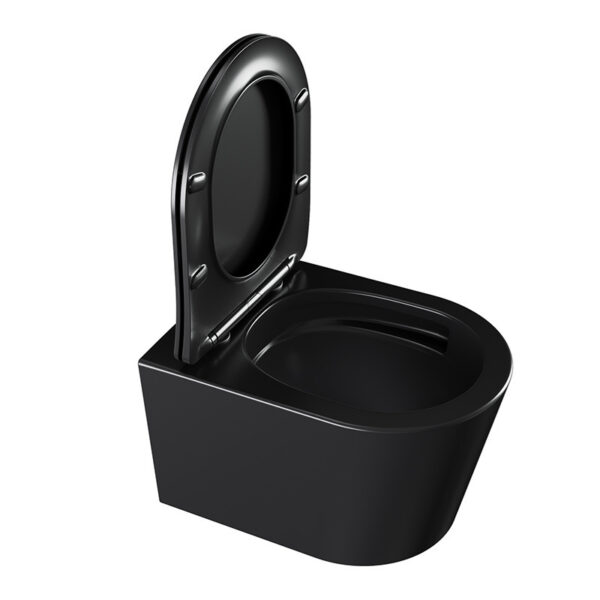

Technical data – Toilet bowl

• Size: 490×360×360 mm

• Installation: Wall-hung

• Flushing system: Tornado – latest rimless technology

• Material: Sanitary ceramic

• Bowl color: Black matt

• Seat material: Duroplast UF

• Seat type: Soft-close

• Seat color: Black matt

• Slim version: Yes

• Easy release: Yes

Advantages of the set

• Complete solution: The set includes all essential components for installing a wall-hung toilet.

• Quality: Products from the renowned Geberit brand, known for their durability, reliability, and excellent workmanship.

• Aesthetics: Modern design and elegant finishes make the set a perfect match for any bathroom, adding a stylish, contemporary touch.

• Functionality: The Tornado technology in the toilet bowl ensures easy cleaning and hygiene by eliminating hard-to-reach areas. The soft-close seat enhances comfort by reducing noise and preventing damage.

• Economy: The dual flush plate enables water savings, while the adjustable flush volume in the frame provides additional efficiency.

• Durability: The Geberit Duofix frame is robust, ensuring long-lasting stability. Its quiet cistern operation further improves comfort.

• Easy installation: Designed for quick and straightforward assembly.

• Acoustic comfort: The included soundproofing mat effectively dampens noise during flushing and prevents vibrations, ensuring quiet and discreet operation.

Note! Actual dimensions may differ from those specified in the offer. A tolerance of +/- 5% is possible.
