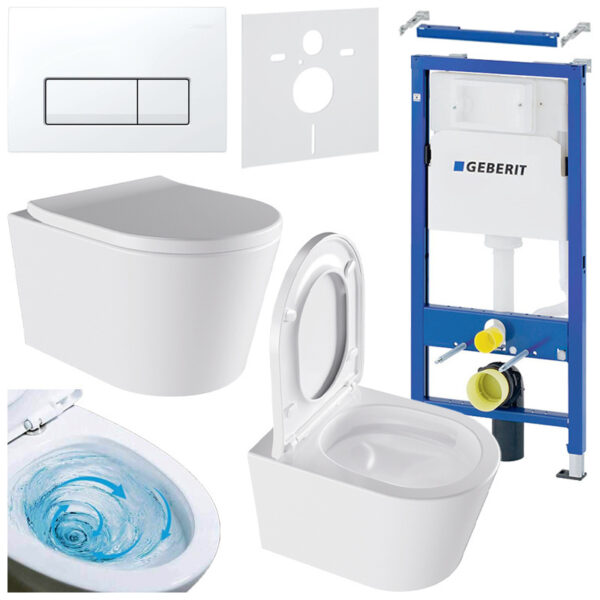

CONCEALED WC SET LUMEN 02TR WHITE TOILET BOWL + FRAME GB + WHITE FLUSH PLATE 50GD

Description

CONCEALED WC SET LUMEN 02TR WHITE TOILET BOWL + FRAME GB + WHITE FLUSH PLATE 50GD

The concealed WC set Lumen is the perfect solution for those seeking an elegant and functional bathroom system. This set features a modern design that integrates seamlessly into minimalist interiors while ensuring maximum space efficiency. The concealed frame allows installation elements to be hidden inside the wall, giving the bathroom a more spacious and stylish look. The Lumen toilet bowl, made of high-quality sanitary ceramic, guarantees not only elegance but also ease of cleaning and hygiene, making it an excellent choice for contemporary bathrooms.

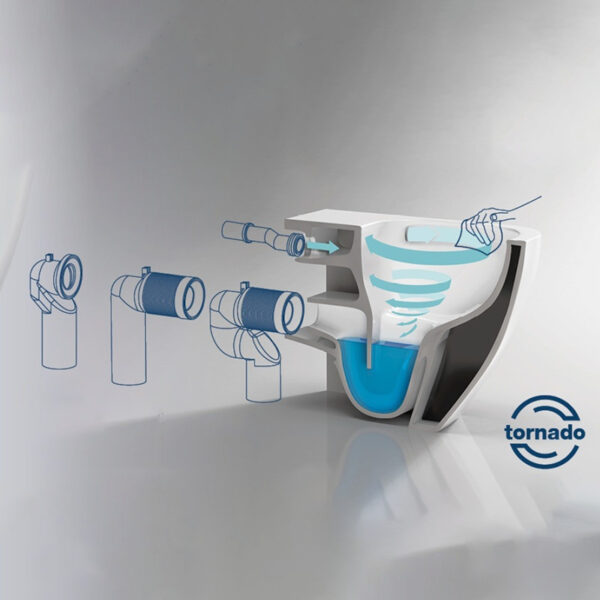

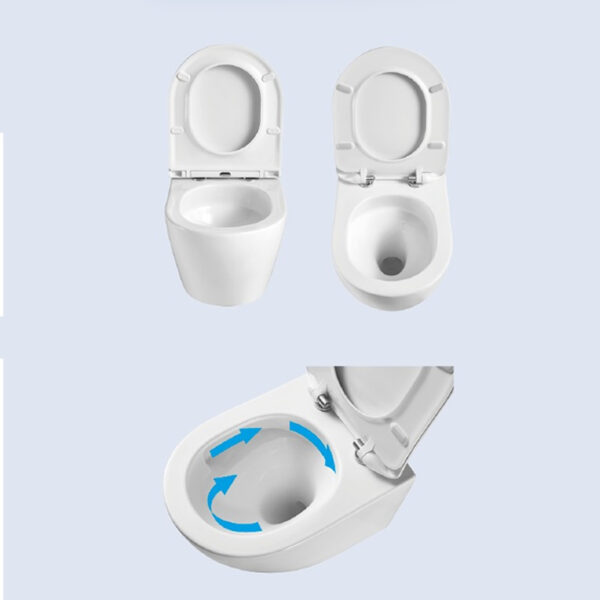

An additional advantage of this model is the Tornado flushing system, which ensures effective and even cleaning of the toilet bowl interior. With this innovative technology, water circulates under high pressure in a spiral motion, thoroughly rinsing the entire surface while minimizing the risk of dirt and bacteria buildup. The Tornado system operates quietly and efficiently, enhancing user comfort and helping maintain cleanliness for longer.

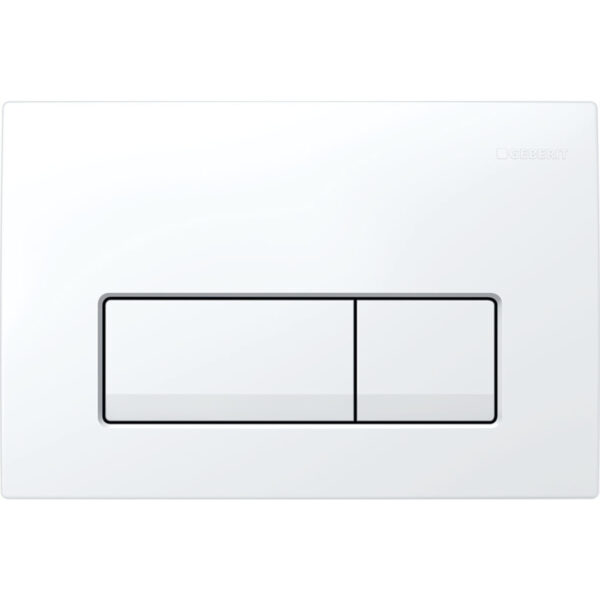

The Geberit Delta 50 flush plate in white is a subtle accent that perfectly complements the entire set. Equipped with a dual flush system, it allows efficient water-saving, making it an eco-friendly choice. The complete set is designed for comfort, easy installation, and long-term reliability.

Technical data – Flush plate

• Brand: GEBERIT

• Series: Delta 50

• Color: White – Alpine

• Material: Polymer

• Max. actuation force (N): 20 N

• Actuation: From the front

• Width (B): 246 mm

• Length (H): 164 mm

• Height (T): 23 mm

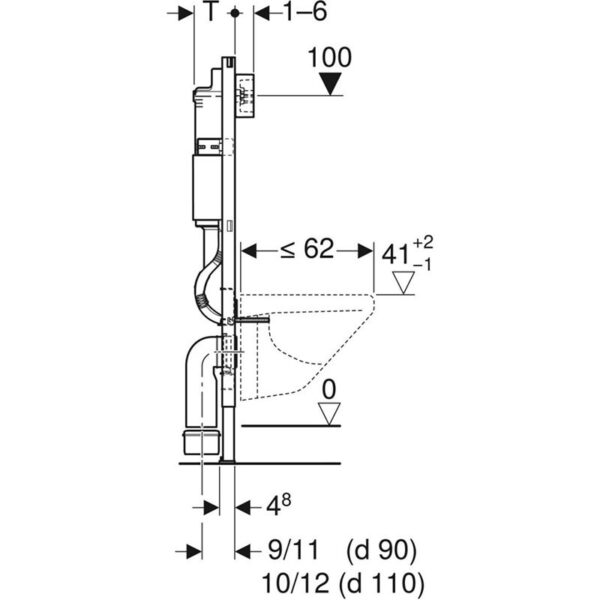

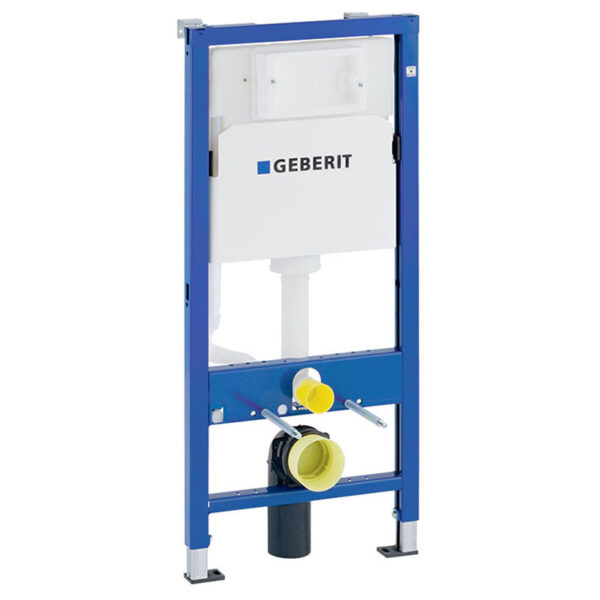

The GD concealed frame is a strong and easy-to-install construction, ideal for partition walls. With its self-supporting frame and anti-corrosion powder-coated finish, it ensures durability and stability in all installation conditions. The cistern with moisture protection and a dual flush system saves water, while adjustable feet simplify installation even on uneven floors. An additional advantage is the included soundproofing mat, which effectively reduces flushing noise and prevents vibrations from spreading to adjacent rooms—particularly useful in apartments where bathrooms are located near bedrooms or living areas.

Technical data – Frame

• Brand: GEBERIT

• Frame width: 500 mm

• Frame height: 1120 mm

• Max. water temperature: 25 °C

• Factory flush settings: 6 / 3 l

• Adjustment range for full flush: 4 / 4.5 / 6 / 7.5 l

• Adjustment range for half flush: 2–4 l

• Calculated flow rate: 0.12 l/s

• Minimum flow pressure: 50 kPa

• Adjustable height: yes

• Soundproofing mat included: yes

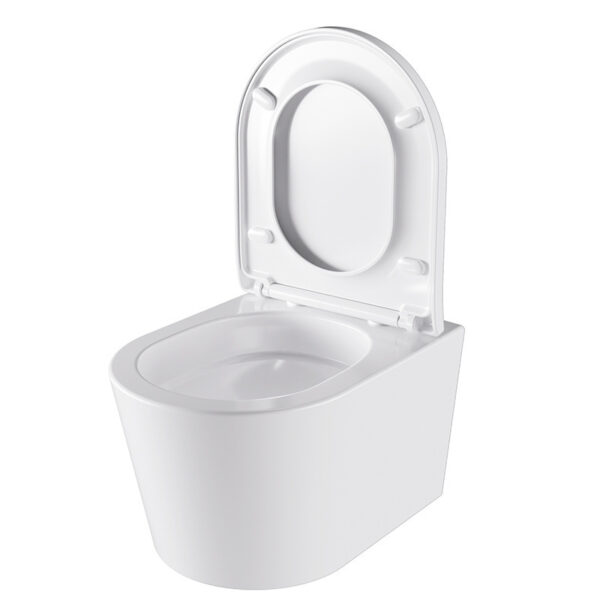

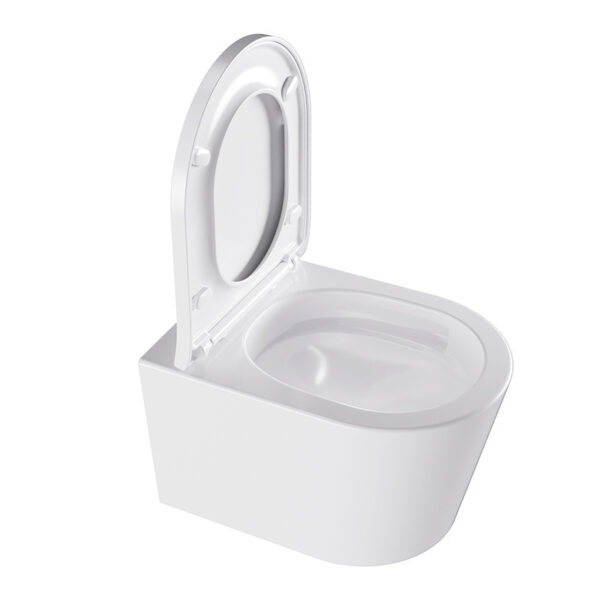

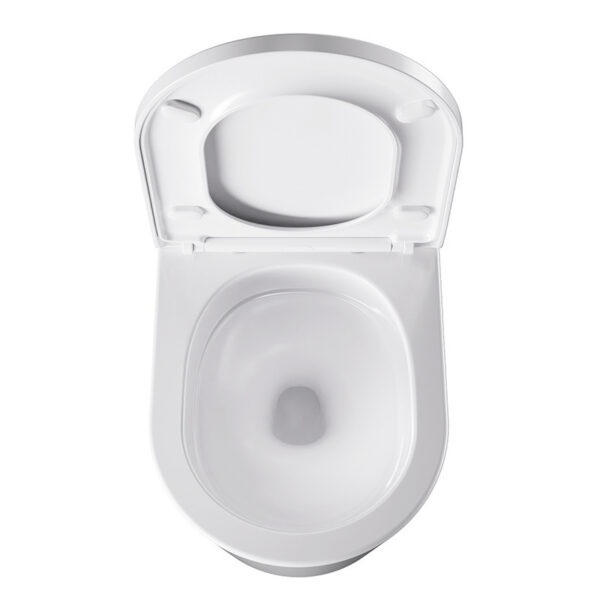

Technical data – Toilet bowl

• Size: 490×360×360 mm

• Installation: Wall-hung

• Flushing system: Tornado – latest rimless technology

• Material: Sanitary ceramic

• Bowl color: White

• Seat material: Duroplast UF

• Seat type: Soft-close

• Seat color: White

• Slim version: Yes

• Easy release: Yes

Advantages of the set

• Complete solution: Includes all essential components for installing a wall-hung toilet.

• Quality: Products from the renowned Geberit brand, known for their durability, reliability, and excellent workmanship.

• Aesthetics: Modern design and elegant finishes make the set a perfect match for any bathroom, giving it a stylish and contemporary appearance.

• Functionality: The Tornado technology in the toilet bowl ensures easy cleaning and maximum hygiene by eliminating hard-to-reach areas. The soft-close seat increases comfort by reducing noise and preventing damage.

• Economy: The dual flush plate allows water-saving, while the adjustable flush volume in the frame provides additional efficiency.

• Durability: The Geberit Duofix frame is robust, ensuring long-lasting stability. Its quiet cistern operation further enhances comfort.

• Easy installation: Designed for quick and straightforward assembly.

• Acoustic comfort: The included soundproofing mat effectively reduces flushing noise and prevents vibrations, ensuring discreet operation.

Note! Actual dimensions may differ from those specified in the offer. A tolerance of +/- 5% is possible.
