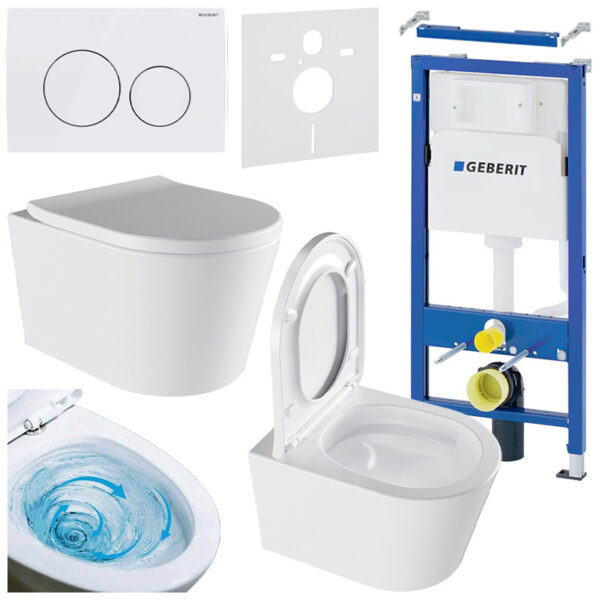

CONCEALED WC SET LUMEN 02TR WHITE TOILET BOWL + FRAME GB + WHITE FLUSH PLATE 20GD

Description

CONCEALED WC SET LUMEN 02TR WHITE TOILET BOWL + FRAME GB + WHITE FLUSH PLATE 20GD

The concealed WC set Lumen is the perfect solution for those seeking an elegant and functional bathroom system. This set features a modern design that seamlessly integrates into minimalist interiors while ensuring maximum space efficiency. The concealed frame allows installation elements to be hidden within the wall, giving the bathroom a more spacious and stylish look. The Lumen toilet bowl, made of high-quality sanitary ceramic, provides not only elegance but also ease of cleaning and hygiene, making it an excellent choice for contemporary bathrooms.

An additional advantage of this model is the Tornado flushing system, which ensures effective and even cleaning of the toilet bowl interior. With this innovative technology, water circulates at high pressure in a spiral motion, thoroughly rinsing the entire surface while minimizing the risk of dirt and bacteria buildup. The Tornado system operates quietly and efficiently, enhancing user comfort while helping maintain cleanliness for longer.

The GD 20 flush plate in white is a subtle accent that perfectly complements the entire set. Equipped with a dual flush system, it allows efficient water-saving, making it an eco-friendly choice. The entire set is designed for user comfort, easy installation, and long-lasting reliability.

Technical data – Flush plate

• Brand: GEBERIT

• Series: Delta 20

• Color: White – Alpine

• Material: Polymer

• Max. actuation force (N): 20 N

• Actuation: From the front

• Width (B): 246 mm

• Length (H): 164 mm

• Height (T): 23 mm

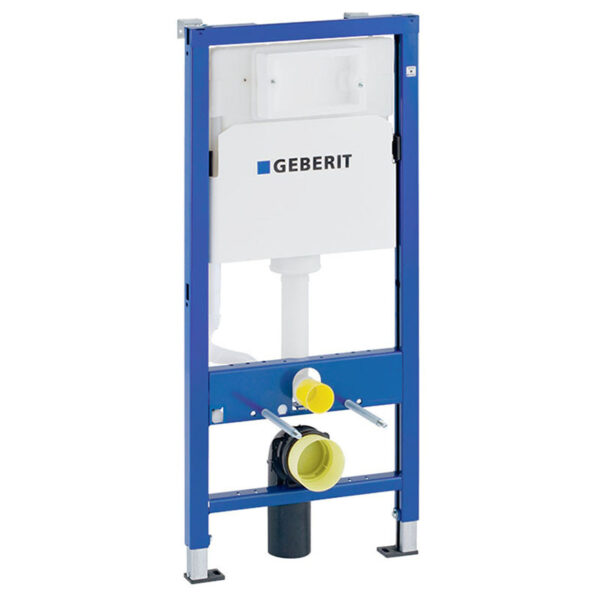

The Geberit Duofix concealed frame is a strong and easy-to-install structure, ideal for partition walls. With its self-supporting frame coated with anti-corrosion powder, it offers excellent durability and stability under all installation conditions. The cistern with moisture protection and a dual flush system saves water, while the adjustable feet simplify installation even on uneven floors. Another advantage is the included soundproofing mat, which effectively reduces flushing noise and prevents vibrations from spreading to adjacent rooms—an important feature in apartments where bathrooms are located near bedrooms or living areas.

Technical data – Frame

• Brand: GEBERIT

• Frame width: 500 mm

• Frame height: 1120 mm

• Max. water temperature: 25 °C

• Factory flush settings: 6 / 3 l

• Adjustment range for full flush: 4 / 4.5 / 6 / 7.5 l

• Adjustment range for half flush: 2–4 l

• Calculated flow rate: 0.12 l/s

• Minimum flow pressure: 50 kPa

• Adjustable height: yes

• Soundproofing mat included: yes

Technical data – Toilet bowl

• Brand: Crystal Bathroom

• Size: 490×360×360 mm

• Installation: Wall-hung

• Flushing system: Tornado – latest rimless technology

• Material: Sanitary ceramic

• Bowl color: White

• Seat material: Duroplast UF

• Seat type: Soft-close

• Seat color: White

• Slim version: Yes

• Easy release: Yes

Advantages of the set

• Complete solution: The set includes all essential components for installing a wall-hung toilet.

• Quality: Products from the renowned Geberit brand, known for their durability, reliability, and excellent workmanship.

• Aesthetics: Modern design and elegant finishes make the set a perfect match for any bathroom, giving it a stylish, contemporary look.

• Functionality: The Tornado technology in the toilet bowl ensures easy cleaning and hygiene by eliminating hard-to-reach areas. The soft-close seat improves comfort by reducing noise and preventing damage.

• Economy: The dual flush plate allows water-saving, while the adjustable flush volume in the frame offers additional efficiency.

• Durability: The Geberit Duofix frame is robust, ensuring long-lasting stability. Its quiet cistern operation further enhances user comfort.

• Easy installation: Designed for quick and straightforward assembly.

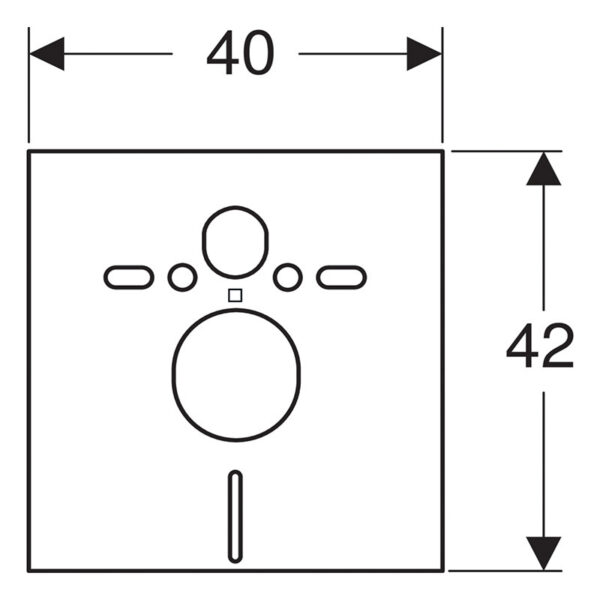

• Acoustic comfort: The included soundproofing mat effectively reduces noise during flushing and prevents vibrations, ensuring quiet and discreet performance.

Note! Actual dimensions may differ from those specified in the offer. A tolerance of +/- 5% is possible.
