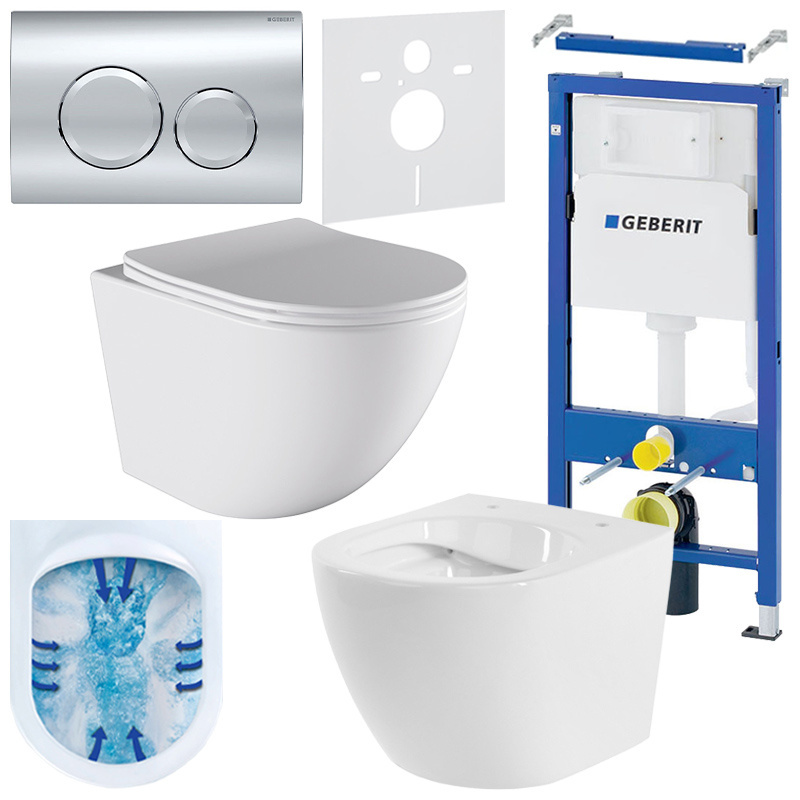

CONCEALED WC SET LINEA 03RIM WHITE TOILET BOWL + FRAME GB + CHROME FLUSH PLATE 20GD

Description

CONCEALED WC SET LINEA 03RIM WHITE TOILET BOWL + FRAME GB + CHROME FLUSH PLATE 20GD

The concealed WC set LINEA is the perfect solution for those seeking an elegant and functional bathroom system. This set features a modern design that perfectly fits into minimalist interiors while ensuring maximum space efficiency. The concealed frame allows installation elements to be hidden inside the wall, giving the bathroom a more spacious and aesthetic look. The LINEA toilet bowl, made of high-quality sanitary ceramic, guarantees not only a refined appearance but also easy cleaning and hygiene, making it an excellent choice for contemporary bathrooms.

An additional advantage of this model is the Rimless system, which revolutionizes toilet flushing. Thanks to its innovative rimless construction, water is evenly distributed across the entire bowl surface, ensuring effective and thorough flushing. This special design eliminates areas where bacteria could accumulate, providing the highest level of hygiene.

The GD 20 flush plate in chrome is a subtle accent that perfectly complements the entire set. Equipped with a dual flush system, it allows efficient water-saving, making it an environmentally friendly choice. The complete set is designed with user comfort and easy installation in mind, offering a reliable and long-lasting solution for every bathroom.

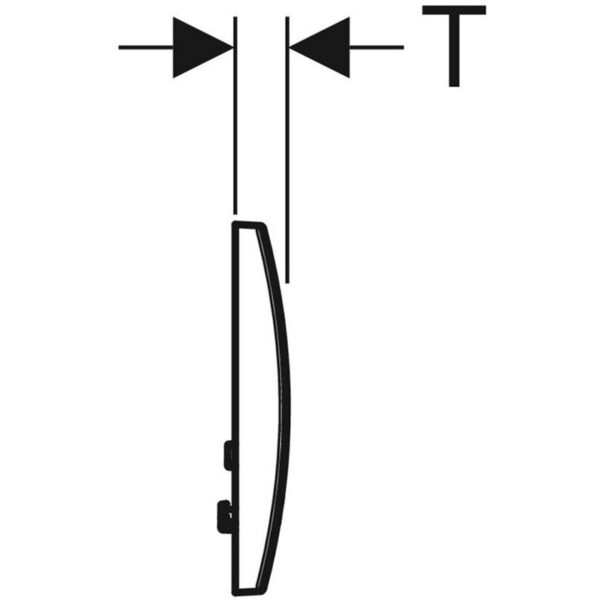

Technical data – Flush plate

• Brand: GEBERIT

• Series: Delta 20

• Color: Chrome

• Material: Polymer

• Max. actuation force (N): 20 N

• Actuation: From the front

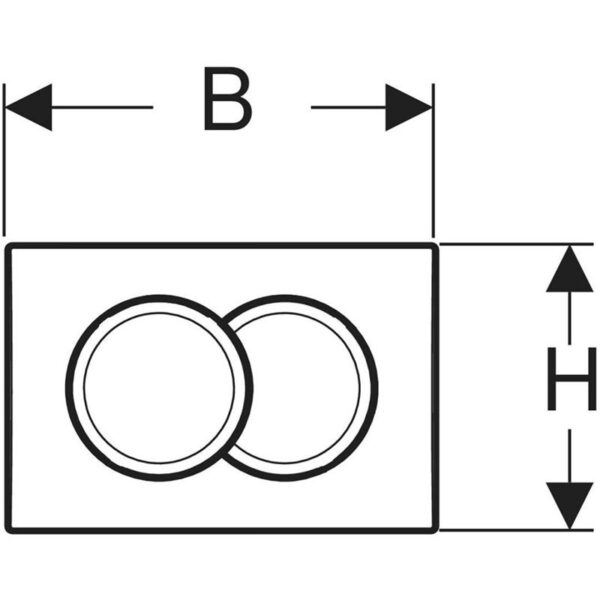

• Width (B): 246 mm

• Length (H): 164 mm

• Height (T): 23 mm

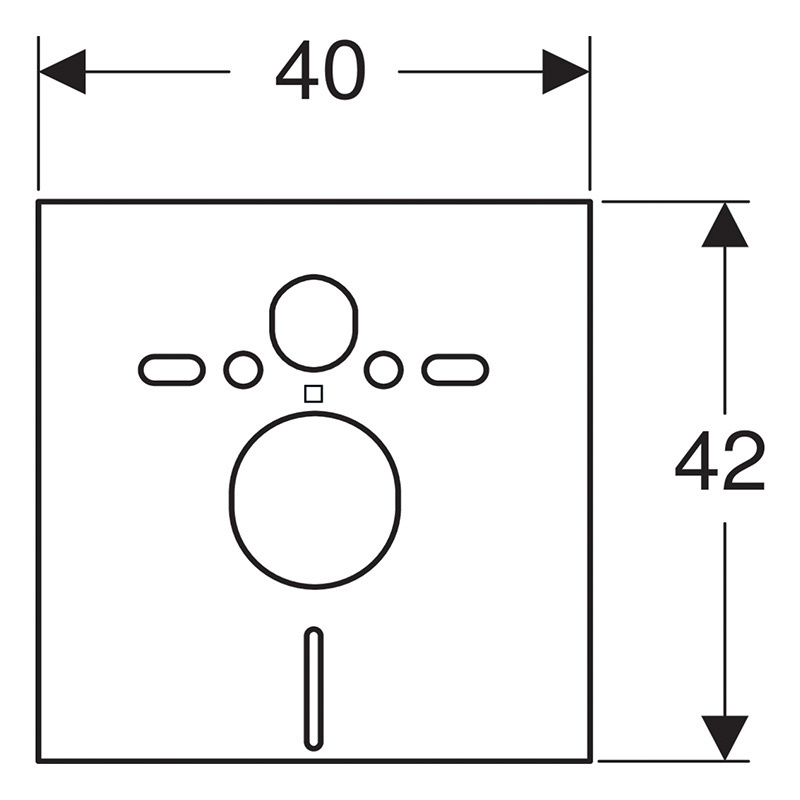

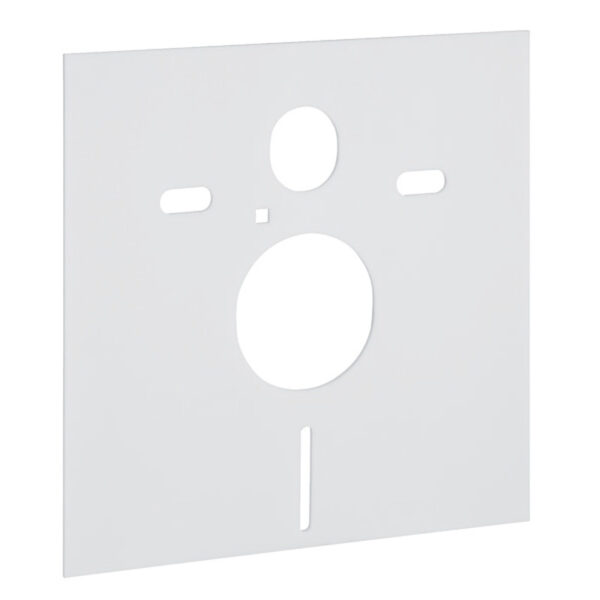

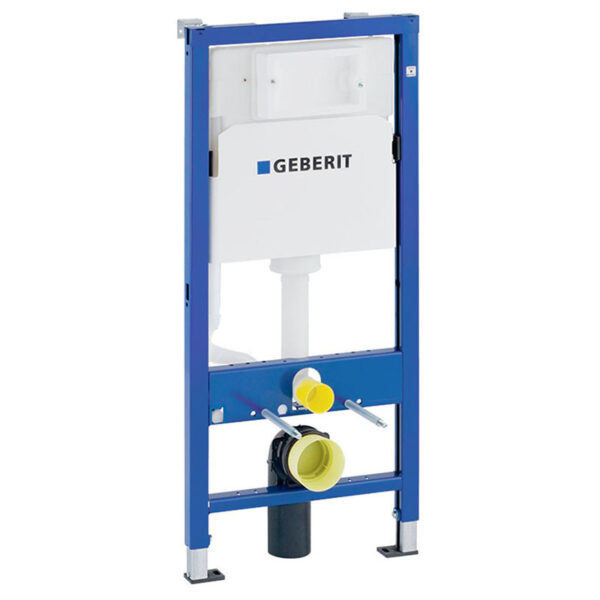

The Geberit Duofix concealed frame is a strong and easy-to-install structure, ideal for partition walls. With its self-supporting frame featuring an anti-corrosion powder-coated finish, it offers excellent durability and ensures stability in all installation conditions. The cistern with moisture protection and a dual flush system saves water, while the adjustable feet make it easy to install even on uneven floors. An additional advantage is the included soundproofing mat, which effectively reduces noise during flushing and prevents vibrations from transferring to adjacent rooms, enhancing comfort, particularly in apartments where the bathroom is located near bedrooms or living spaces.

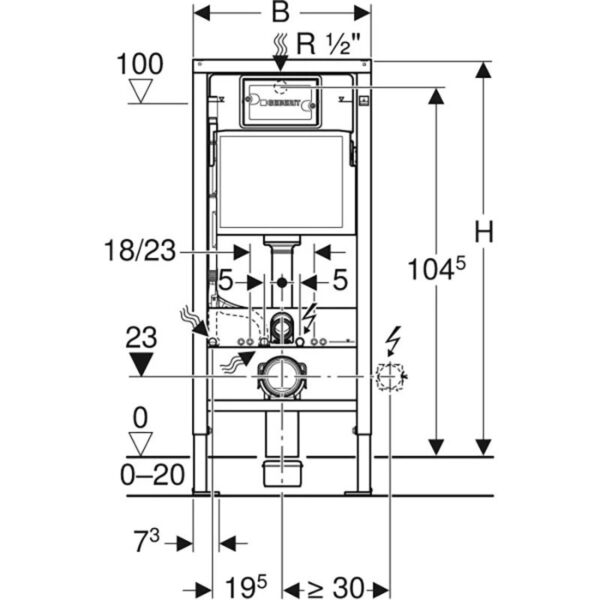

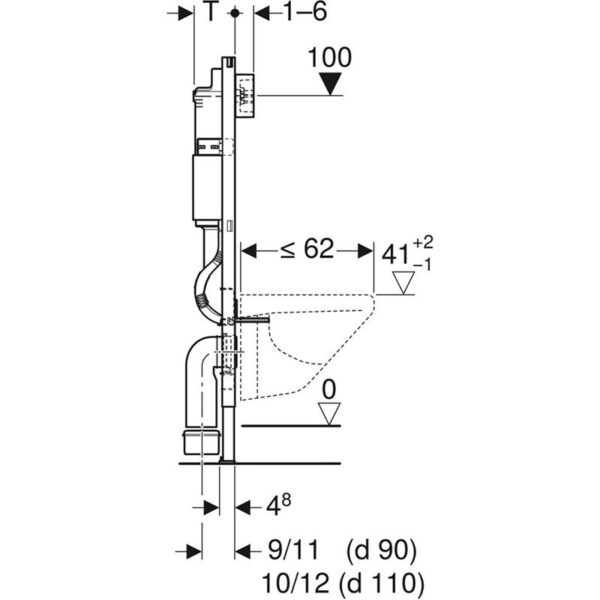

Technical data – Frame

• Brand: GEBERIT

• Frame width: 500 mm

• Frame height: 1120 mm

• Max. water temperature: 25 °C

• Factory flush settings: 6 / 3 l

• Adjustment range for full flush: 4 / 4.5 / 6 / 7.5 l

• Adjustment range for half flush: 2–4 l

• Calculated flow rate: 0.12 l/s

• Minimum flow pressure: 50 kPa

• Adjustable height: yes

• Soundproofing mat included: yes

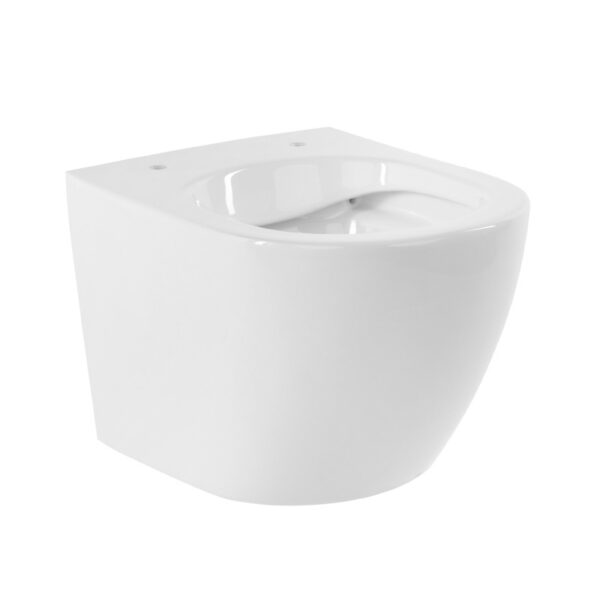

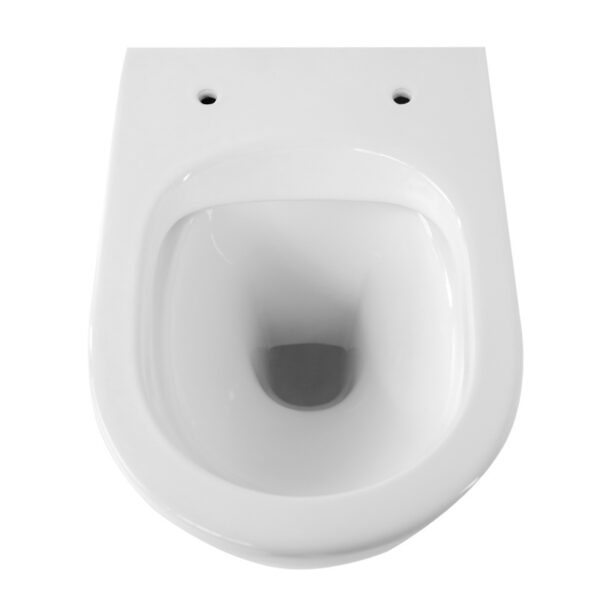

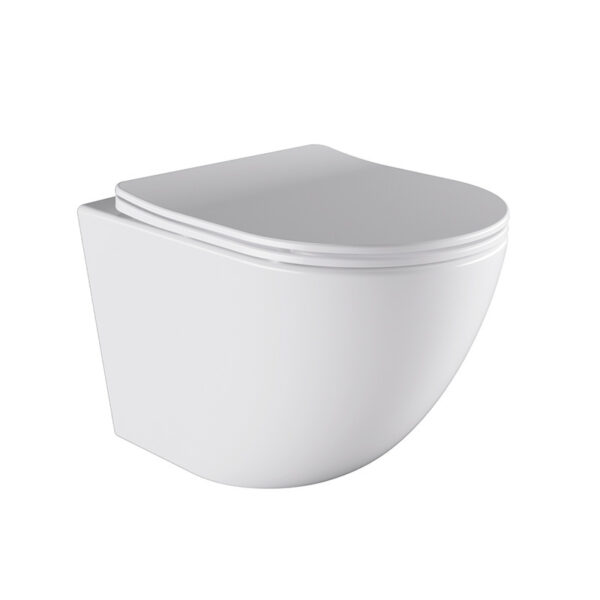

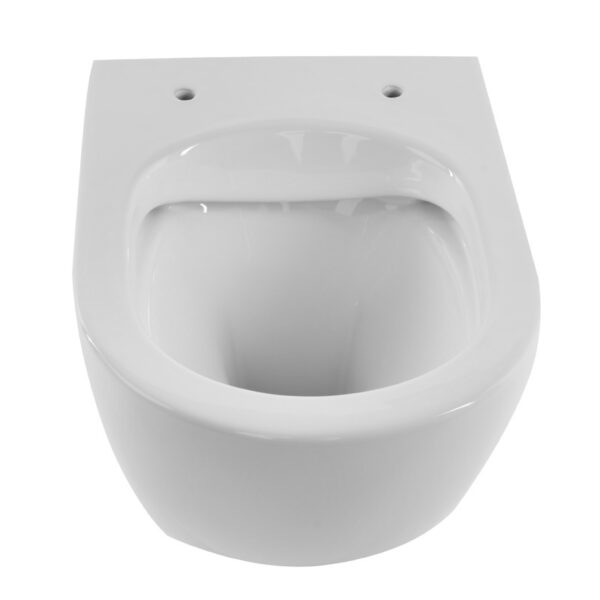

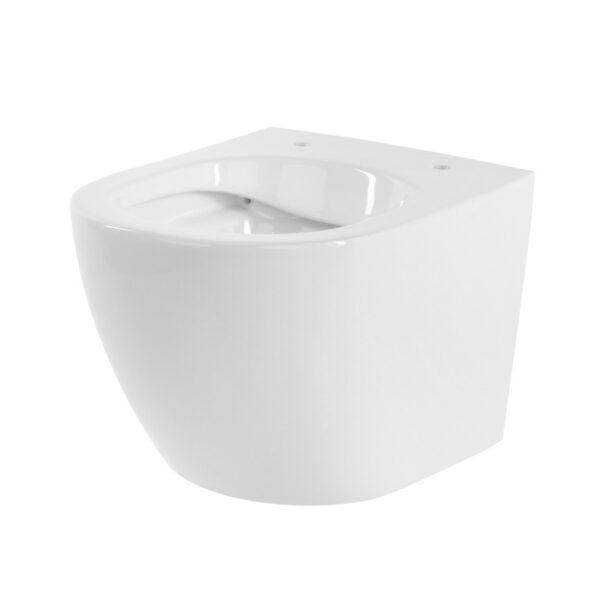

Technical data – Toilet bowl

• Size: 490×360×365 mm

• Installation: Wall-hung

• Flushing system: Rimless – no rim

• Material: Sanitary ceramic

• Bowl color: White

• Seat material: Duroplast

• Seat type: Soft-close

• Seat color: White

• Slim version: Yes

• Easy release: Yes

Advantages of the set

• Complete solution: The set includes all necessary components for installing a wall-hung toilet.

• Quality: Products from the renowned Geberit brand, known for durability, reliability, and excellent workmanship.

• Aesthetics: Modern design and elegant finishes make the set a perfect match for any bathroom, enhancing its contemporary look.

• Functionality: The Rimless technology in the toilet bowl ensures easy cleaning and improved hygiene by eliminating hard-to-reach areas. The soft-close seat enhances comfort, reducing noise and preventing damage.

• Economy: The dual flush plate enables water savings, while the adjustable flush volume in the frame provides additional efficiency.

• Durability: The Geberit Duofix frame features a robust design that ensures long-term stability. Its quiet cistern operation increases user comfort.

• Easy installation: Designed for quick and simple installation.

• Acoustic comfort: The soundproofing mat effectively reduces noise during flushing and use, ensuring quiet and discreet performance.

Note! Actual dimensions may differ from those specified in the offer. A tolerance of +/- 5% is possible.
