CONCEALED WC SET LINEA 03RIM WHITE TOILET BOWL + FRAME GB + BLACK MATT FLUSH PLATE 50GD

Description

CONCEALED WC SET LINEA 03RIM WHITE TOILET BOWL + FRAME GB + BLACK MATT FLUSH PLATE 50GD

The concealed WC set LINEA is the perfect solution for those seeking an elegant and functional bathroom system. This set features a modern design that perfectly matches minimalist interiors while ensuring maximum space efficiency. The concealed frame allows installation elements to be hidden inside the wall, giving the bathroom a more spacious and aesthetic appearance. The LINEA toilet bowl, made of high-quality sanitary ceramic, guarantees not only elegance but also easy cleaning and hygiene, making it an excellent choice for contemporary bathrooms.

An additional advantage of this model is the Rimless system, which revolutionizes toilet flushing. Thanks to its innovative rimless construction, water is evenly distributed over the entire bowl surface, ensuring effective and thorough flushing. This design eliminates areas where bacteria could accumulate, guaranteeing the highest level of hygiene.

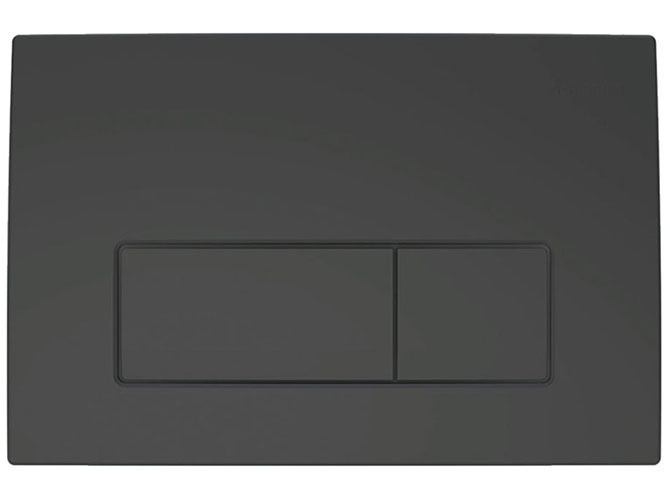

The GD 50 flush plate in black matt is a subtle accent that perfectly complements the entire set. Equipped with a dual flush system, it enables efficient water-saving, making it an eco-friendly choice. The entire set has been designed with comfort of use, easy installation, and long-lasting reliability in mind.

Technical data – Flush plate

• Brand: GEBERIT

• Series: Delta 50

• Color: Black matt

• Material: Polymer

• Max. actuation force (N): 20 N

• Actuation: From the front

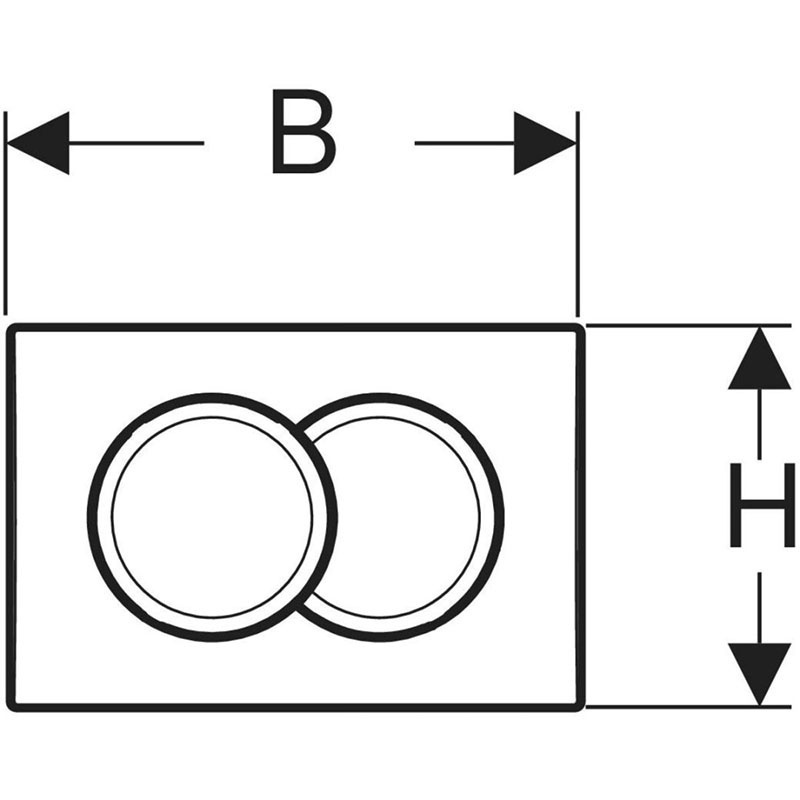

• Width (B): 246 mm

• Length (H): 164 mm

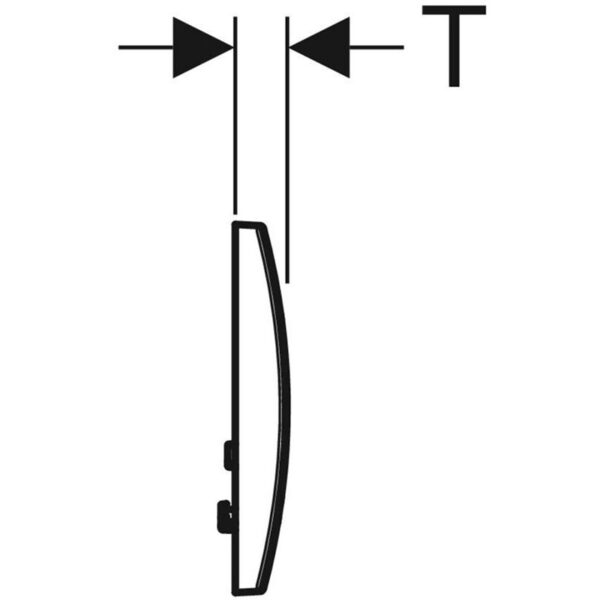

• Height (T): 23 mm

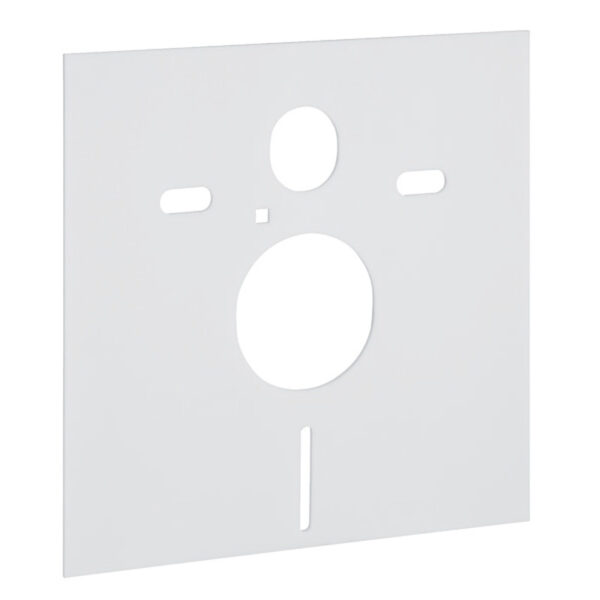

The Geberit Duofix concealed frame is a durable and easy-to-install structure, ideal for partition walls. With its self-supporting frame coated with anti-corrosion powder, it ensures stability and long-term durability in all installation conditions. The cistern with moisture protection and a dual flush system helps save water, while adjustable feet make it possible to install even on uneven floors. Another advantage is the included soundproofing mat, which effectively reduces flushing noise and prevents vibrations from spreading to adjacent rooms—especially important in apartments where bathrooms are located near bedrooms or living spaces.

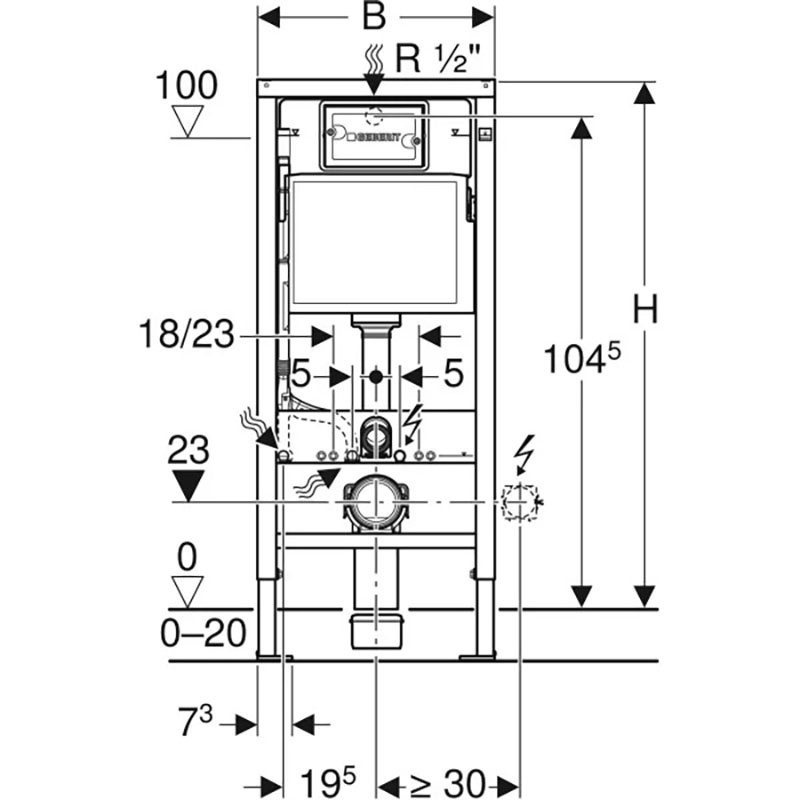

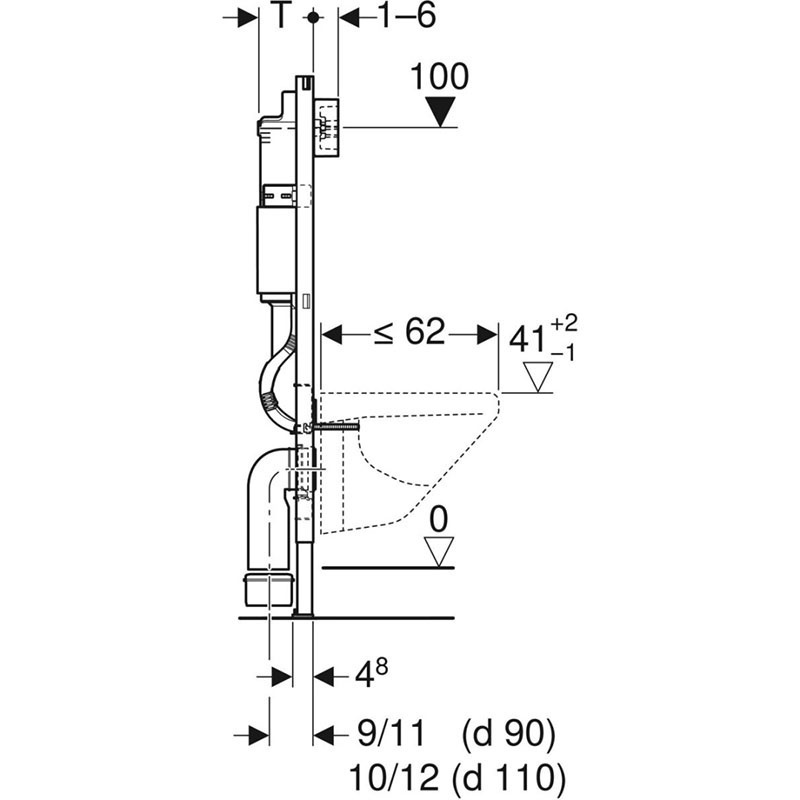

Technical data – Frame

• Brand: GEBERIT

• Frame width: 500 mm

• Frame height: 1120 mm

• Max. water temperature: 25 °C

• Factory flush settings: 6 / 3 l

• Adjustment range for full flush: 4 / 4.5 / 6 / 7.5 l

• Adjustment range for half flush: 2–4 l

• Calculated flow rate: 0.12 l/s

• Minimum flow pressure: 50 kPa

• Adjustable height: yes

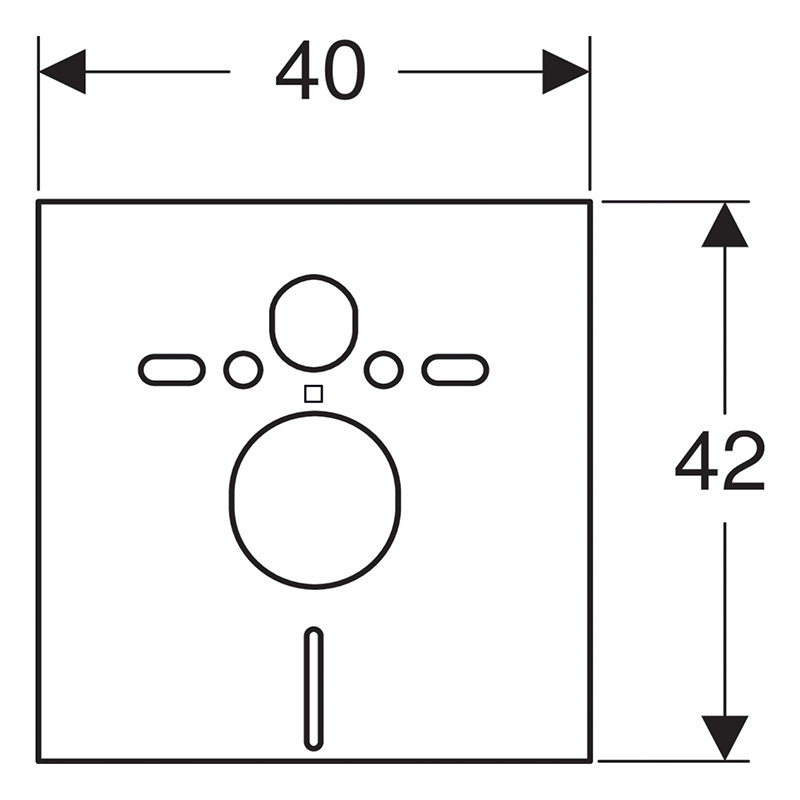

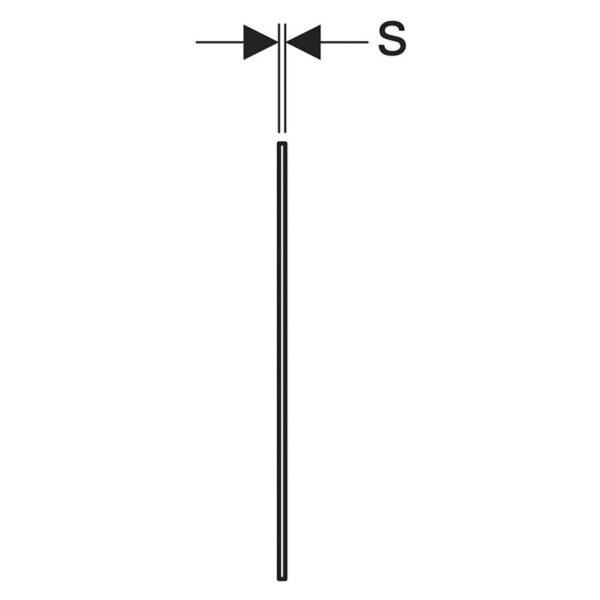

• Soundproofing mat included: yes

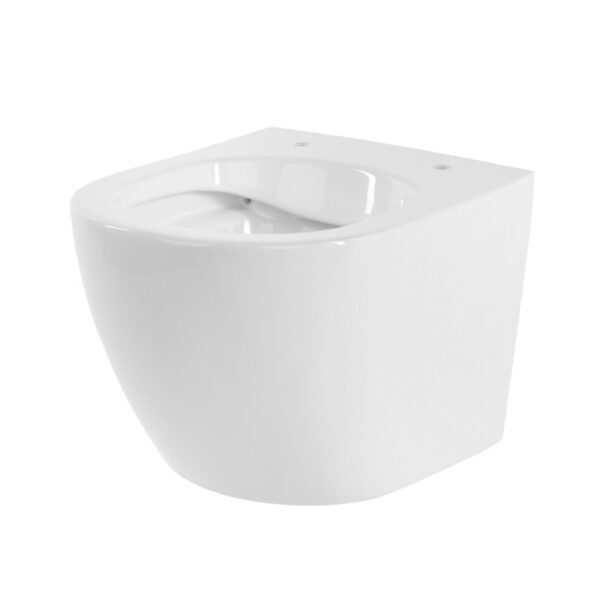

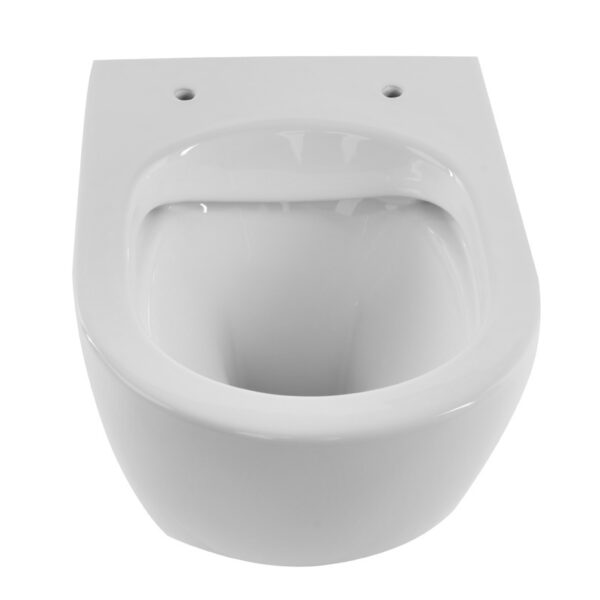

Technical data – Toilet bowl

• Size: 490×360×365 mm

• Installation: Wall-hung

• Flushing system: Rimless – no rim

• Material: Sanitary ceramic

• Bowl color: White

• Seat material: Duroplast

• Seat type: Soft-close

• Seat color: White

• Slim version: Yes

• Easy release: Yes

Advantages of the set

• Complete solution: The set includes all essential components for installing a wall-hung toilet.

• Quality: Products from the renowned Geberit brand, known for their durability, reliability, and excellent workmanship.

• Aesthetics: Modern design and elegant finishes make the set a perfect match for any bathroom, giving it a stylish and contemporary look.

• Functionality: The Rimless technology in the toilet bowl ensures easy cleaning and improved hygiene by eliminating hard-to-reach areas. The soft-close seat enhances comfort by reducing noise and preventing damage.

• Economy: The dual flush plate allows water-saving, while the adjustable flush volume in the frame provides additional efficiency.

• Durability: The Geberit Duofix frame features a solid construction that ensures long-lasting stability. Its quiet cistern operation improves user comfort.

• Easy installation: Designed for quick and straightforward assembly.

• Acoustic comfort: The soundproofing mat effectively reduces noise during flushing and prevents vibrations, ensuring quiet and discreet operation.

Note! Actual dimensions may differ from those specified in the offer. A tolerance of +/- 5% is possible.
