CONCEALED WC SET LINEA 03 WHITE TOILET BOWL + FRAME GB + CHROME FLUSH PLATE 01GD

Description

CONCEALED WC SET LINEA 03 WHITE TOILET BOWL + FRAME GB + CHROME FLUSH PLATE 01GD

The concealed WC set with the wall-hung WC bowl and the chrome flush plate is the perfect solution for those seeking an elegant and functional bathroom system. This set is characterised by a modern design that perfectly complements minimalist interiors while ensuring maximum space-saving. The concealed frame allows installation elements to be hidden in the wall, giving the bathroom a more spacious and aesthetic appearance. The bowl, made from high-quality sanitary ceramic, guarantees not only an elegant look but also easy cleaning and hygiene, making it an excellent choice for modern bathrooms.

An additional advantage of this model is the Rimless system, which revolutionises the flushing process. Thanks to its innovative rimless design, water is evenly distributed over the entire surface of the bowl, ensuring efficient and thorough flushing. Specially designed technology eliminates areas where bacteria could accumulate, guaranteeing a high level of hygiene.

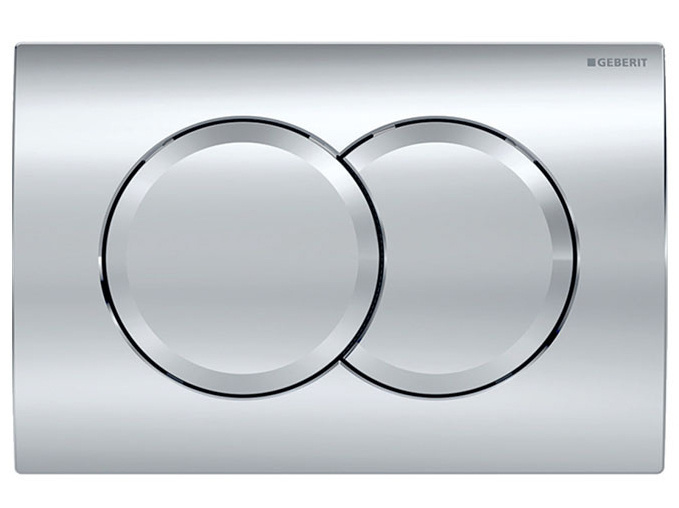

The flush plate in chrome provides a subtle yet stylish accent, perfectly complementing the set. Equipped with a dual-flush system, it allows economical water use, making it an eco-friendly choice. The entire set is designed with user comfort and quick, hassle-free installation in mind, making it a reliable and long-lasting solution for any bathroom.

Technical data – Flush Plate

• Brand: Geberit

• Series: Delta 01

• Color: Chrome

• Material: Polymer

• Max. actuation force (N): 20 N

• Operation: Front

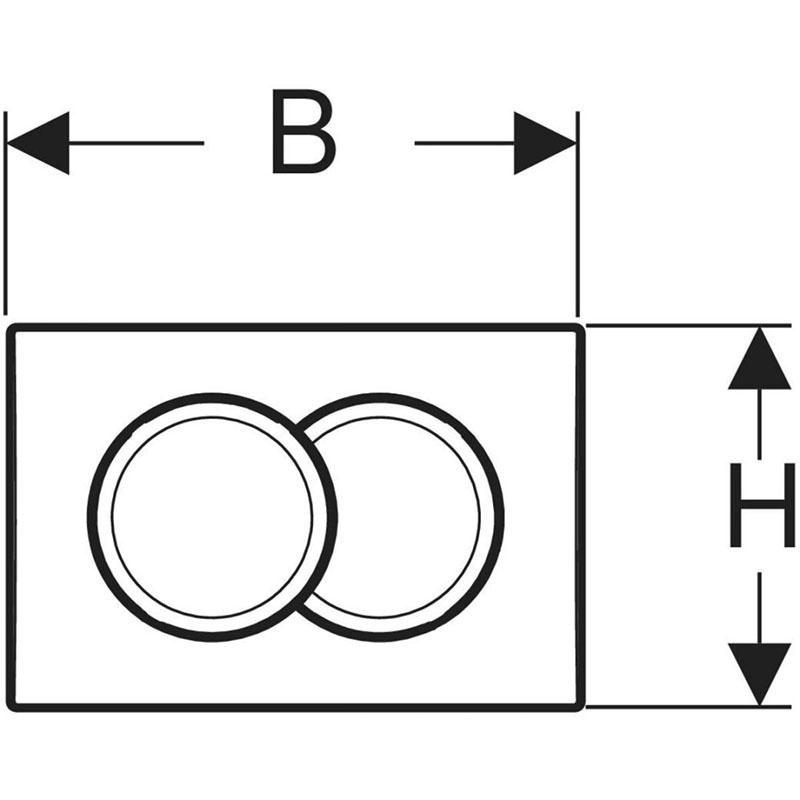

• Width (B): 246 mm

• Length (H): 164 mm

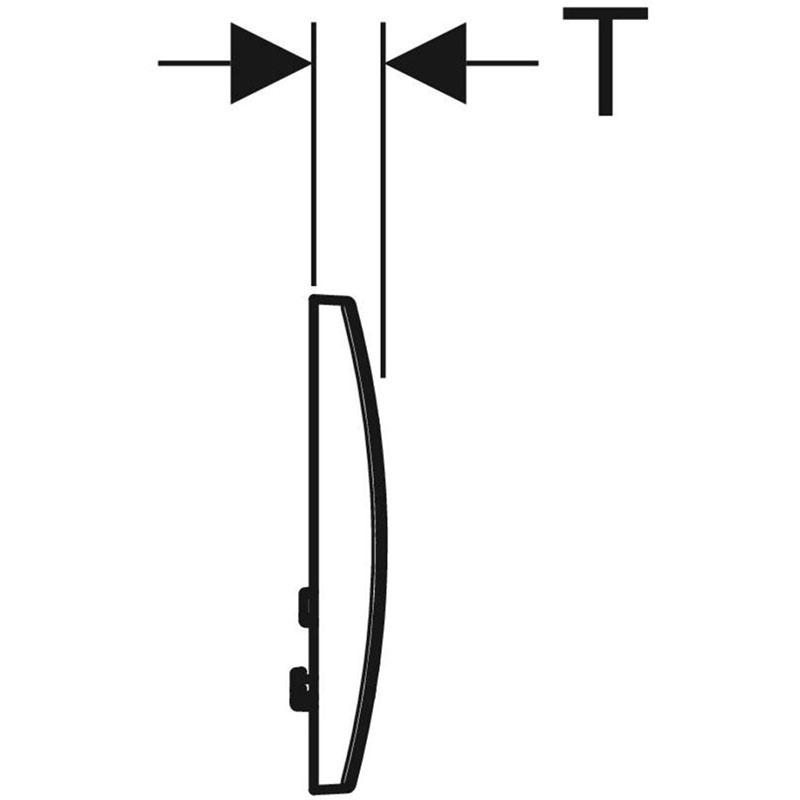

• Height (T): 23 mm

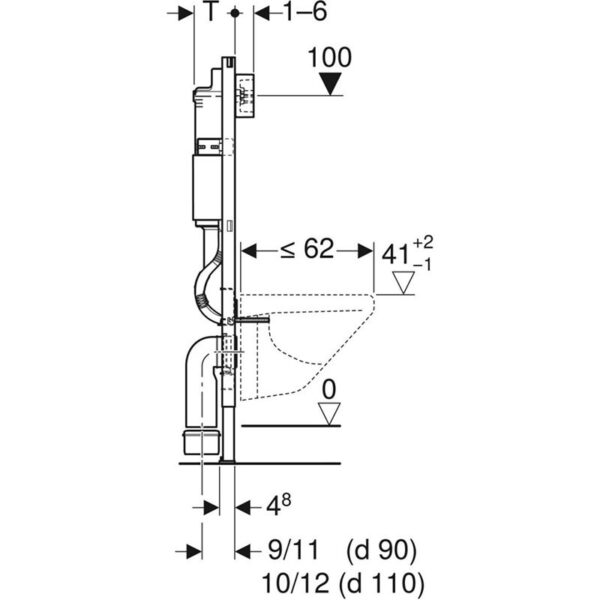

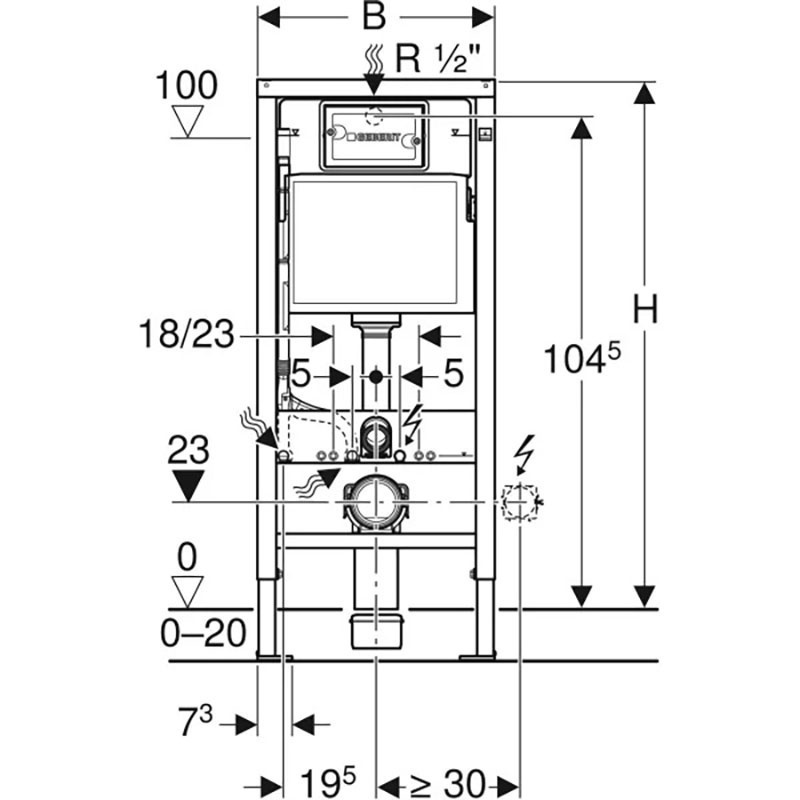

Technical data – Frame

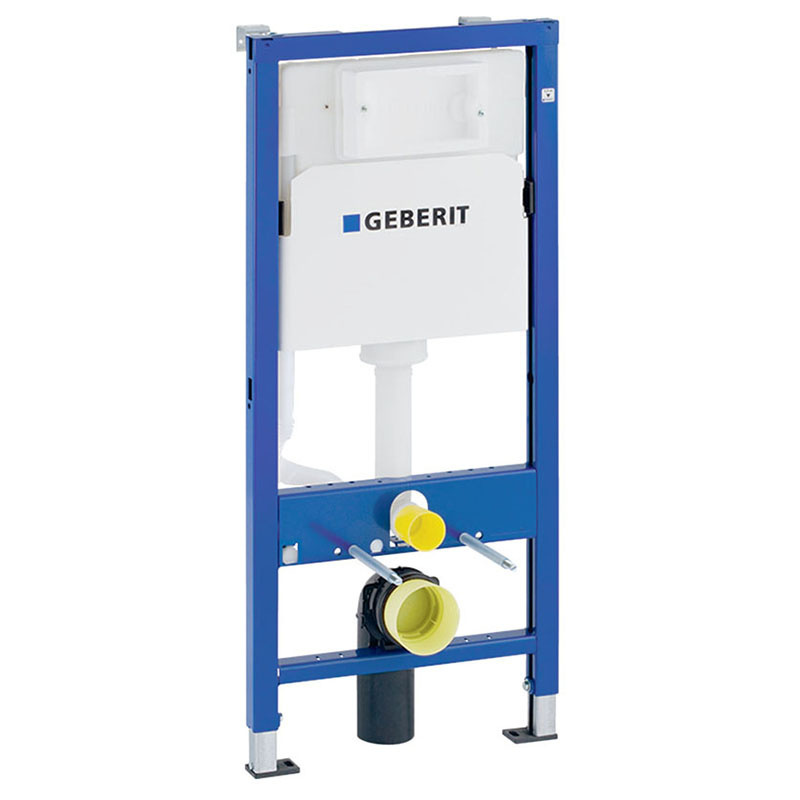

The concealed frame is a durable and easy-to-install structure, perfect for partition walls. Thanks to its self-supporting frame with anti-corrosion powder-coated finish, the frame is extremely robust and provides stability under all installation conditions. The cistern features moisture protection and a dual-flush system, saving water, while the adjustable feet facilitate installation even on uneven surfaces.

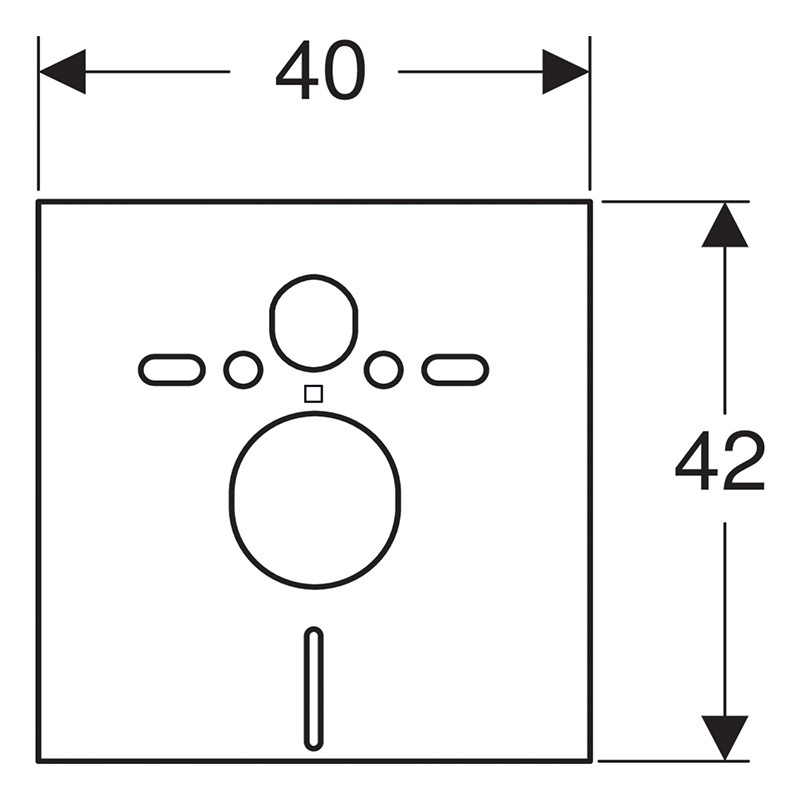

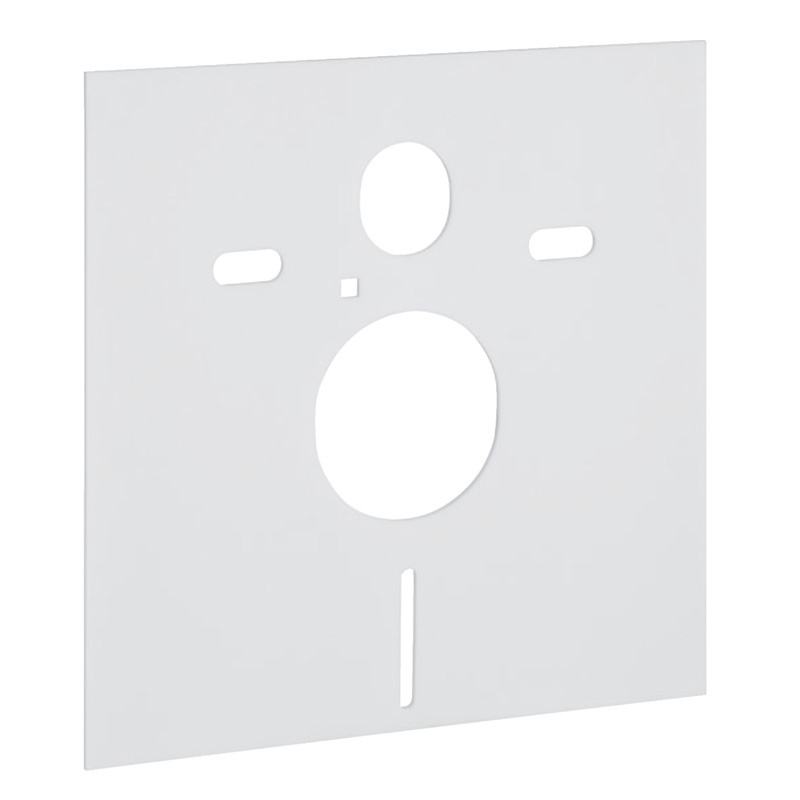

Another advantage of the set is the included sound insulation mat, which effectively dampens noise during flushing and toilet use. Thanks to its innovative design, the mat prevents vibrations from transferring to adjacent rooms, increasing comfort, especially in apartments where bathrooms are located near bedrooms or living rooms.

• Brand: Geberit

• Frame width: 500 mm

• Frame height: 1120 mm

• Max. water temperature: 25 °C

• Factory settings for flush volume: 6 / 3 l

• Adjustment range for large flush volume: 4 / 4.5 / 6 / 7.5 l

• Adjustment range for small flush volume: 2–4 l

• Design flow rate: 0.12 l/s

• Minimum flow pressure: 50 kPa

• Height adjustable: Yes

• Sound insulation mat included: Yes

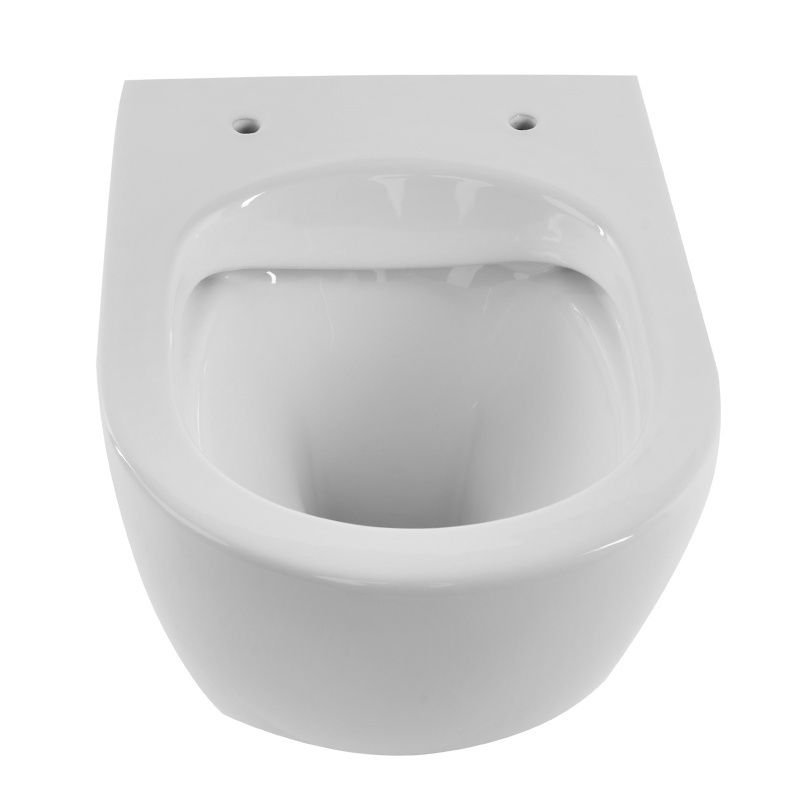

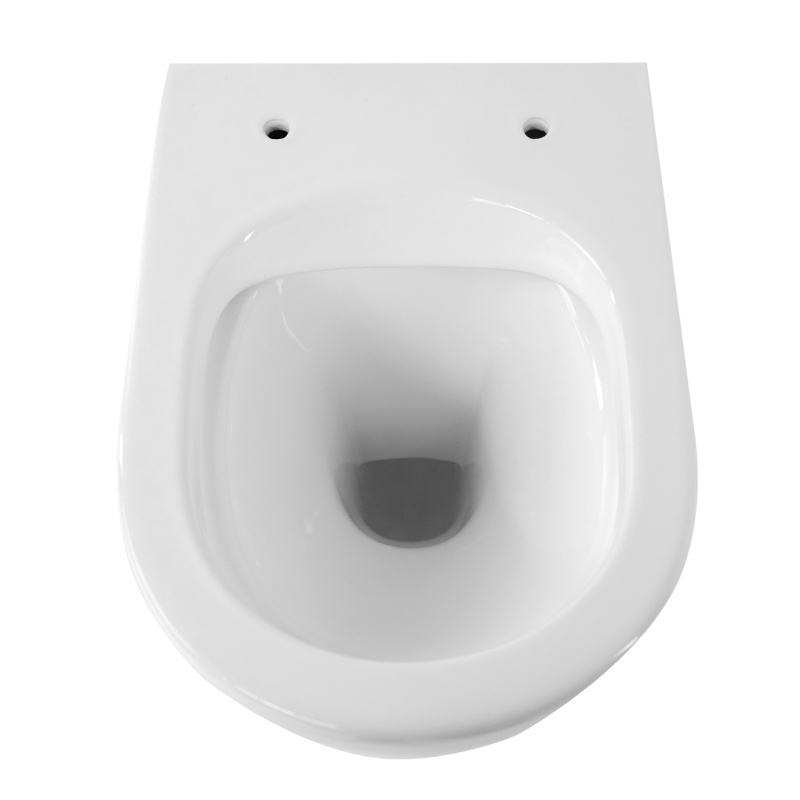

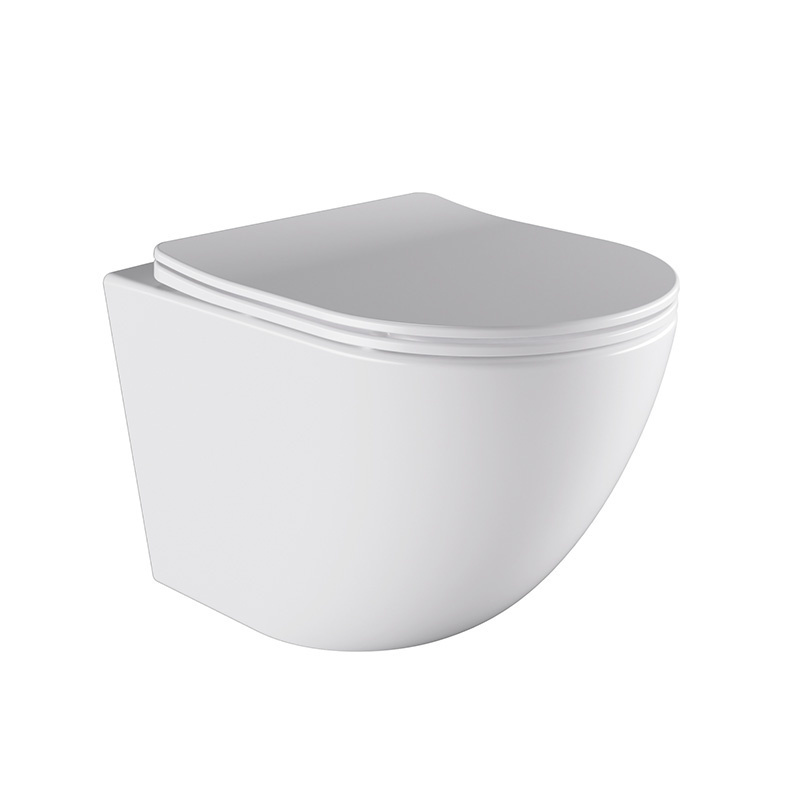

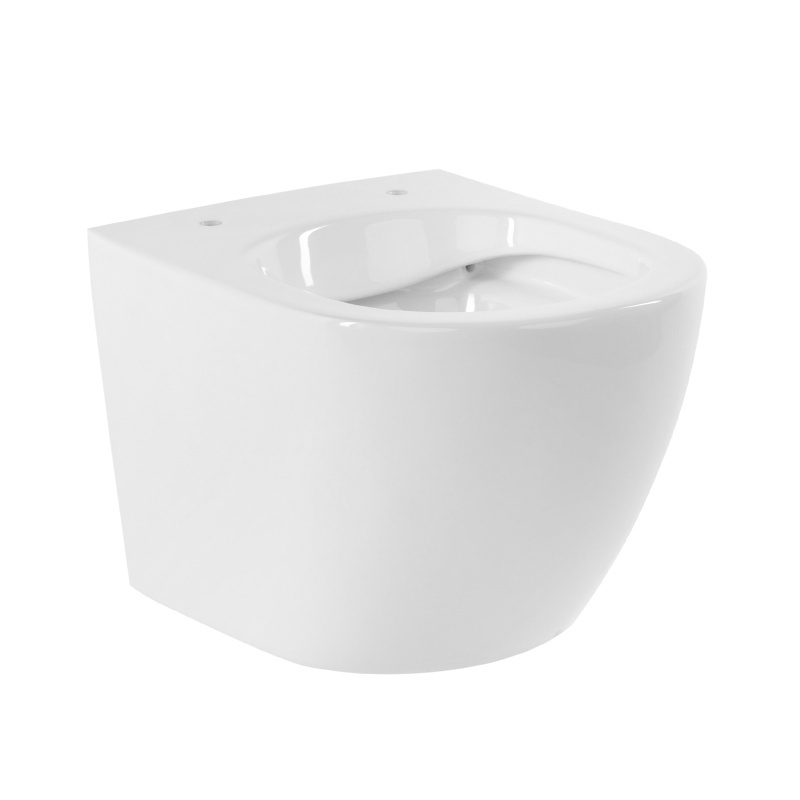

Technical data – Bowl

• Size: 490 × 360 × 365 mm

• Installation: Wall-hung

• Flushing system: Rimless

• Material: Sanitary ceramic

• Bowl color: White

• Seat material: Duroplast

• Seat type: Soft-close

• Seat color: White

• Slim version: Yes

• Easy release: Yes

• • CE- This CE mark means that this product conforms to the essential requirements of the applicable EC Directives

• • TUV – Technical Approval of an Independent Certification Body
