Description

PRODUCT SPECIFICATION

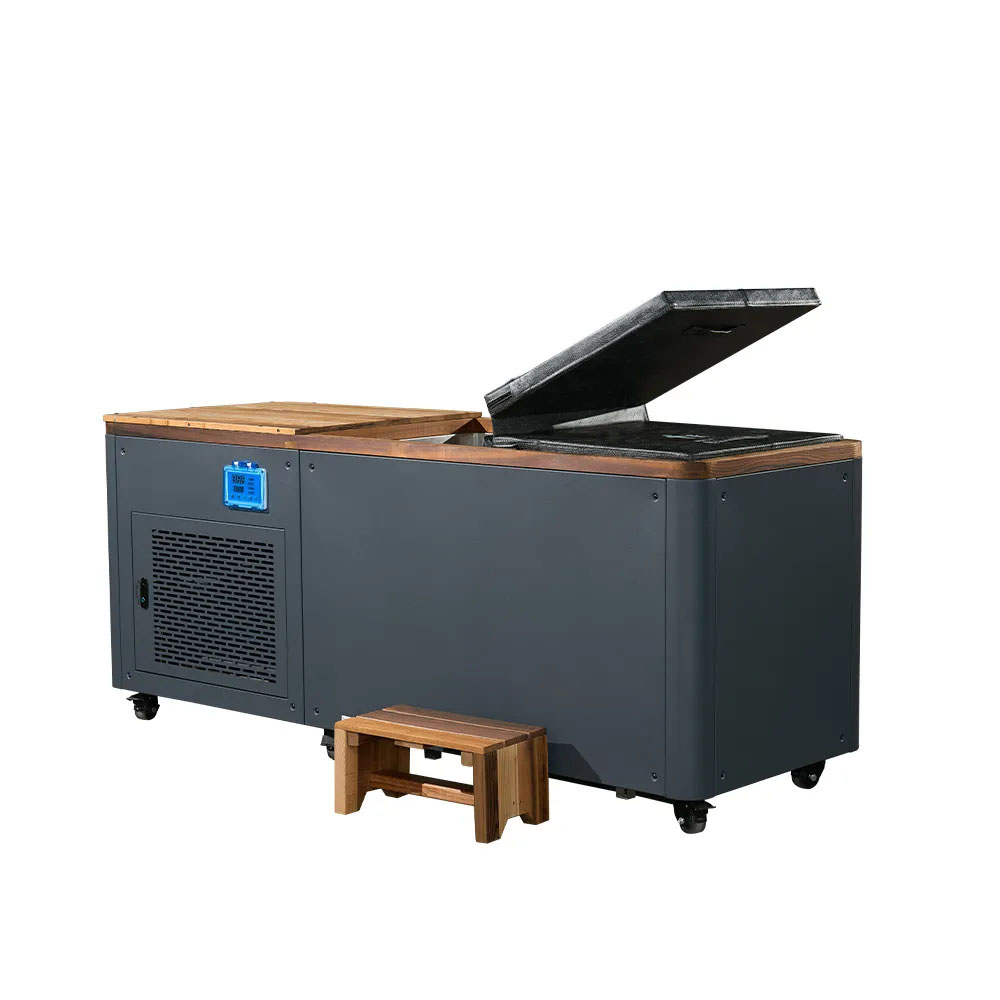

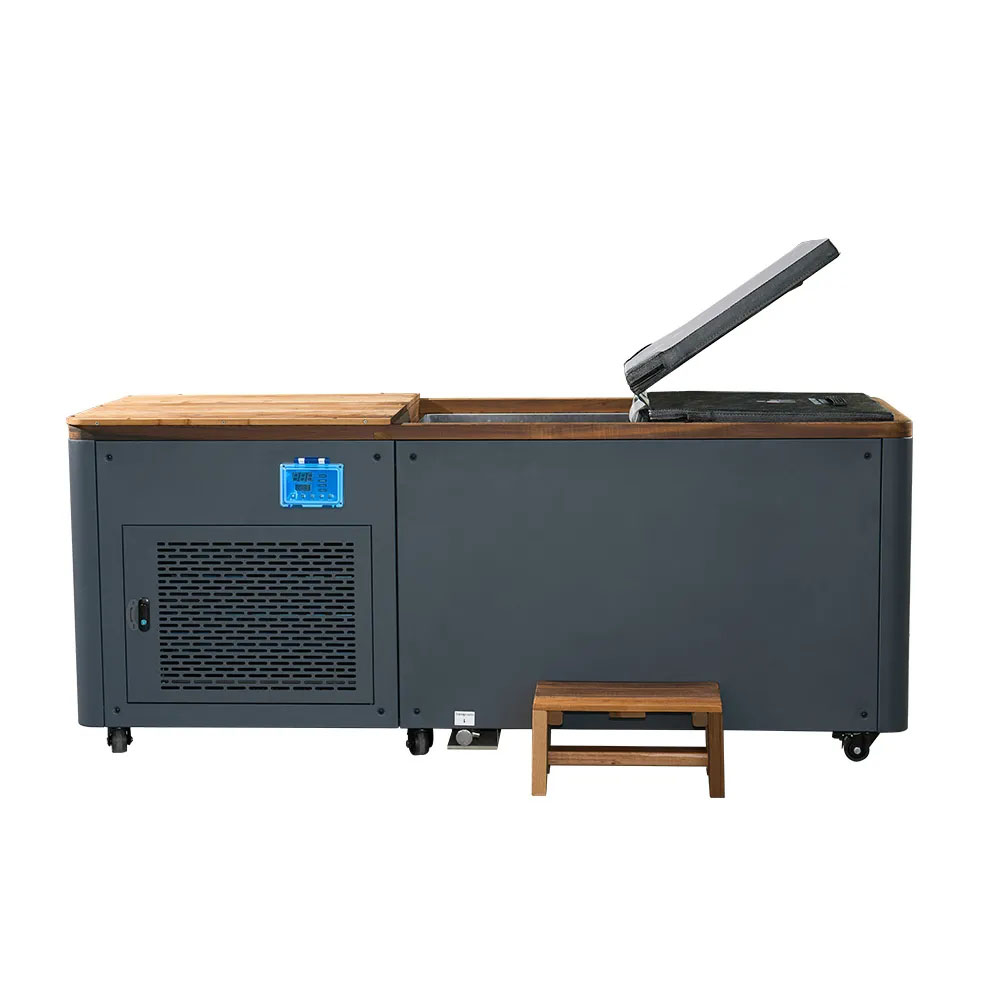

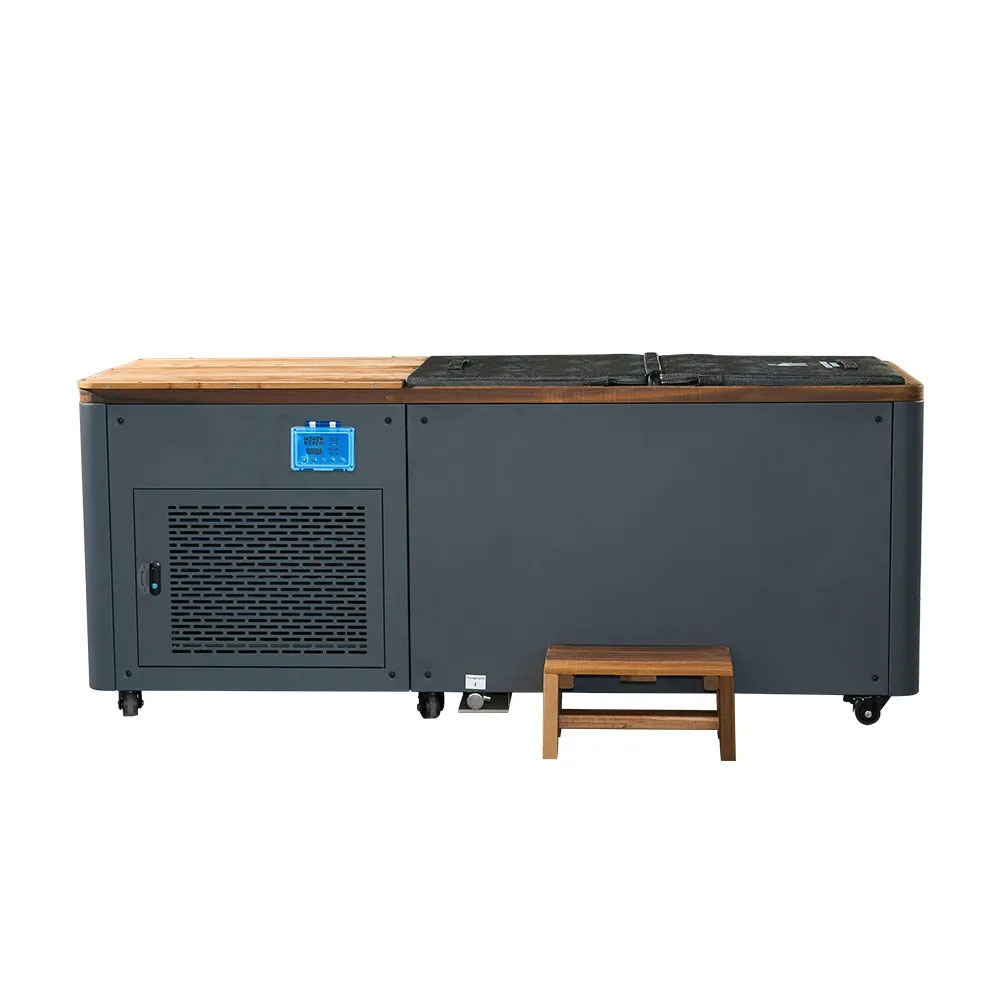

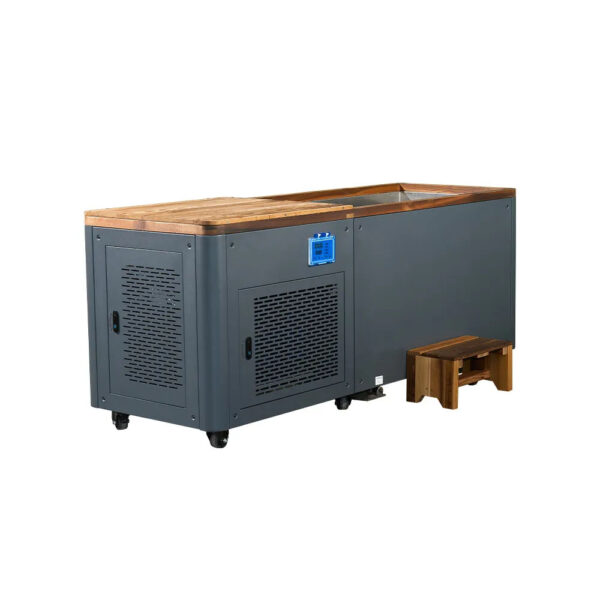

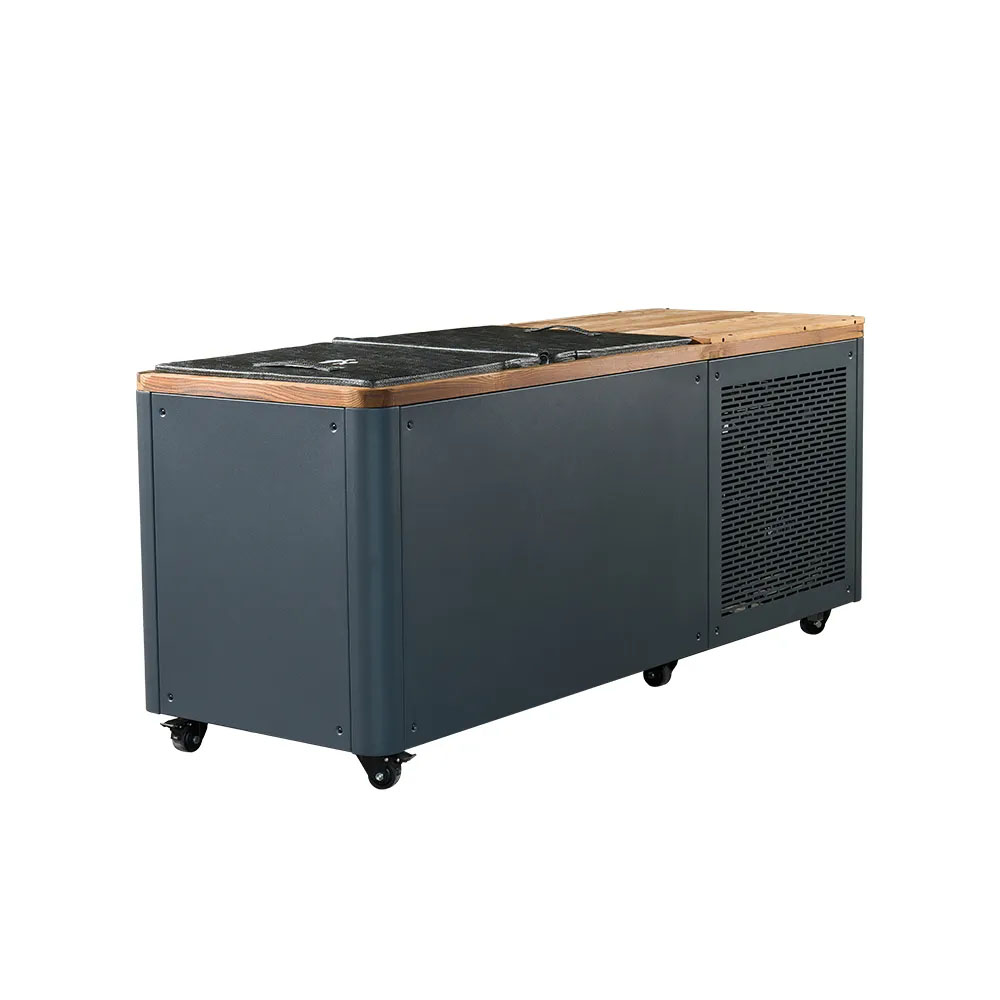

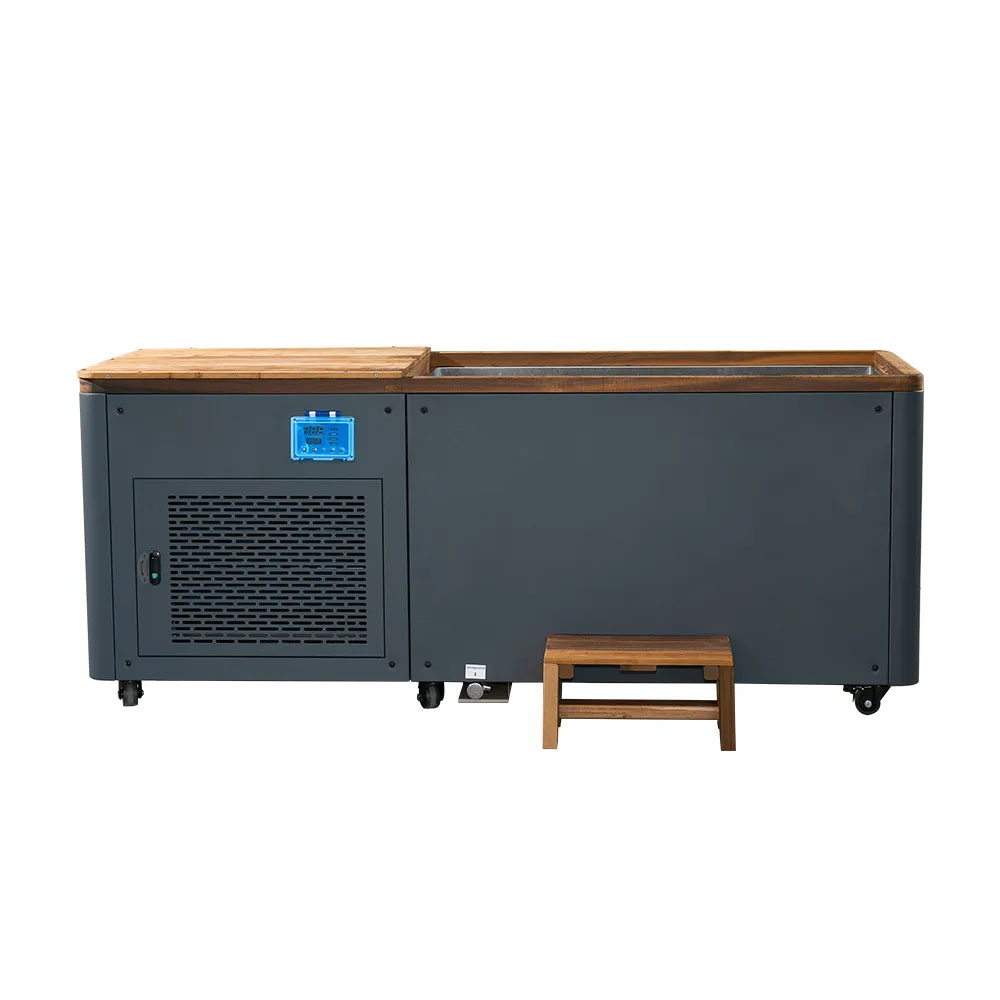

Bathtub:

• External dimensions: 210 × 730 × 870 mm

• Internal insert dimensions: 1200 × 610 × 760 mm

• Capacity: 300–500 L

• Number of seats: 1

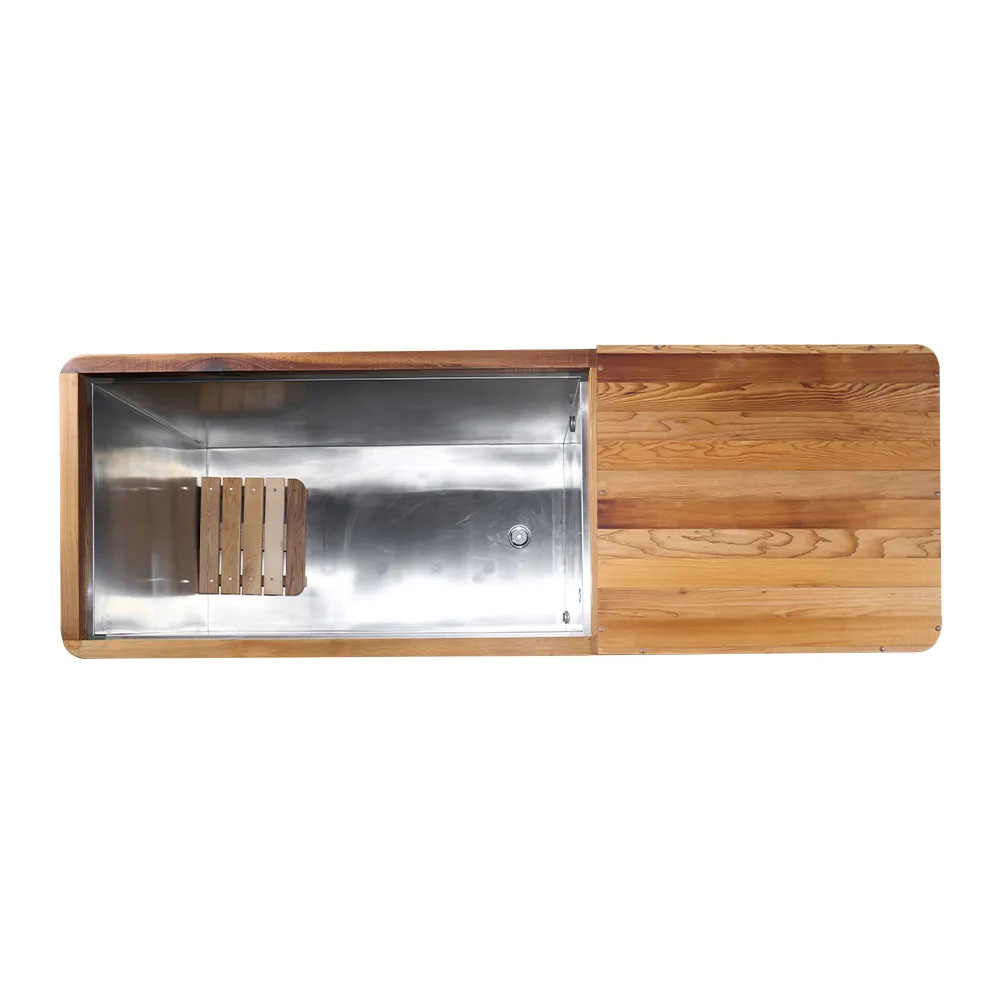

• Insert material: stainless steel

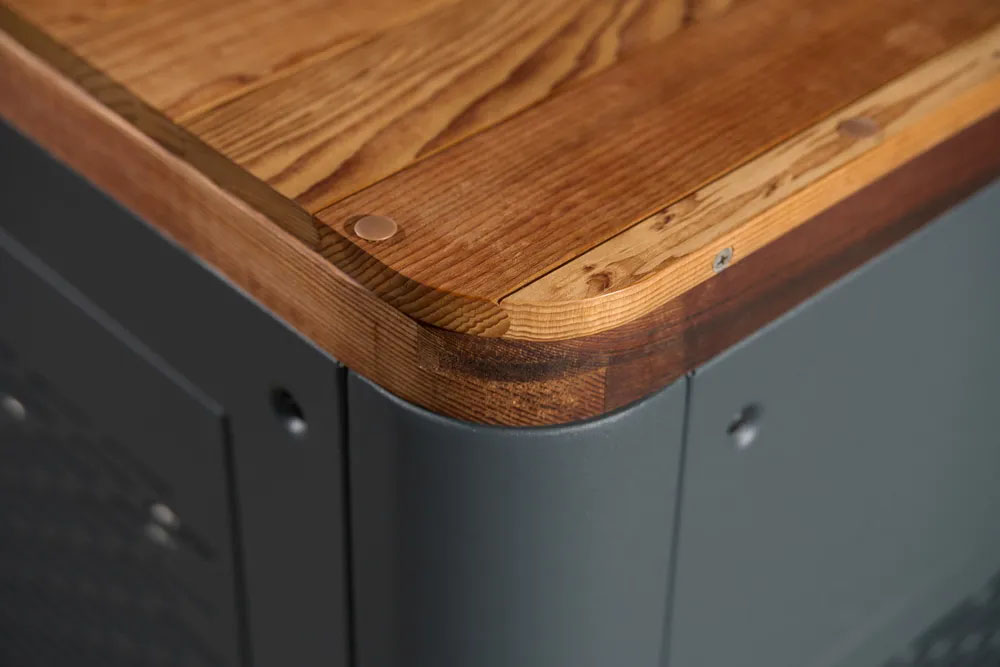

• Cladding: stainless steel, pine wood (Pinia Thermo)

• Cladding colour: matte black

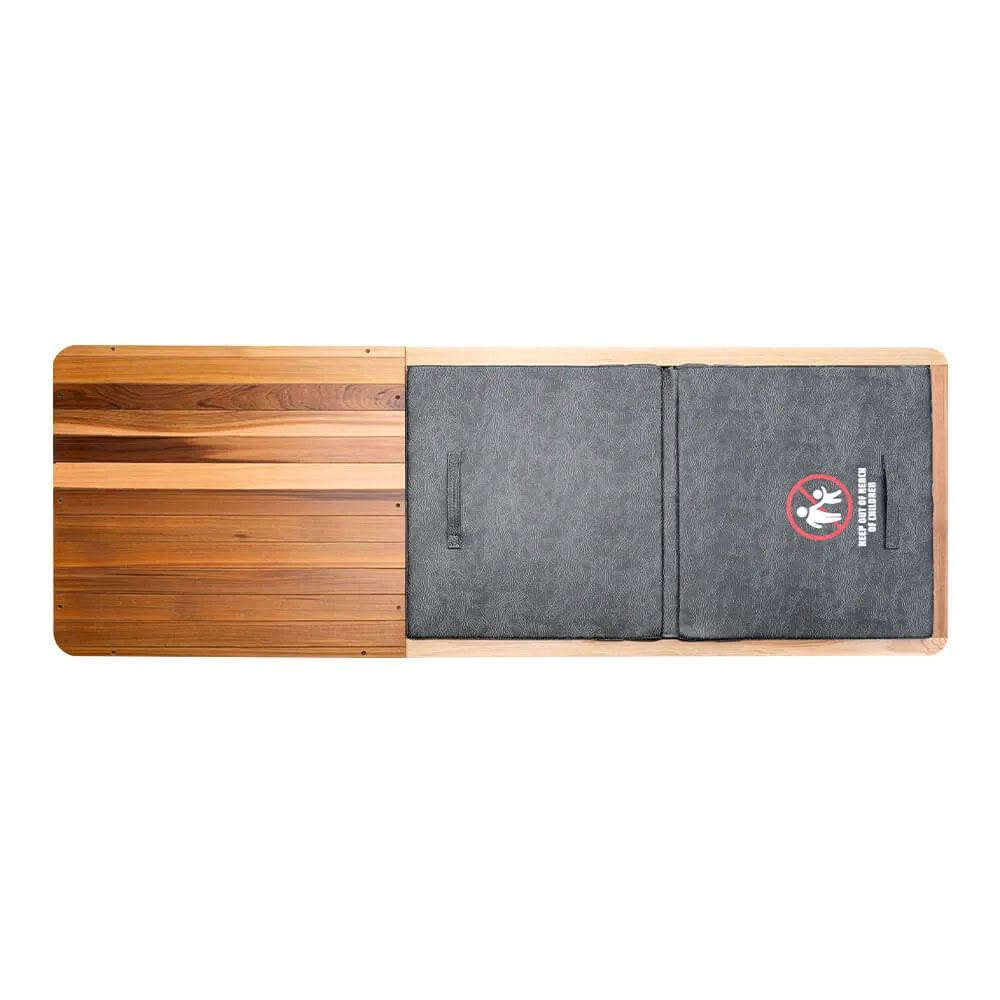

• Thermal insulation cover: yes (foldable)

• Structural reinforcement: steel clamp around the cladding

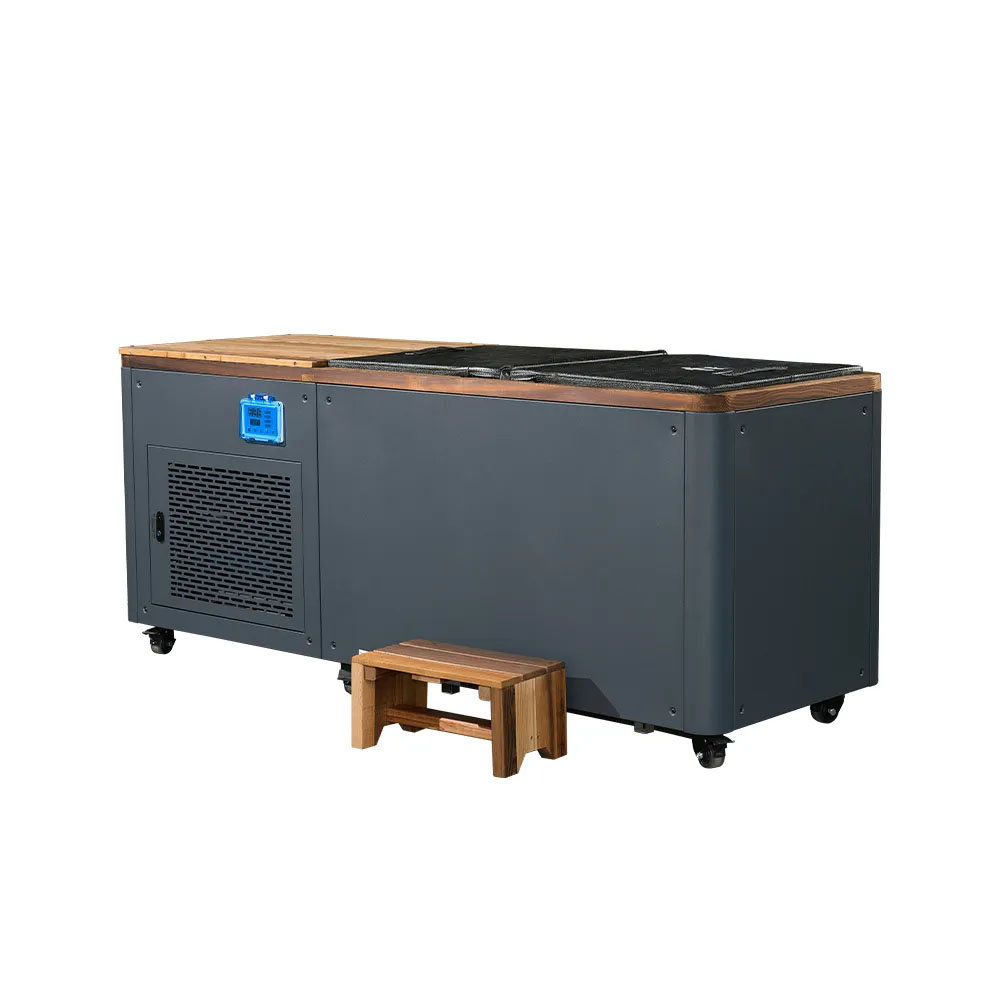

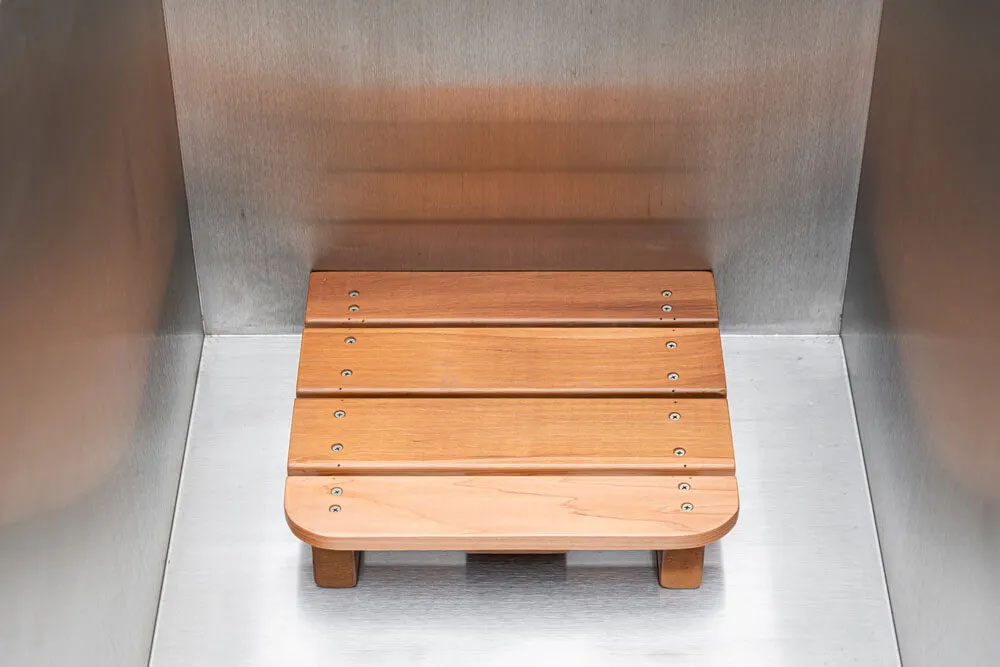

• Entry steps: yes

• Water treatment system: filtration + ozonation

• Mobility: 4 transport wheels

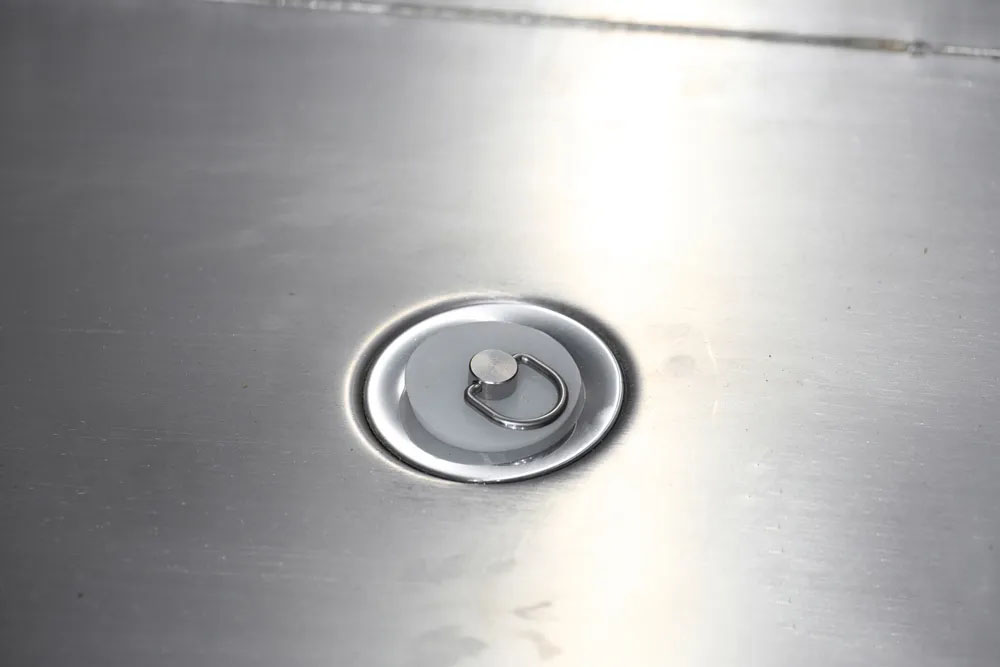

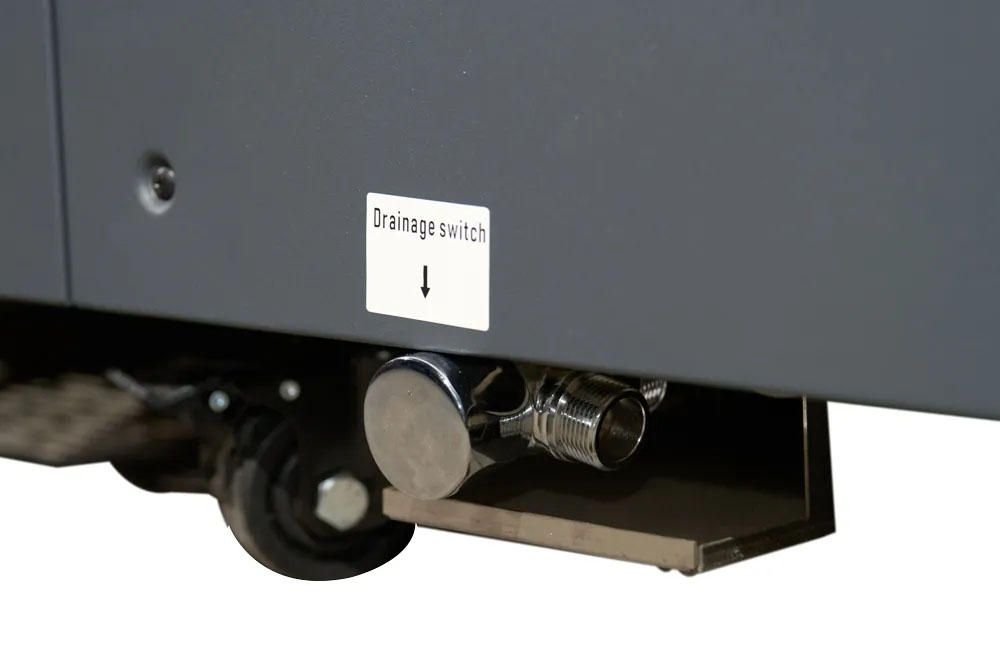

• Drain plug: silicone / stainless steel

Chiller (Cooling Unit):

• External dimensions: 700 × 450 × 495 mm

• Power supply: 220–240 V / 50 Hz

• Pump power: 1 HP (0.75 kW)

• Water capacity: 300–700 L

• Cooling capacity: 2600 W

• Heating capacity: 3000 W

• Nominal cooling power: 1050 W

• Nominal heating power: 1150 W

• Cooling current: 4.8 A

• Heating current: 5.8 A

• Operating pressure (S.S./D.S.): ≤0.8 / 2.5 MPa

• Cooling range: 3–40°C

• Default temperature: 25°C

• Ambient temperature range: –7 to 42°C

• Cooling performance: 0.75 kW (temperature reduction approx. 4–5°C per hour per 1 litre of water)

• Temperature settings range: 3–40°C

• Refrigerant: R290 / 550 g

• Water filter: built-in

• Heating and cooling functions: yes (both modes)

• Noise level: <52 dB

• Net weight: 49 kg

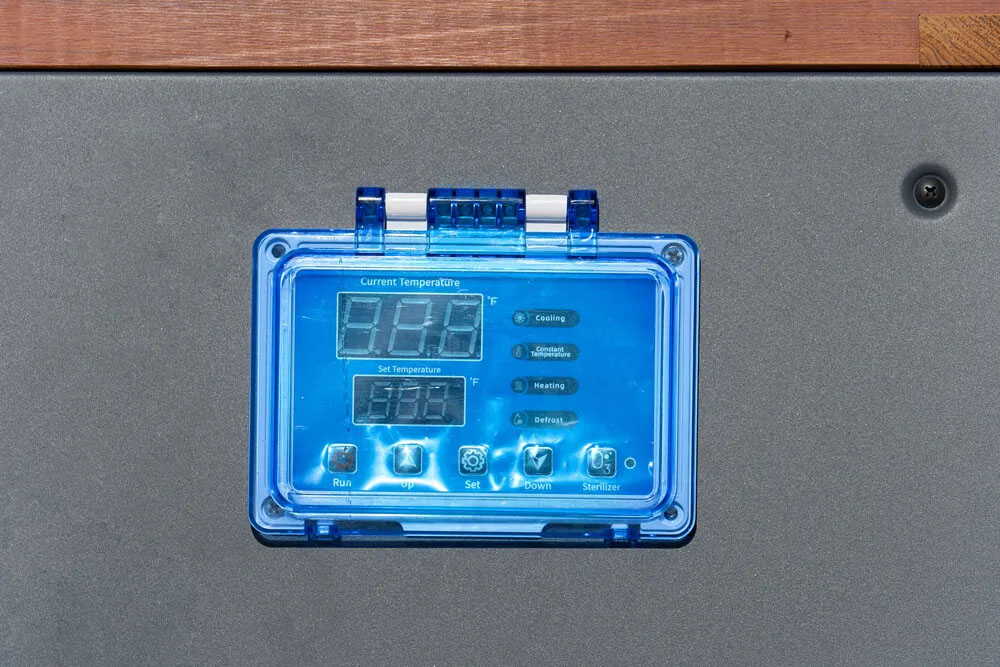

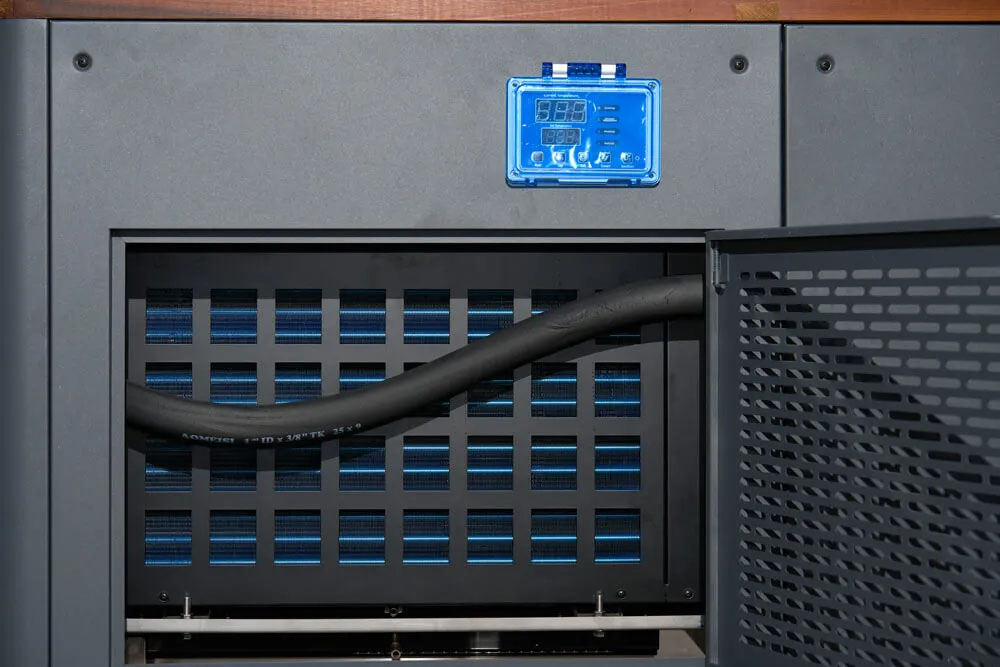

• Control: digital panel + mobile app (Wi-Fi)

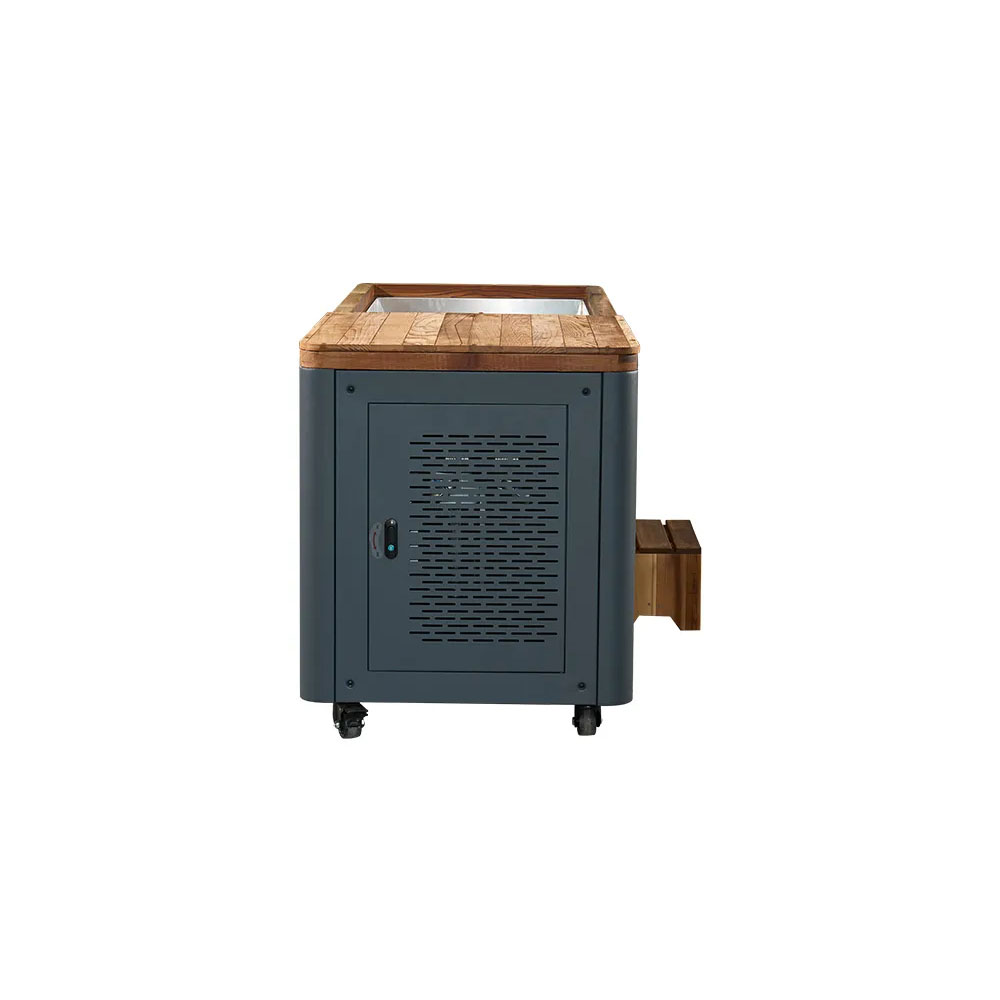

• Cooling system: integrated compressor with louvre ventilation

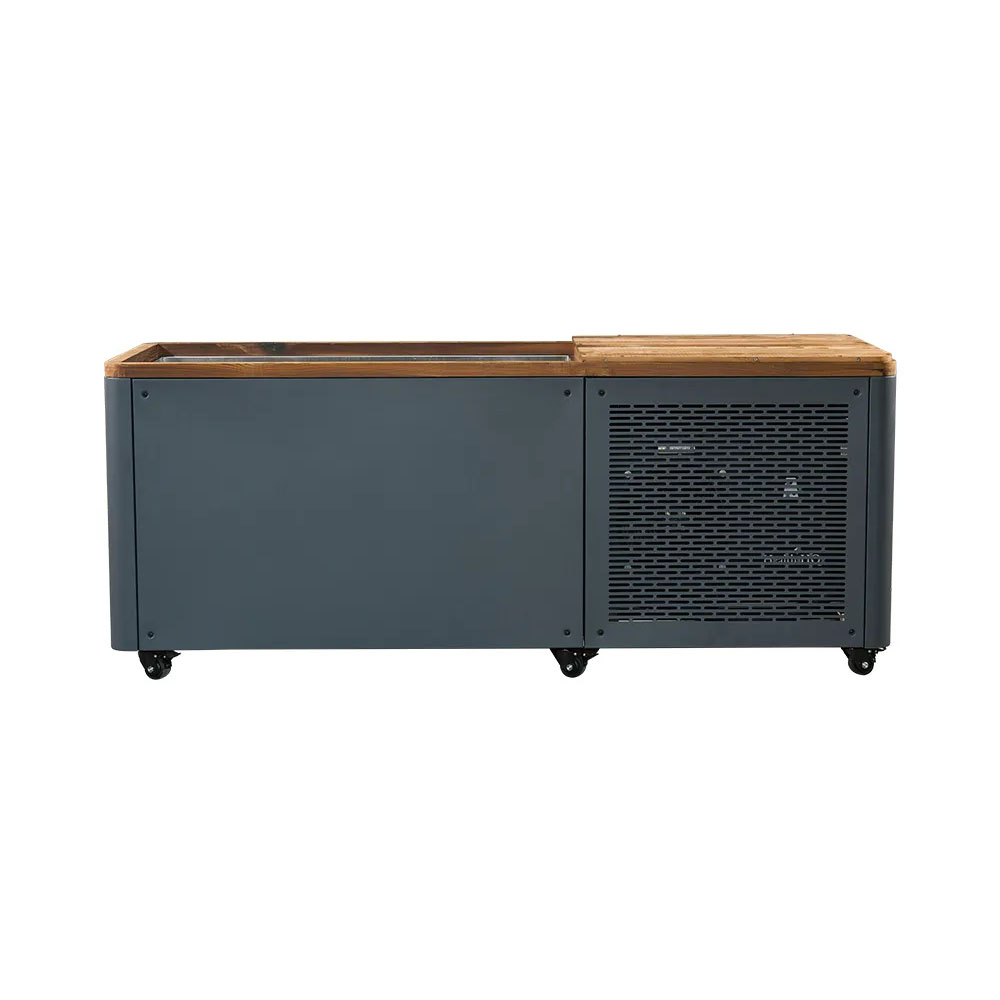

• Ventilation: external louvres for efficient heat dissipation

• System protection: design prevents chiller overheating
