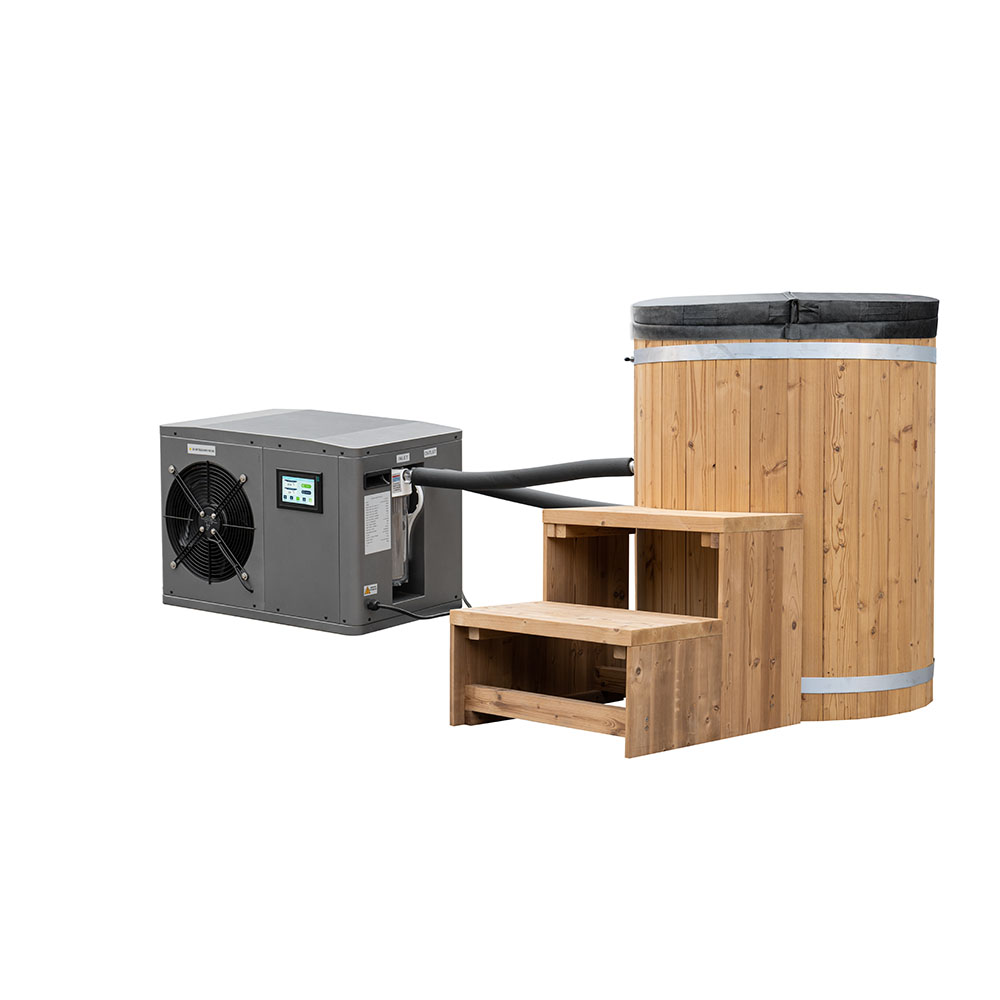

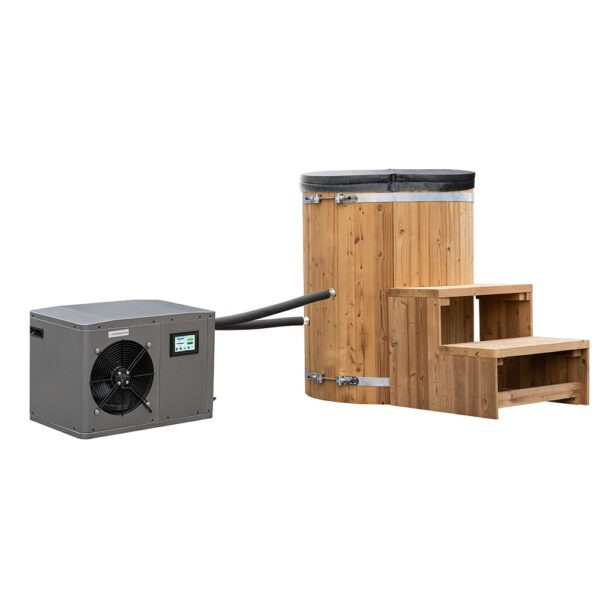

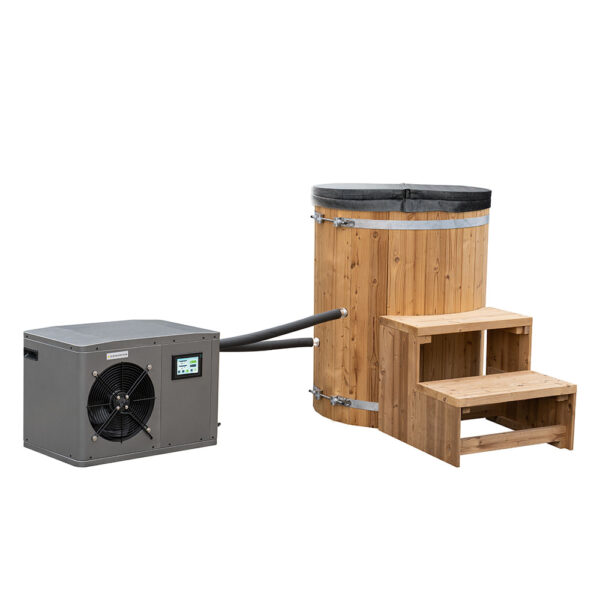

Cold Plunge Ice-bath Northwood 1100PS

Description

PRODUCT SPECIFICATION

Tub:

• External dimensions: 85 × 85 × 100 cm

• Capacity: 500 L

• Seating: 1 person

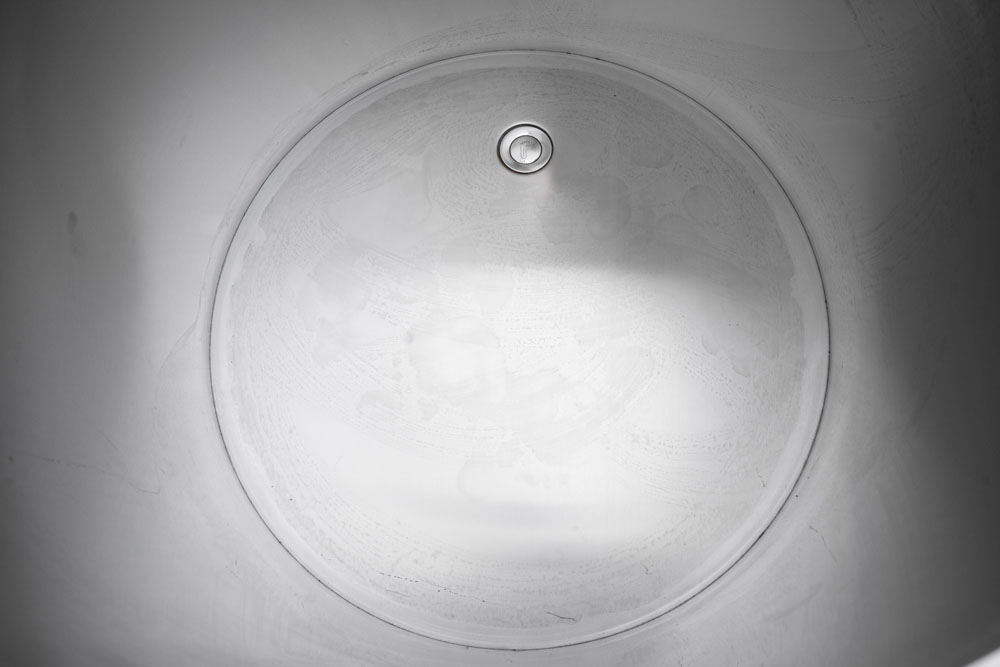

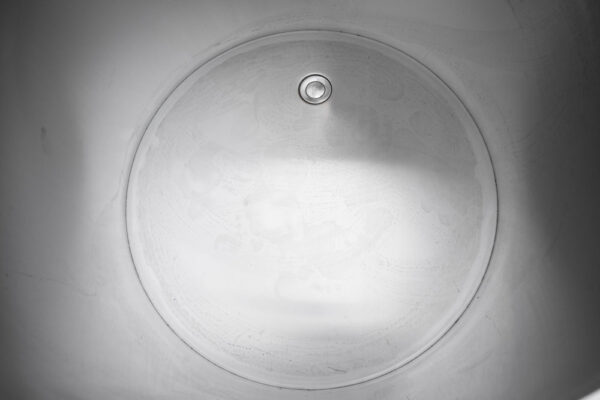

• Inner material: Stainless steel

• Cladding: Thermowood pine, protected with wood wax oil

• Insulated cover: Yes (foldable)

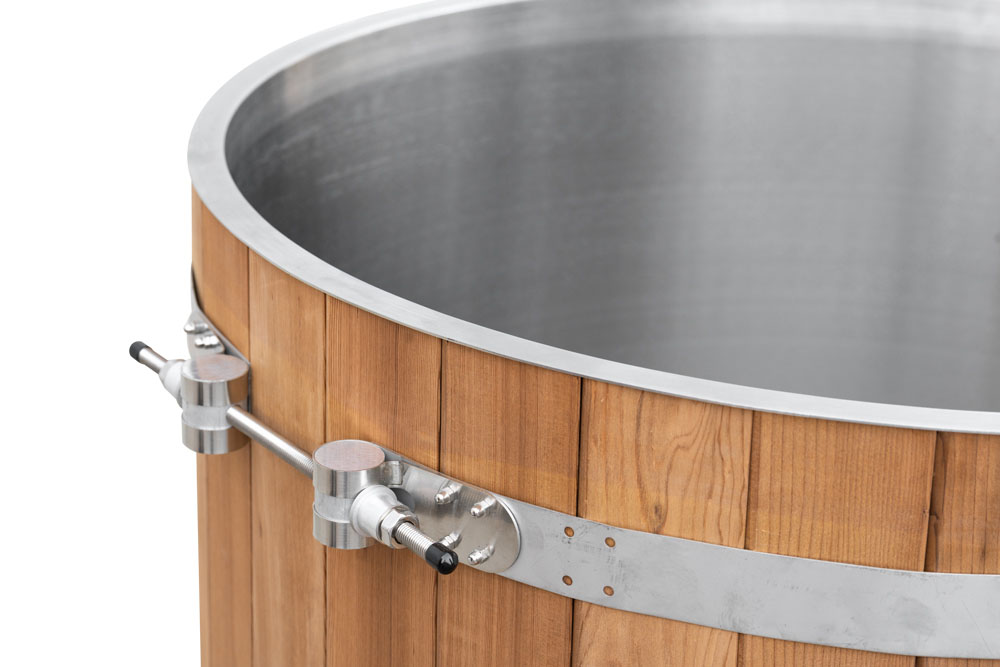

• Construction reinforcement: Steel band around the tub

• Entry steps: Yes (two-step)

• Water treatment system: Filtration + ozonation

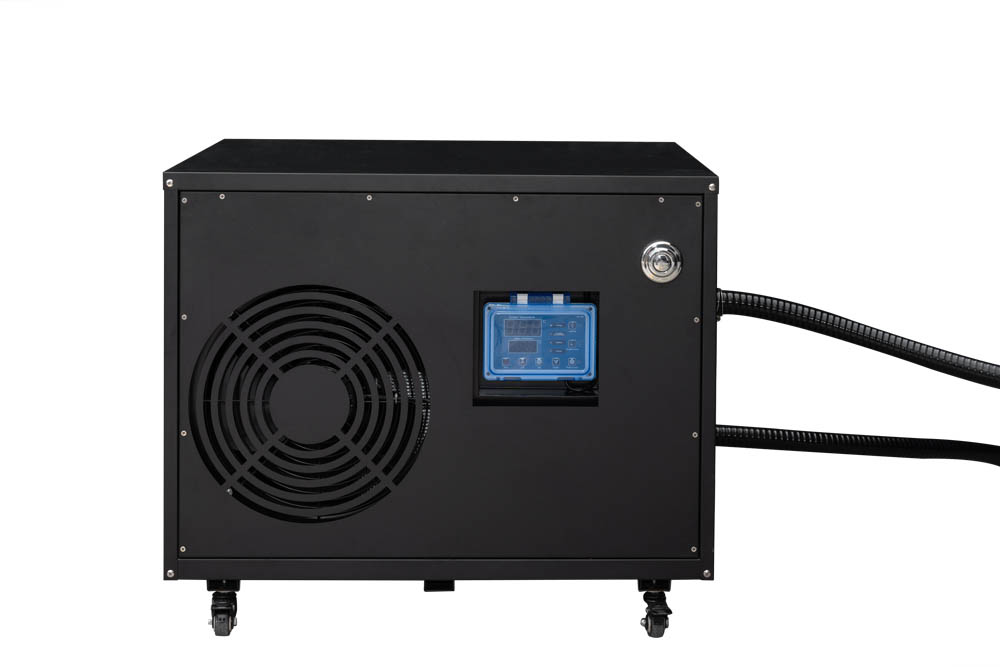

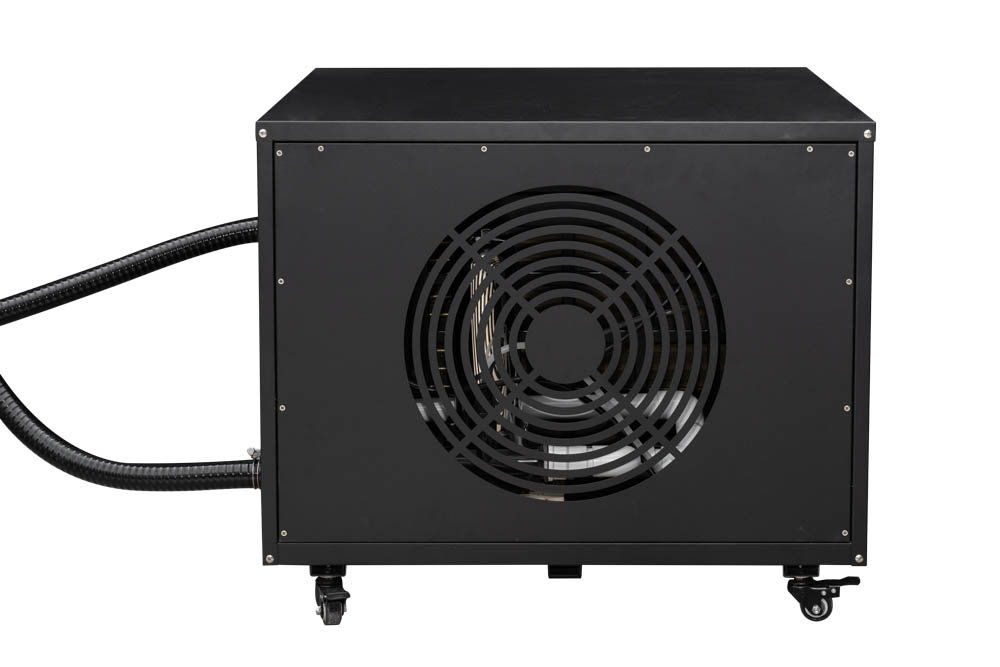

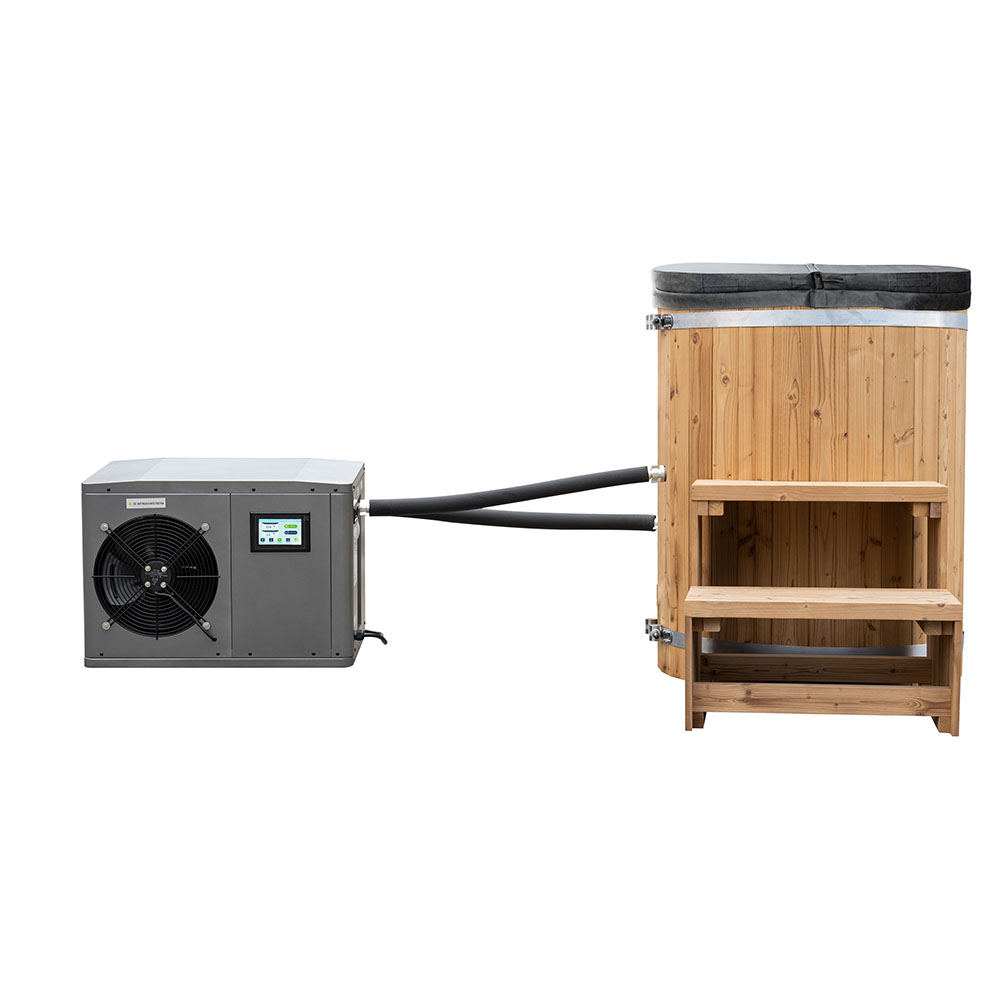

Chiller (Cooling Unit):

• External dimensions (with casing): 76 × 66 × 65 cm

• External dimensions (without casing): 70 × 45 × 49.5 cm

• Power supply: 220–240 V / 50 Hz

• Pump power: 1 HP (0.75 kW)

• Water capacity: 300–700 L

• Cooling efficiency: 2600 W

• Heating efficiency: 3000 W

• Nominal cooling power: 1050 W

• Nominal heating power: 1150 W

• Cooling current: 4.8 A

• Heating current: 5.8 A

• Operating pressure (S.S./D.S.): ≤0.8 / 2.5 MPa

• Cooling range: 3–40°C

• Default temperature: 25°C

• Ambient temperature range: –7 to 42°C

• Cooling capacity: 0.75 kW (temperature drop of approx. 4–5°C/hour per 1 liter of water)

• Temperature setting range: 3–40°C

• Refrigerant: R290 / 550 g

• Built-in water filter: Yes

• Heating and cooling functions: Yes (both modes)

• Noise level: <52 dB

• Net weight: 49 kg

• Mobility: 4 transport wheels

• Control system: Digital panel + mobile app (Wi-Fi)

• Cooling system: Integrated unit with louvered ventilation

• Ventilation: External louvers for enhanced heat dissipation

• System protection: Anti-overheating construction
